X-600 1D Laser Wireless Handhold Barcode Scanner
●Using a high-speed laser scanning engine to efficiently read various ultra long 1D barcode
●Compatible with many kinds of device/system, plug and play
●LED indicator light and beep sound for quick feedback on working conditions
●Can read up to 100bytes Febraban(Brazil Bank Code)
●Support 2.4G wireless and wired mode, suitable for all kinds of using application
●Support wireless inventory, can save 500,000bytes
● Decoding Capability
1D Code:.
Code25-Interleaved,Code25-Standard,Code25-Matri,Code39,Code93,Code128,EAN/GS1/UCC128,Codabar,EAN/JAN-13,UPC-A,EAN-8,Code11,UPCE.
*Scanning mobile phone screen barcode is not supported..
X-600_Product Catalogue
PDF(4.2MB)
X-600_User Manual
PDF(3.4MB)
Details
Parameter
Video
FAQ

X-9100 1D Laser Wired Handhold Barcode Scanner.pngX-520AT-1D Automatic Laser Wired Handhold Barcode Scanner With Stand.pngX-9100N 1D Laser Wired Handhold Barcode Scanner.pngX-600-2222.pngX-620F 1D Laser Wireless Handhold Barcode Scanner.pngX-660B 1D Laser Wireless Bluetooth Handhold Barcode Scanner.png
ModelX-9100X-520ATX-9100NX-600X-620FX-660B
Precision3mil3mil4mil3mil3mil3mil
Decoding speed300300400300300300
Reading ModeLaserLaserLaserLaserLaserLaser
Transmission distance≤1.8M≤1.8M≤1.8M≤80M≤80MWireless≤80M
BT≤10M
Decoding Capability1D Paper Bar code
1D Screen Bar code××××××
2D Paper Screen Code××××××
ConnectionsUSB
Wireless×××
BT×××××
Work patternInstant Upload Mode
Storage Mode×××
Scanning ModeManual Trigger
Continuous Scanning×
Auto-sensing×××××
Battery Capacity///800mAh800mAh800mAh
Continuous working time///24H24H24H
storage space///512K512K512K
Anti-Shock1.5M1.5M1.5M1.5M1.5M1.5M
IPIP52IP52IP52IP52IP52IP52
Vibration××××××
Buzzer NO/OFF
Compatible DevicesPC
Laptop
Pos
PC
Laptop
Pos
PC
Laptop
Pos
PC
Laptop
Pos
PC
Laptop
Pos
PC
Laptop
Phone
Tablet
Pos
Compatible SystemWIN XP/7/8/10
Mac OS
AndroidIOS
Linux
WIN XP/7/8/10
Mac OS
AndroidIOS
Linux
WIN XP/7/8/10
Mac OS
AndroidIOS
Linux
WIN XP/7/8/10
Mac OS
AndroidIOS
Linux
WIN XP/7/8/10
Mac OS
AndroidIOS
Linux
WIN XP/7/8/10
Mac OS
Android
IOS
Linux




X-600 1D Laser Wireless Handhold Barcode Scanner_01.jpg


Product Advantage
Product features

●Using a high-speed laser scanning engine to efficiently read various ultra long 1D barcode

●Compatible with many kinds of device/system, plug and play

●LED indicator light and beep sound for quick feedback on working conditions

●Can read up to 100bytes Febraban(Brazil Bank Code)

●Support 2.4G wireless and wired mode, suitable for all kinds of using application

●Support wireless inventory, can save 500,000bytes

Decoding Capability

1D Code:

Code25-Interleaved,Code25-Standard,Code25-Matri,Code39,Code93,Code128,EAN/GS1/UCC128,Codabar,EAN/JAN-13,UPC-A,EAN-8,Code11,UPCE

*Scanning mobile phone screen barcode is not supported.

Applicable Place

● Express logistics

● Warehouse

● Shopping

● Supermarket

● Medical treatment

● Industry

Export Country

Europe: Italy, Germany, Spain, Poland

South: America: Brazil, Paraguay, Chile

North: America: Mexico

Asia: India, Israel



ModelX-600
ItemWireless 2.4G Lser Barcode Scanner
Physical Parameter
MaterialABS+PVC+PC
Power SupplyCharge 5V ±5% ;3.7V  1500mAH  lithium-ion battery
 Operating Current50mA(working);30mA(standby);100mA(maximum)
Maximum Power Consumption0.5W
Weight169g±5g(Without cable)

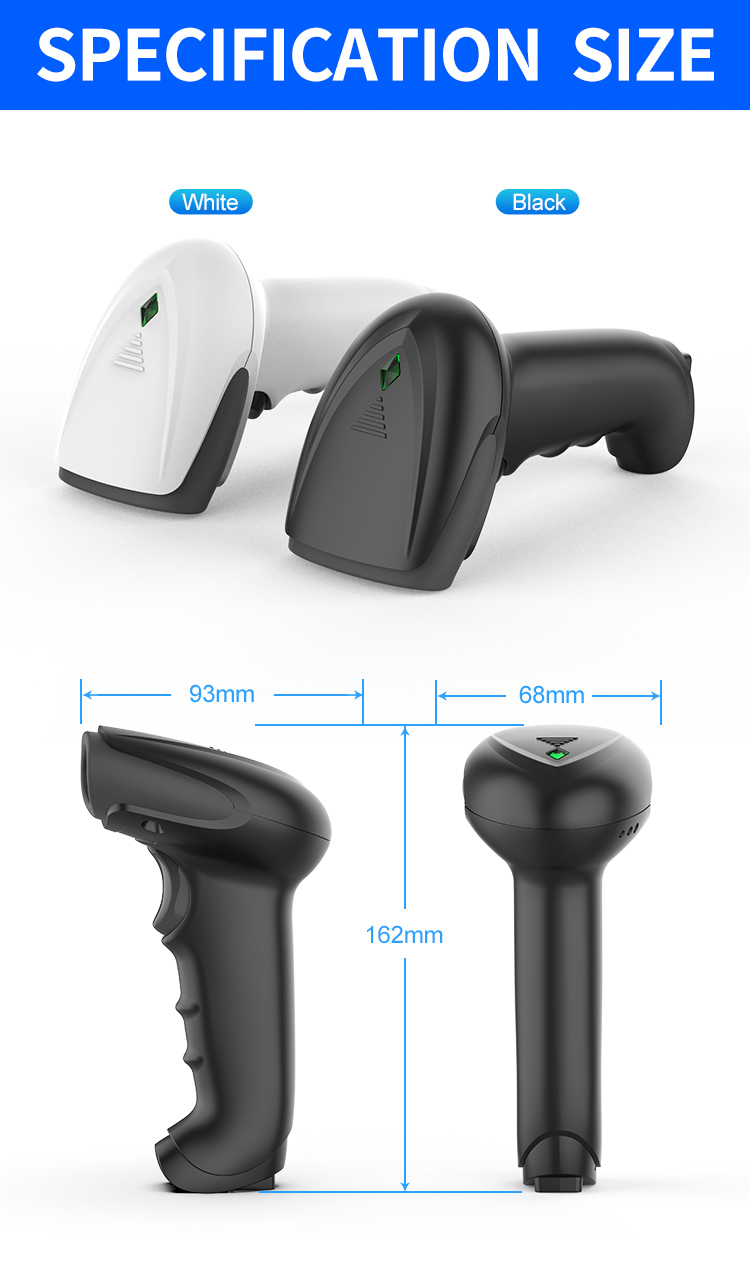

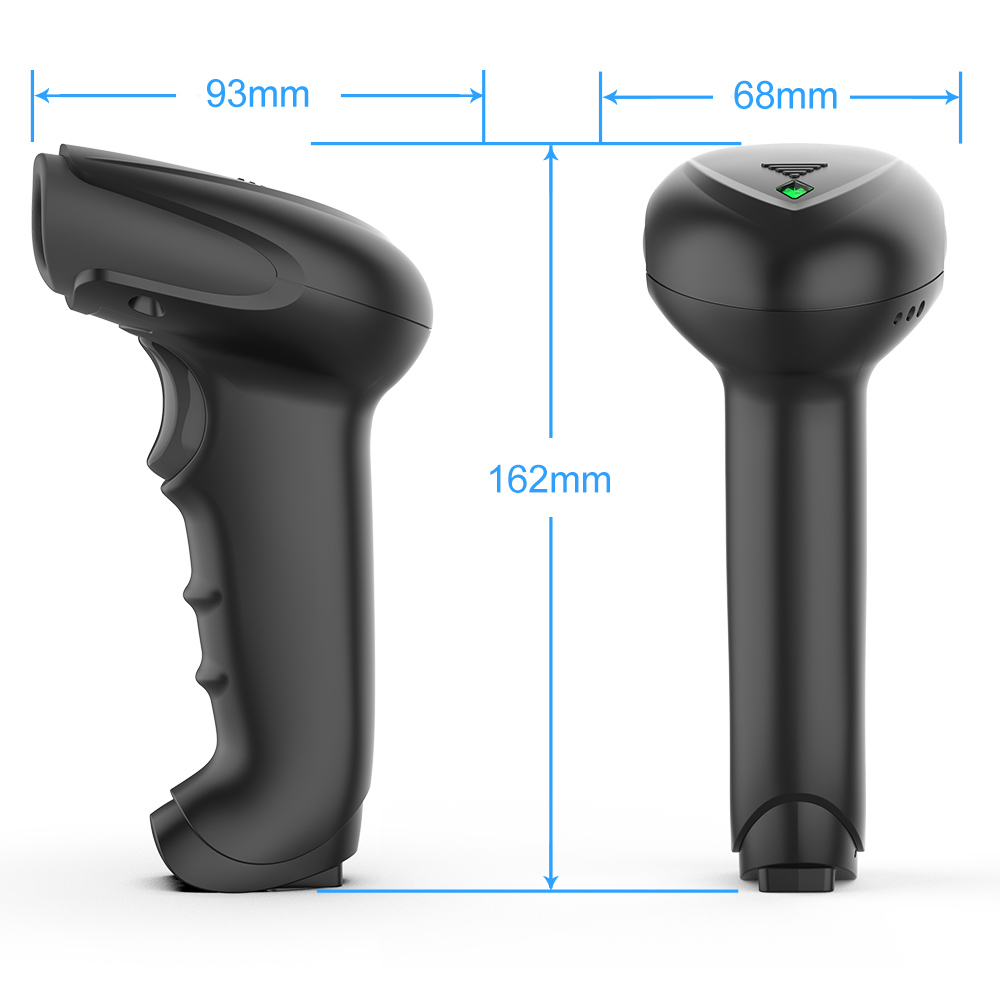

SizeL*W*H:162 * 68 * 93(unit:mm)
ColorBlack,white
Button Lifespan>100000times
Performance Parameter
InterfaceUSB cable;Wireless 2.4G transmission
System SupportedLinux,Android,Windows XP、7、8、10,MAC
Language SupportedEnglish(language can be customized)
Light SourceVisable laser 650nm
Processor32-bit MCU
Storage64K(About 3500 14b 1D barcodes)(the memory capacity can be customized)
Scanning Speed120times/sec
Resolution4mil
Transmission Distance10m
Bit Error Rate1/5000000
Reading Modelaser
Trigger ModeManual ;Continuous scanning

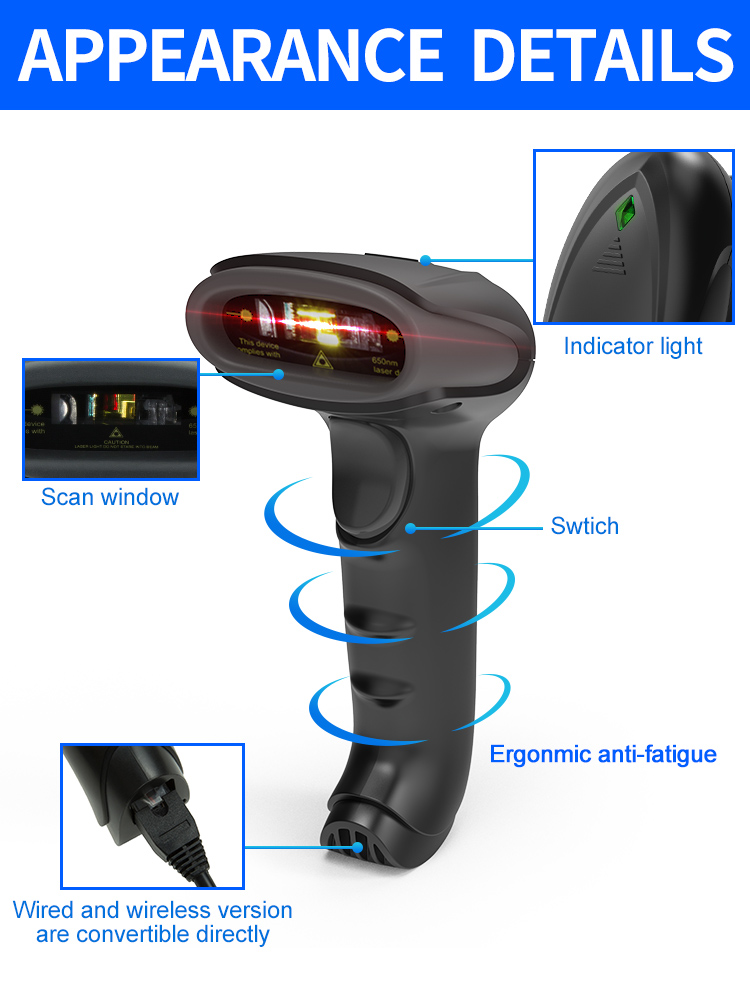

Prompt ModeBuzzer, Indicator Light(LED)
Print Contrast35%
Charging time6-7 hours

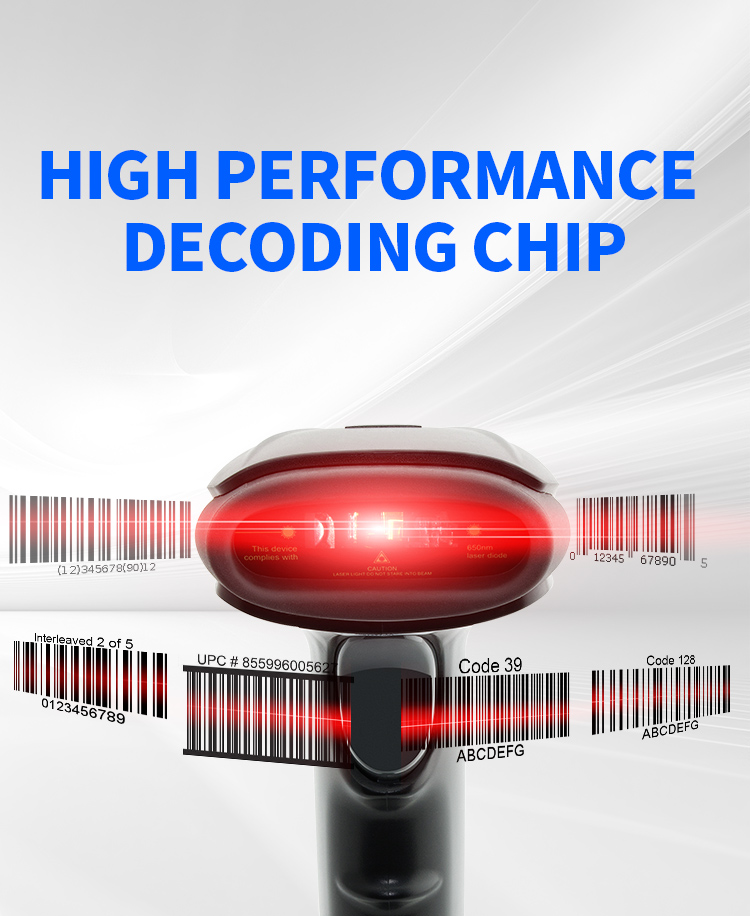

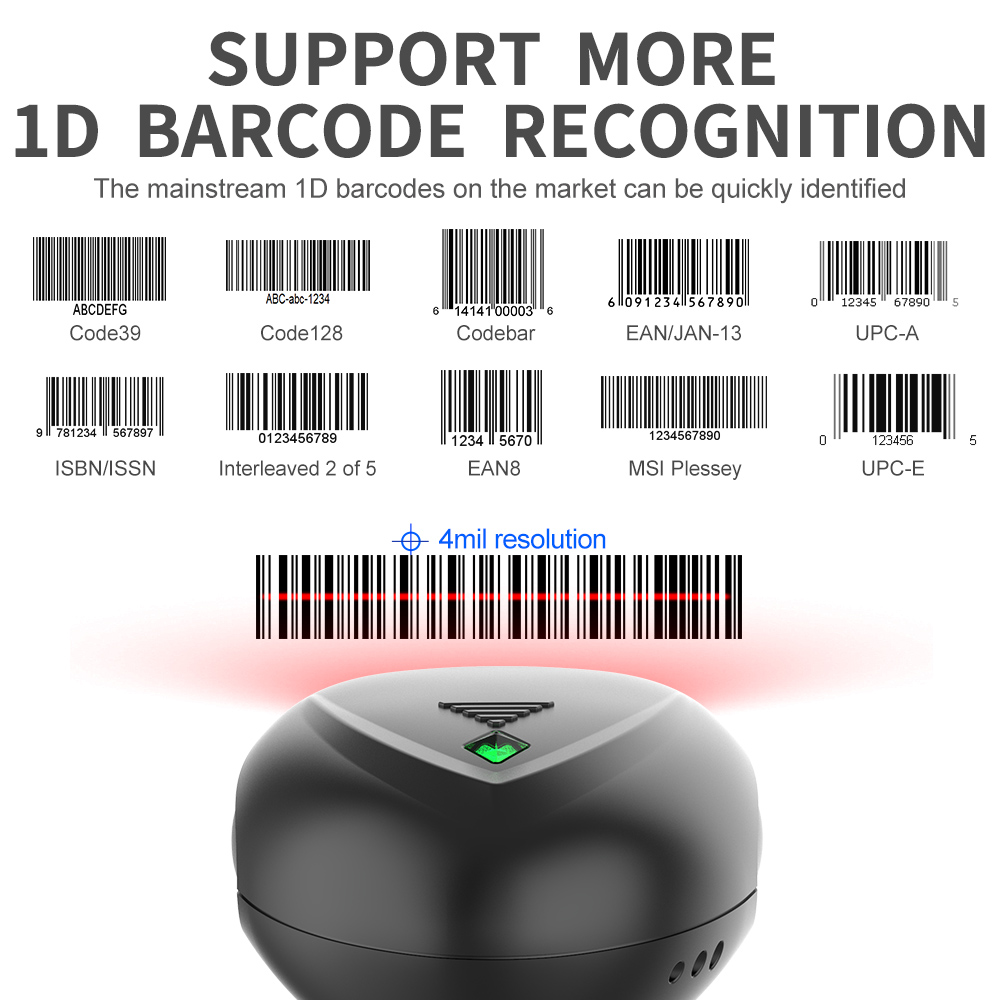

Decoding
 Capability
Code25-Interleaved    Code25-Standard        Code25-Matri
Code39-Regular        Code39-FullASCII       Code32
Code93-Regular        Code93-FullASCII       Code128
EAN/GSL/UCC-128Auto   Codabar                MSI
EAN/JAN-13            UPC-A                  JAN-8
Code11                UPCE0
Scanning Distance10mm-600mm
Scanning AngelRoll35°;Pitch65°;Yew65°
Scanning Depth                    Code39  5mil:3cm - 8cm
                    Code39 10mil:4cm - 45cm
Environment Parameter
IP GradeIP52
Operating Temp.0 to 50℃ / 32 to 122℉
Storage Temp.0 to 50℃ / 32 to 122℉
Operating Humidity20% to 85%(No Condensation)
Storage Humidity20% to 85%(No Condensation)
ESD Protection15KV air discharge

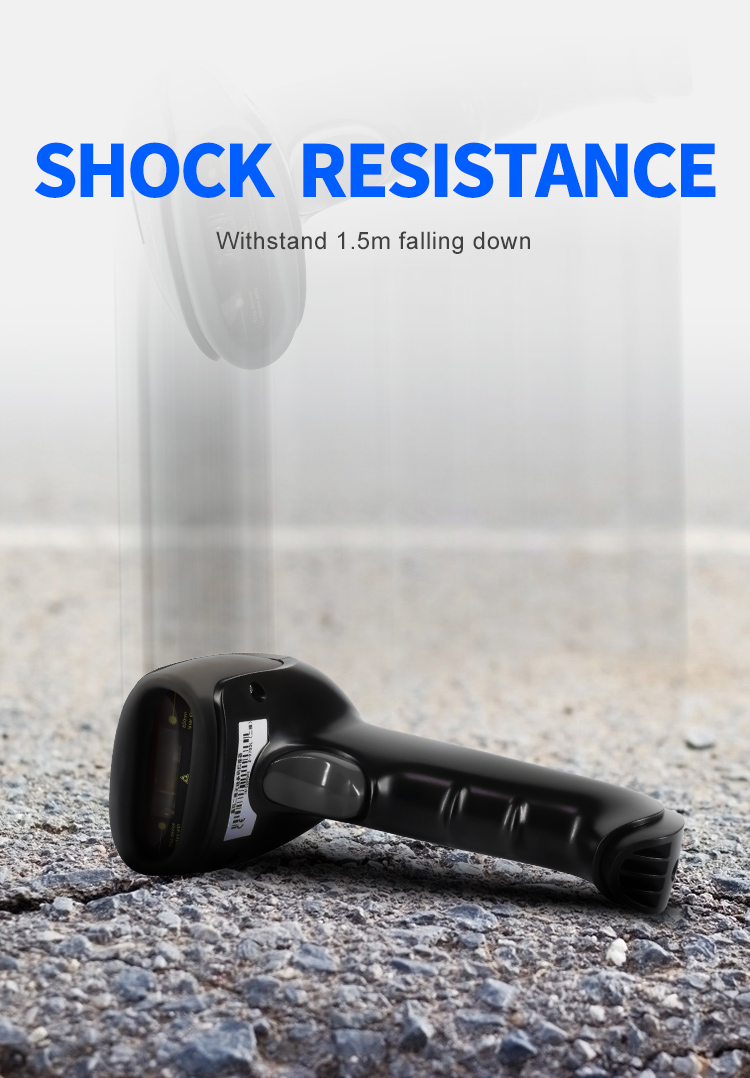

Shock Resistance1.5m free fall on concrete surface


Solutions FAQ
Q:Can not turn on or turn off immediately after turning on
A:This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged)

Q:Barcode data is not uploaded
A:The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range)

Q:There is a laser line, but can't read the bar code.
A:Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual.

Q:The scanned data is displayed incorrectly on the host
A:Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center.

Q:Other cases cannot be decoded
A:It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again.
