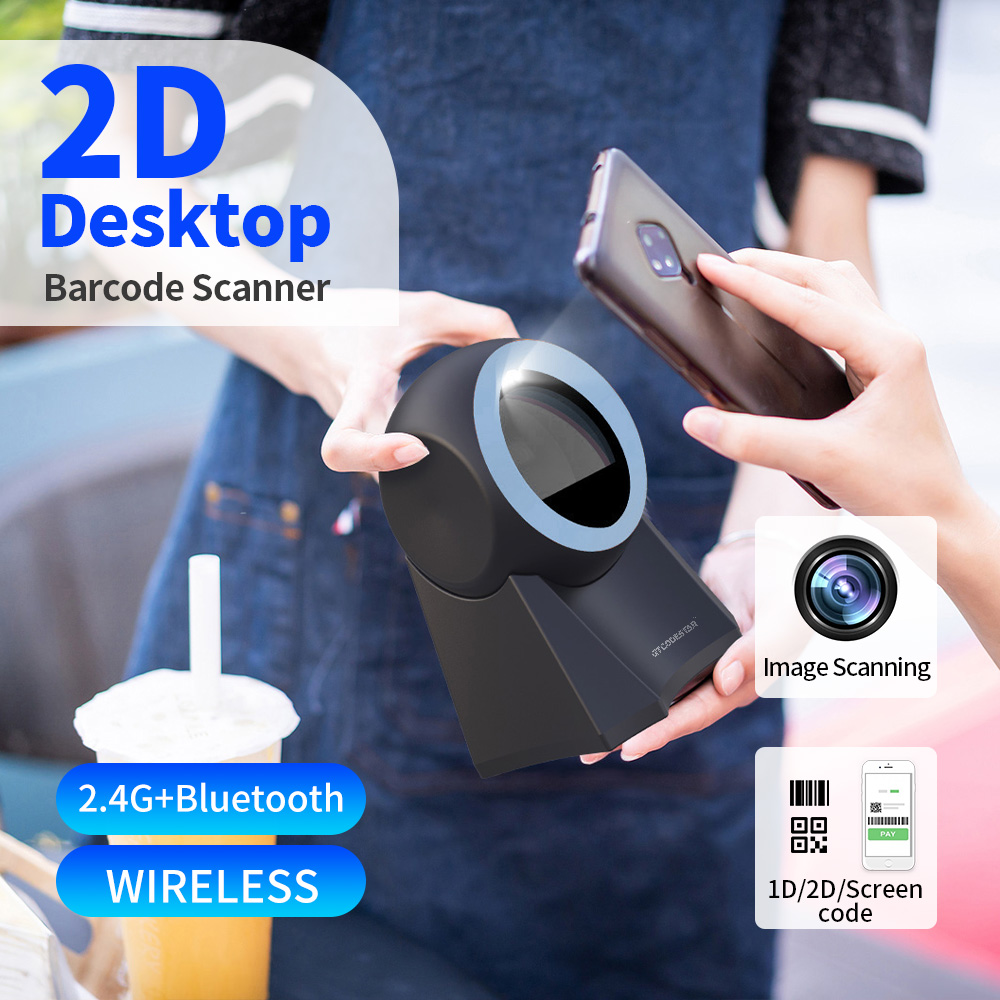

GTCODESTAR 2D Desktop Wireless USB QR Code Reader Omni-Directional Scanner for Supermarkets Tables Superstar Barcode Scanner
| GT-8800L Technical Parameter | |||||||
| Model | GT-8800L Technical Parameter | ||||||
| Item | Wireless 2D Desktop barcode scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS + PC + TPU | ||||||

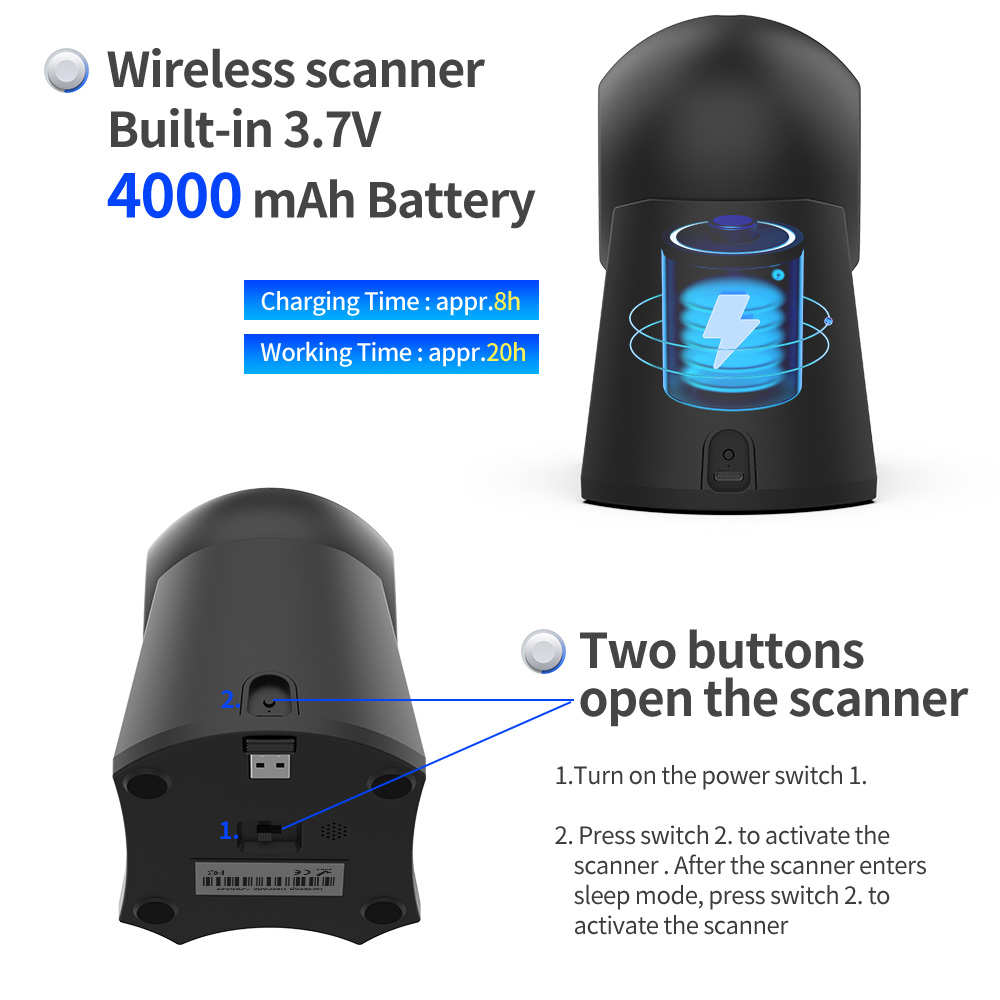

| Power Supply | DC 5V ±5% ; 3.7V 4000mA lithium battery | ||||||
| Power consumption | 0.60W(Standby); 0.35W(Operating); 1.00W(Max) | ||||||
| Weight | 386g±5g(Without cable) | ||||||

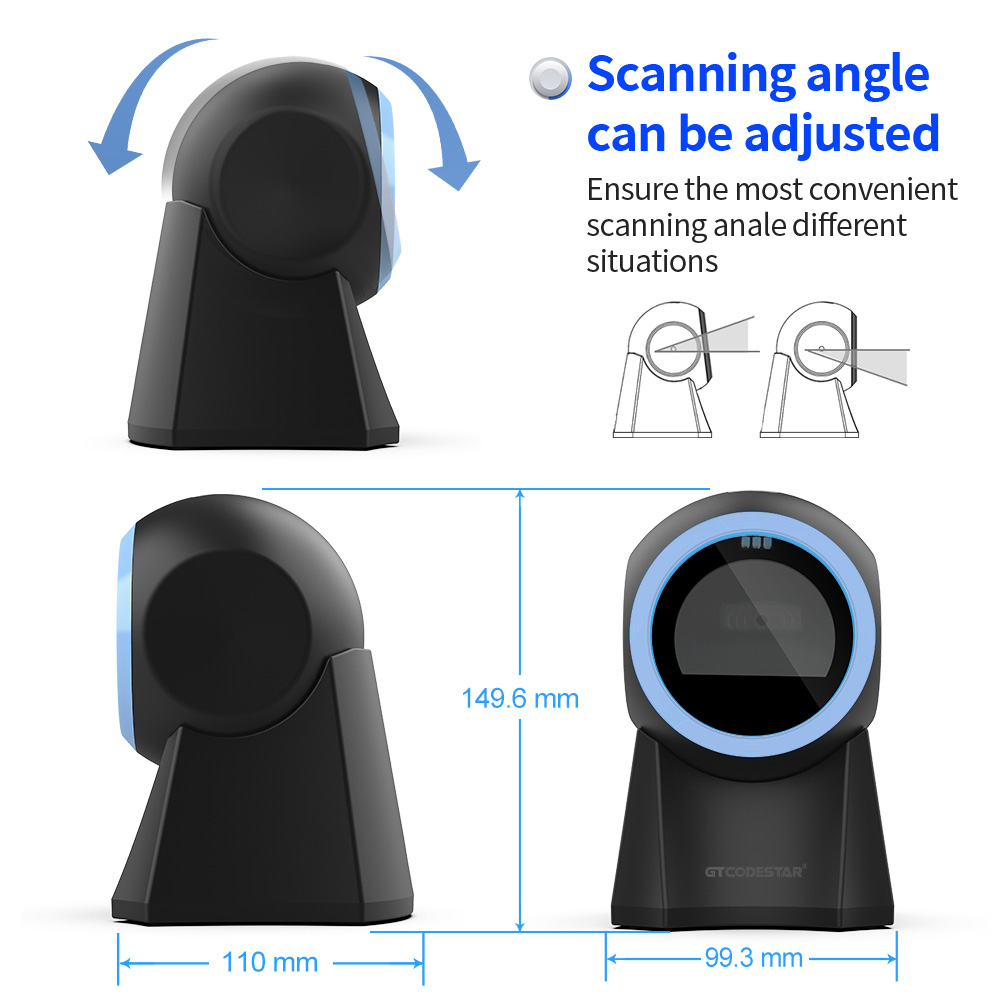

| Size | L * W * H:110.0 * 99.3 * 149.6(unit:mm) | ||||||
| Color | Black Orange | ||||||
| Key life | >100000 | ||||||
| Performance Parameter | |||||||

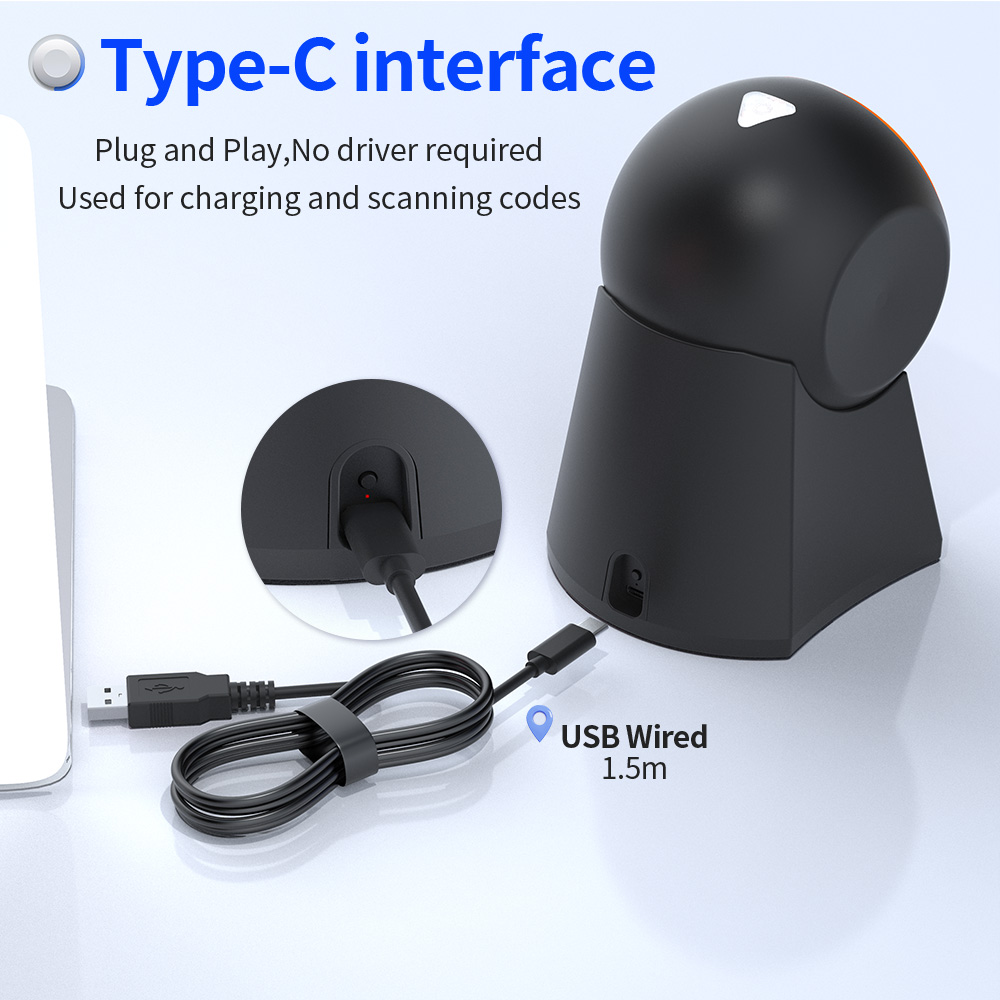

| Interface | USB;2.4G;Bluetooth | ||||||
| System supported | Linux,Android,Windows XP,7,8,10,MAC | ||||||
| Language supported | English
US; French Canada; Dutch Netherlands; Spanish International; Latin
American Argentina; Portuguese Brazil; Danish Denmark; English UK;
Italian Italy 142; French France; German Germany; Portuguese Portugal;
Finnish Finland; Turkish F; Japanese; Russian - Russia; Northern Sami - Norway [Supports keyboards from multiple countries] | ||||||
| Sensor | CMOS sensor 480 * 640 | ||||||
| Processor | 32-bit ARM MCU | ||||||
| Storage | 512 KB(customizable) | ||||||
| Light Source | White LED Light | ||||||
| Motion Tolerance | Code39: 25cm/sec QR: 35cm/sec | ||||||

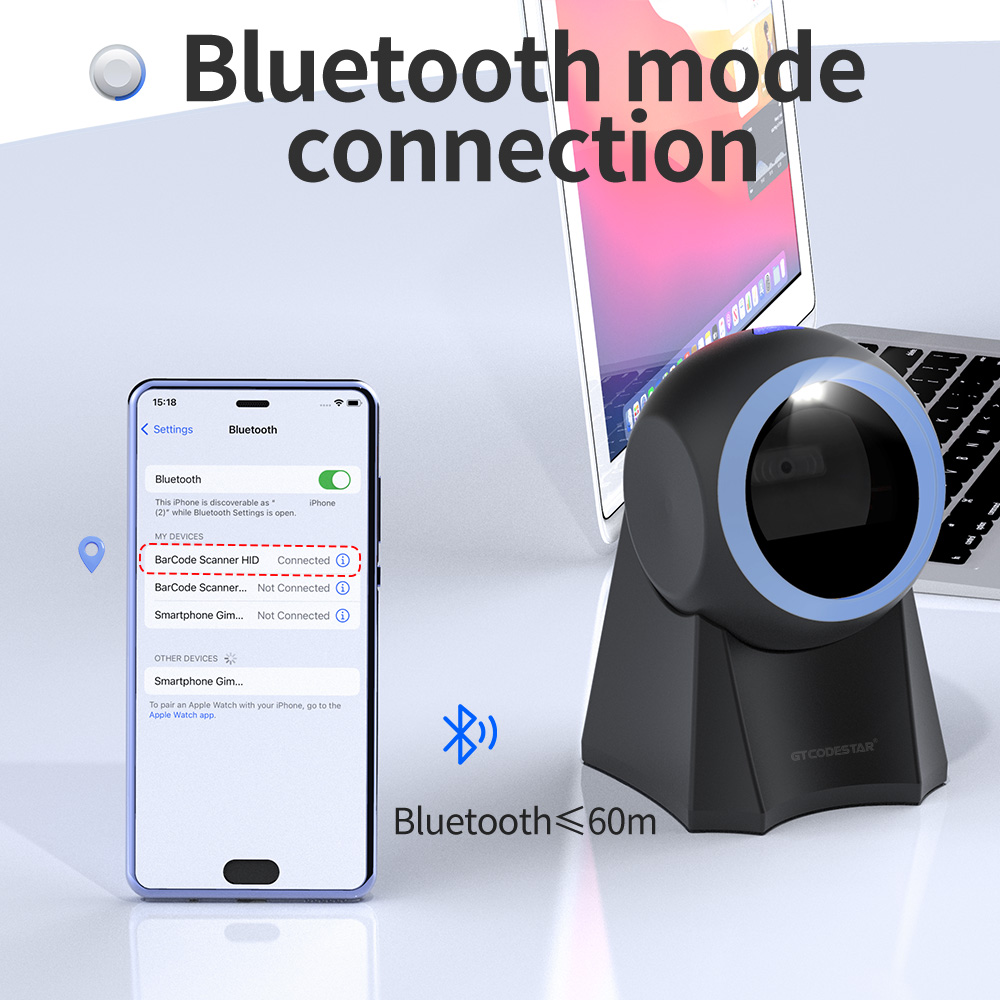

| Wireless transmission distance | 2.4G≤90m(Visible range) Bluetooth≤60m(Visible range) | ||||||
| Reading Mode | Image | ||||||
| Resolution | ≥5mil | ||||||
| Error Rate | 1/5000000 | ||||||
| Reading Mode | Image | ||||||

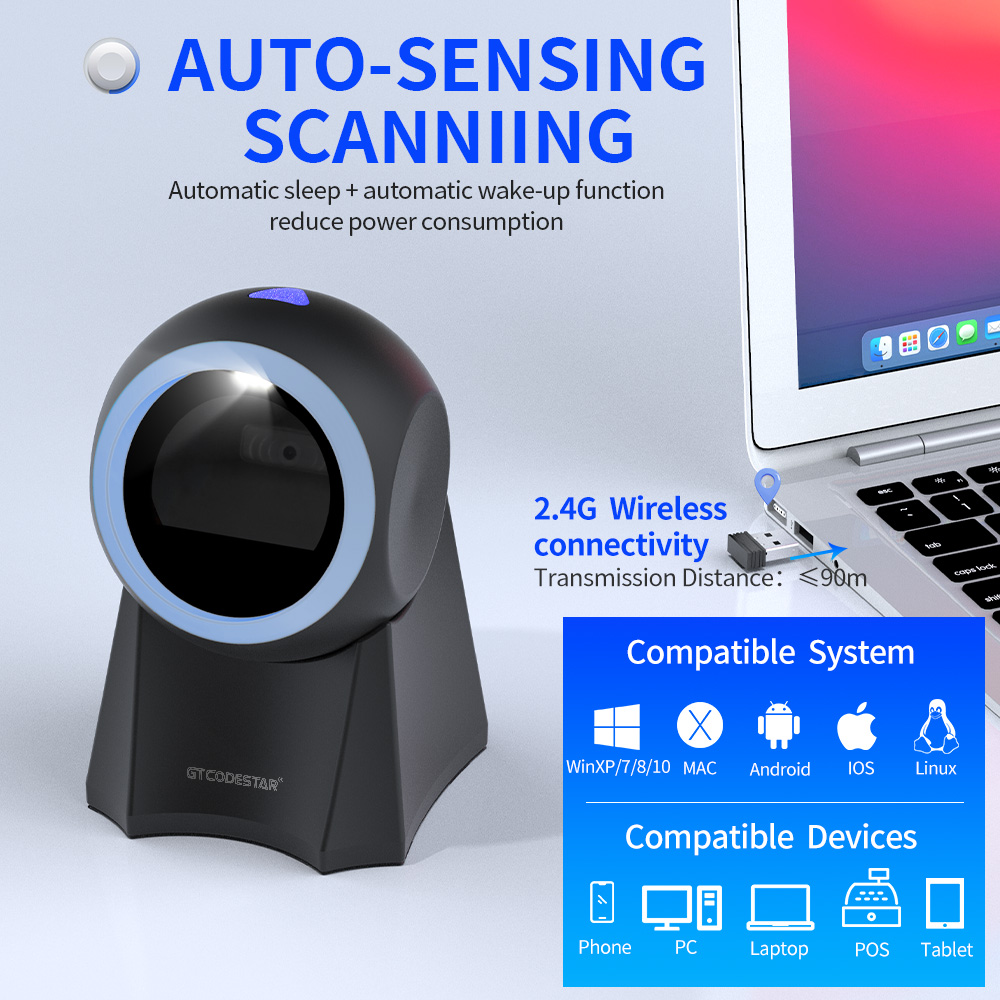

| Triggle Mode | Auto-sensing | ||||||
| Prompt Mode | Buzzer+Indicator Light | ||||||
| Scanning Angle | Rotate 360 °, horizontal 32 °, vertical 24 ° | ||||||
| Scan Distance | 1cm-200cm | ||||||
| Scanning distance | 0cm - 50cm | ||||||
| Print Contrast | ≥30% | ||||||
| Charging duration | appr.8h | ||||||
| Continuous working hours | appr.20h | ||||||

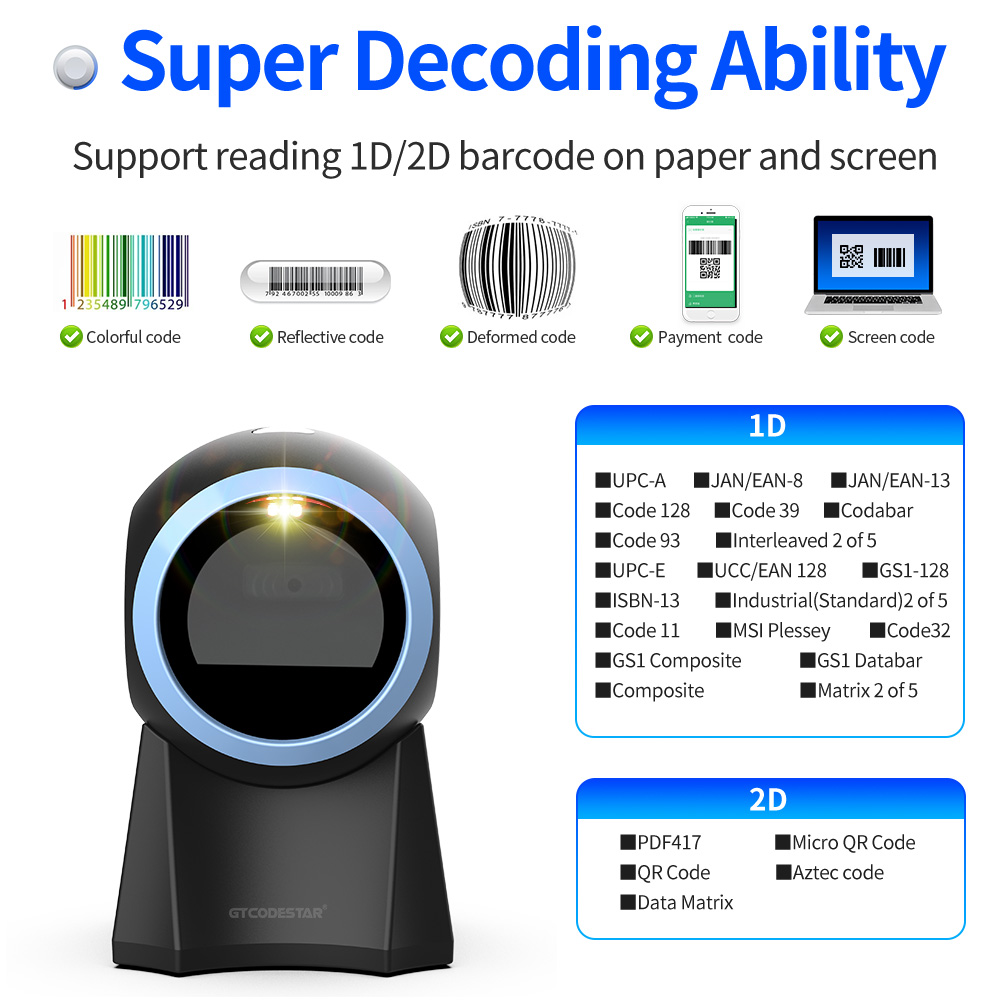

| Decoding Capability | 1D | UPC-A JAN/EAN-8 JAN/EAN-13 Code 128 Code 39 Codabar Code 93 Interleaved 2 of 5 UPC-E UCC/EAN 128 GS1-128 ISBN-13 Industrial(Standard)2 of 5 Code 11 MSI Plessey Code32 GS1 Composite GS1 Databar Composite Matrix 2 of 5 | |||||
| 2D | PDF417 Micro QR Code QR Code Aztec code Data Matrix | ||||||
| Scanning Depth | QR Code 12.50mil(7 bit):0cm - 11cm PDF417 9.17mil(7 bit):0cm -11cm Data Matrix 12.50mil(8 bit):0cm - 7cm Code 128 7.50mil(15 bit):1cm - 10cm EAN13(10mil):3cm - 12cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%(No Condensation) | ||||||
| Storage Humidity | 20% to 85%(No Condensation) | ||||||
| ESD Protection | 15KV air discharge | ||||||
| Shock Resistance | 1.5m free fall on concrete surface | ||||||
| Ambient light | 0→100000Lux | ||||||
1. How about the quality?
Professional QC team and testing machine(Engine age testing,wire bending machine,switch life testing,shock resistance testing).All the products pass CE,FCC,ROSH,FDA etc.
2. Why so competitive?
With almost 10 years experience,we owned a large domestic market in China.We are the best seller in China.So large quantity will reduce our raw material cost directly.What's more,we have mature technology to save cost.
3. How to control the performance stable?
We take the flow line production in the whole processing.Every product will test 4 times at least before it delivery.
4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
5. Why customer choose us?
ISO9001&ISO14001 factory with strictly quality control system.Prompt after-sales service.
6. How about the factory?
We have more than 200 workers with advanced dust-free plant.We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields.
