X-760E 2D Wired Handhold Barcode Scanner

Details

Parameter

Video

FAQ


Model		X-760H	X-760K	X-760E	X-3301V	X-1800S	X-3310L
Precision		5mil	4mil	4mil	4mil	3mil	3mil
Decoding speed		200	200	220	300	300	350
Optical Resolution		640*480	640*480	*640480**	640*480	1280*800	1280*800
Reading Mode		CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Sensor	Global Camera	√	√	√	×	×	×
Sensor	Roller Shutter	×	×	×	√	√	√
Transmission distance		≤1.8M	≤1.8M	≤1.8M	≤1.8M	≤1.8M	≤1.8M
Decoding Capability	1D Paper Bar code	√	√	√	√	√	√
	1D Screen Bar code	√	√	√	√	√	√
	2D Paper Screen Code	√	√	√	√	√	√
Connections	USB	√	√	√	√	√	√
	Wireless	×	×	×	×	×	×
	BT	×	×	×	×	×	×
Work pattern	Instant Upload Mode	√	√	√	√	√	√
Work pattern	Storage Mode	×	×	×	×	×	×
Scanning Mode	Manual Trigger	√	√	√	√	√	√
	Continuous Scanning	√	√	√	√	√	√
	Auto-sensing	√	√	√	√	√	√

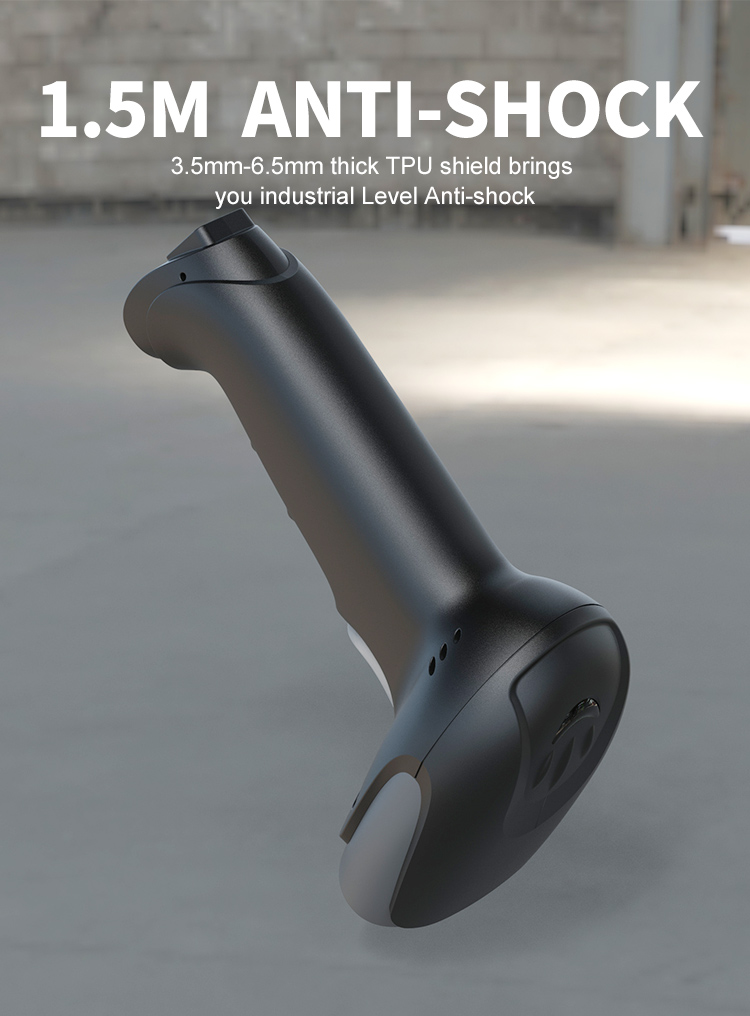

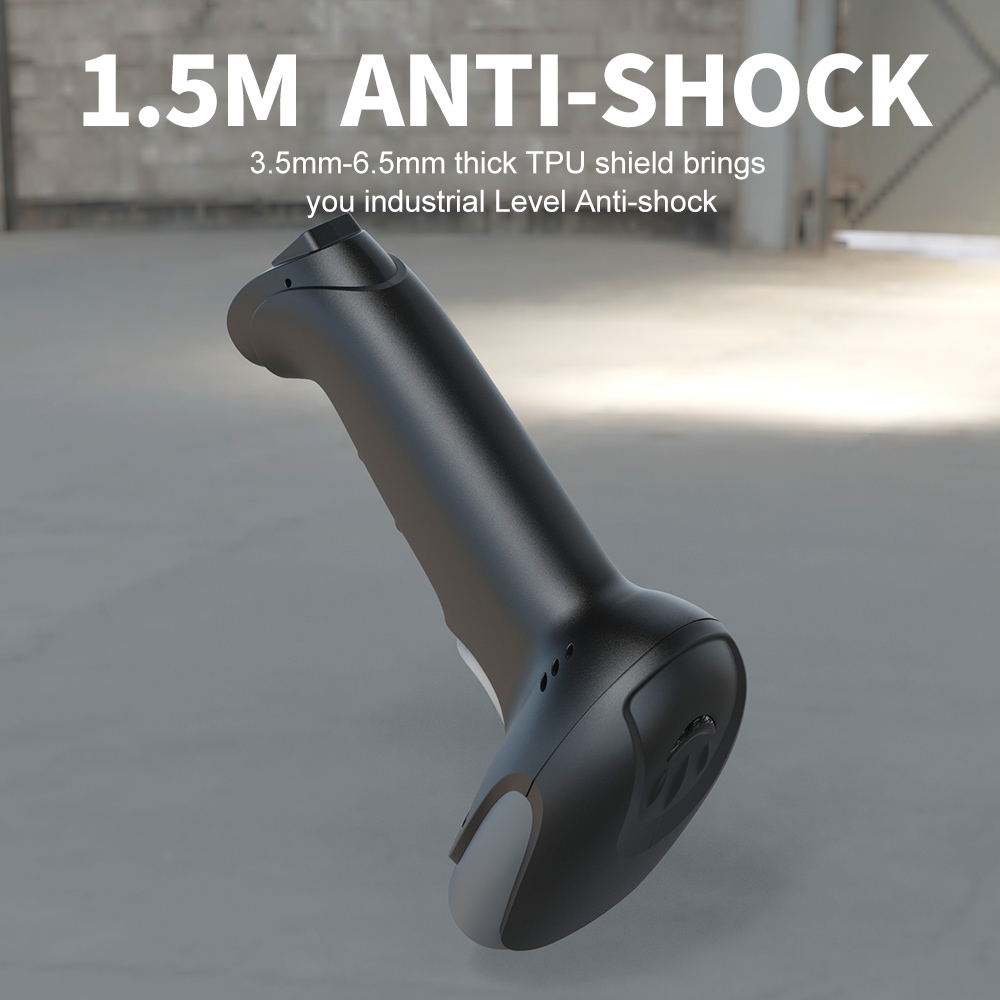

Anti-Shock		1.5M	1.5M	1.5M	1.5M	1.5M	1.5M
IP		IP52	IP52	IP52	IP52	IP52	IP52
Vibration		×	×	×	×	×	√
Buzzer NO/OFF		√	√	√	√	√	√

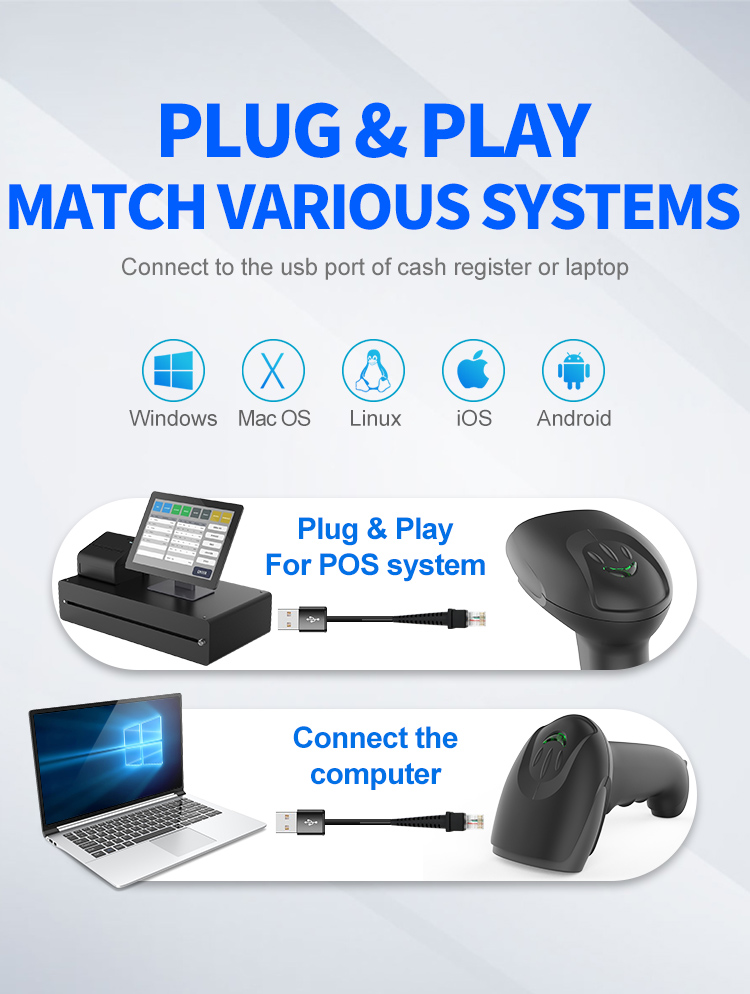

Compatible Devices		PC Laptop Pos	PC Laptop Pos	PC Laptop Pos	PC Laptop Pos	PC Laptop Pos	PC Laptop Pos
Compatible System		WIN XP/7/8/10 Mac OS AndroidIOS Linux	WIN XP/7/8/12 Mac OS AndroidIOS Linux	WIN XP/7/8/13 Mac OS AndroidIOS Linux	WIN XP/7/8/15 Mac OS AndroidIOS Linux	WIN XP/7/8/17 Mac OS AndroidIOS Linux	WIN XP/7/8/18 Mac OS AndroidIOS Linux

X-760E 2D Wired Handhold Barcode Scanner_01.jpg

Product Advantage

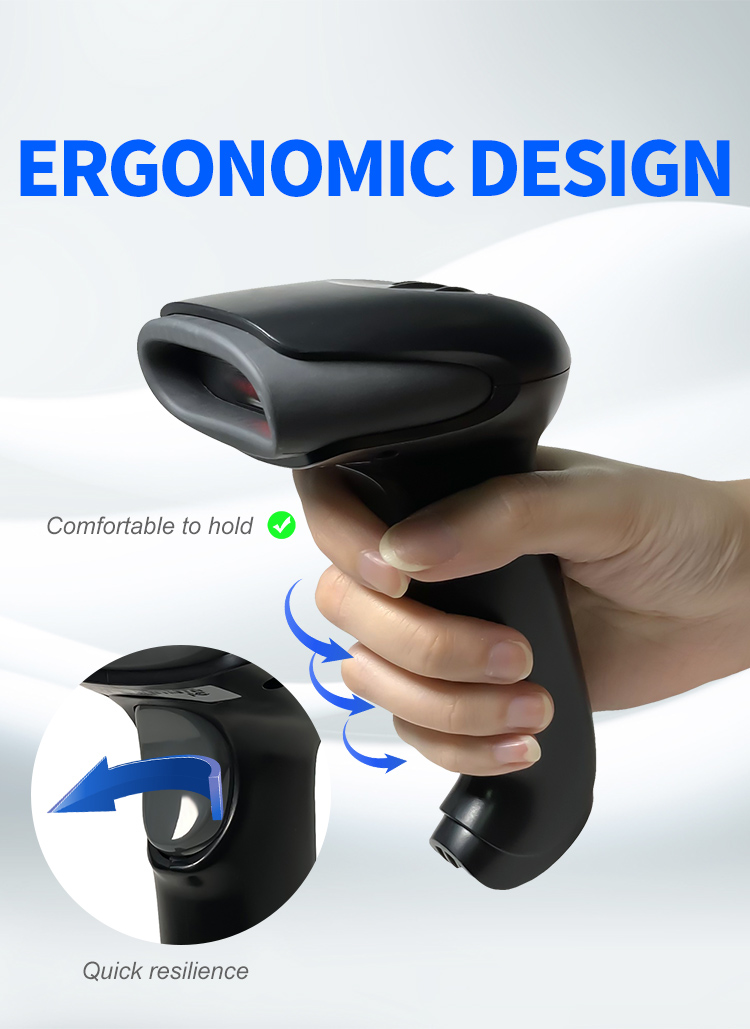

Product features	●Powerful CMOS image decoding capability, well and fastly read 1D and 2D barcode from paper and electronic screen ●Compatible with many kinds of device/system, plug and play ●Support manual, auto-sensing,continuous scanning, can switch freely ●Ergonomic design, comfortable operation, not easily fatigued for long time operation ●LED indicator light and beep sound for quick feedback on working conditions ●Simple and fast screen payment code capture ability, which can accurately cope with various mobile payment scenarios.

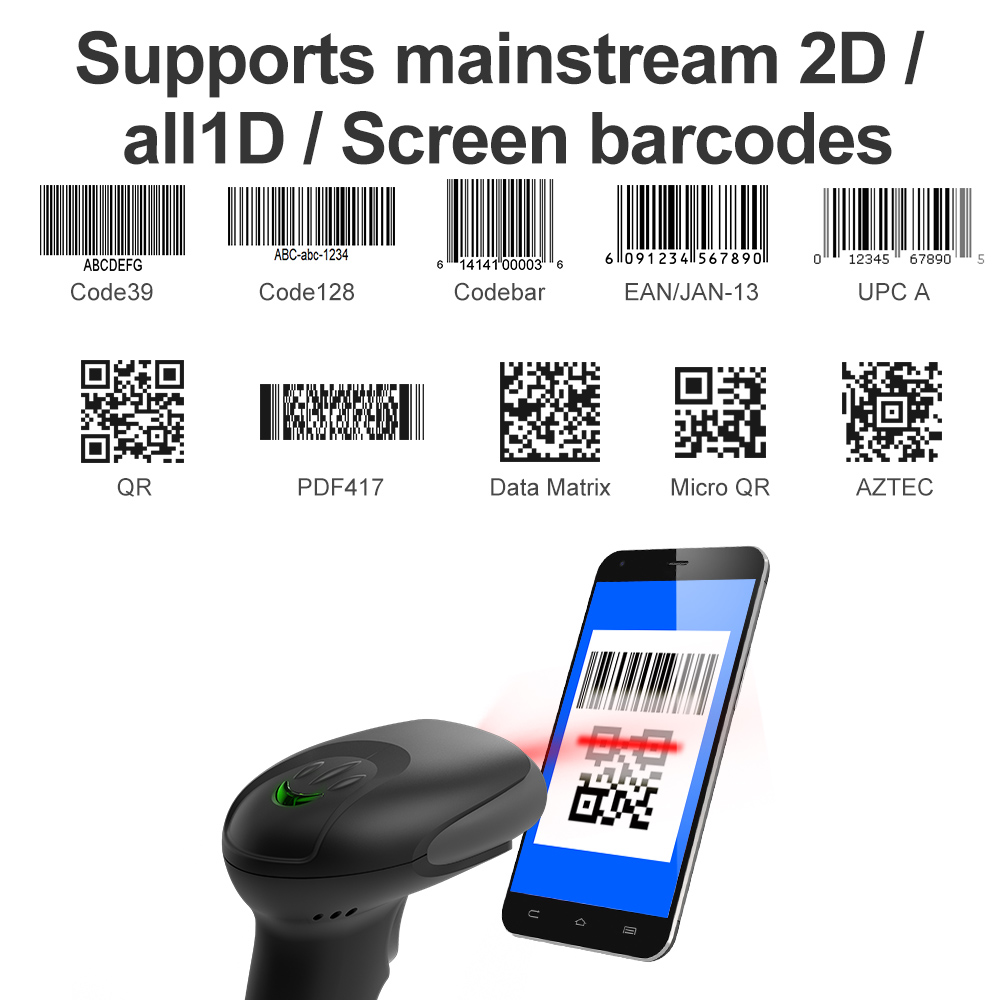

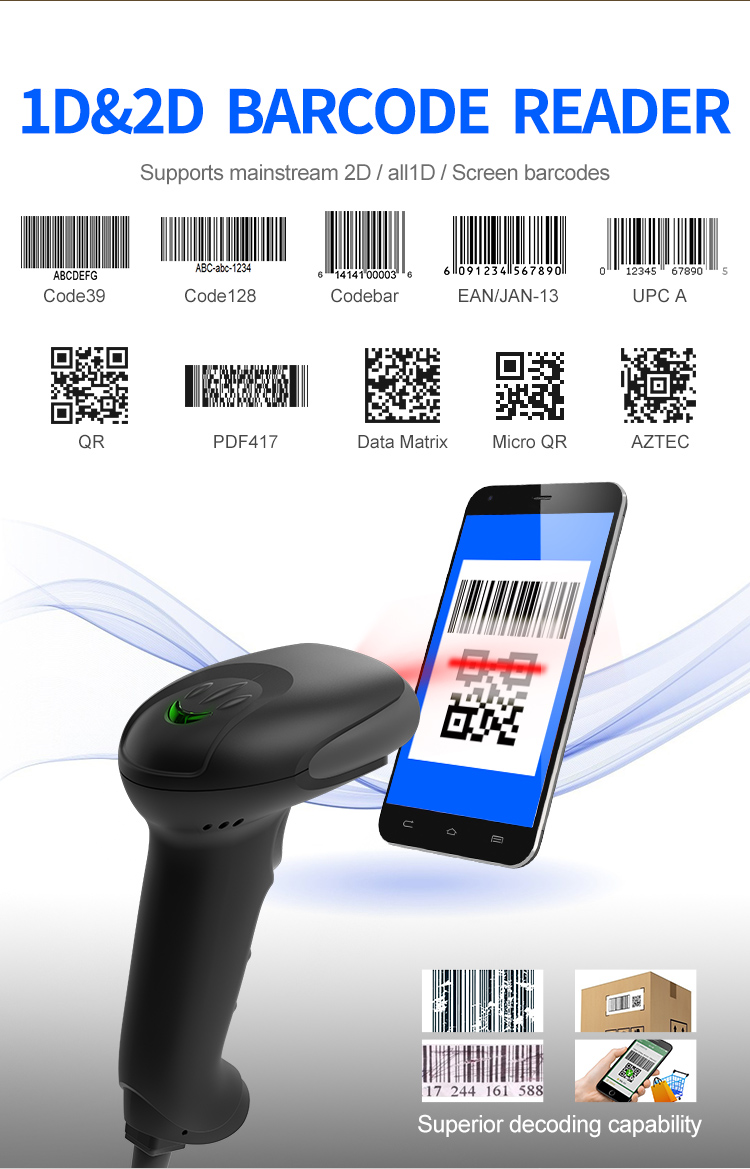

Decoding Capability	1D Code: Interleaved 2 of 5 ,ITF-6,ITF-14,ISB-128,Code 11,UCC/EAN-128,GS1 Databar ,Industrial 2 of 5,Code 128,EAN-13,EAN-8 ,Code 39,UPC-A,UPC-E,Codabar ,Standard 2 of 5,Plessey,MSI-Plessey,Code 93 ,GS1 composite,Matrix 2 of 5,Code 32 2D Code： QR Code , Micro QR , Data Matrix , PDF 417 , MicroPDF417 , Aztec , Maxicode ，Han xinCode * Support scanning screen barcode.
Applicable Place	● Medical treatment ● Shop ● Supermarket ● Catering ● Mobile payment ● Warehouse ● Logistics
Export Country	Europe: Italy, Germany, Spain, Poland; South: America: Brazil, Paraguay, Chile; North: America: USA, Mexico; Asia: India, Israel;

Model		X-760E
Item		Wired 2D Barcode Scanner
Physical Parameter
Material		ABS+PC
Power Supply		DC 5V 2A ±5%
Power Consumption		160mA（Working）；41mA（Stand by）；200mA（Maximum）【Average Current】
Maximum Consumption		0.80W（Working）；0.20mW（Stand by）；1.00W（Maximum）【Average power consumption】
Weight		112.0g±5g（Without Cable）

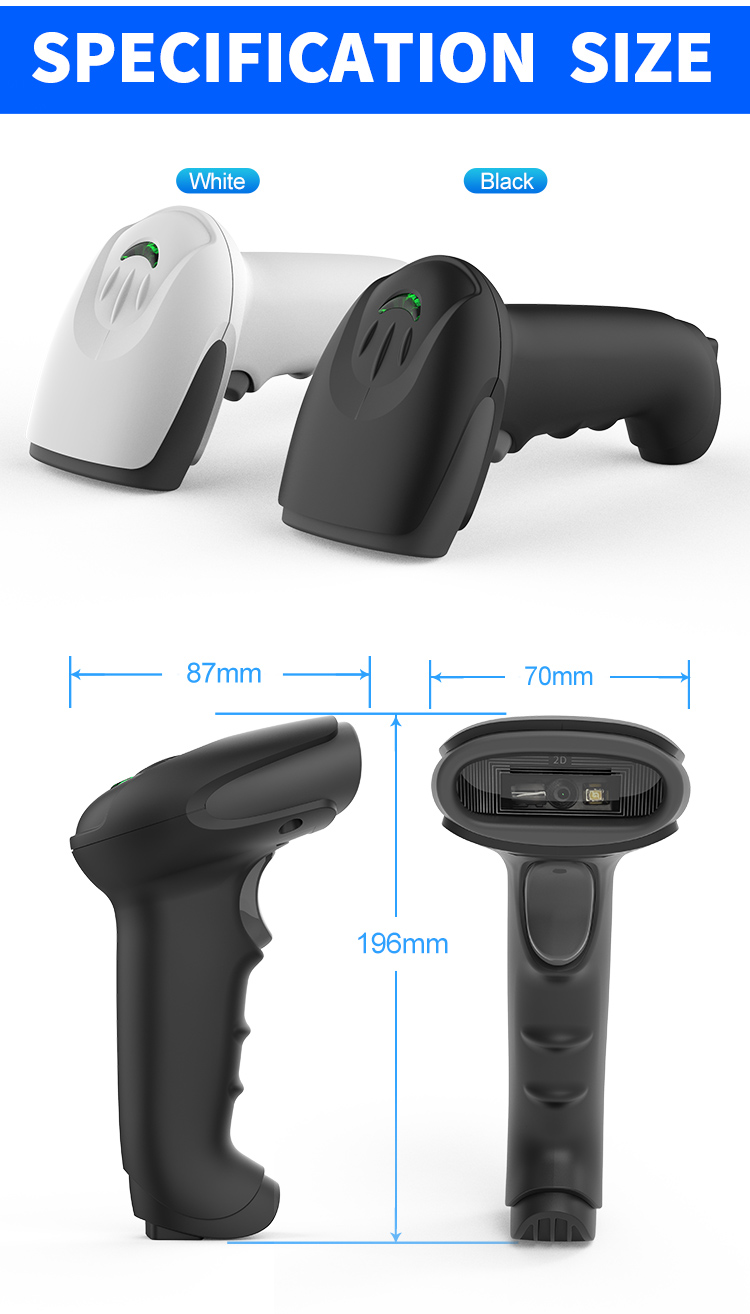

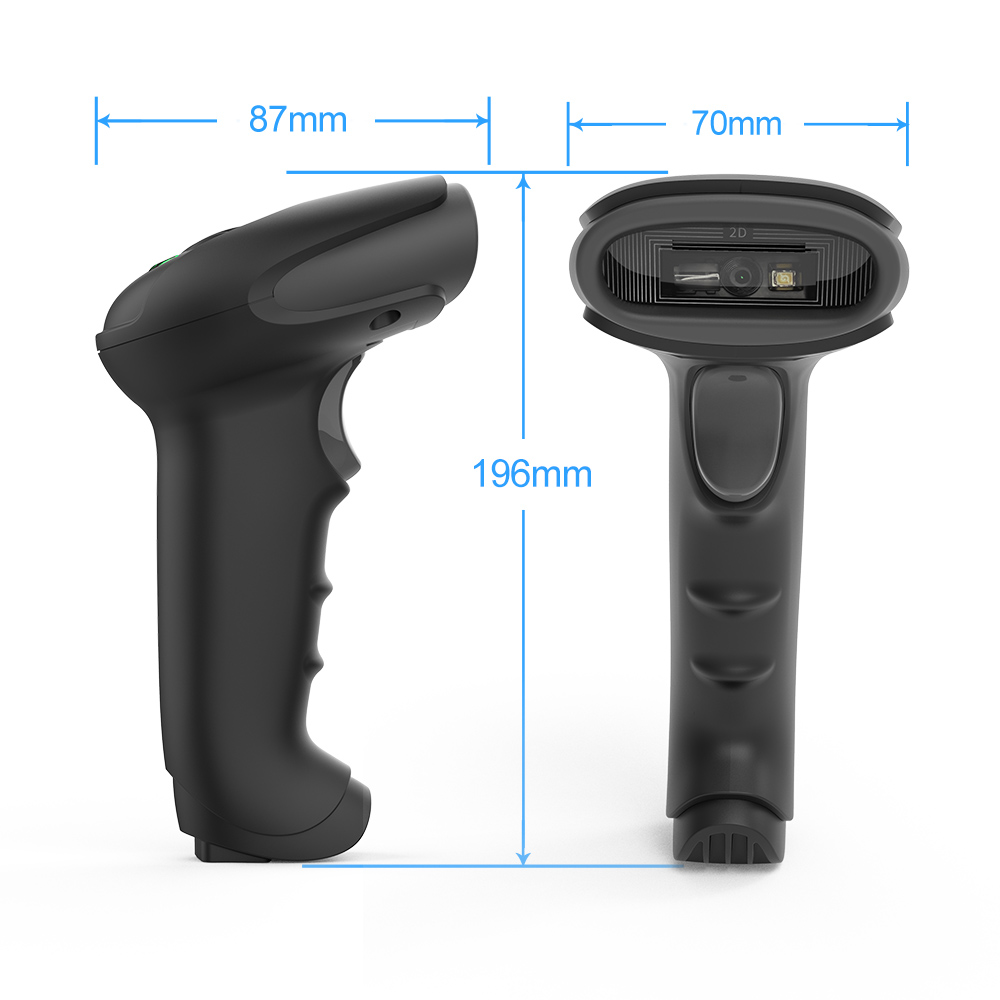

Size		L * W * H：168.9 * 70.7 * 94.7（Unit：mm）
Color		Black
Performance Parameter
Interface		USB ；（RS232 can be customized ）
System Supported		Linux，Android，Windows XP、7、8、10，MAC
Language Supported		English; Belgium; Finland; sent; Germany; Italy; Poland; United Kingdom; Denmark; Norway; Spain; Portugal; Turkey Q; Turkey F; Japan; Russia; Czech Republic; Thailand; Ukraine; Brazil; Greece; China; Netherlands; Poland ;;Slovakia; [Support virtual keyboard]
Sensor		640×480 Global exposure CMOS
Light Source		Red light LED illumination + Red light LED Focus

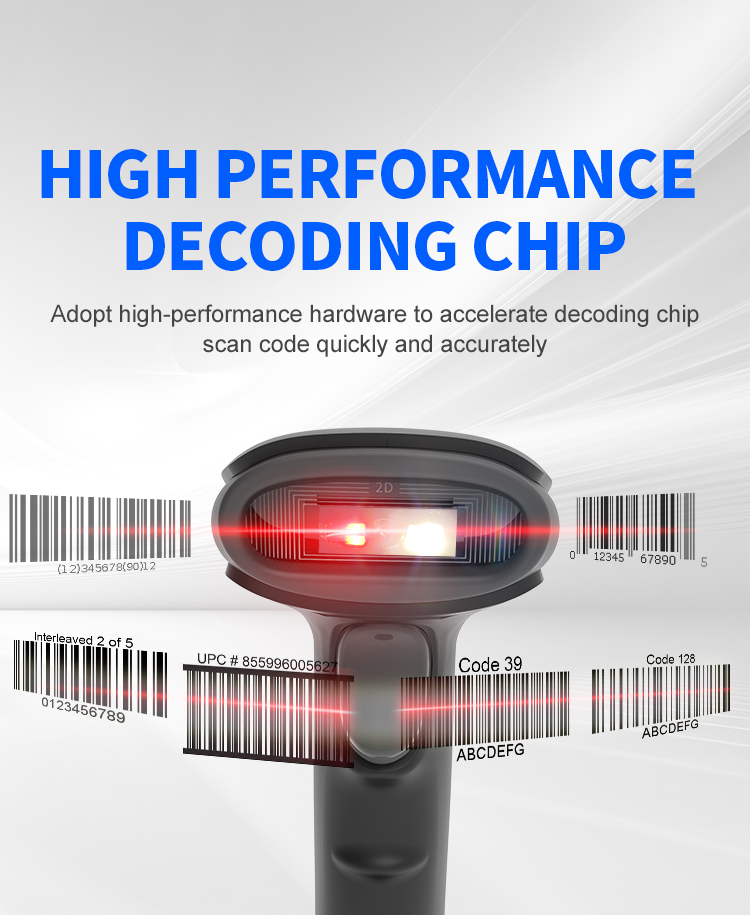

Processor		32-bit ARM MCU + DSP
Motion Tolerance		Code128： 60cm/sec QR： 65cm/sec
Resolution		≥4mil
Bit error rate		1/5 million
Reading Mode		Image
Trigger Mode		Manual;Auto-Sensing;Continuous scanning

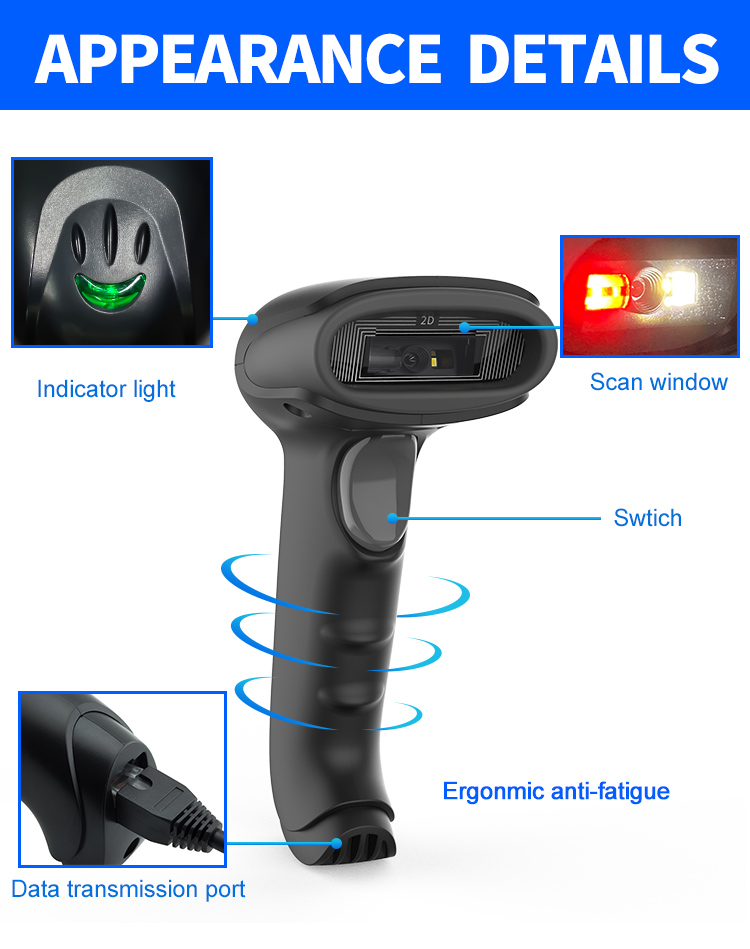

Prompt Mode		Buzzer, Indicator Light（LED）
Print Contrast		≥25%
Field of view angle		37° horizontal, 28° vertical
Scanning angle		Roll360°， Pitch±55°，Yew±55°
Decoding Capability	1D	Interleaved 2 of 5 ITF-6 ITF-14 ISBN Code 11 UCC/EAN-128 GS1 Databar Matrix 2 of 5 Industrial 2 of 5 Code 128 EAN-13 EAN-8 Code 39 UPC-A UPC-E Codabar Standard 2 of 5 Plessey MSI-Plessey Code 93 GS1 composite code
	2D	PDF417 Data Matrix QR Code HanXin AZTEC Maxicode GM code
Scanning Depth		Code39 5.83mil（15 bytes）：7cm - 18cm Code128 7.50mil（16 bytes）：8cm - 15cm Data Matrix 10.83mil（8 bytes）：3cm - 12cm Code QR 10.83mil（8 bytes）：3cm - 16cm
Environment Parameter
IP Grade		IP52
Operating Temp.		0 to 50℃ / 32 to 122℉
Storage Temp.		0 to 50℃ / 32 to 122℉
Operating Humidity		20% to 85%（No Condensation）
Storage Humidity		20% to 85%（No Condensation）
ESD Protection		15KV air discharge
Shock Resistance		1.2m free fall on concrete surface
Environment illumination		0→100000Lux

Solutions FAQ
Q：Can not turn on or turn off immediately after turning on
A：This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged)

Q：Barcode data is not uploaded
A：The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range)

Q：There is a laser line, but can't read the bar code.
A：Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual.

Q：The scanned data is displayed incorrectly on the host
A：Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center.

Q：Other cases cannot be decoded
A：It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again.
