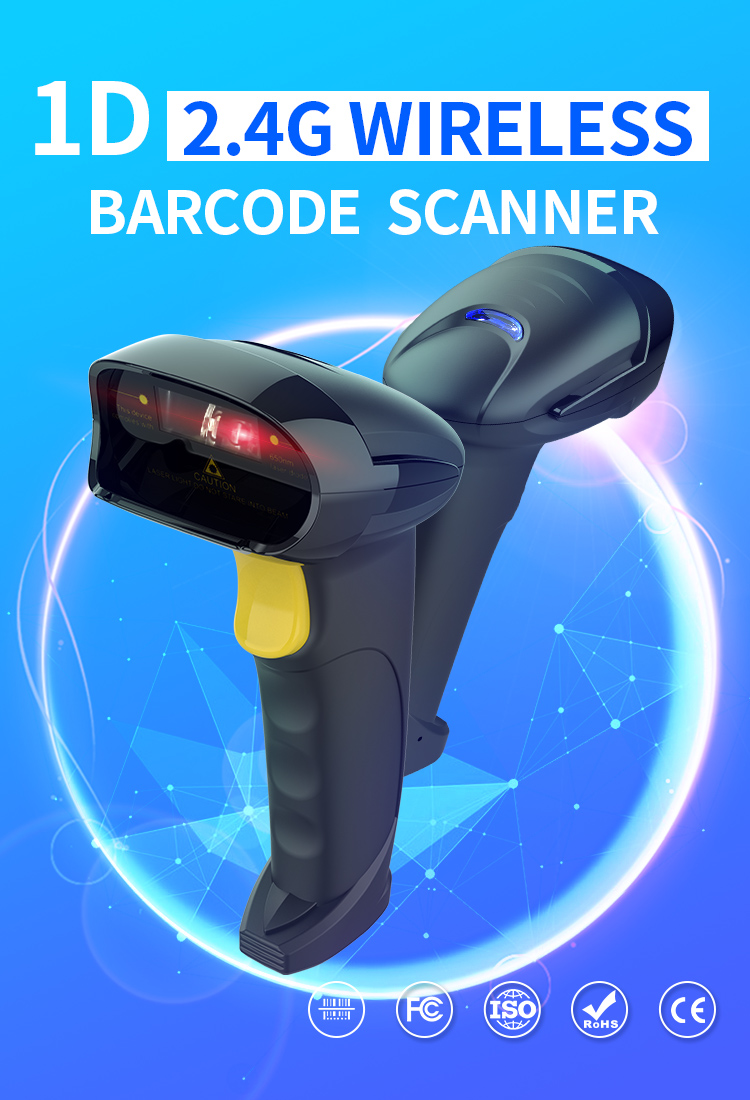

X-620F 1D Laser Wireless Handhold Barcode Scanner

Details

Parameter

Video

FAQ


Model		X-9100	X-520AT	X-9100N	X-620U	X-620F	X-660B
Precision		3mil	3mil	4mil	3mil	3mil	3mil
Decoding speed		300	300	400	300	300	300
Reading Mode		Laser	Laser	Laser	Laser	Laser	Laser
Transmission distance		≤1.8M	≤1.8M	≤1.8M	≤80M	≤80M	Wireless≤80M BT≤10M
Decoding Capability	1D Paper Bar code	√	√	√	√	√	√
	1D Screen Bar code	×	×	×	×	×	×
	2D Paper Screen Code	×	×	×	×	×	×
Connections	USB	√	√	√	√	√	√
	Wireless	×	×	×	√	√	√
	BT	×	×	×	×	×	√
Work pattern	Instant Upload Mode	√	√	√	√	√	√
Work pattern	Storage Mode	×	×	×	√	√	√
Scanning Mode	Manual Trigger	√	√	√	√	√	√
	Continuous Scanning	√	√	×	√	√	√
	Auto-sensing	×	√	×	×	×	×

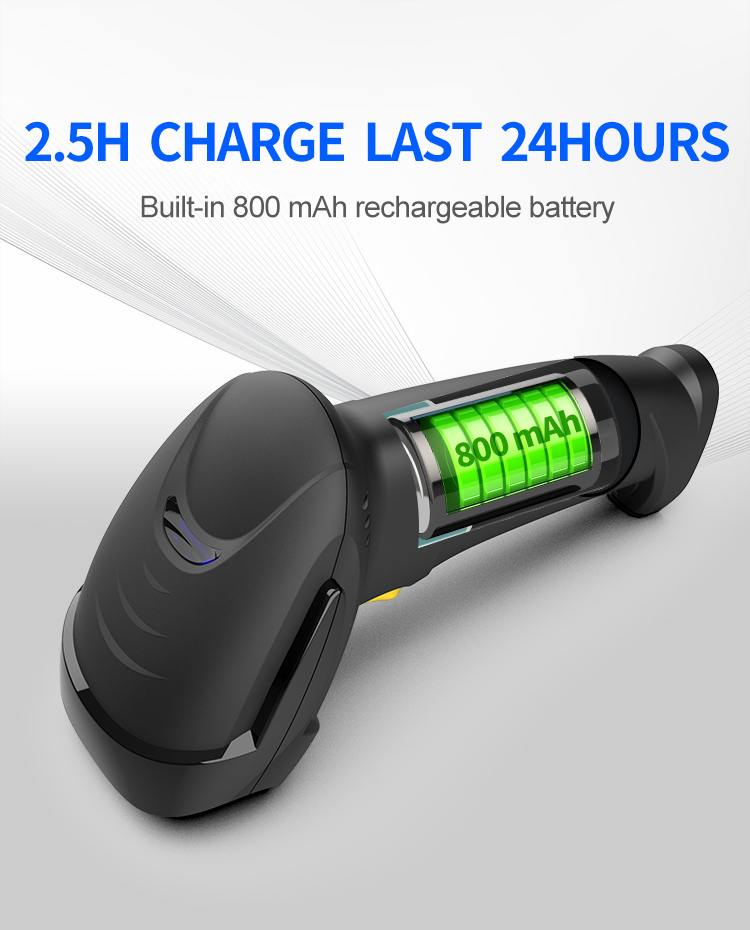

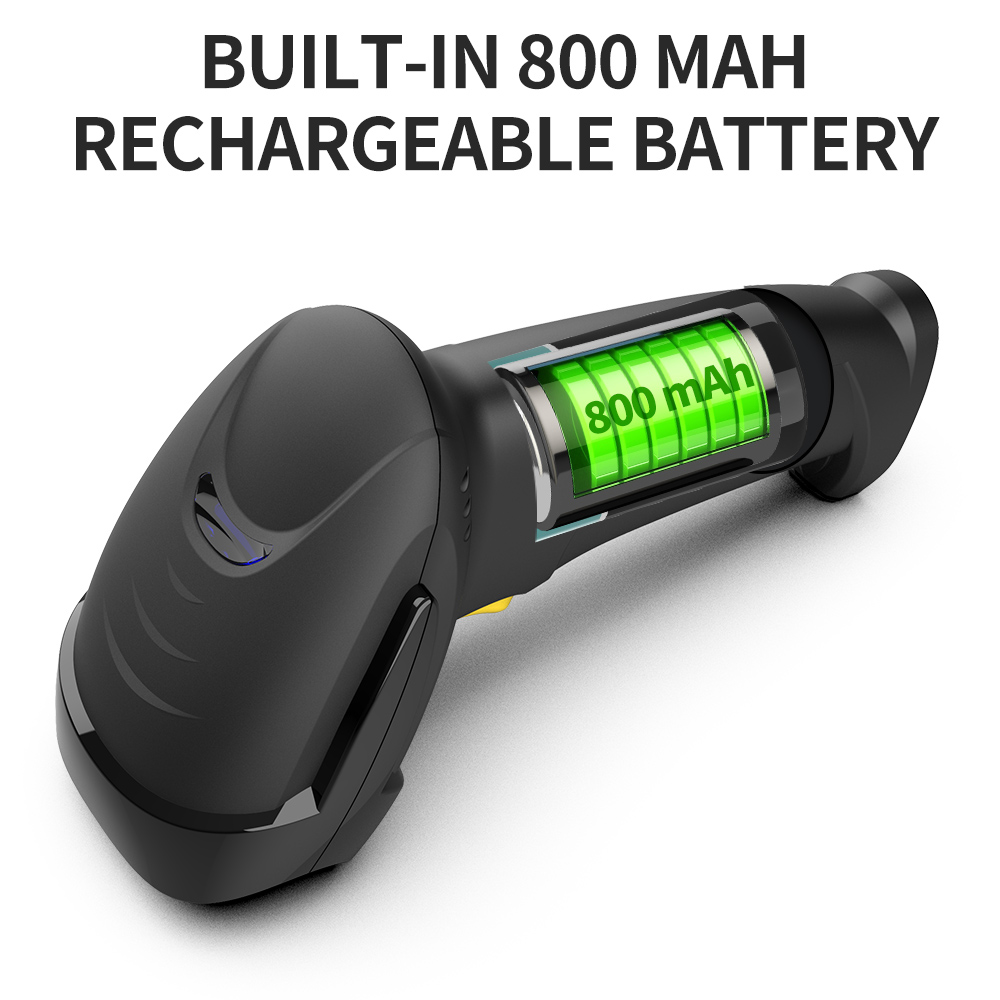

Battery Capacity		/	/	/	800mAh	800mAh	800mAh
Continuous working time		/	/	/	24H	24H	24H

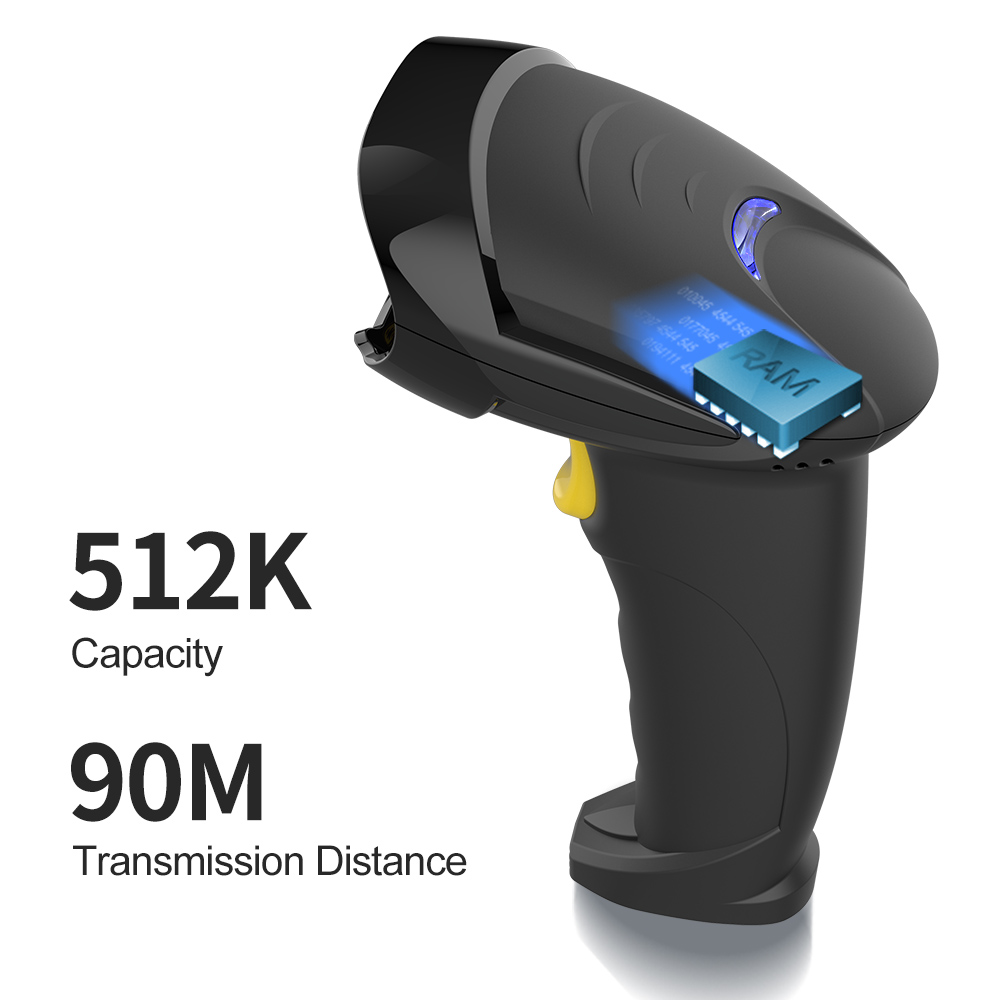

storage space		/	/	/	512K	512K	512K

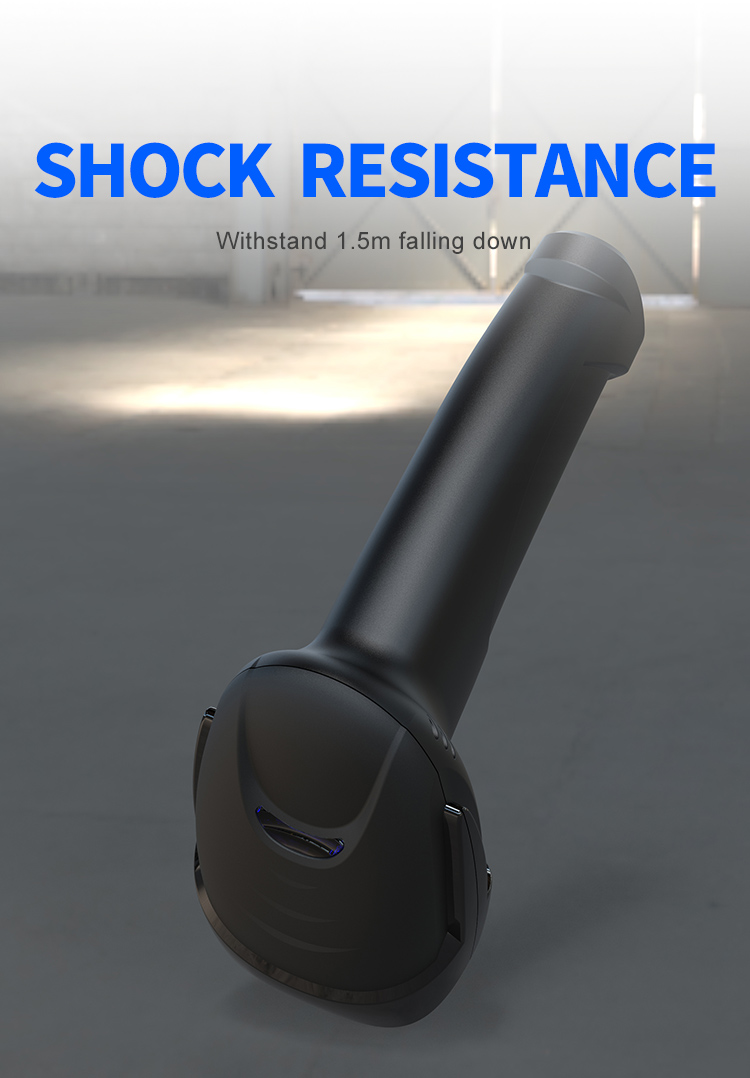

Anti-Shock		1.5M	1.5M	1.5M	1.5M	1.5M	1.5M
IP		IP52	IP52	IP52	IP52	IP52	IP52
Vibration		×	×	×	×	×	×
Buzzer NO/OFF		√	√	√	√	√	√
Compatible Devices		PC Laptop Pos	PC Laptop Pos	PC Laptop Pos	PC Laptop Pos	PC Laptop Pos	PC Laptop Phone Tablet Pos
Compatible System		WIN XP/7/8/10 Mac OS AndroidIOS Linux	WIN XP/7/8/10 Mac OS AndroidIOS Linux	WIN XP/7/8/10 Mac OS AndroidIOS Linux	WIN XP/7/8/10 Mac OS AndroidIOS Linux	WIN XP/7/8/10 Mac OS AndroidIOS Linux	WIN XP/7/8/10 Mac OS Android IOS Linux

X-620F 1D Laser Wireless Handhold Barcode Scanner_01.jpg

Product Advantage

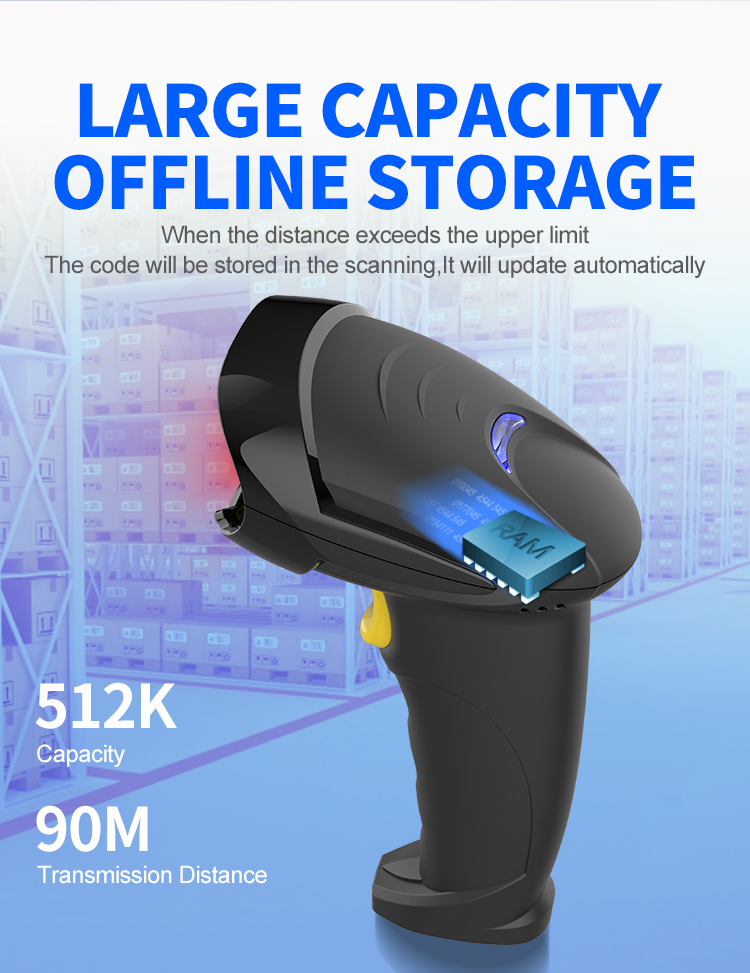

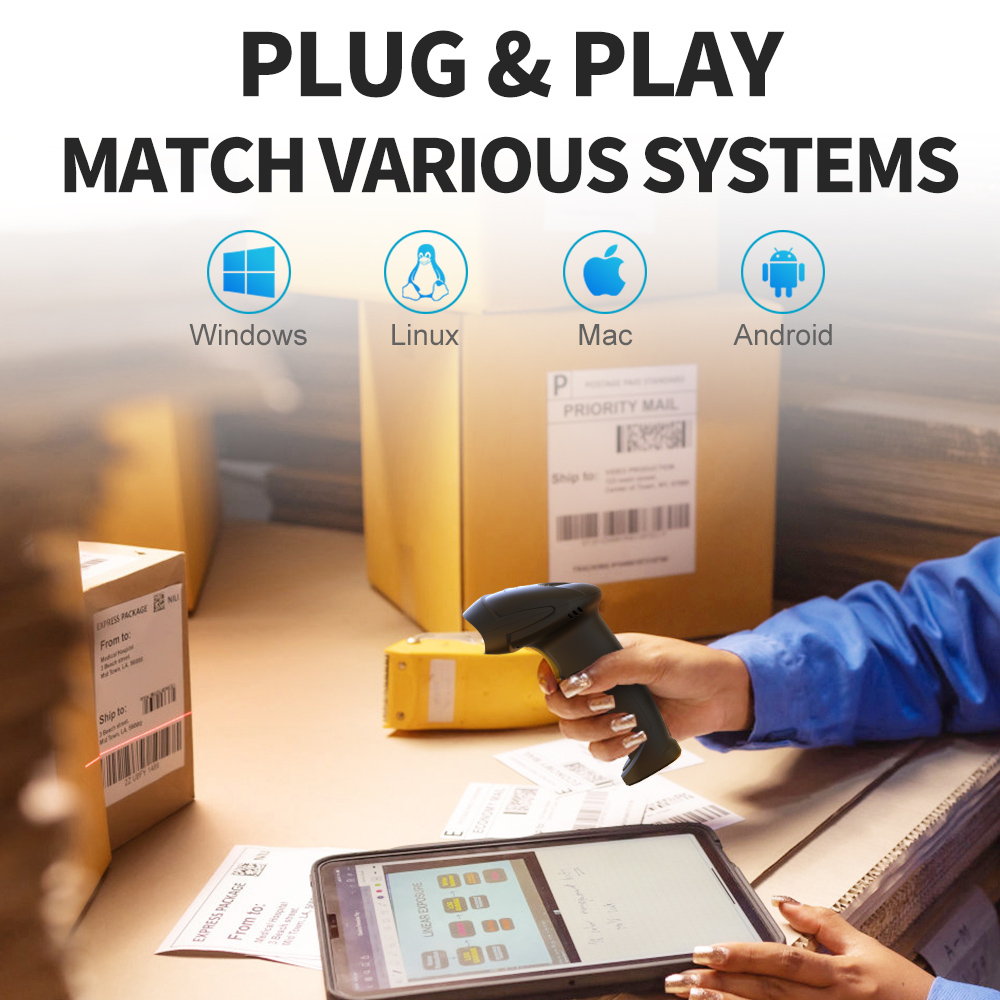

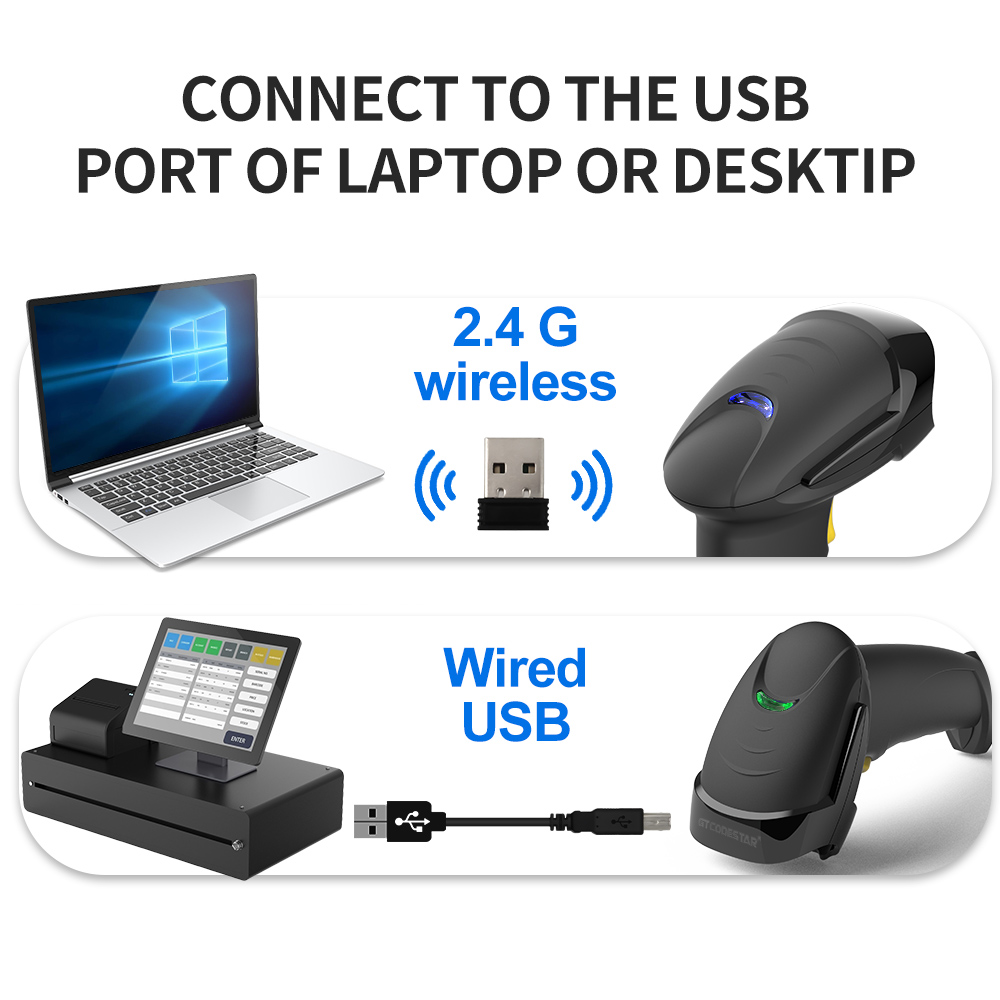

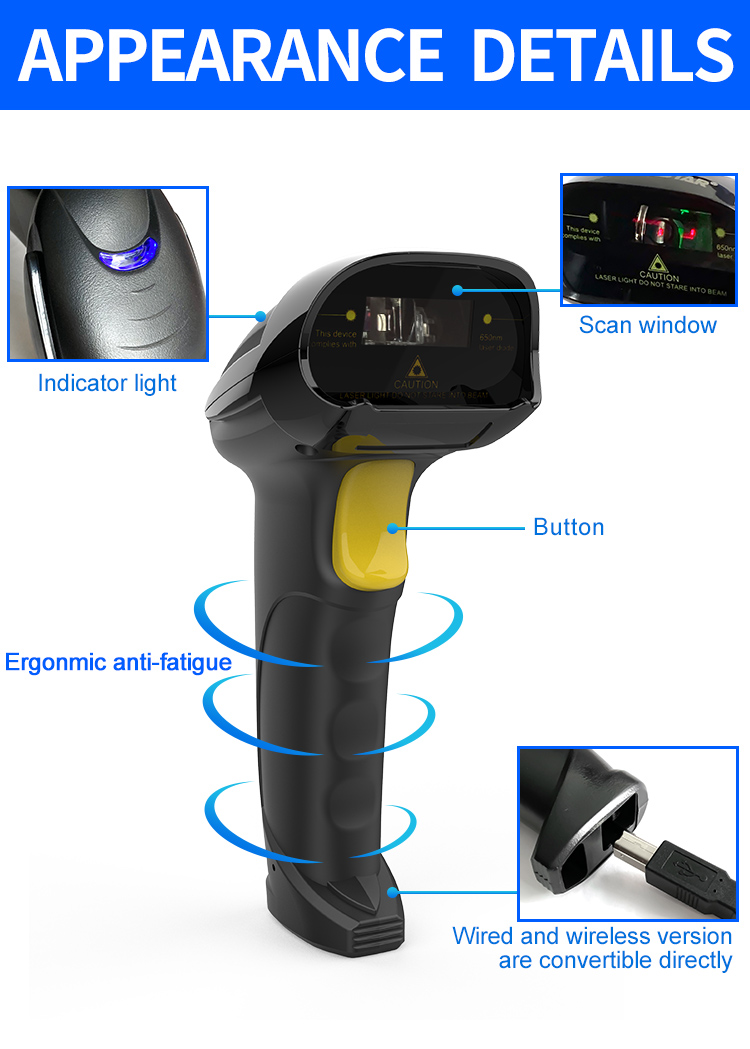

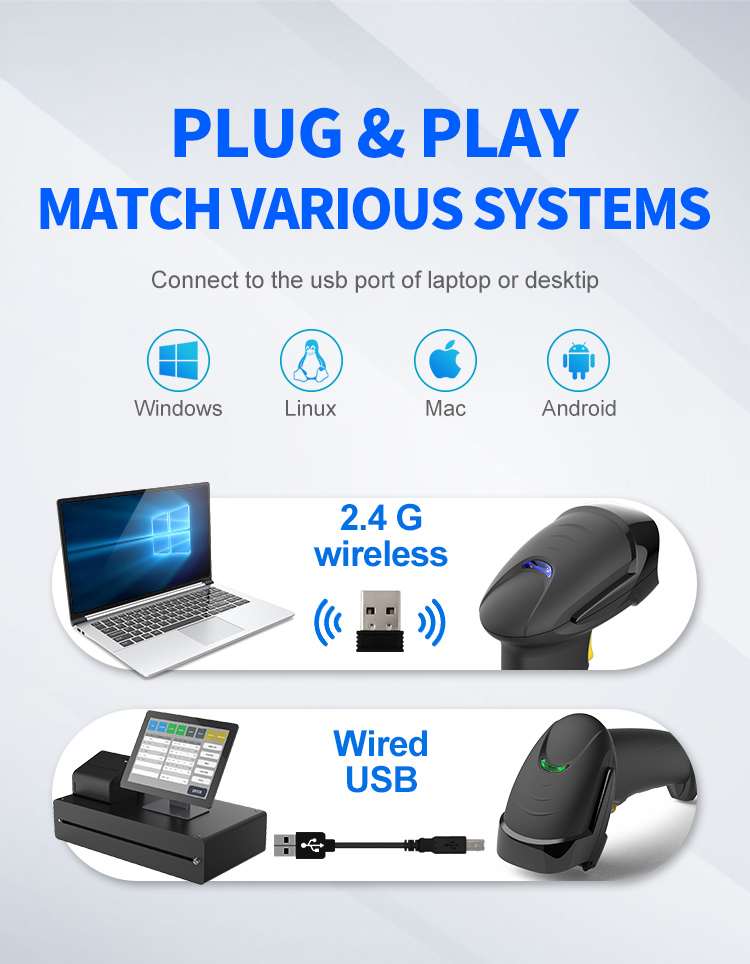

Product features	●Using a high-speed laser scanning engine to efficiently read various ultra long 1D barcode ●Compatible with many kinds of device/system, plug and play ●LED indicator light and beep sound for quick feedback on working conditions ●Support 2.4G wireless and wired mode, suitable for all kinds of using application ●Support wireless inventory, can save 500,000bytes

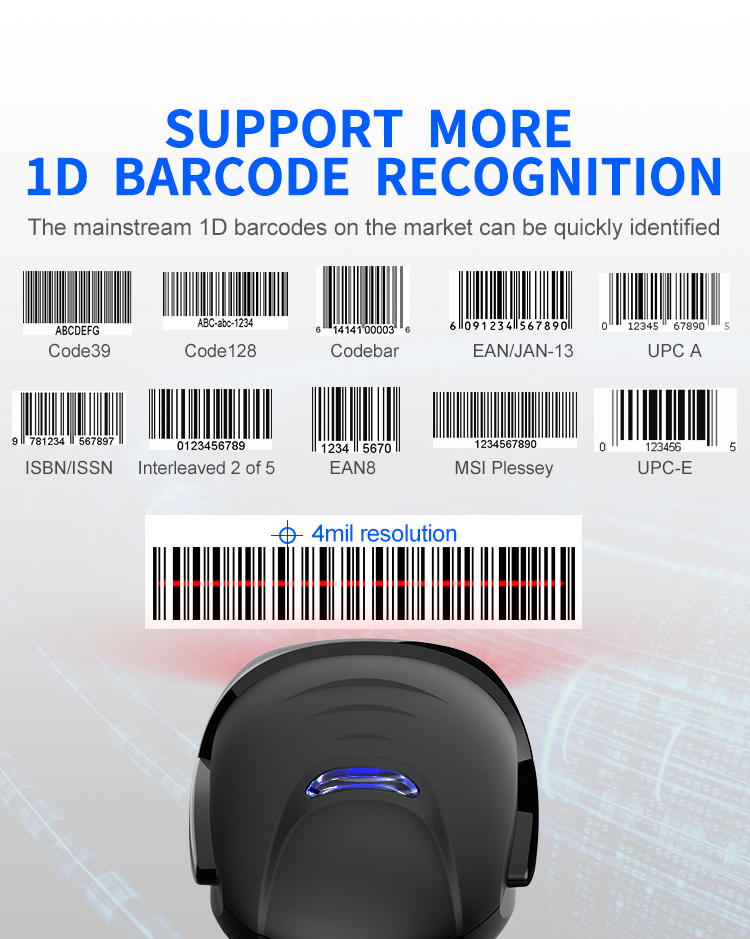

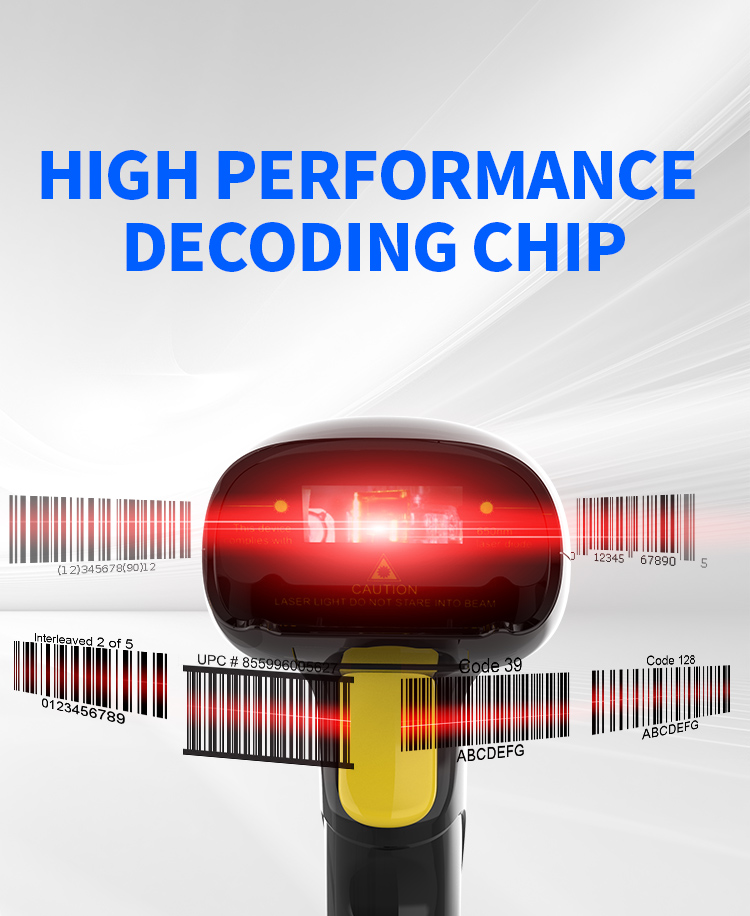

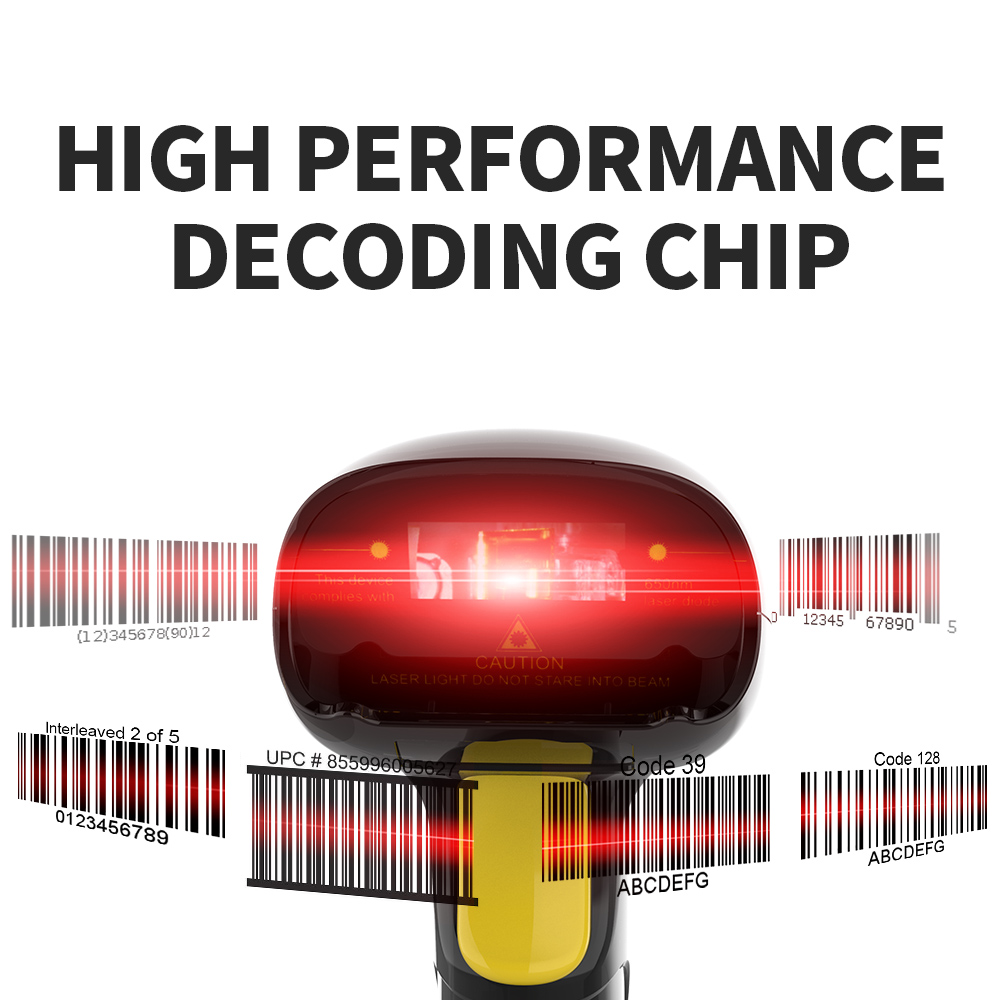

Decoding Capability	1D Code: Code25-Interleaved,Code25-Standard,Code25-Matri,Code39,Code93,Code128,EAN/GS1/UCC128,Codabar,EAN/JAN-13,UPC-A,EAN-8,Code11,UPCE *Scanning mobile phone screen barcode is not supported.
Applicable Place	● Express logistics ● Warehouse ● Shopping ● Supermarket ● Medical treatment ● Industry
Export Country	Europe: Italy, Germany, Spain, Poland South: America: Brazil, Paraguay, Chile North: America: Mexico Asia: India, Israel

X-9100 Technical Parameter
Model		X-9100
Item		wired Laser Barcode Scanner
Physical Parameter
Material		ABS+PVC+PC
Power Supply		DC 5V ±5%
Operating Current		50mA（Standby）；30mA（Operating）；100mA（Max）
Safety		According to China National Laser Safety Standard Class2
Weight		131±5g（Including wire）

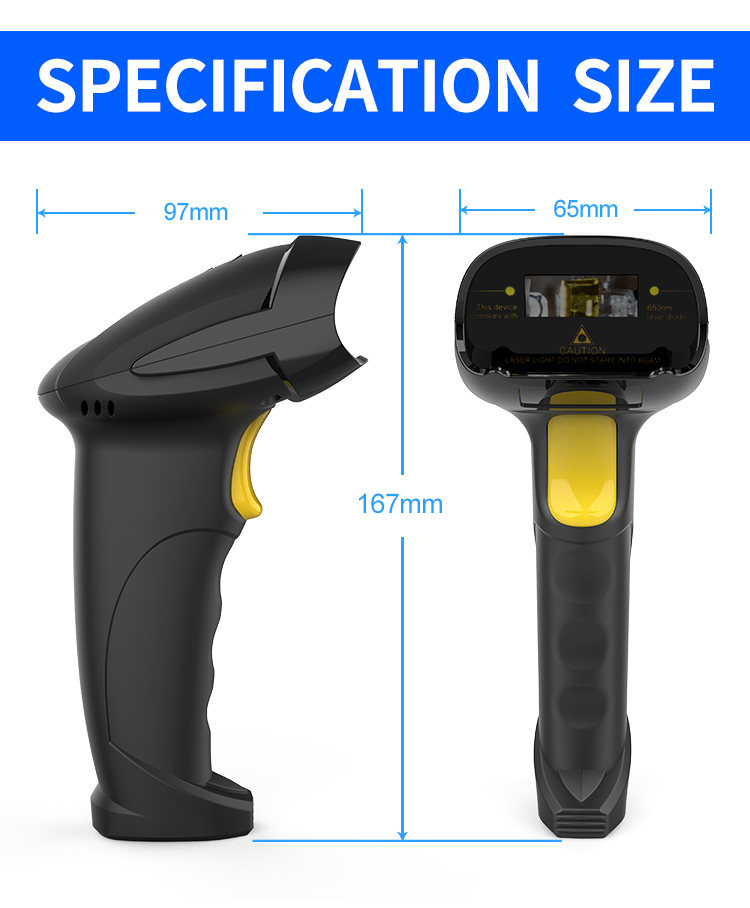

Size		L * W * H：167 * 65 * 97（unit：mm）
Color		Black
Button life		＞100000frequency
Performance Parameter
Interface		Built-in PS/2 keyboard, RS-232 serial, Standard 2.0USB interface
System supported		Linux，Android，Windows XP、7、8、10，MAC
Language supported		English ；Support multi-languages
light source		Visible laser 650nm
Resolution		3mil
Error Rate		1/5000000
Decoding speed		300/sec
Reading mode		laser
Triggle Mode		Trigger buttons; Automatic successive scanning; Automatic scintillation scanning
Reading distance		10~600mm Elevation angle 60°, Inclination angle 45°
Baud rate		RS232baudrate: 1200-115200
Quiescent current		20mA
Decoding Capability		1D barcode like UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Codabar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code128, Code 93, Code 11, MSI/PIESSEY, UK/PLESSEY, UCC/EAN128 code, etc.
Scanning Angle		Roll 30°、Pitch 75°、Yew 75°
Scanning Depth		2~9cm(0.1mm bar width);3~50cm(0.3mm bar width)
Environment Parameter
Dustproof waterproof		According to IEC529,IP42 standard
Operating Temp.		-20℃ to 50℃
Storage Temp.		-20℃ to 50℃
Operating Humidity		0~95%
Storage Humidity		5%~95%
Electromagnetic interference		According to EN8001,Par1 standard
Earthquake resistance		Free fall 1.5m (concrete floor)

Solutions FAQ
Q：Can not turn on or turn off immediately after turning on
A：This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged)

Q：Barcode data is not uploaded
A：The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range)

Q：There is a laser line, but can't read the bar code.
A：Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual.

Q：The scanned data is displayed incorrectly on the host
A：Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center.

Q：Other cases cannot be decoded
A：It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again.
