GT-9208 2D Desktop Wired Barcode Scanner
2D High Precision Desktop Image Barcode Scanner
* Easily and quickly scan 1D & 2D barcode thru paper,commodity, electronic screen
* Easily scan fuzzy barcode,film coated barcode,and barcode in reflective condition
* Multi Languages are supported
* Virtual Keyboard is supported
* Touch control for convert scanning ability of 2D to 1D
* Compatible for Windows, Android,Linux,Mac
* 32 bit ARM MCU+DSP processor
GT-9208 Product Catalogue
PDF(0.5MB)
GT-9208 User's Manual
PDF(3.1MB)
Details
Parameter
Video
FAQ

GT-9208-4月详情_01.jpgGT-9208-4月详情_02.jpgGT-9208-4月详情_03.jpgGT-9208-4月详情_04.jpgGT-9208-4月详情_05.jpgGT-9208-4月详情_06.jpgGT-9208-4月详情_07.jpgGT-9208-4月详情_08.jpg

GT-9208Technical Parameter
ModelGT-9208
ItemOmnidirectional 2d barcode scanning platform
Physical Parameter
MaterialABS+PC
Power SupplyDC 5V 2A
Power Consumption1.60W(working);0.80W(standby);2.34W(maxium)
Weight294.0g±5g(without cable)

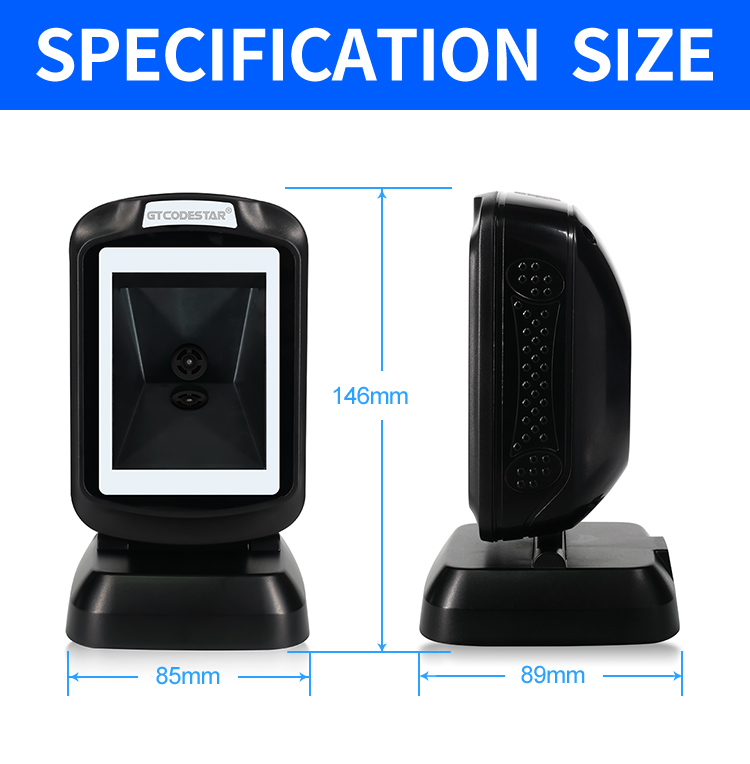

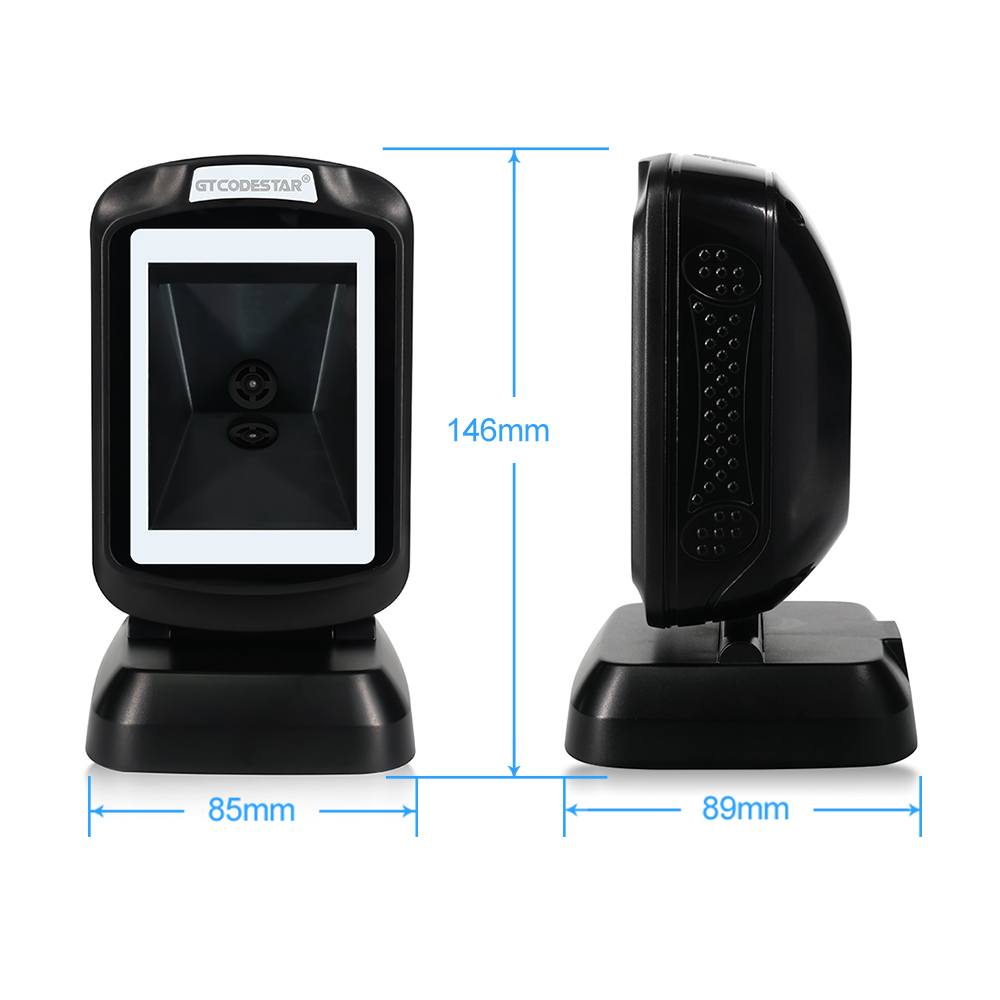

SizeL * W * H:146.99 * 85.27 * 89.97(unit:mm)
ColorBlack
Performance Parameter
InterfaceUSB;(RS232 can be customized)
System SupportedLinux,Android,Windows XP、7、8、10,MAC
Language SupportedAmerican; French; German; Hungarian; Italian; Italy142:; Japanese; Spanish; Finnish; Russian; Irish; Polish; Dutch; Arabic; Czech; Portuguese (Portugal); Portuguese ( Brazil); Greek; Swedish; Turkish F; Turkish Q
[Support virtual keyboard]
SensorPlanar CMOS sensor 1600 * 900
Light sourceRed lightLED
Processor32-bit ARM MCU + DSP
Motion Tolerance 3.24m/sec
ResolutionCode39 4mil
Error Rate1/5000000
Reading ModeImage
Trigger ModeImaging Sensor
Prompt Mode Buzzer, Indicator Light(LED)
Image codeSupport
Invoice FunctionSupport
ButtonCan cut and scan code mode (mode 1: 1D; 2D can scan; Mode 2: only scan 1D)
Print Constrast≥25%
Decoding Capability1D Interleaved 2 of 5        Standard 2 of 5
 Matri 2 of 5              RSS-14
 Code39                    Code39-FullASCII
 Code93-Regular            Code93-FullASCII
 Code128                   Code11                UPCE0/E1
 EAN/GSL/UCC-128Auto       Codabar               JAN/EAN-8
 EAN/JAN-13                UPC-A
2DMICRO QR              Data Matrix            QR
AZTEC                 PDF417
Scanning AngleRoll360°,Pitch45°,Yew45°
Scanning Depth                 5mil   code39:     1 cm --  12 cm
                 13mil  UPC-A :     2 cm --  30 cm
                20mil  code39 :     1 cm --  30 cm
                6.7mil PDF417 :     1 cm --   6 cm
           10mil  Data Matrix :     1 cm --  9 cm
           15mil  Data Matrix :     1 cm --  20 cm
                   Payment 1D :      0 cm -- 42 cm
                   Payment 2D :      0 cm -- 42 cm
Environment Parameter
IP GradeIP52
Operating Temp.0 to 50℃ / 32 to 122℉
Storage Temp. 0 to 50℃ / 32 to 122℉
Operating Humidity20% to 85%(No condensationc)
Storage Humidity20% to 85%(No condensation)
ESD Protection15KV
Shock Resistance1.5m free fall on concrete surface


Solutions FAQ
Q:Can not turn on or turn off immediately after turning on
A:This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged)

Q:Barcode data is not uploaded
A:The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range)

Q:There is a laser line, but can't read the bar code.
A:Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual.

Q:The scanned data is displayed incorrectly on the host
A:Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center.

Q:Other cases cannot be decoded
A:It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again.
