X-3301V 2D Wired Handhold Barcode Scanner

Details

Parameter

Video

FAQ


Model		X-760H	X-760K	X-760E	X-3301V	X-1800S	X-3310L
Precision		5mil	4mil	4mil	4mil	3mil	3mil
Decoding speed		200	200	220	300	300	350
Optical Resolution		640*480	640*480	640*480	*640480**	1280*800	1280*800
Reading Mode		CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Sensor	Global Camera	√	√	√	×	×	×
Sensor	Roller Shutter	×	×	×	√	√	√
Transmission distance		≤1.8M	≤1.8M	≤1.8M	≤1.8M	≤1.8M	≤1.8M
Decoding Capability	1D Paper Bar code	√	√	√	√	√	√
	1D Screen Bar code	√	√	√	√	√	√
	2D Paper Screen Code	√	√	√	√	√	√
Connections	USB	√	√	√	√	√	√
	Wireless	×	×	×	×	×	×
	BT	×	×	×	×	×	×
Work pattern	Instant Upload Mode	√	√	√	√	√	√
Work pattern	Storage Mode	×	×	×	×	×	×
Scanning Mode	Manual Trigger	√	√	√	√	√	√
	Continuous Scanning	√	√	√	√	√	√
	Auto-sensing	√	√	√	√	√	√
Anti-Shock		1.5M	1.5M	1.5M	1.5M	1.5M	1.5M
IP		IP52	IP52	IP52	IP52	IP52	IP52
Vibration		×	×	×	×	×	√
Buzzer NO/OFF		√	√	√	√	√	√
Compatible Devices		PC Laptop Pos	PC Laptop Pos	PC Laptop Pos	PC Laptop Pos	PC Laptop Pos	PC Laptop Pos
Compatible System		WIN XP/7/8/10 Mac OS AndroidIOS Linux	WIN XP/7/8/12 Mac OS AndroidIOS Linux	WIN XP/7/8/13 Mac OS AndroidIOS Linux	WIN XP/7/8/15 Mac OS AndroidIOS Linux	WIN XP/7/8/17 Mac OS AndroidIOS Linux	WIN XP/7/8/18 Mac OS AndroidIOS Linux

X-3301V 2D Wired Handhold Barcode Scanner_01.jpg

Product Advantage
Product features	● It supports most 1D/2D bar codes and is widely used. ● Drive-free, plug and play. ● High-performance global exposure, efficient scanning of fuzzy code, reflective code and color code. ● Support continuous scanning and automatic scanning. ● Super-large wide-angle lens, global coverage, supports scanning at any angle. ● Support for multiple languages (24 languages are supported by default, and the languages can be customized). ● Support customization of OCR character recognition.

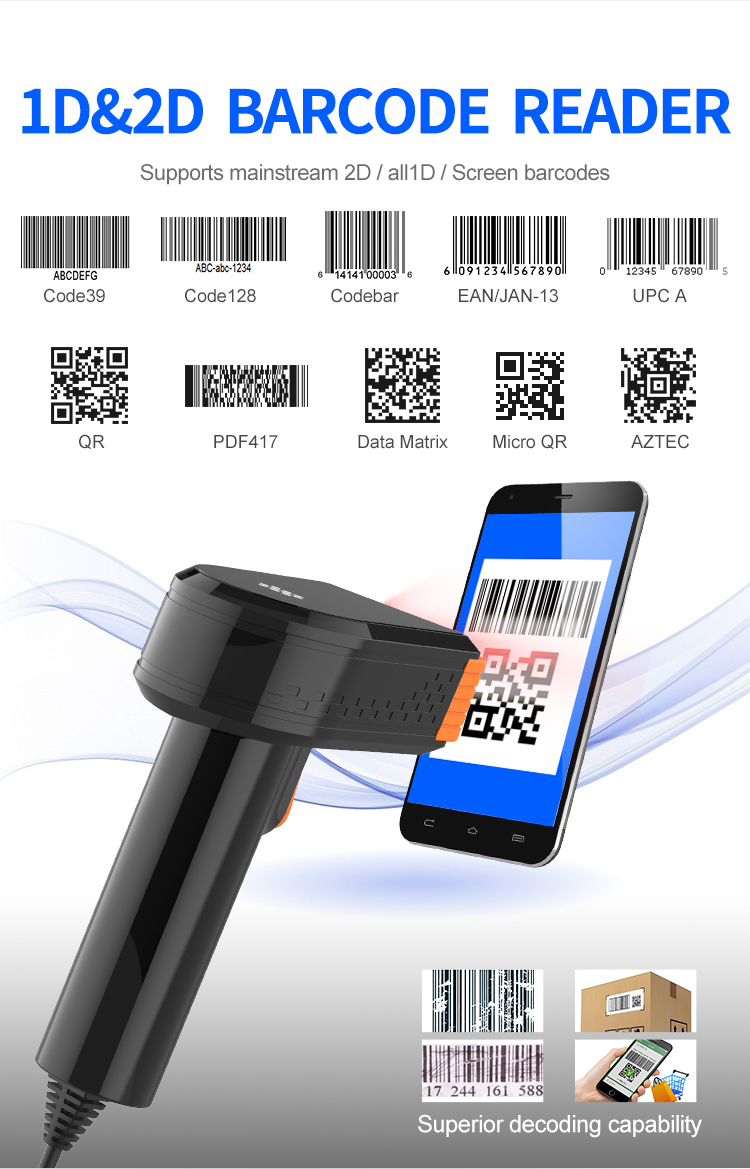

Decoding Capability	1D Code: Interleaved 2 of 5 ,ITF-6,ITF-14,ISB-128,Code 11,UCC/EAN-128,GS1 Databar ,Industrial 2 of 5,Code 128,EAN-13,EAN-8 ,Code 39,UPC-A,UPC-E,Codabar ,Standard 2 of 5,Plessey,MSI-Plessey,Code 93 ,GS1 composite,Matrix 2 of 5,Code 32 2D Code： QR Code , Micro QR , Data Matrix , PDF 417 , MicroPDF417 , Aztec , Maxicode ，Han xinCode * Support scanning screen barcode.
Applicable Place	● Medical treatment ● Shop ● Supermarket ● Catering ● Mobile payment ● Warehouse ● Logistics
Export Country	Europe: Italy, Germany, Spain, Poland; South: America: Brazil, Paraguay, Chile; North: America: USA, Mexico; Asia: India, Israel;

Model		X-3301V
Item		Wired 2D Barcode Scanner
Physical Parameter
Material		ABS+PC
Power Supply		DC 5V ±5%
Current		200mA（working）；40mA（Standby）；220mA（maximum）【Average current】
Power Consumption		1.00W（working）；0.20W（Standby）；1.10W（maximum）【Average power consumption】
Weight		145.0g±5g（Without wire）

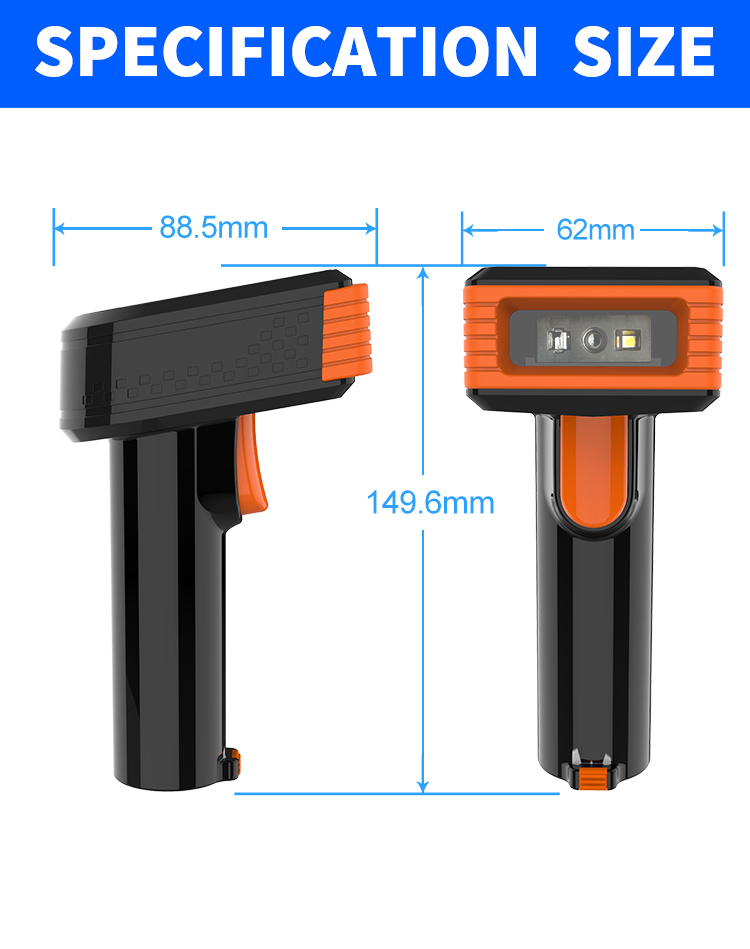

Size		L * W * H：149.6 * 62.0 * 88.5（unit：mm）
Color		black grey，Black
Performance Parameter

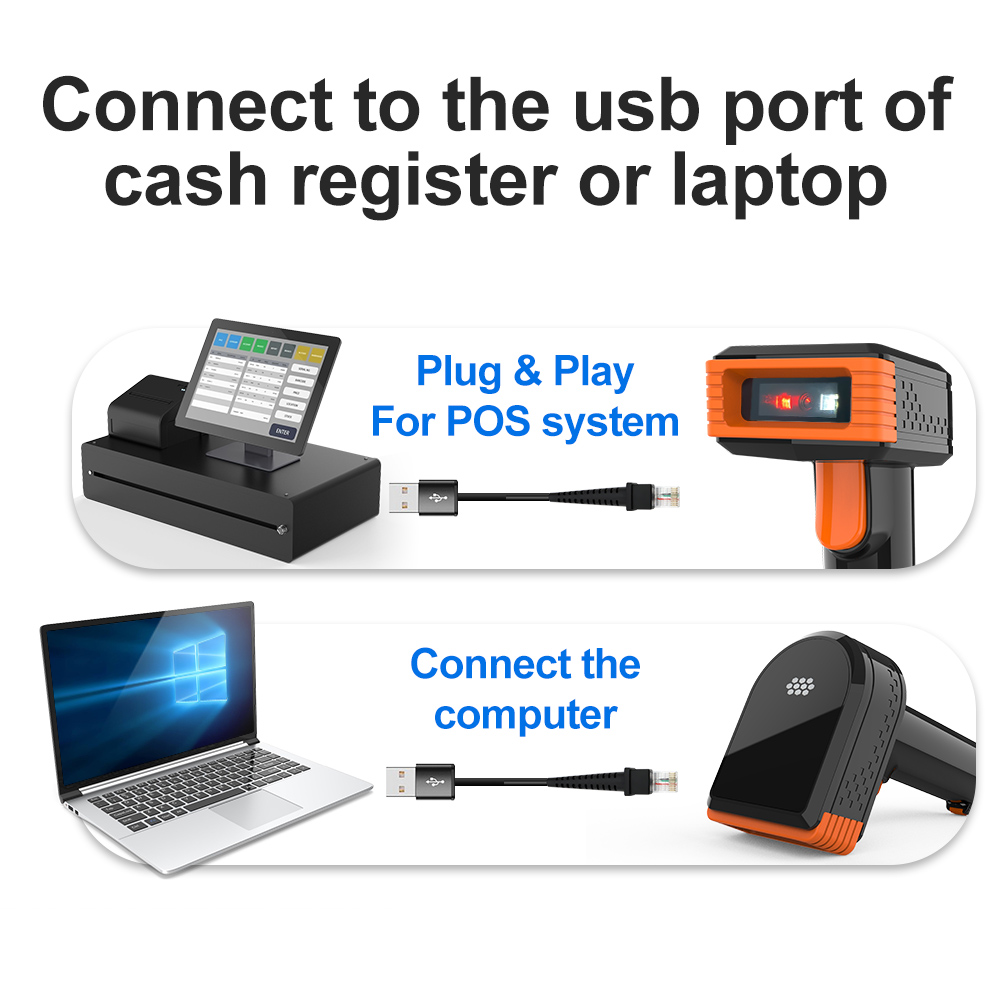

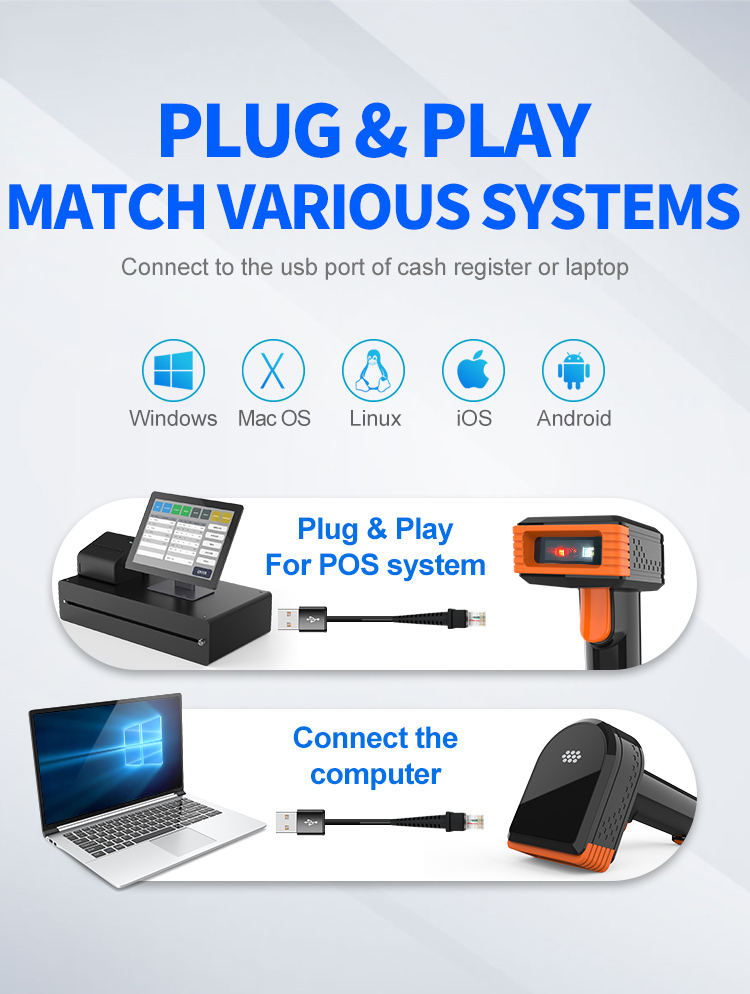

Interface		USB
System Supported		Linux，Android，Windows XP、7、8、10，MAC
Language Supported		English; Belgium; Finland; sent; Germany; Italy; Sweden; United Kingdom; Denmark; Norway; Spain; Portugal; Turkey Q; Turkey F; Japan; Russia; Czech Republic; Thailand; Ukraine; Brazil; Greece; Hungary; Netherlands; Poland ; Romania; Slovakia; [Support virtual keyboard]
Sensor		640×480 global exposure CMOS
Light Source		Red light LED aiming + red light LED lighting

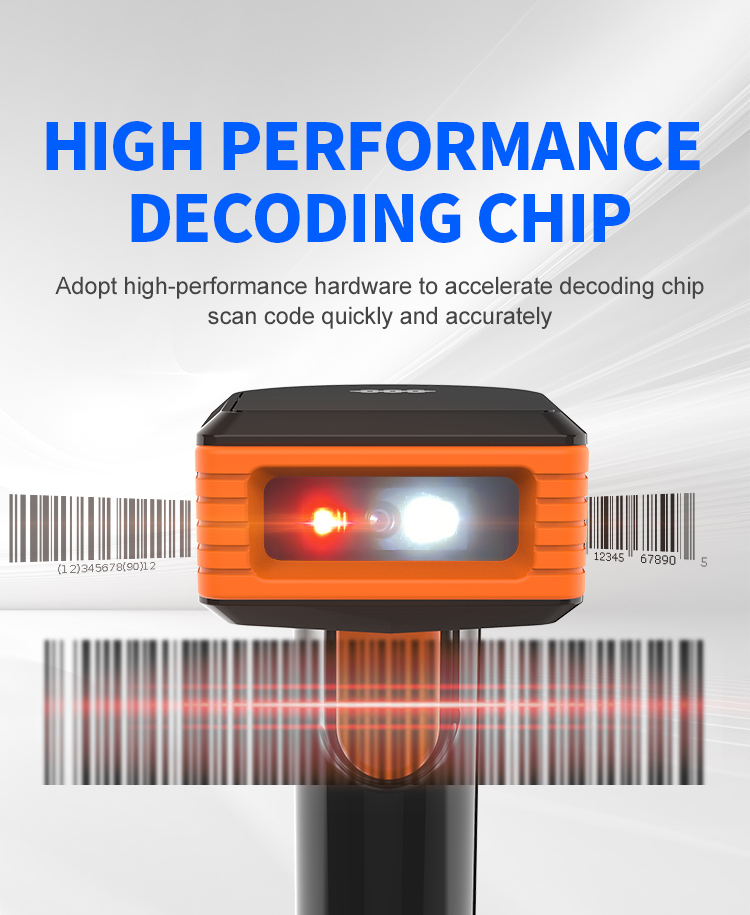

processor		32-bit ARM MCU + DSP
Motion tolerance		Code128： 60cm/sec QR： 65cm/sec
Resolution		≥4mil
Bit error rate		1/5000000
Reading Mode		Image
Trigger Mode		Button trigger mode, self-sensing mode, continuous scan mode
Prompt Mode		Buzzer, Indicator Light（LED）
Print Contrast		≥25%
Scanning Angel		Roll 360°，Pitch 55°，Yew 55°
Scan speed		100 times/sec
Decoding Capability	1D	◎Interleaved 2 of 5 ◎ITF-6 ◎ITF-14 ◎ISBN ◎Code 11 ◎UCC/EAN-128 ◎GS1 Databar ◎Matrix 2 of 5 ◎Industrial 2 of 5 ◎Code 128 ◎EAN-13 ◎EAN-8 ◎Code 39 ◎UPC-A ◎UPC-E ◎Codabar ◎Standard 2 of 5 ◎Plessey ◎MSI-Plessey ◎Code 93 ◎GS1 composite code
	2D	◎PDF417 ◎Data Matrix ◎QR Code ◎HanXin ◎AZTEC ◎Maxicode
Scanning Depth		QR 7.50mil 15byte：5cm - 10cm QR 10.83mil 16byte：3cm - 16cm Code128 5.83mil 15byte: 6cm - 15cm
Environmental parameters
IP Grade		IP52
Operating Temp.		0 to 60℃ / 32 to 122℉
Storage Temp.		0 to 60℃ / 32 to 122℉
Operating Humidity		20% to 85%（No Condensation）
Storage Humidity		20% to 85%（No Condensation）
ESD Protection		15KV air discharge
Shock Resistance		1.5m free fall on concrete surface
Ambient light		0→100000Lux

Solutions FAQ
Q：Can not turn on or turn off immediately after turning on
A：This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged)

Q：Barcode data is not uploaded
A：The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range)

Q：There is a laser line, but can't read the bar code.
A：Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual.

Q：The scanned data is displayed incorrectly on the host
A：Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center.

Q：Other cases cannot be decoded
A：It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again.
