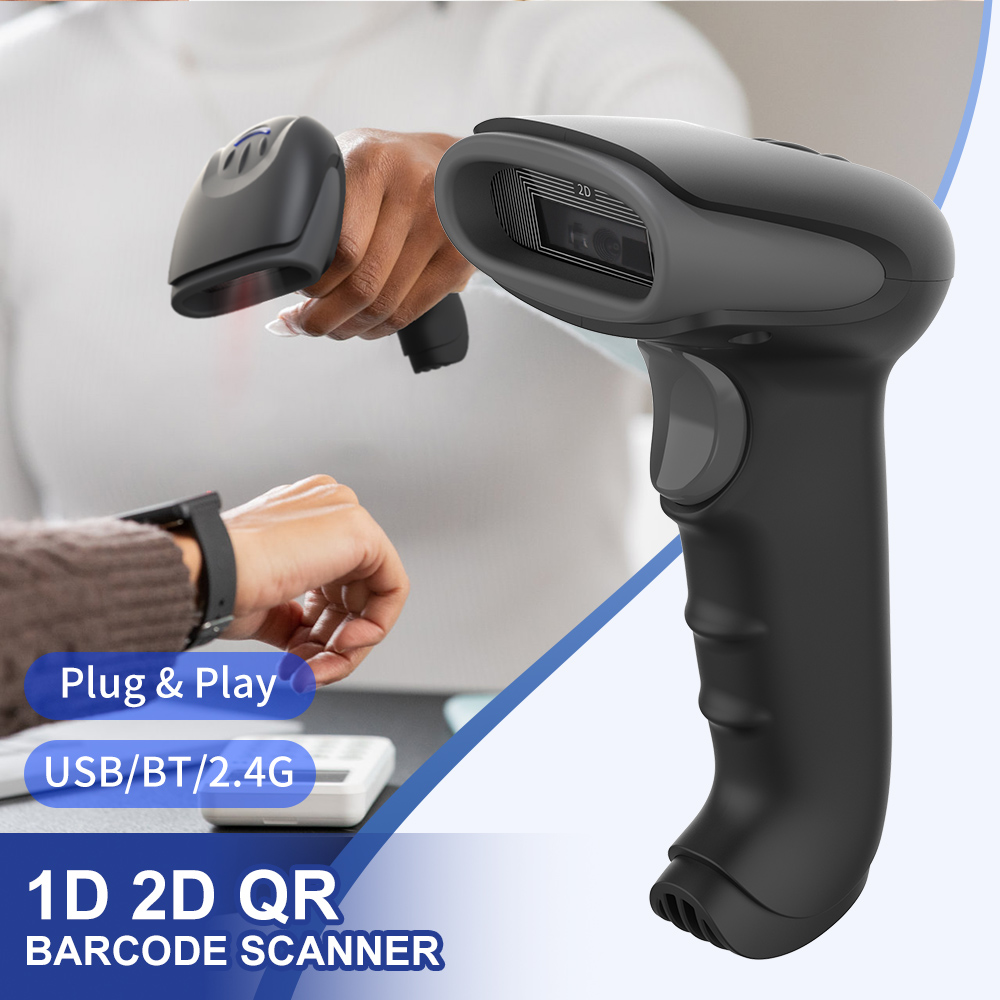

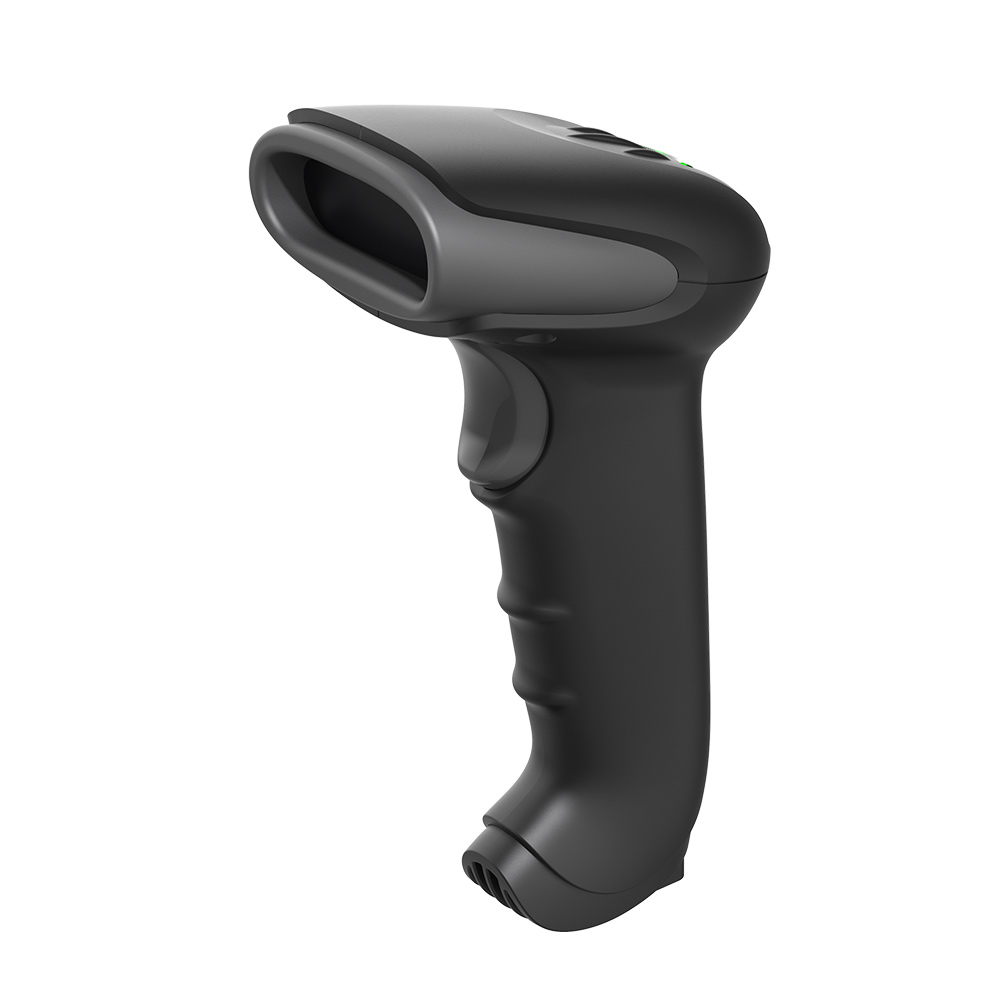

X-9701B Wireless 2.4G 2D Barcode Scanner
| X-9701B Technical Parameter | |||||||
| Model | X-9701B | ||||||
| Item | Wireless 2D Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC | ||||||

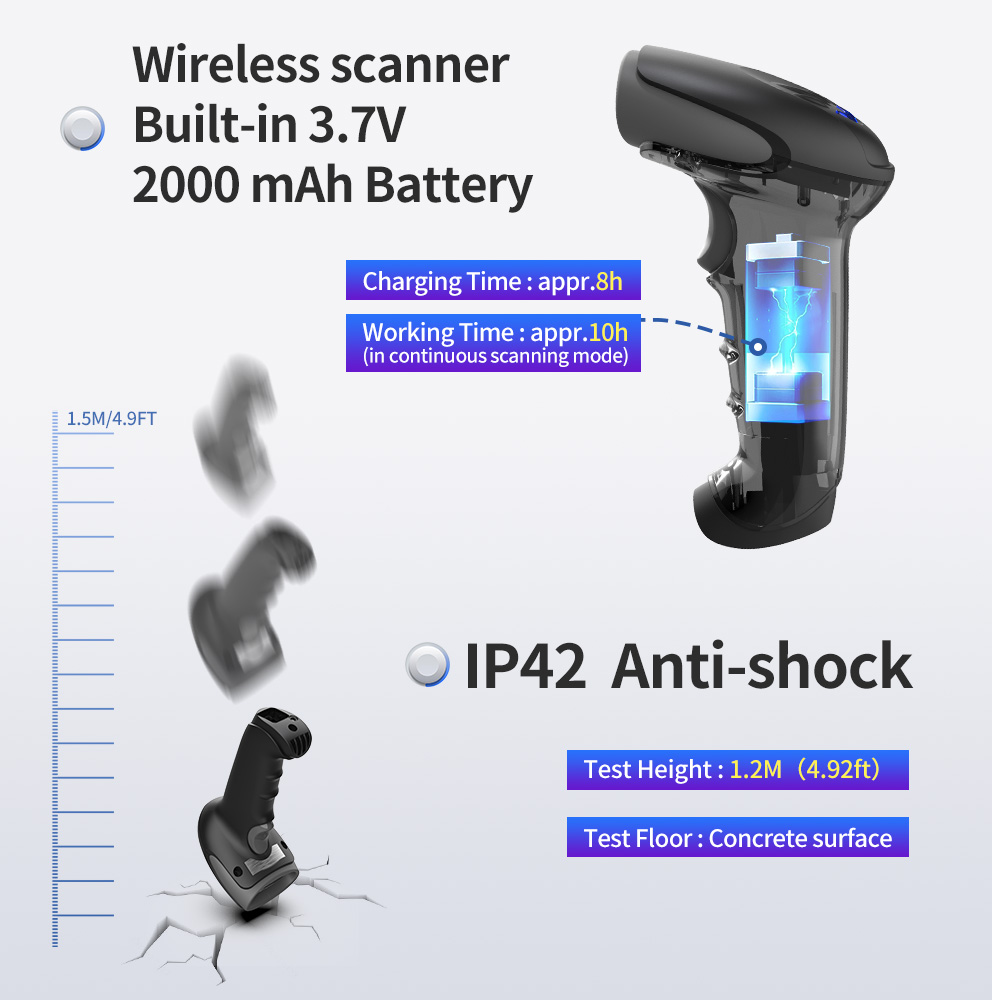

| Power Supply | Charge DC 5V ±5% ；Built-in 3.7V 2000mA lithium Battery | ||||||
| Power Consumption | 0.55W（Working）; 0.35W（Stand by）; 0.90W（Maximum） | ||||||
| Weight | 161g±5g（Without Cable） | ||||||

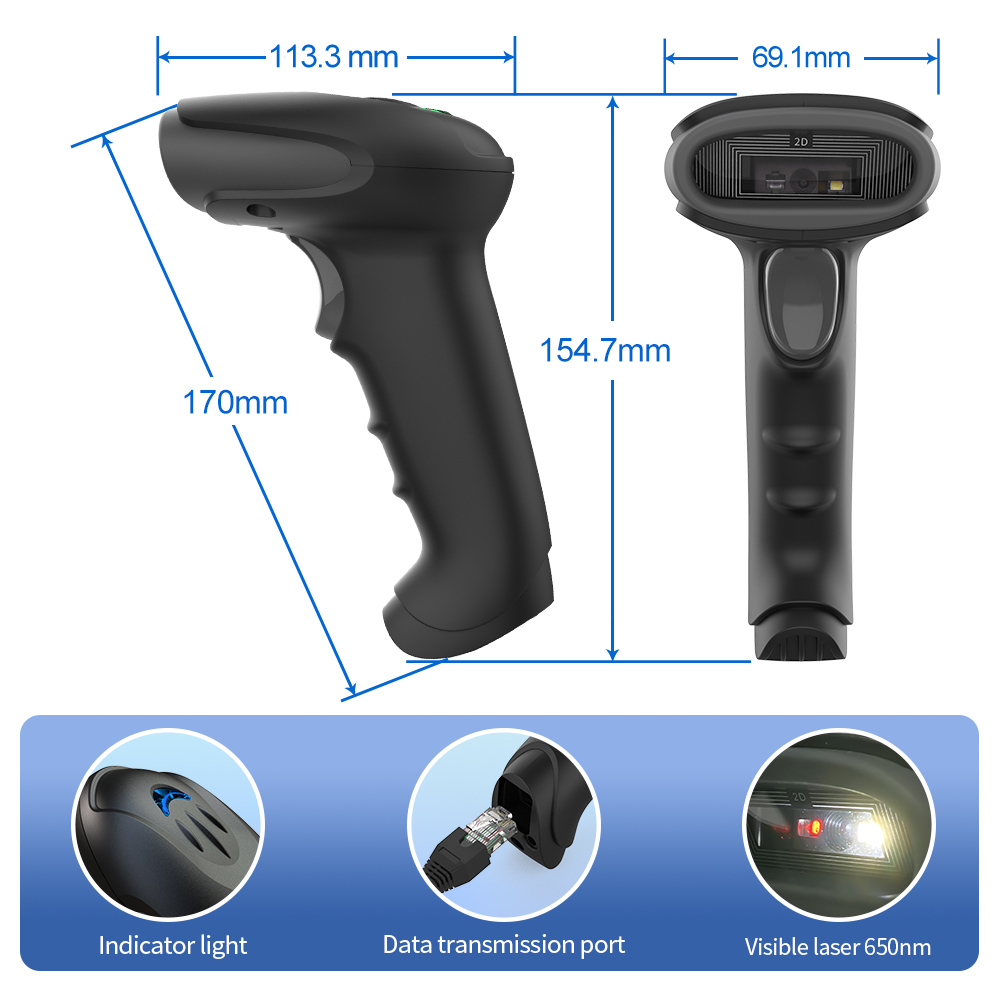

| Size | L * W * H：170.0 * 69.1 * 113.3（Unit/mm） | ||||||
| Color | Black | ||||||
| Button life | ＞100000 | ||||||
| Performance Parameter | |||||||

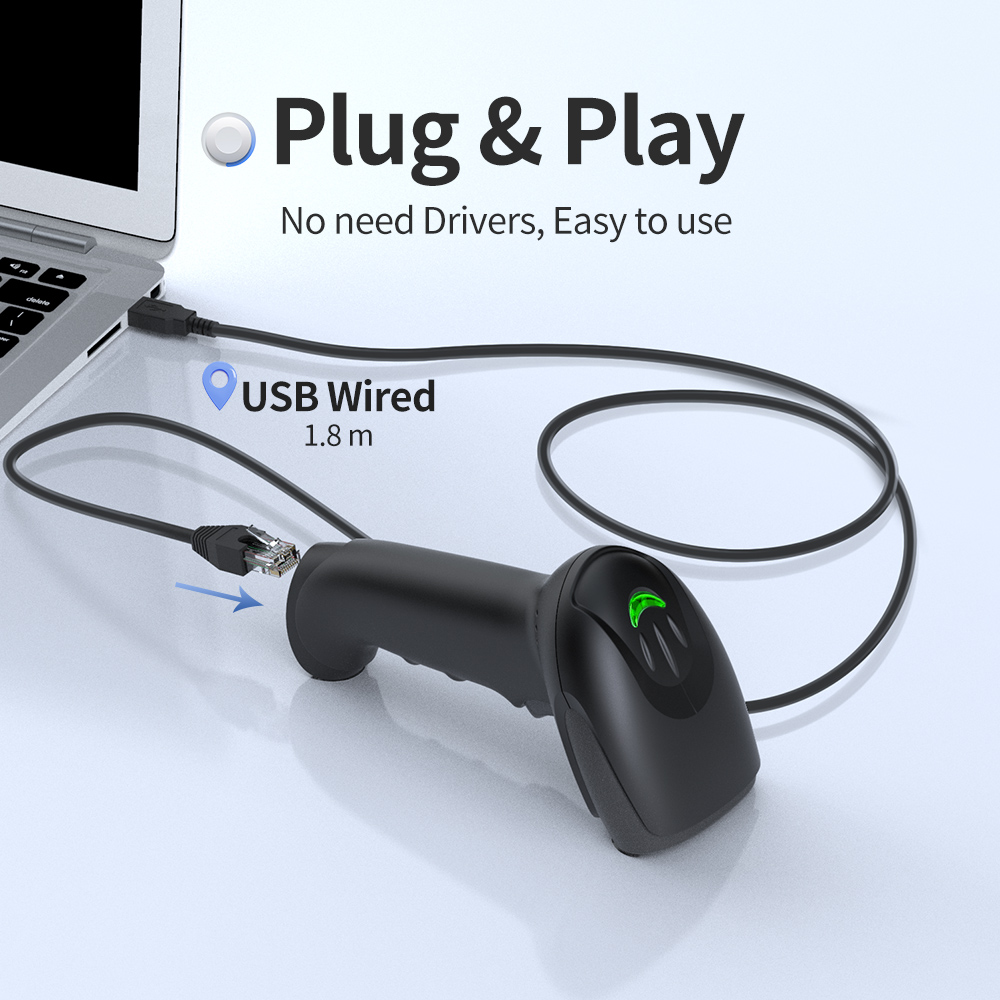

| Interface | USB；2.4G；Bluetooth | ||||||
| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | English US; French Canada; Dutch Netherlands; Spanish International; Latin American Argentina; Portuguese Brazil; Danish Denmark; English UK; Italian Italy 142; French France; German Germany; Portuguese Portugal; Finnish Finland; Turkish F; Japanese; Russian - Russia; Northern Sami - Norway 【 Supports multiple keyboards 】 | ||||||
| Sensor | CMOS 640*480 | ||||||
| Processor | 32-bit ARM MCU | ||||||
| Storage | 512 KB（customizable capacity） | ||||||
| Light Source | Red LED aiming+white LED lighting | ||||||
| Motion Tolerance | code 128:20cm/sec QR:25cm/sec | ||||||

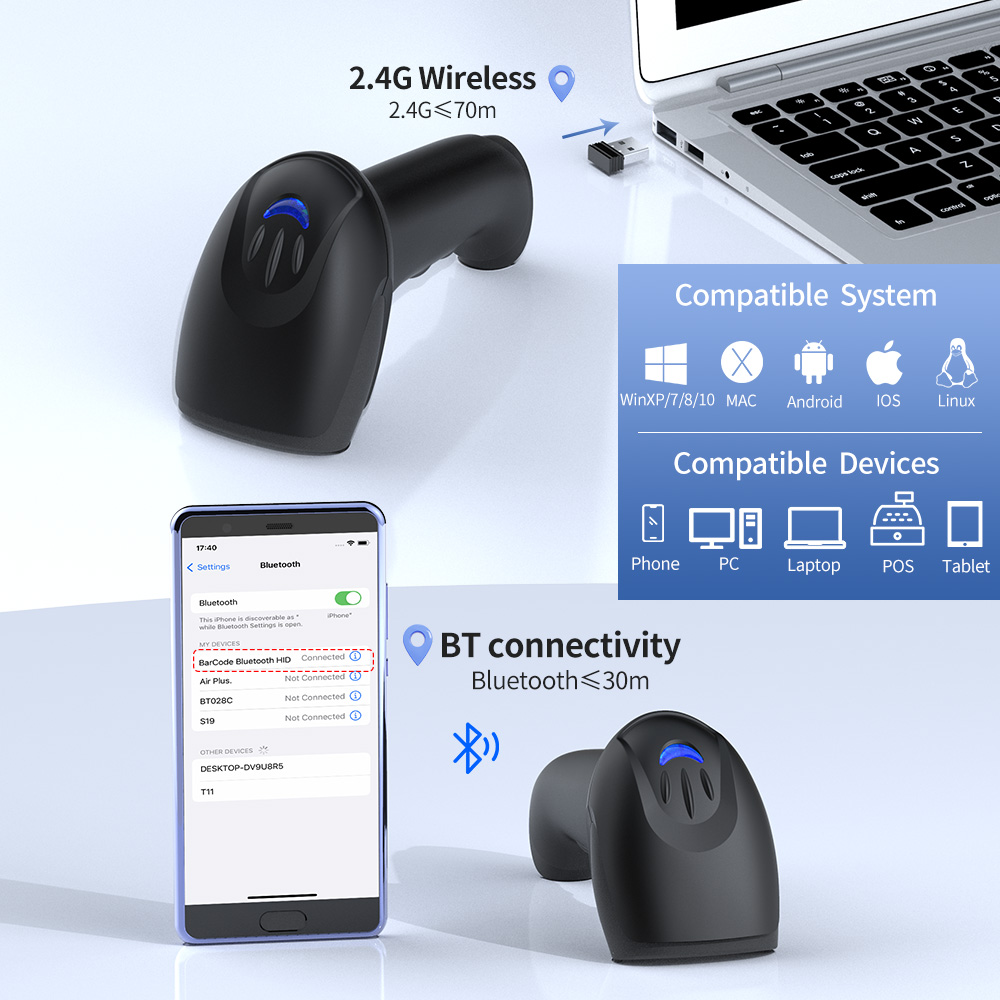

| Wireless Transmission Distance | 2.4G≤70m（Visual range） Bluetooth≤30m（Visual range） | ||||||
| Reading Mod | Image | ||||||
| Resolution | ≥4mil | ||||||
| Bit error rate | 1/5000000 | ||||||
| Trigger Mode | Key triggering mode; Continuous scanning mode; Self sensing mode | ||||||
| Prompt Mode | Buzzer+indicator light | ||||||
| Scaning Angle | Pitch±55°，Yew±55°，Roll 360° | ||||||
| Print Contrast | ≥25% | ||||||
| Charging Time | appr.8h | ||||||
| Working Time | appr.10h(under continuous mode) | ||||||

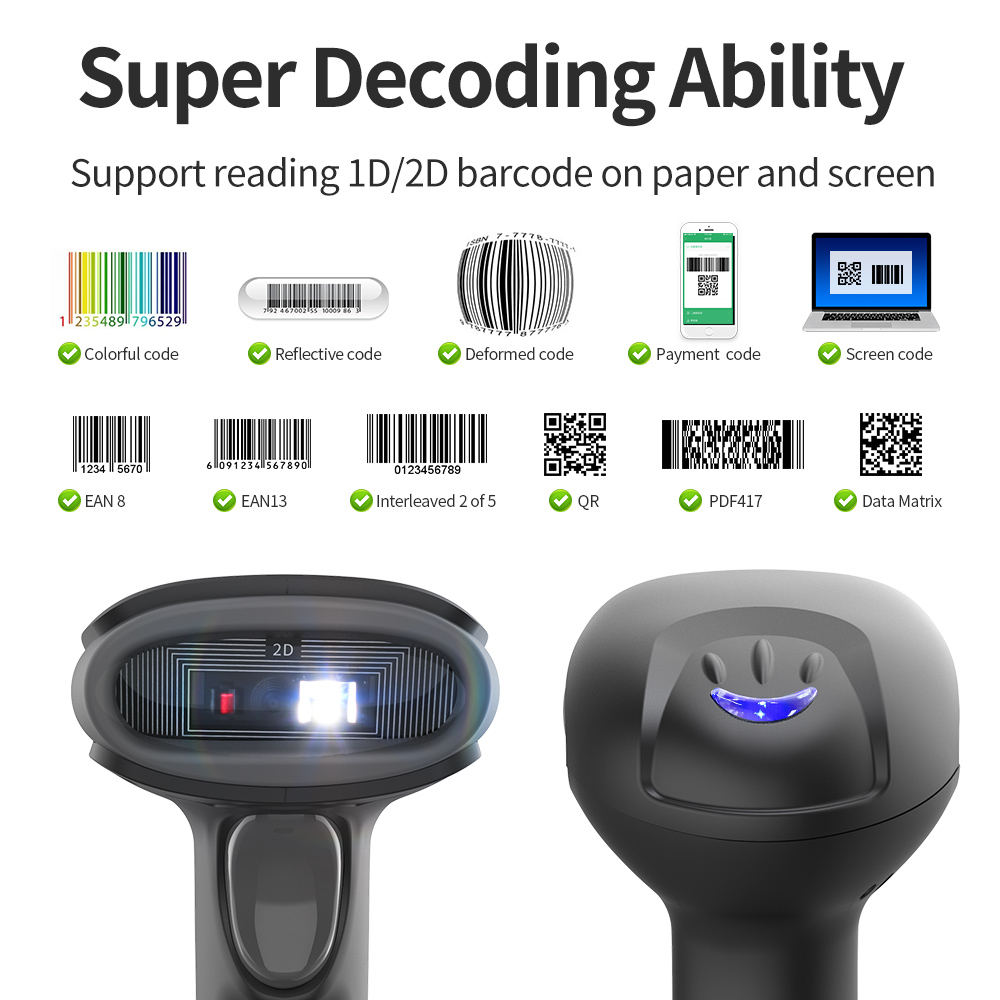

| Decoding Capability | 1D | ● Code25-Interleaved ● Code25-Standard ● Code25-Matrix ● RSS-14 ● Code39-Regular ● Code39-FullASCII ● Code93-Regular ● Code128 ● Code11 ● UPCE0/E1 ● EAN/GS1/UCC-128Auto ● Codabar ● MSI ● EAN/JAN-13 ● UPC-A ● JAN/EAN-8 ● ChinaPost 25 ● Plessey | |||||
| 2D | ● Data Matrix ● QR ● PDF417 ● Micro QR ●HanXin ● Micro PDF 417 ● Maxi Code ●Aztec | ||||||
| Scanning Depth | QR 9.17 mil（7 byte）：6cm - 10cm Data Matrix 9.17mil（7 byte)：7cm - 10cm code93 5.83mil（14 byte）：7cm - 10cm Refund code 28 byte：10cm - 15cm WeChat payment QR code：9cm - 45cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP42 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||
| Shock Resistance | Free Fall 1.2m（concrete surface） | ||||||
| Ambient light | 0→100000Lux | ||||||
| Solutions FAQ | |||||||||
| Q：Can not turn on or turn off immediately after turning on | |||||||||
| A：This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged) | |||||||||
| Q：Barcode data is not uploaded | |||||||||
| A：The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range) | |||||||||
| Q：There is a laser line, but can't read the bar code. | |||||||||
| A：Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual. | |||||||||
| Q：The scanned data is displayed incorrectly on the host | |||||||||
| A：Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center. | |||||||||
| Q：Other cases cannot be decoded | |||||||||
| A：It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again. |
