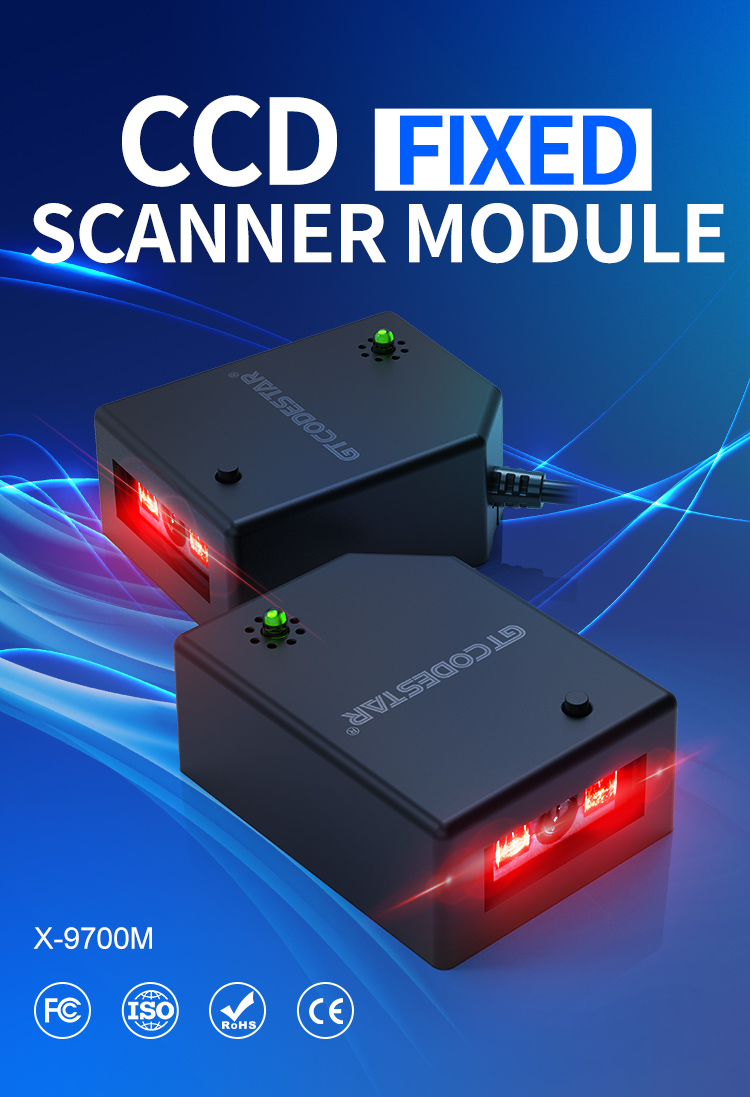

X-9700M Mini 1D CCD Barcode Scanner

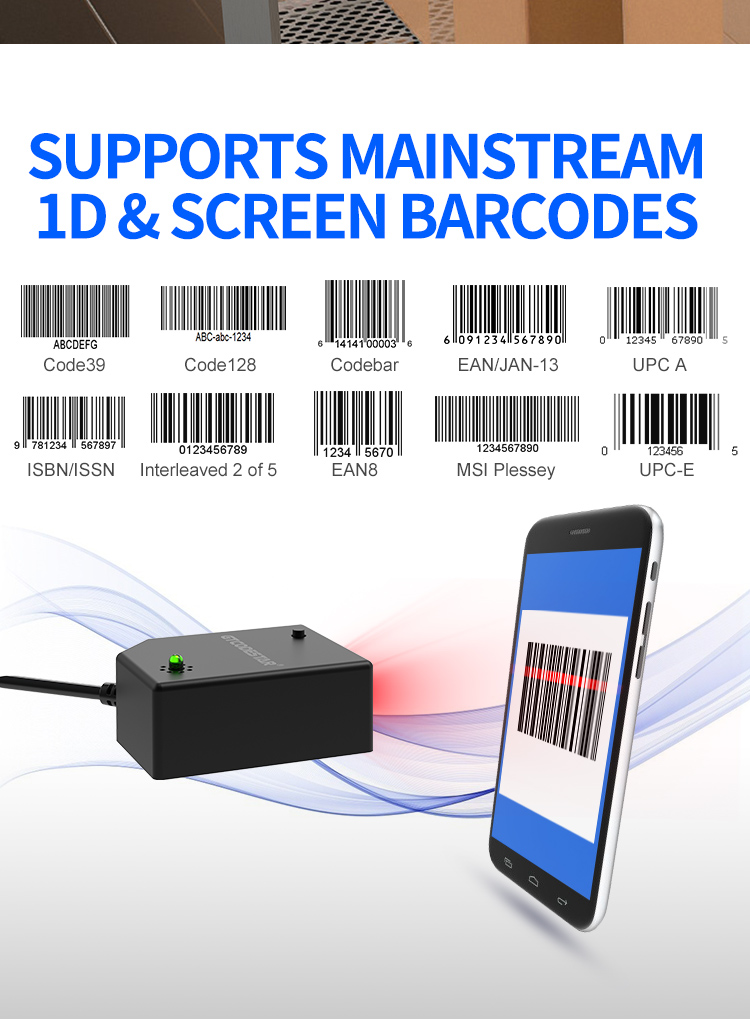

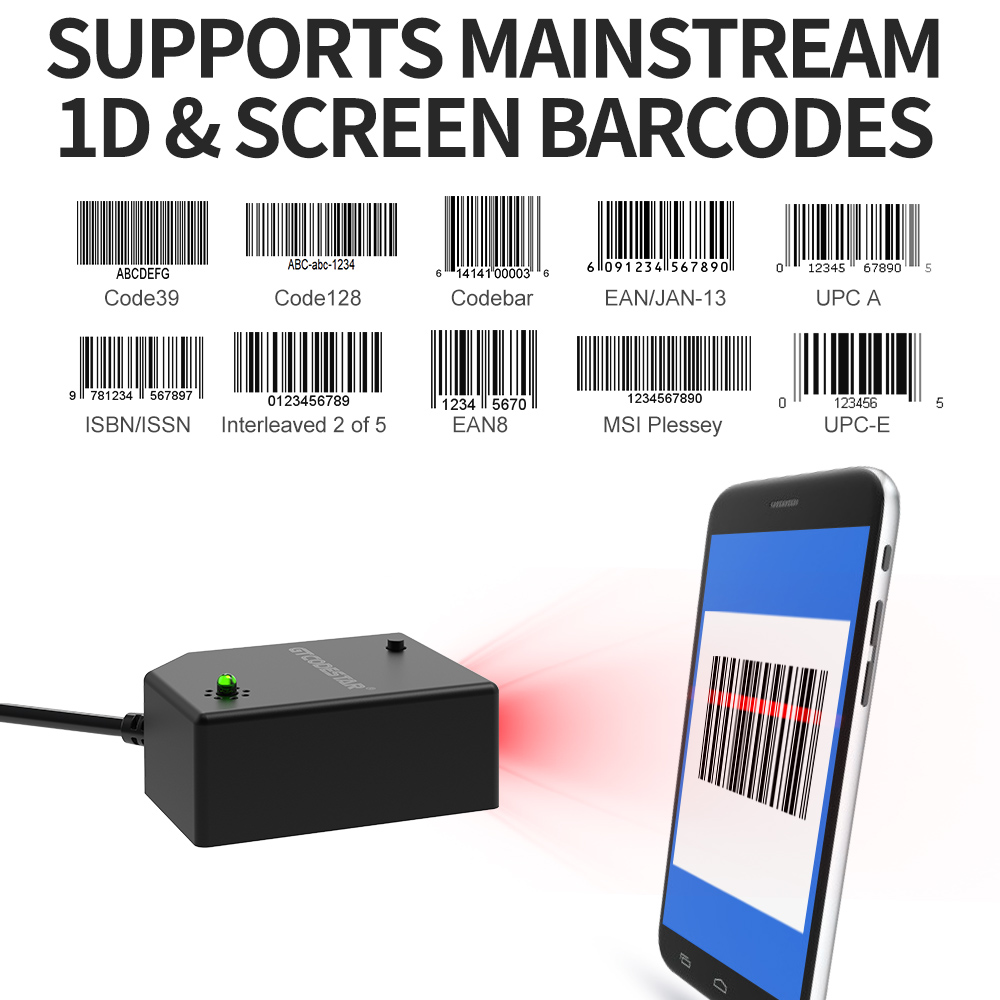

Read all standard 1D barcodes even on electronic screen;

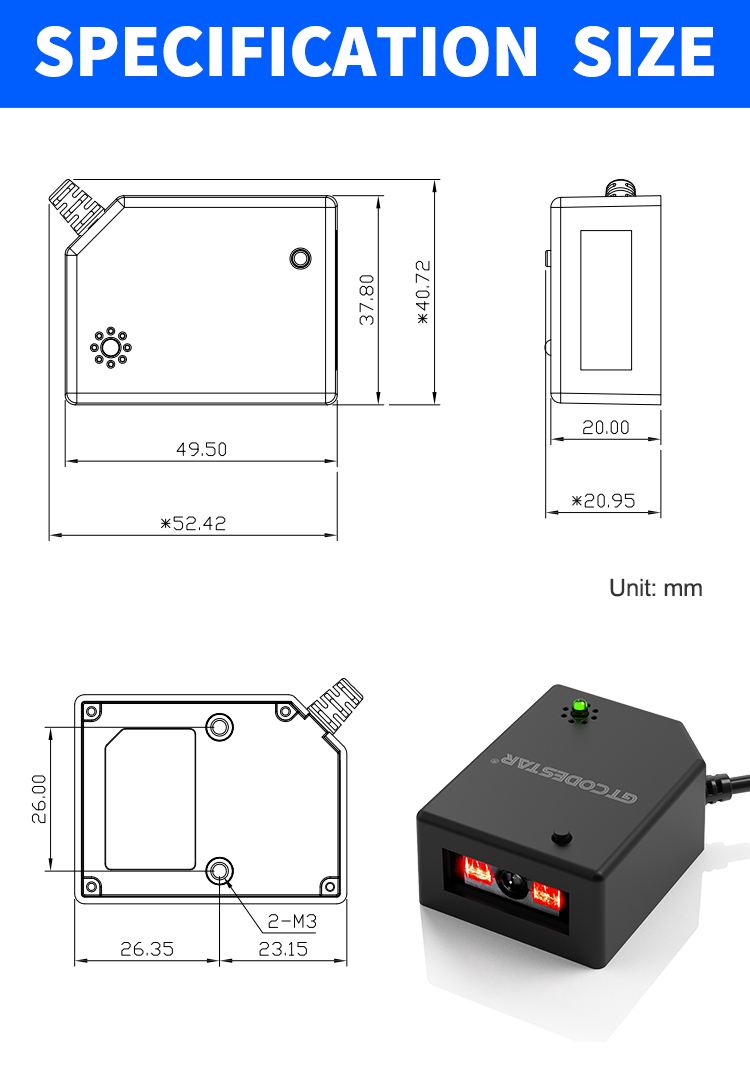

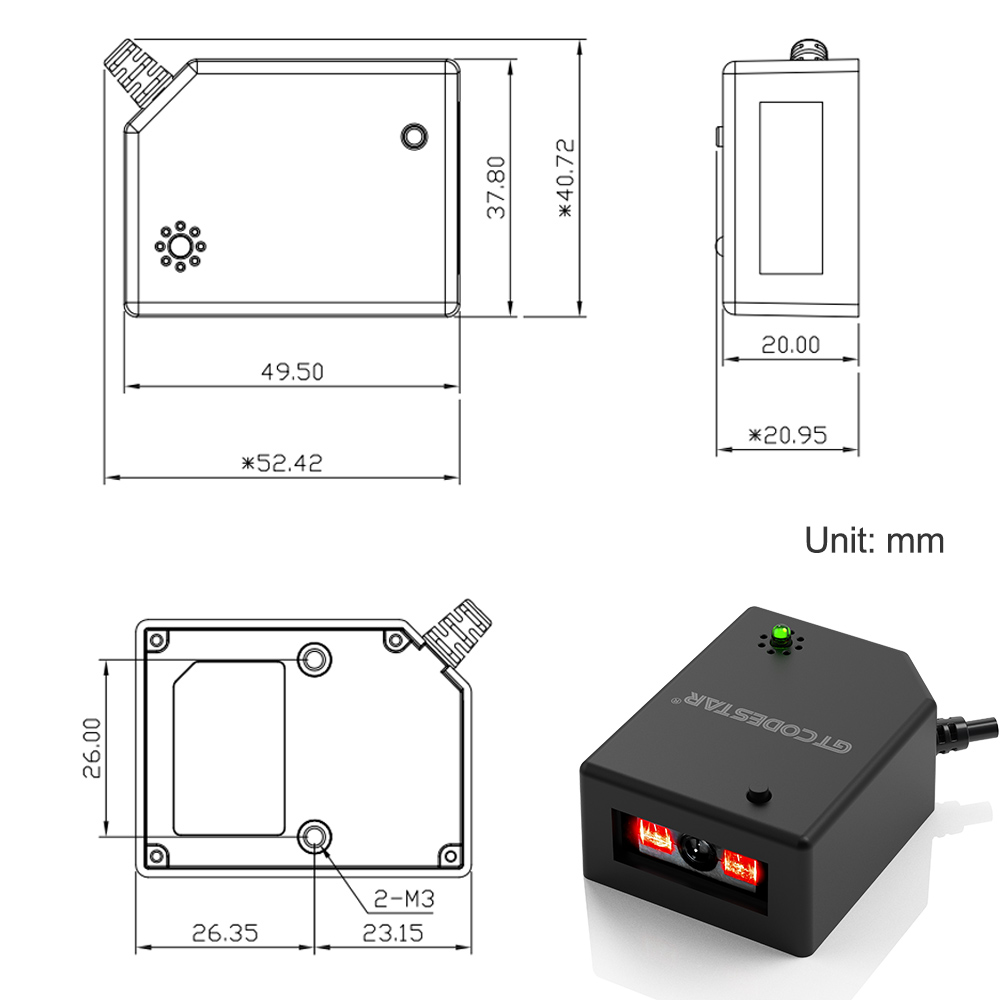

Small size(48mm*36mm*20mm) and light weight(70g, with cable);

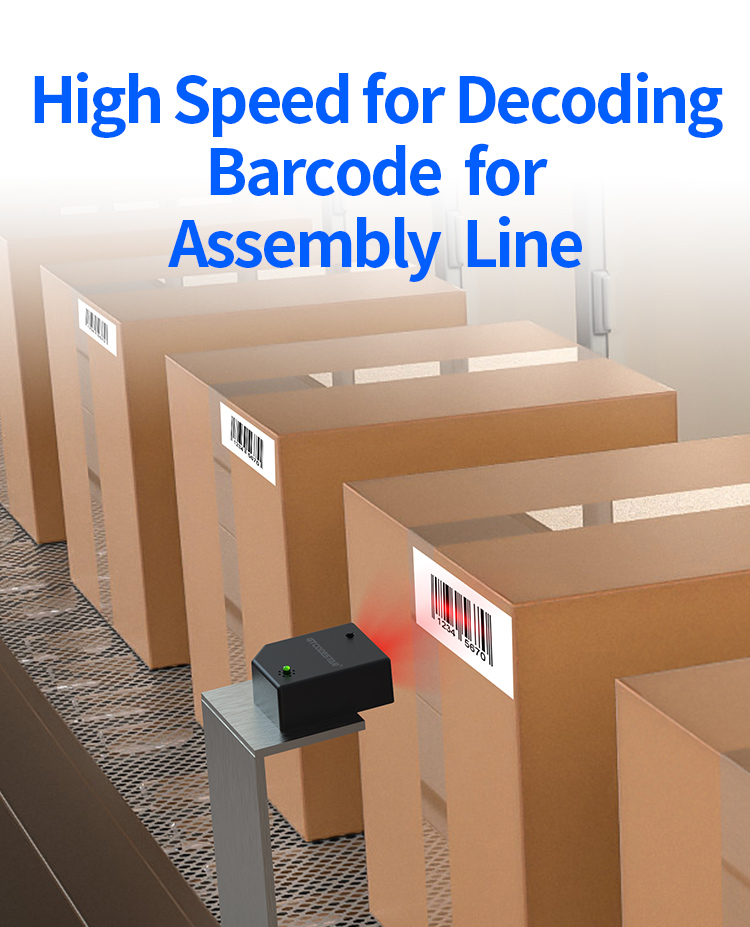

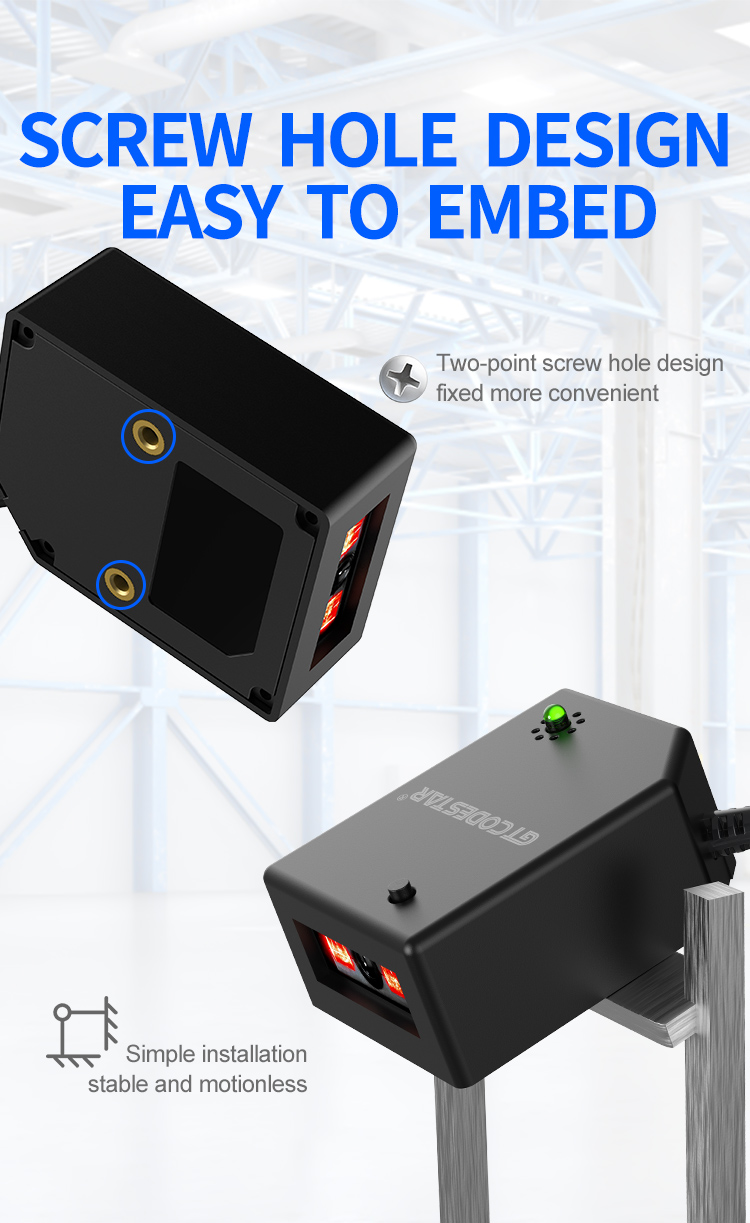

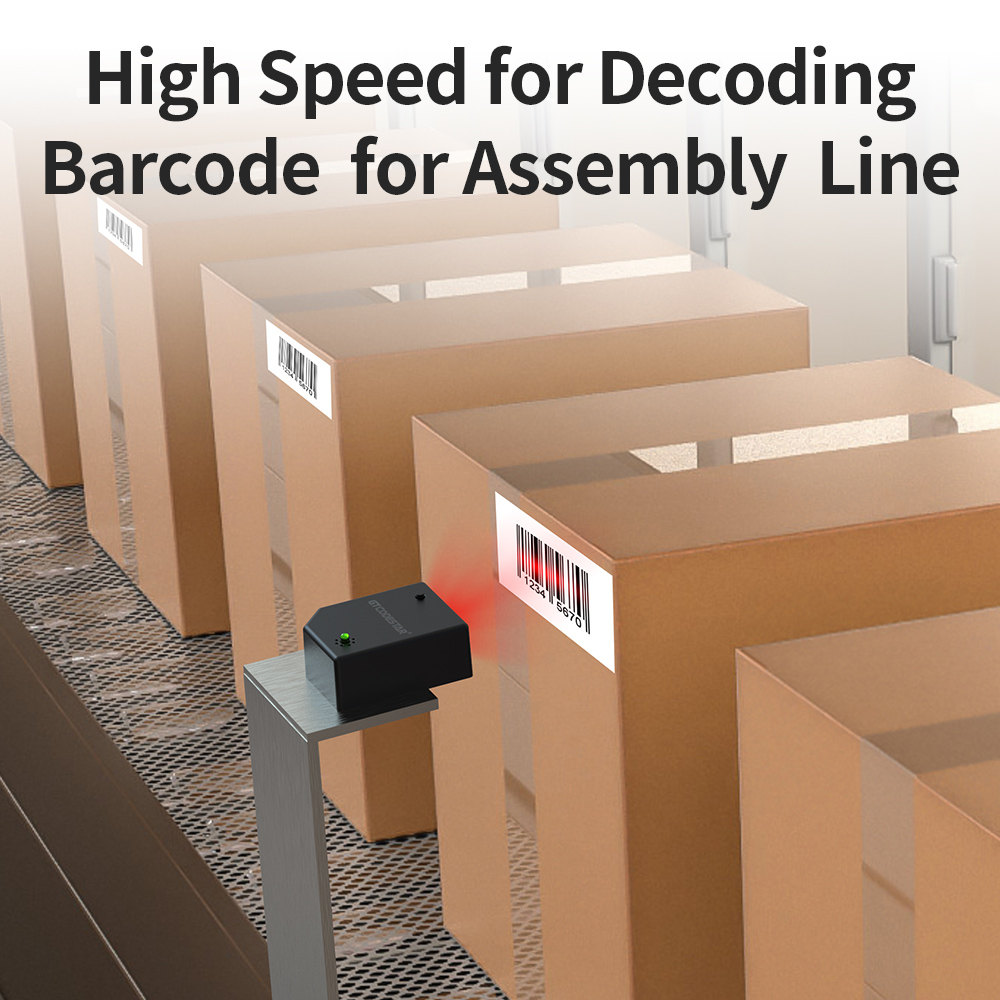

embedded into vending machine,ticket machine, metro gate;

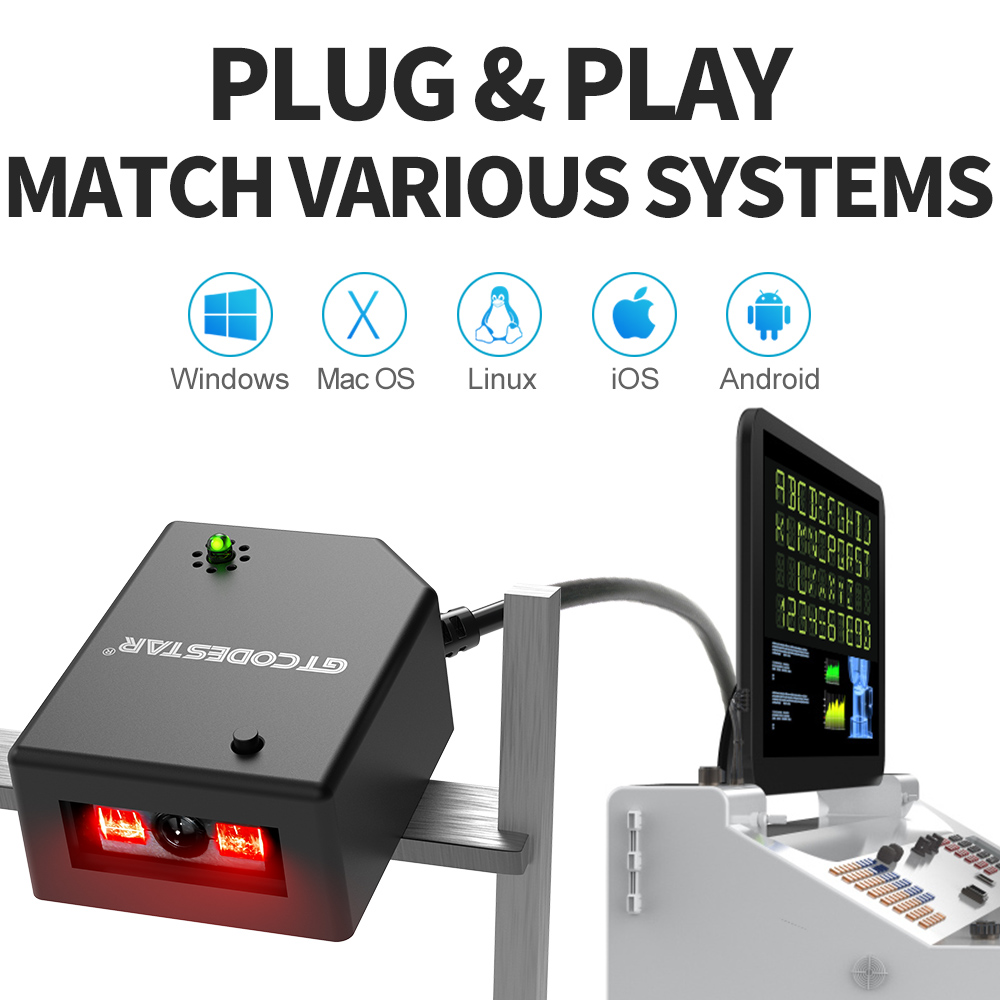

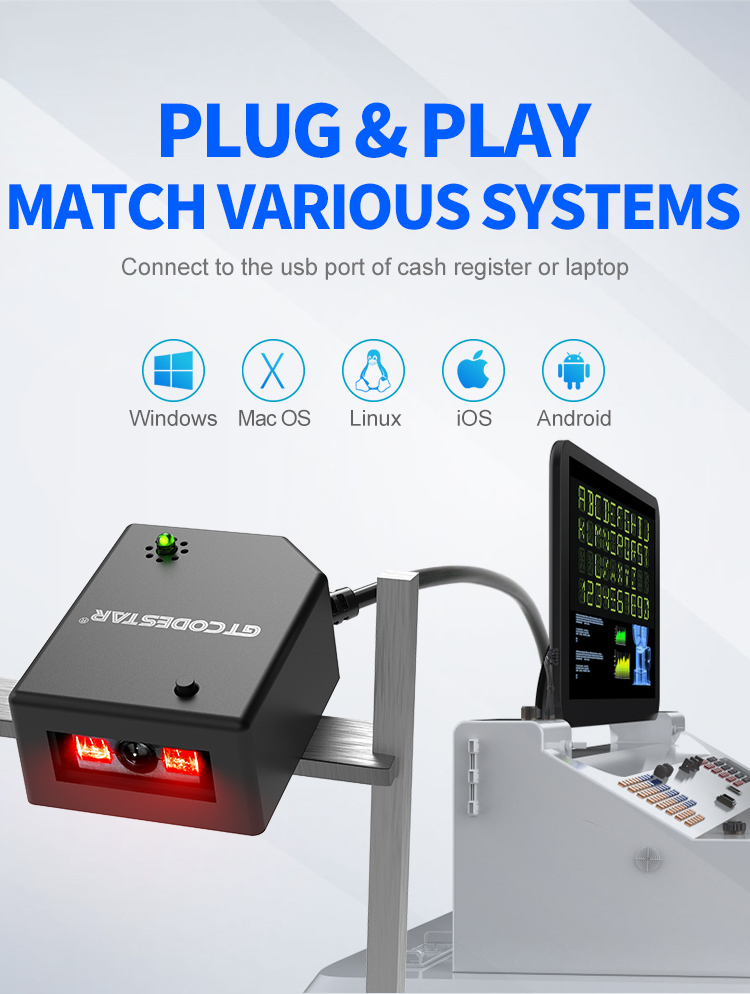

Interface: USB/COM;
Processor:32 bit ARM MCU
Light Source: Visible Red light 632nm LED;
set to Manua model & continuous scanning mode&Auto-sensing mode
Sensor: Linear CCD Sensor;
Processor Type: ARM Cortex™-M3, 32-bit;
Scan Rate: up to 500 scans/second
X-9700M-Product Catalogue
PDF(0.5MB)
X-7200M User's Manual
PDF(1.5MB)
Details
Parameter
Video
FAQ

X-9700M-2月_01.jpgX-9700M-2月_02.jpgX-9700M-2月_03.jpgX-9700M-2月_04.jpgX-9700M-2月_05.jpgX-9700M-2月_06.jpgX-9700M-2月_07.jpgX-9700M-2月_08.jpgX-9700M-2月_09.jpg

Solutions FAQ
Q:Can not turn on or turn off immediately after turning on
A:This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged)

Q:Barcode data is not uploaded
A:The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range)

Q:There is a laser line, but can't read the bar code.
A:Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual.

Q:The scanned data is displayed incorrectly on the host
A:Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center.

Q:Other cases cannot be decoded
A:It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again.
