| X-9700L Technical Parameter | |||||||
| Model | X-9700L | ||||||

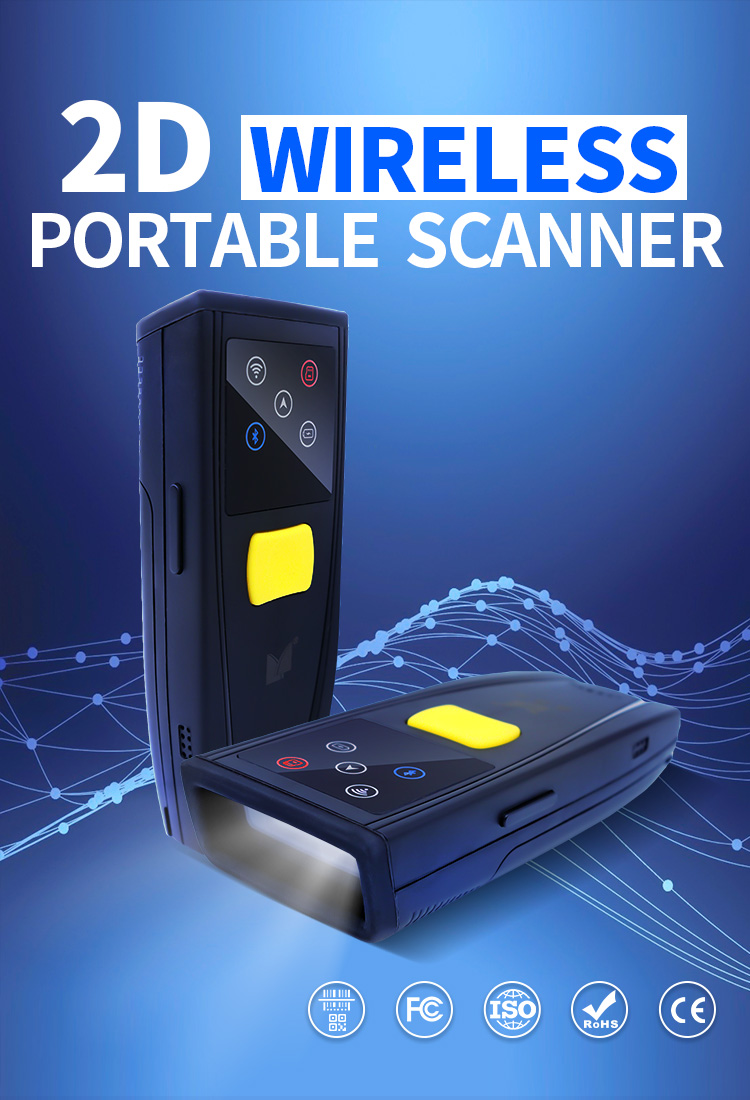

| Item | X-9700L Wireless Portable 2D Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC | ||||||

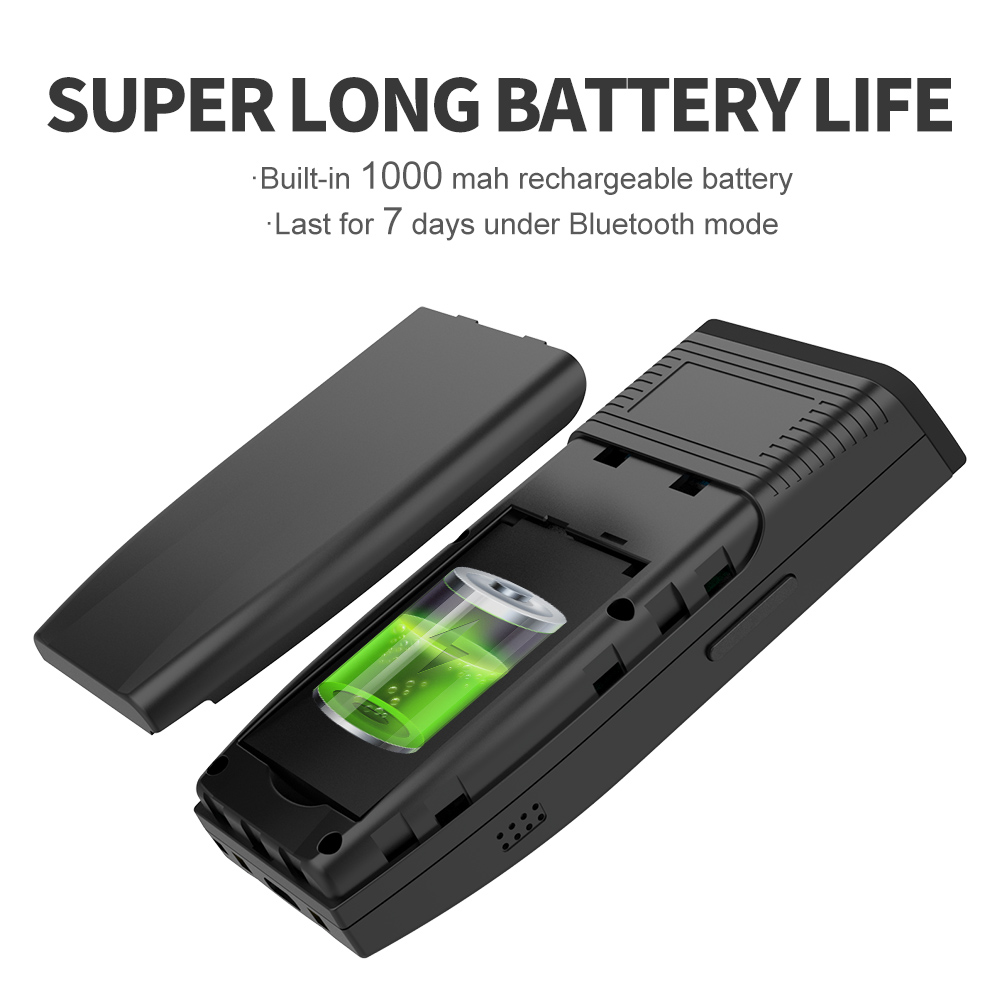

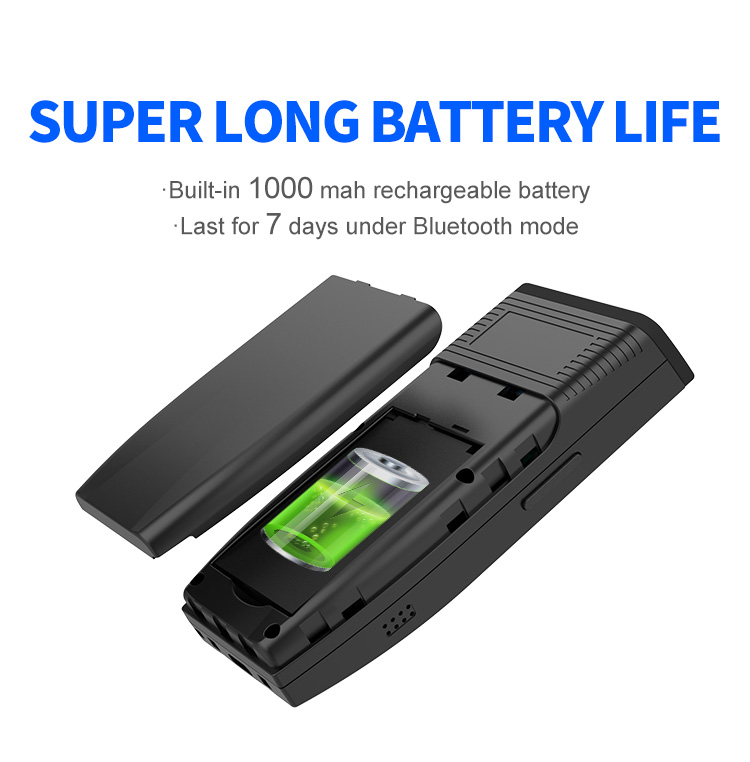

| Power Supply | DC 5V ±5% ； 3.7V 1000mA lithium Battery | ||||||
| current | 121mA（Working）;50mA（Stand by）;215mA（Maximum）【average current】 | ||||||
| Weight | 73g±5g（Without Cable） | ||||||

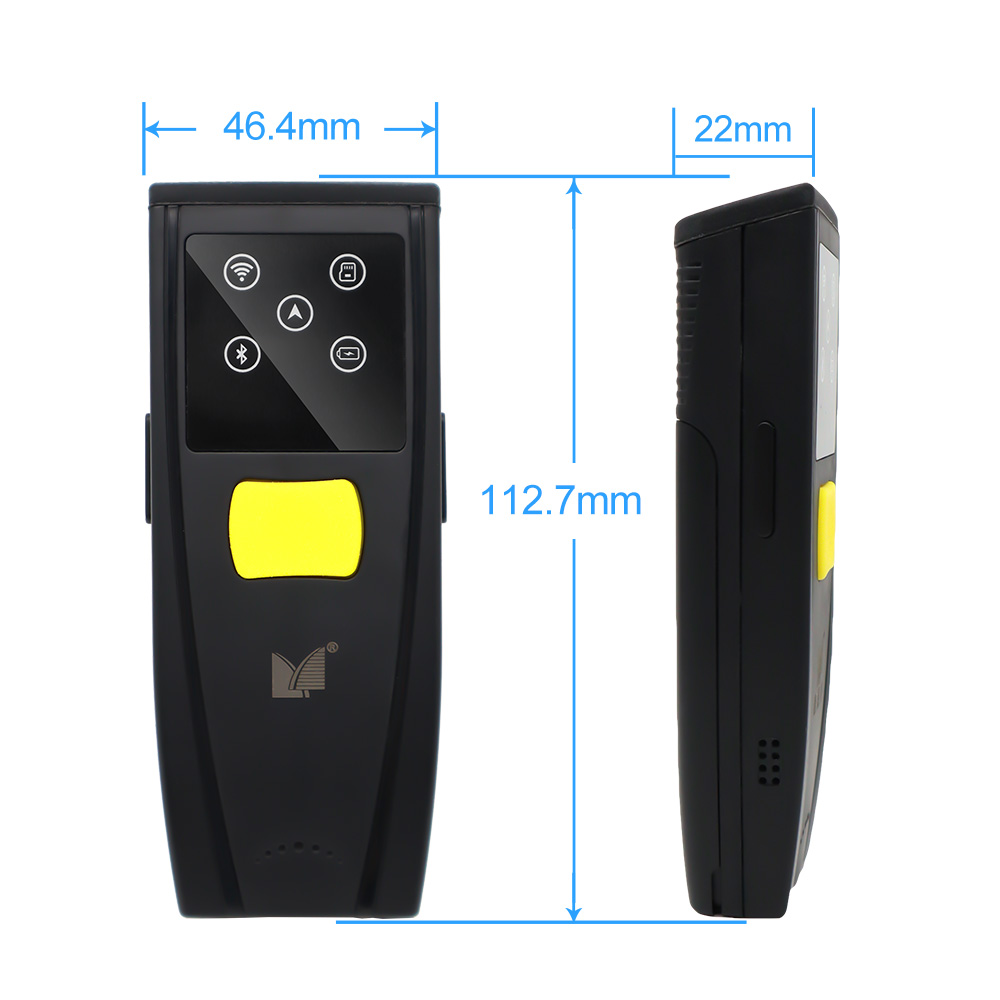

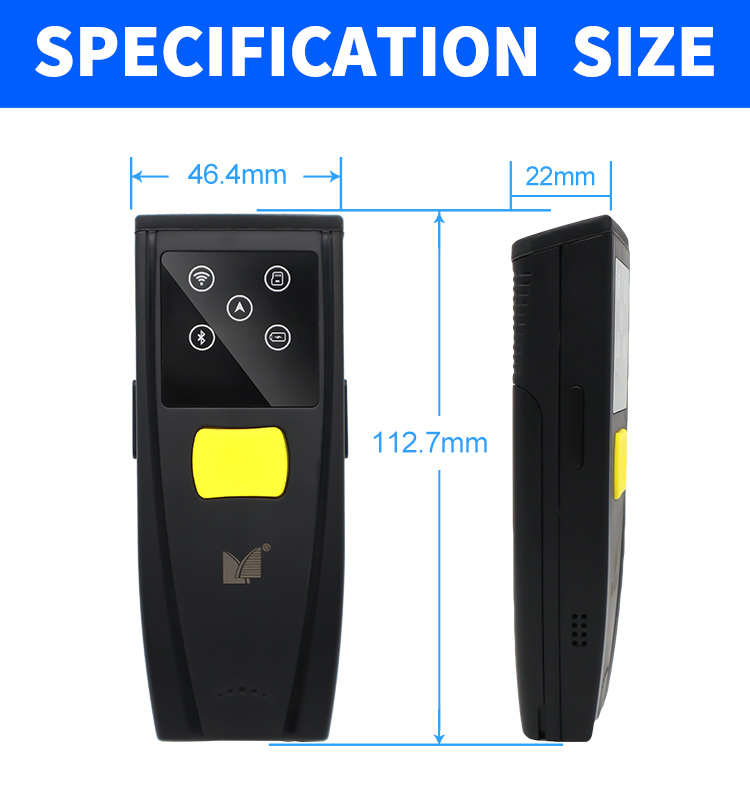

| Size | L * W * H ：112.7 * 46.4 * 22.0（Unit：mm） | ||||||
| Color | Black | ||||||
| Button life | ＞100000 | ||||||
| Performance Parameter | |||||||

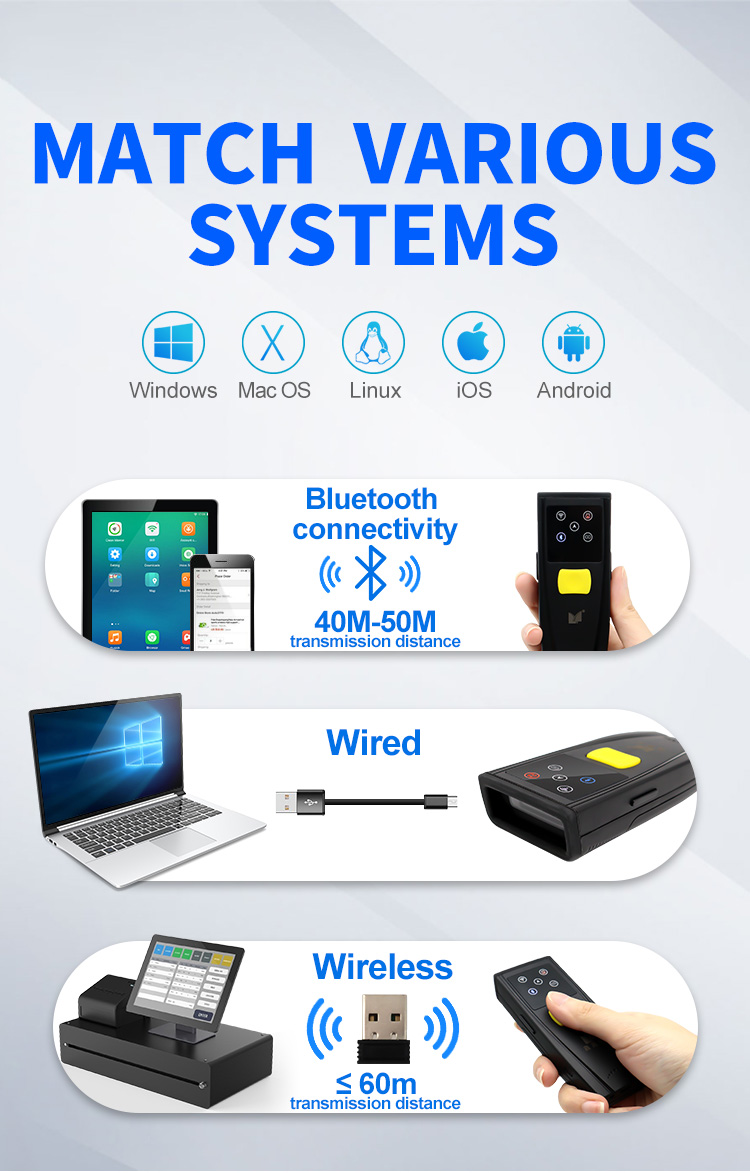

| Interface | USB；2.4G；Bluetooth | ||||||
| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | English US; French Canada; Dutch Netherlands; Spanish International; Latin American Argentina; Portuguese Brazil; Danish Denmark; English UK; Italian Italy 142; French France; German Germany; Portuguese Portugal; Finnish Finland; Turkish F; Japanese; Russian - Russia; Northern Sami - Norway 【 Support for multiple keyboards 】 | ||||||

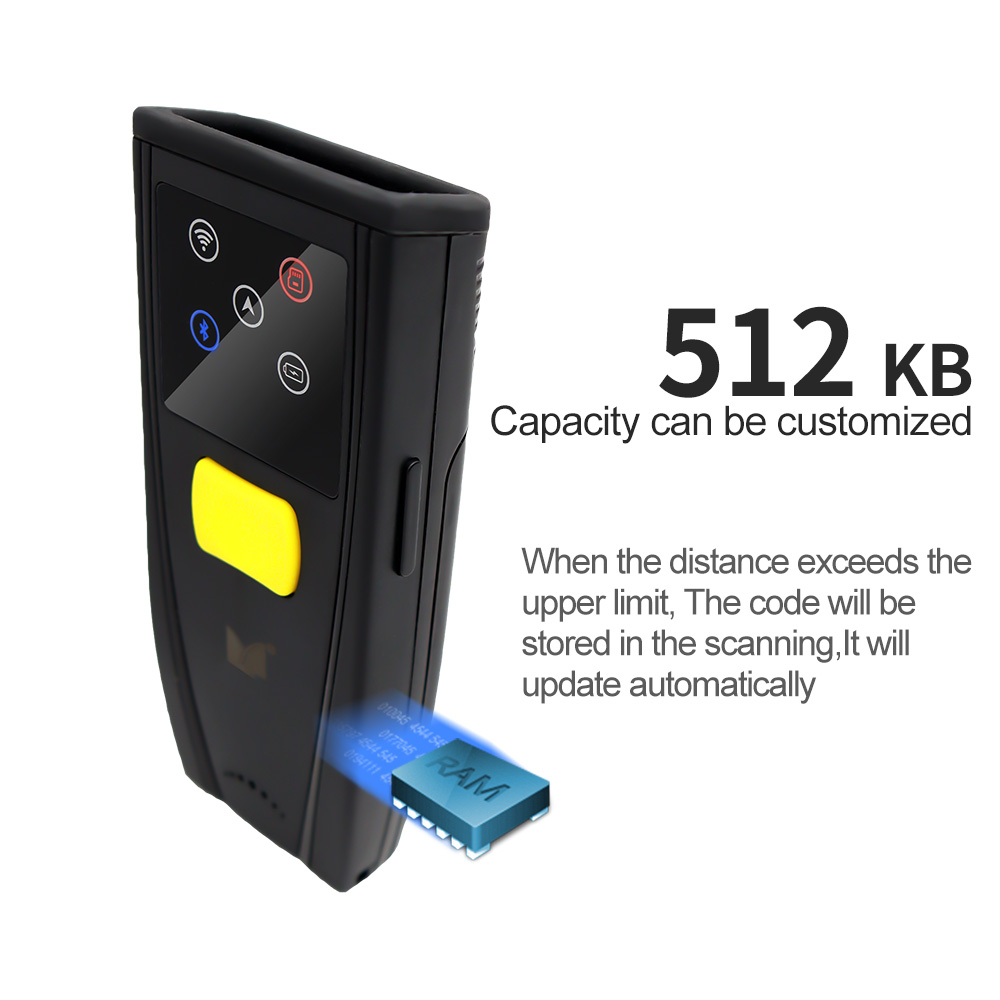

| Storage | 512 KB（Capacity can be customized） | ||||||
| Sensor | 640×480 Global Exposure CMOS | ||||||
| Light Source | Red LED aiming+red LED lighting | ||||||
| Processor | 32-bit ARM MCU + DSP | ||||||
| Motion Tolerance | Code128： 60cm/sec QR： 65cm/sec | ||||||
| Reading Mod | Image | ||||||
| Resolution | ≥4mil | ||||||
| Wireless transmission distance | 2.4G≤50-60M（Visible range） Bluetooth≤40-50M（Visible range） | ||||||
| Bit error rate | 1/5000000 | ||||||
| Trigger Mode | Key triggering mode; Continuous scanning mode; Self sensing mode | ||||||
| Prompt Mode | Buzzer+indicator light+vibration (adjustable) | ||||||
| Scan Distance | 1cm-200cmm | ||||||
| Scaning Angle | Horizontal 37°, vertical 28°, rotating 360° | ||||||
| Print Contrast | ≥25% | ||||||
| Charging Time | appr.4h | ||||||
| Working Time | appr.10h | ||||||

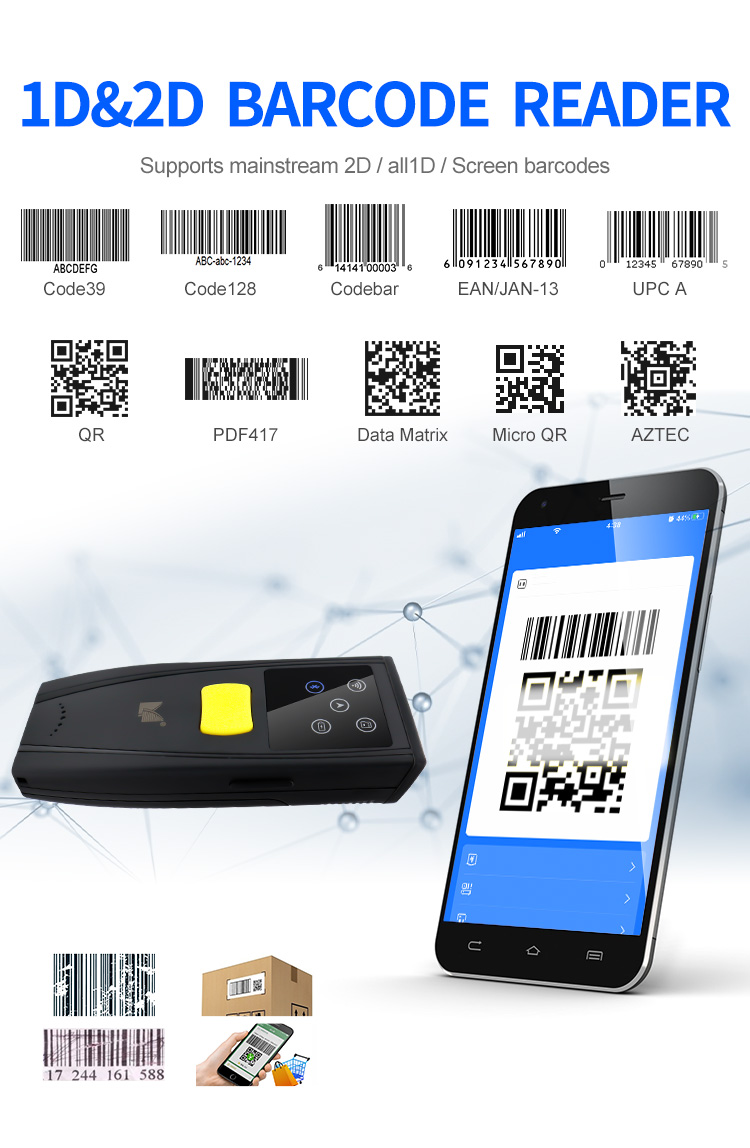

| Decoding Capability | 1D | ◎Interleaved 2 of 5 ◎ITF-6 ◎ITF-14 ◎ISBN ◎Code 11 ◎UCC/EAN-128 ◎GS1 Databar ◎Matrix 2 of 5 ◎Industrial 2 of 5 ◎Code 128 ◎EAN-13 ◎EAN-8 ◎Code 39 ◎UPC-A ◎UPC-E ◎Codabar ◎Standard 2 of 5 ◎Plessey ◎MSI-Plessey ◎Code 93 ◎GS1 composite code | |||||
| 2D | ◎PDF417 ◎Data Matrix ◎QR Code ◎HanXin ◎AZTEC ◎Maxicode | ||||||
| Scanning Depth | QR 7.50mil 15 byte：5cm - 10cm QR 10.83mil 16 byte：3cm - 16cm Code128 5.83mil 15 byte: 6cm - 15cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 60℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 60℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||

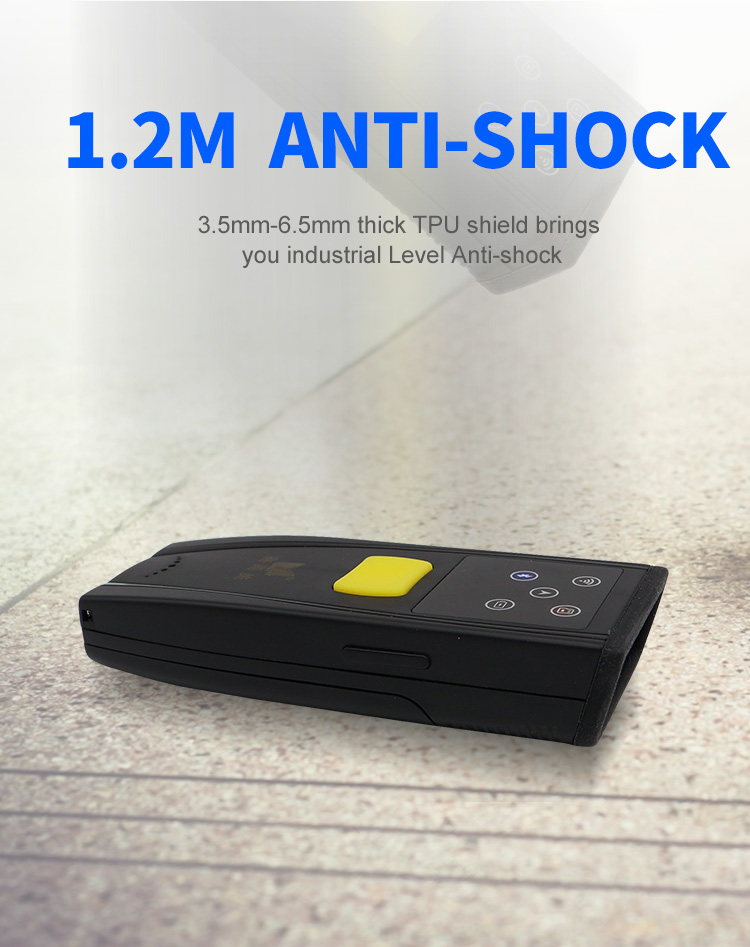

| Shock Resistance | Free Fall 1.2m（concrete surface） | ||||||
| Ambient light | 0→100000Lux | ||||||
1. How about the quality?
Professional QC team and testing machine(Engine age testing,wire bending machine,switch life testing,shock resistance testing).All the products pass CE,FCC,ROSH,FDA etc.
2. Why so competitive?
With almost 10 years experience,we owned a large domestic market in China.We are the best seller in China.So large quantity will reduce our raw material cost directly.What's more,we have mature technology to save cost.
3. How to control the performance stable?
We take the flow line production in the whole processing.Every product will test 4 times at least before it delivery.
4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
5. Why customer choose us?
ISO9001&ISO14001 factory with strictly quality control system.Prompt after-sales service.
6. How about the factory?
We have more than 200 workers with advanced dust-free plant.We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields.
