| Technical Parameter | |||||||

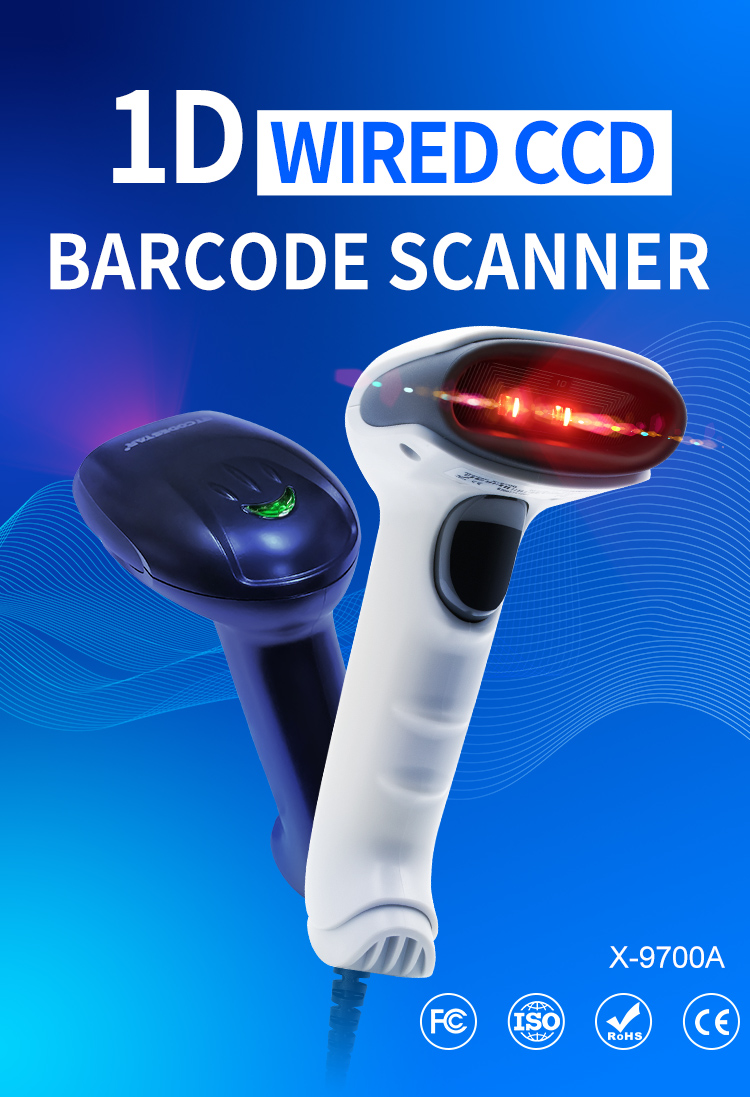

| Model | X-9700A | ||||||

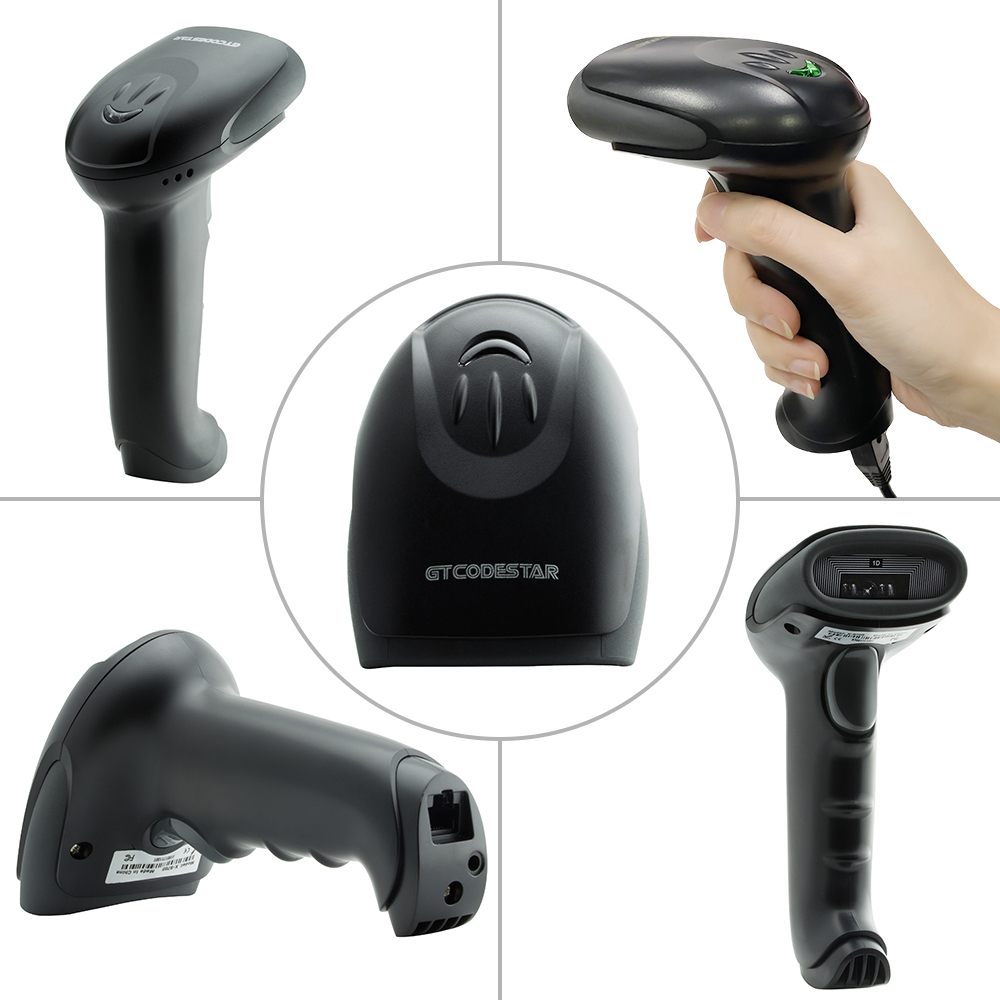

| Item | Wired CCD Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC+TPE | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Operating Current | 580mW（working）；197mW（standby）；890mW（maximum） | ||||||
| Weight | 115g±5g（With cable） | ||||||

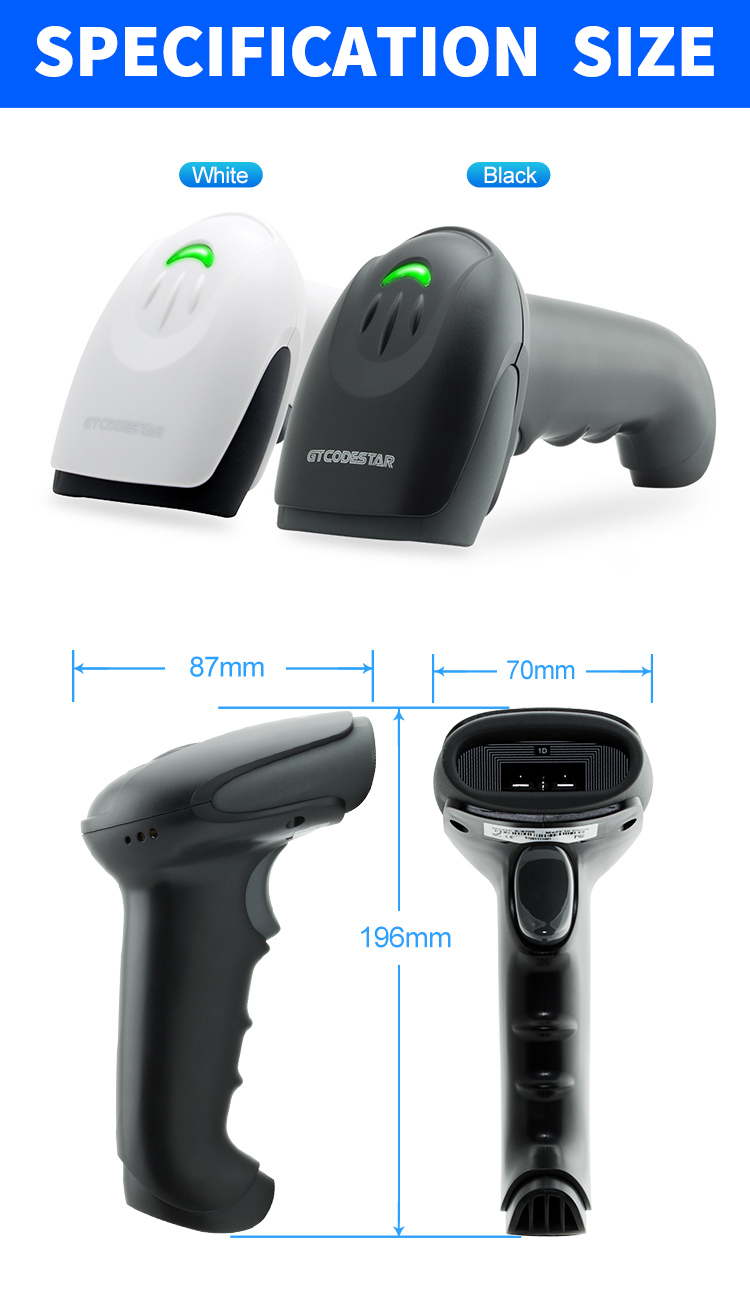

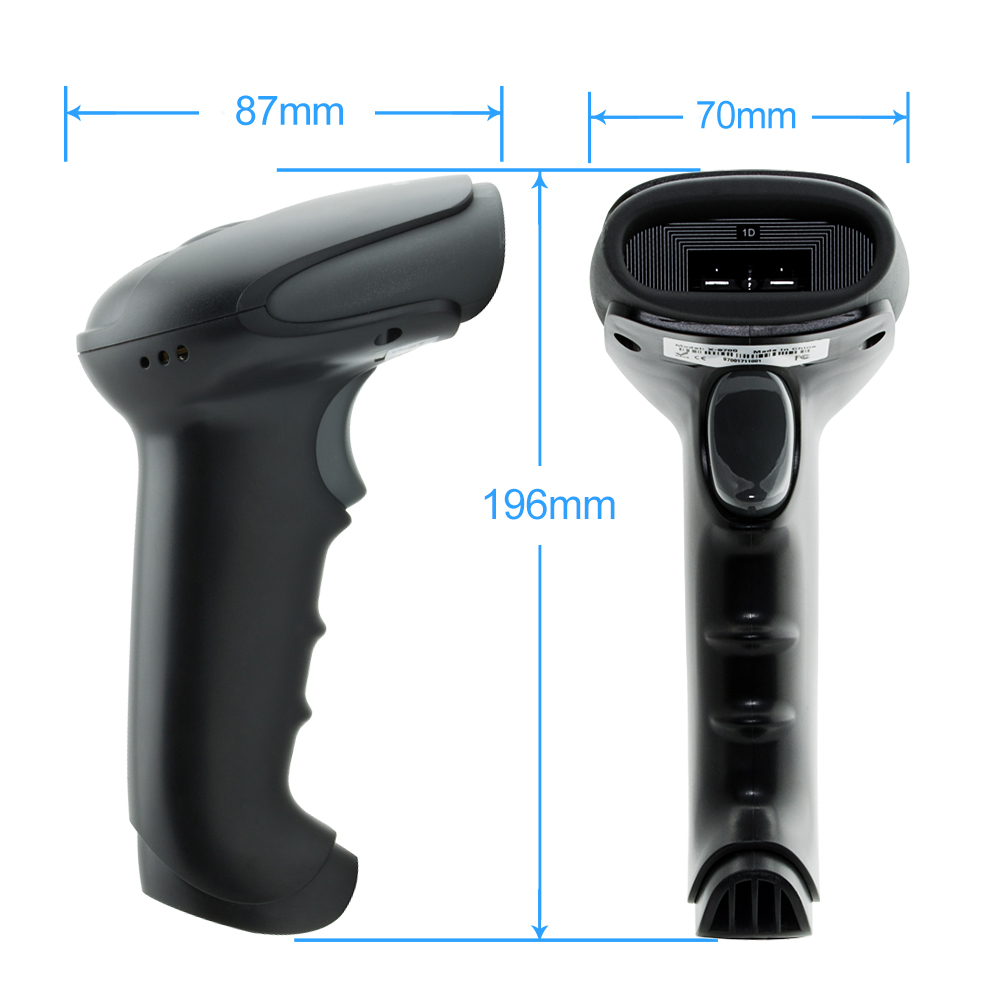

| Size | L*W*H：196 * 87 * 70（unit:mm） | ||||||
| Color | Grayish white;Black | ||||||
| Button Lifespan | ＞100000times | ||||||
| Performance Parameter | |||||||
| Interface | USB cable；（RS232 can be customized） | ||||||

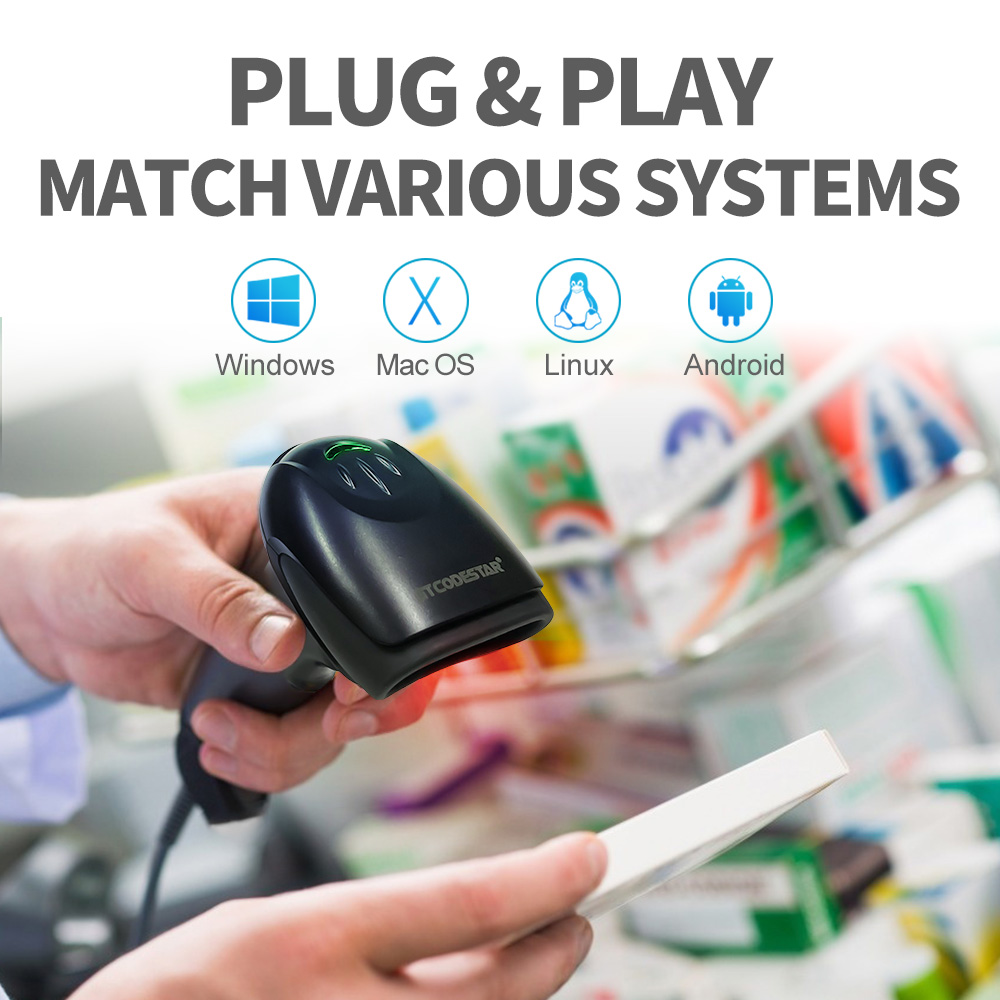

| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | English, French, Dutch, Spanish (international), Italian (Italian 142), German, etc.(language can be customized) | ||||||
| Light Source | 632nm red diode(LED) | ||||||
| Resolution | 4mil | ||||||
| Bit Error Rate | 1/5000000 | ||||||
| Scanning speed | 500scans/sec | ||||||
| Sensor | Linear CCD sensor | ||||||
| Reading Mode | CCD | ||||||
| Trigger Mode | Manual, Continuous scanning | ||||||
| Scanning Distance | 10mm-600mm | ||||||
| Scanning Width | 5cm―15cm | ||||||
| Prompt Mode | Buzzer, Indicator Light（LED） | ||||||
| Print Contrast | 30% | ||||||

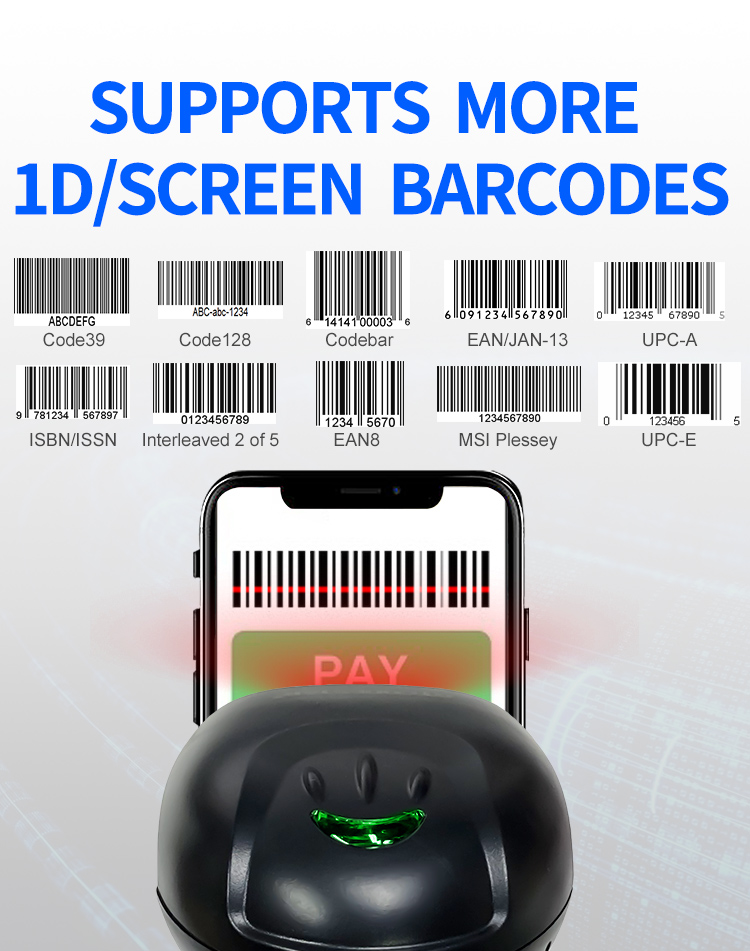

| Decoding Capability | ●Code25-Interleaved ●Code25-Standard ●Code25-Matri ●Code39-Regular ●Code39-FullASCII ●Code32 ●Code93-Regular ●Code93-FullASCII ●Code128 ●EAN/GSL/UCC-128Auto ●Codabar ●MSI ●EAN/JAN-13 ●UPC-A ●JAN-8 ●Code11 ●UPCE0 | ||||||
| Scanning Angel | Roll30°、Pitch65°、Yew65° | ||||||
| Scanning Depth | 5mil code39: 6--12 cm 10mil code39: 7--30 cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||

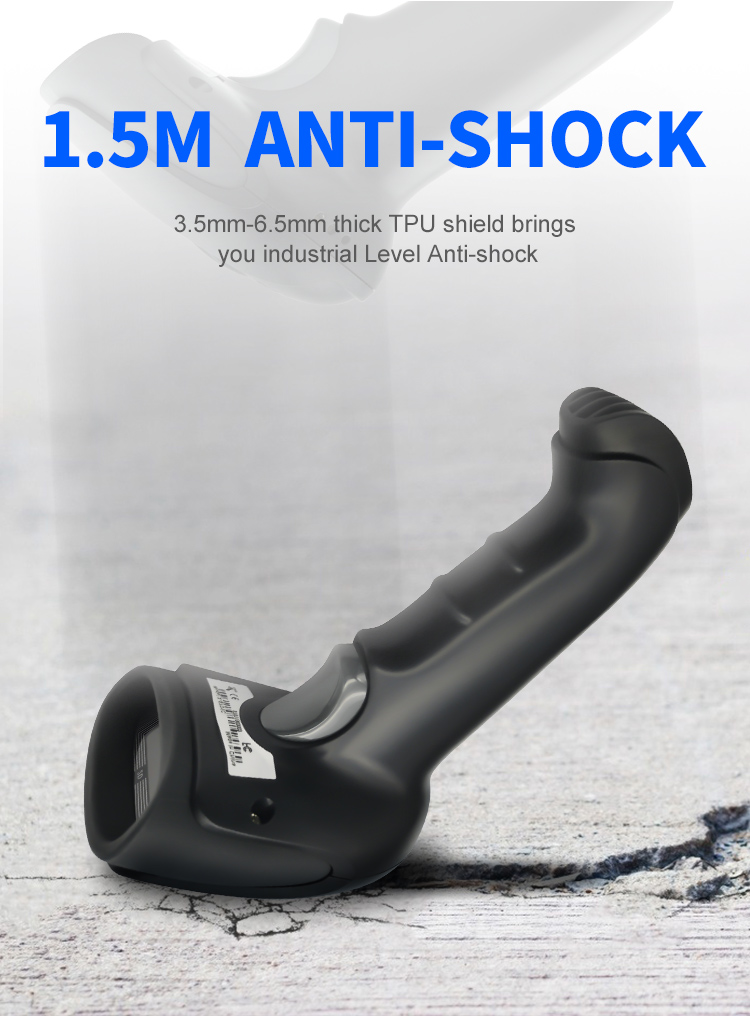

| Shock Resistance | 1.5m free fall on concrete surface | ||||||
| Solutions FAQ | |||||||||
| Q：Can not turn on or turn off immediately after turning on | |||||||||
| A：This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged) | |||||||||
| Q：Barcode data is not uploaded | |||||||||
| A：The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range) | |||||||||
| Q：There is a laser line, but can't read the bar code. | |||||||||
| A：Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual. | |||||||||
| Q：The scanned data is displayed incorrectly on the host | |||||||||
| A：Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center. | |||||||||
| Q：Other cases cannot be decoded | |||||||||
| A：It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again. |
