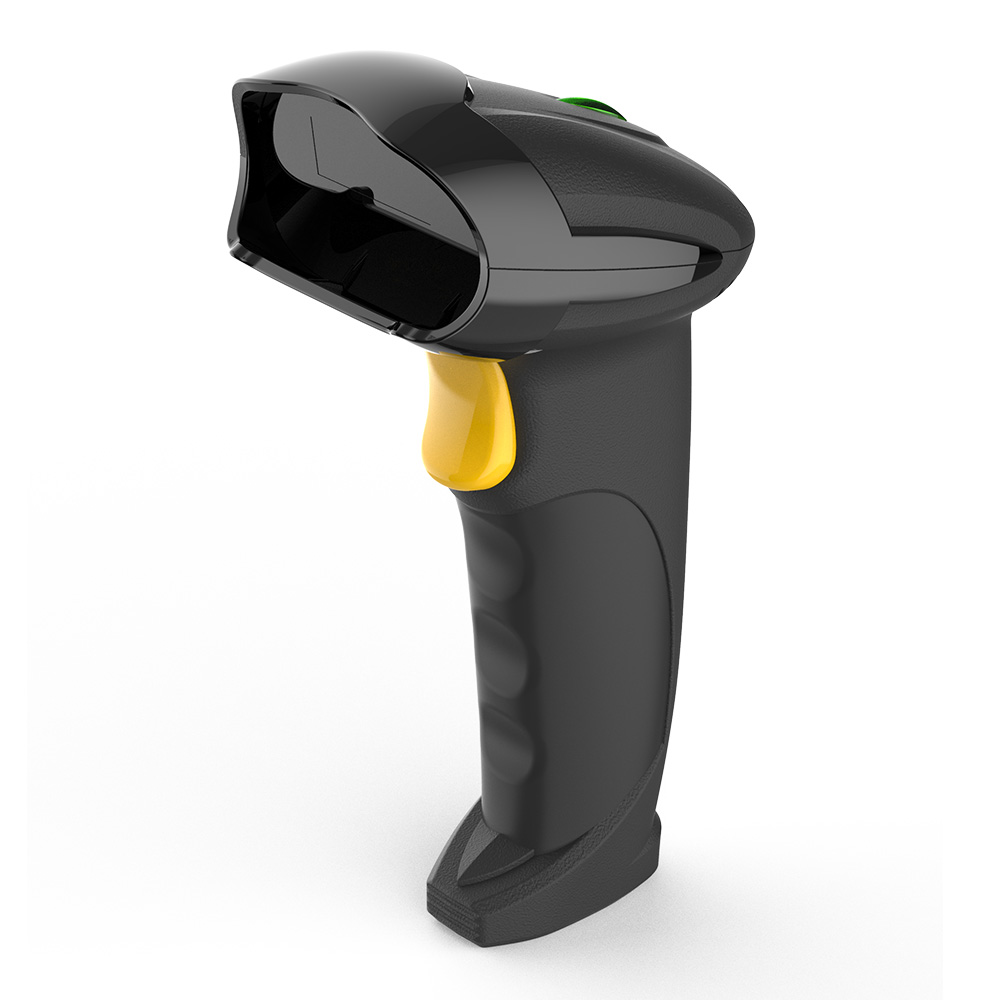

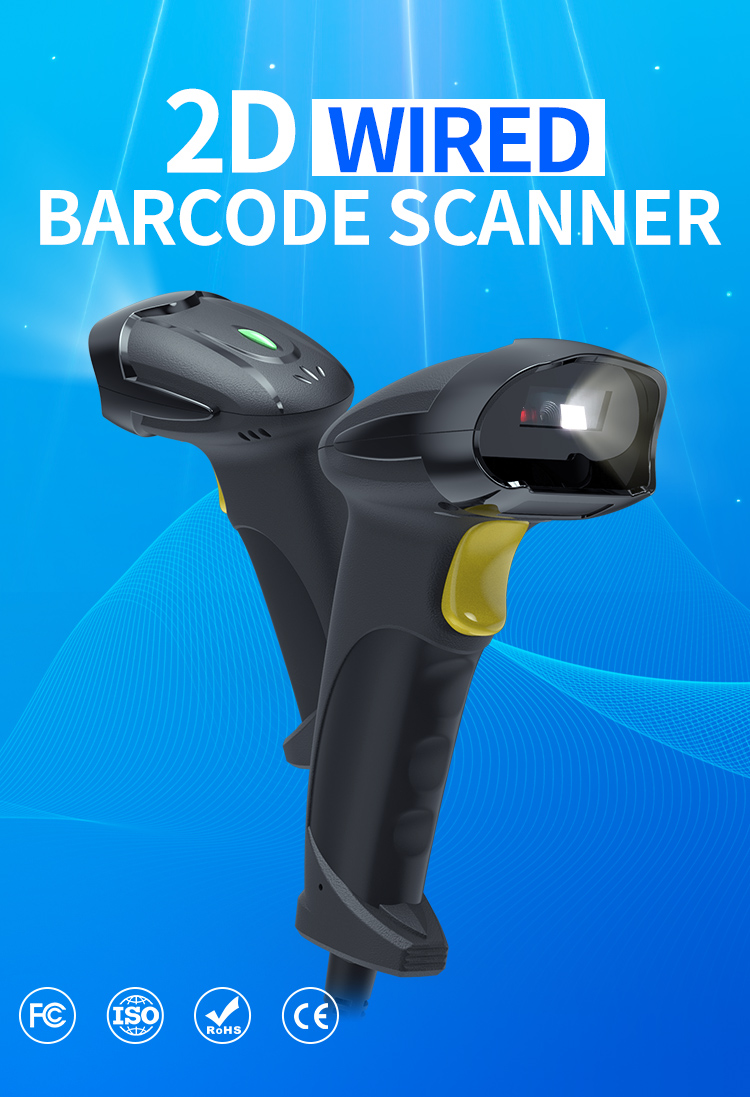

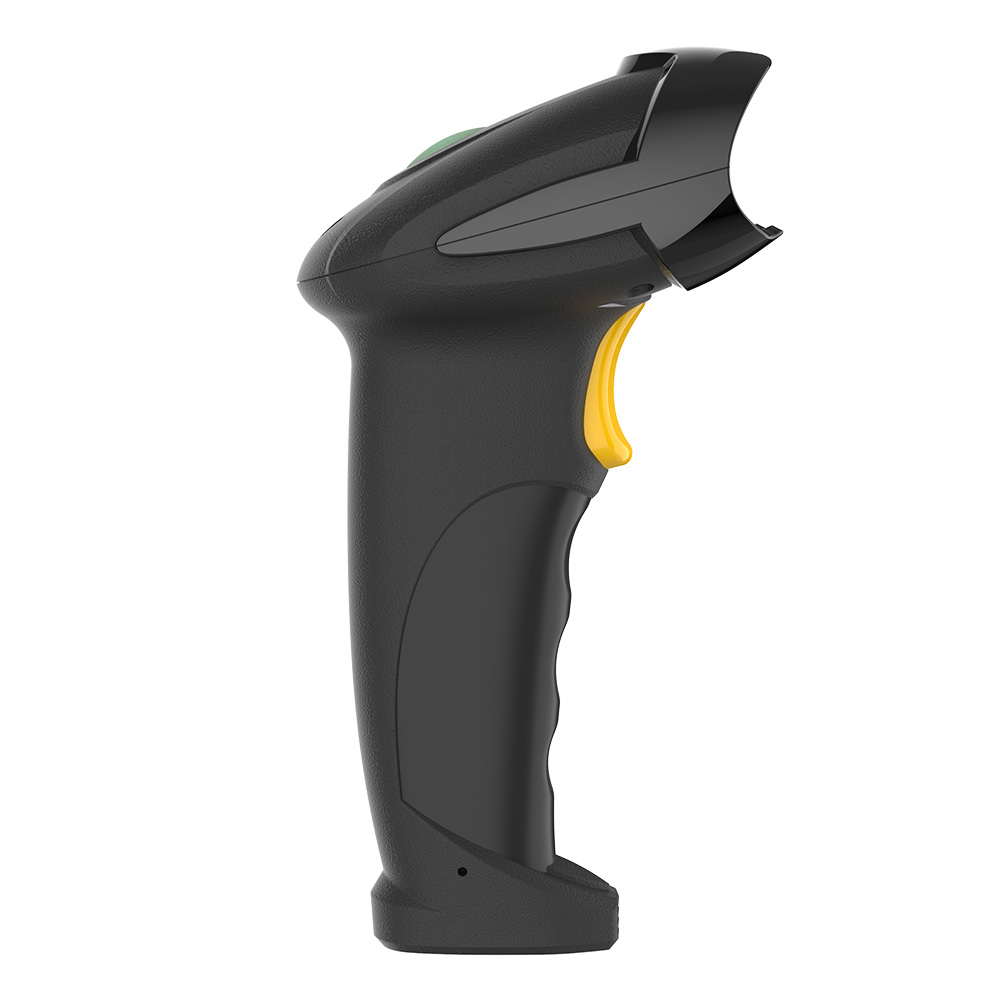

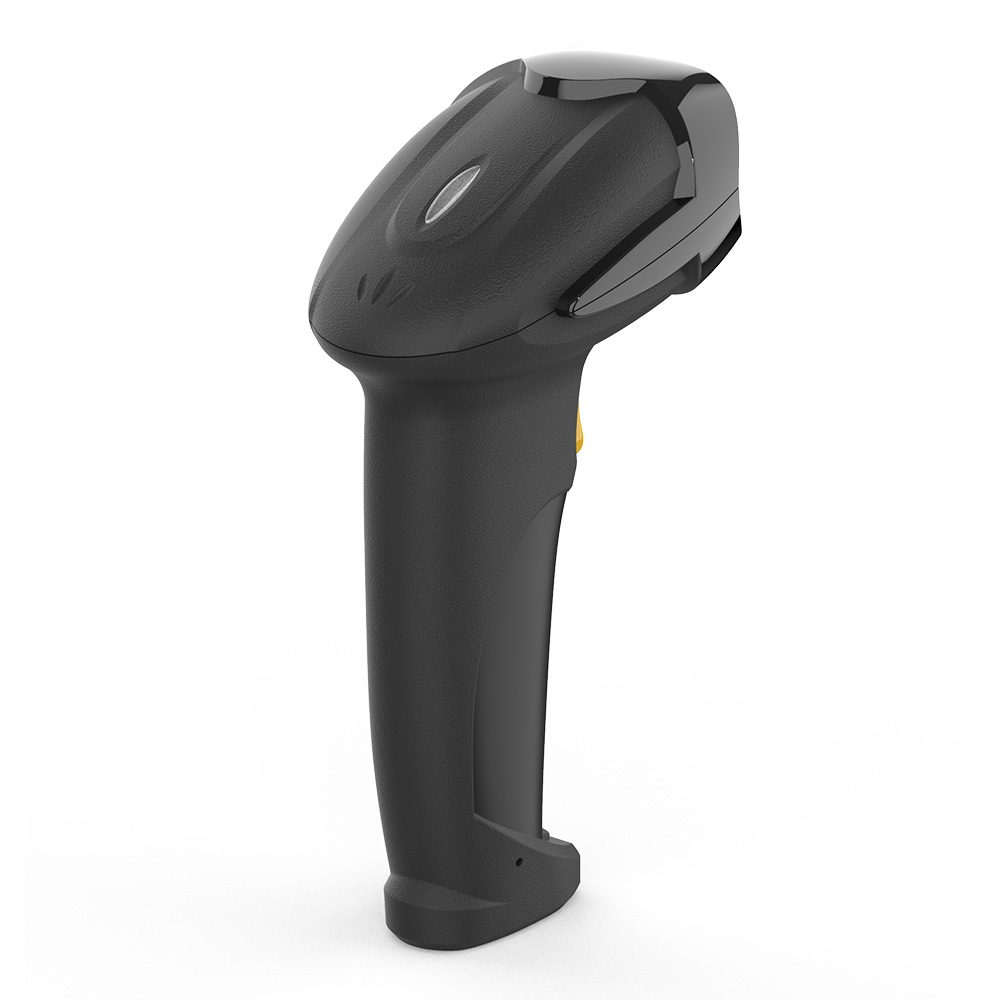

X-760H 2D Wired Handhold Barcode Scanner
| X-760H Technical Parameter | |||||||
| Model | X-760H | ||||||
| Item | Wired 2D Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC+TPE | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Power Consumption | 0.85W（working）；0.55W（standby）；1.05W（maximum） | ||||||
| Current | 168mA（working）；109mA（standby）；200mA（maximum） | ||||||
| Weight | 108g±5g（Excluding wire） | ||||||

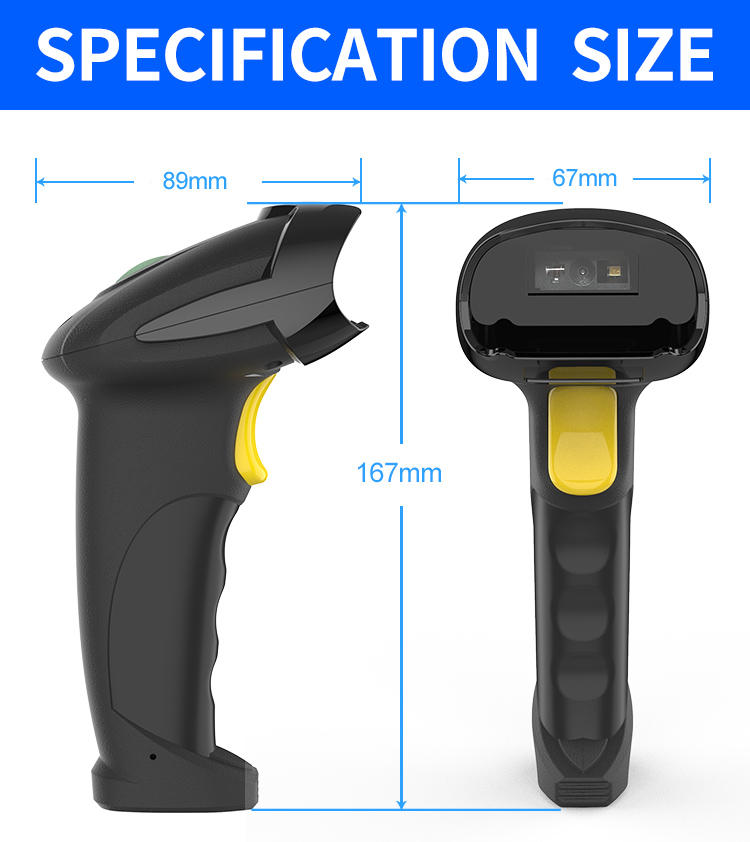

| Size | L * W * H：180.8 * 88.7 * 66.3（unit:mm） | ||||||
| Color | Black | ||||||
| Button Lifespan | ＞100000 | ||||||
| Performance Parameter | |||||||
| Interface | USB；（RS232 customizable） | ||||||
| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | English US; French Canada; Dutch Netherlands; Spanish International; Latin American Argentina; Portuguese Brazil; Danish Denmark; English UK; Italian Italy 142; French France; German Germany; Portuguese Portugal; Finnish Finland; Turkish F; Japanese; Russian - Russia; Northern Sami - Norway 【 Support for multiple keyboards 】 | ||||||

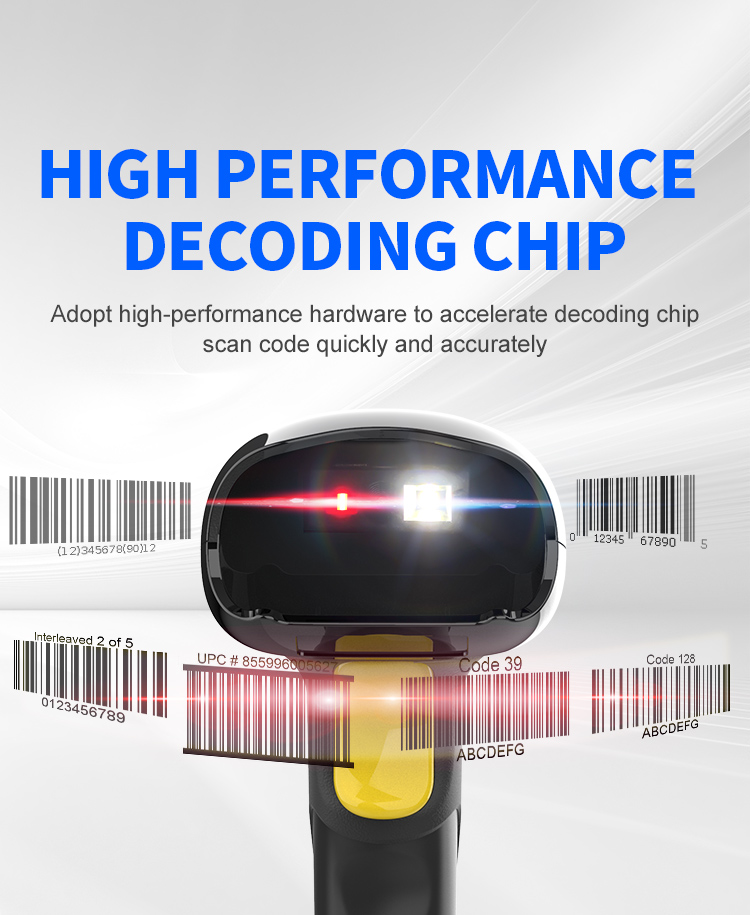

| Light Source | Red light（Strip）LED aim + White light LED illumination | ||||||
| Resolution | ≥4mil | ||||||
| Bit error rate | 1/5000000 | ||||||
| Motion tolerance | code 128:20cm/sec QR:25cm/sec | ||||||
| Sensor | Rolling CMOS sensor 640*480 | ||||||
| Reading Mode | Image | ||||||
| Trigger Mode | Key triggered mode, continuous scanning mode, self sensing mode | ||||||
| Prompt Mode | Buzzer, Indicator Light（LED） | ||||||
| Print Contrast | ≥30% | ||||||
| Scanning Angel | Pitch±55°，Yew±55°，Roll 360° | ||||||

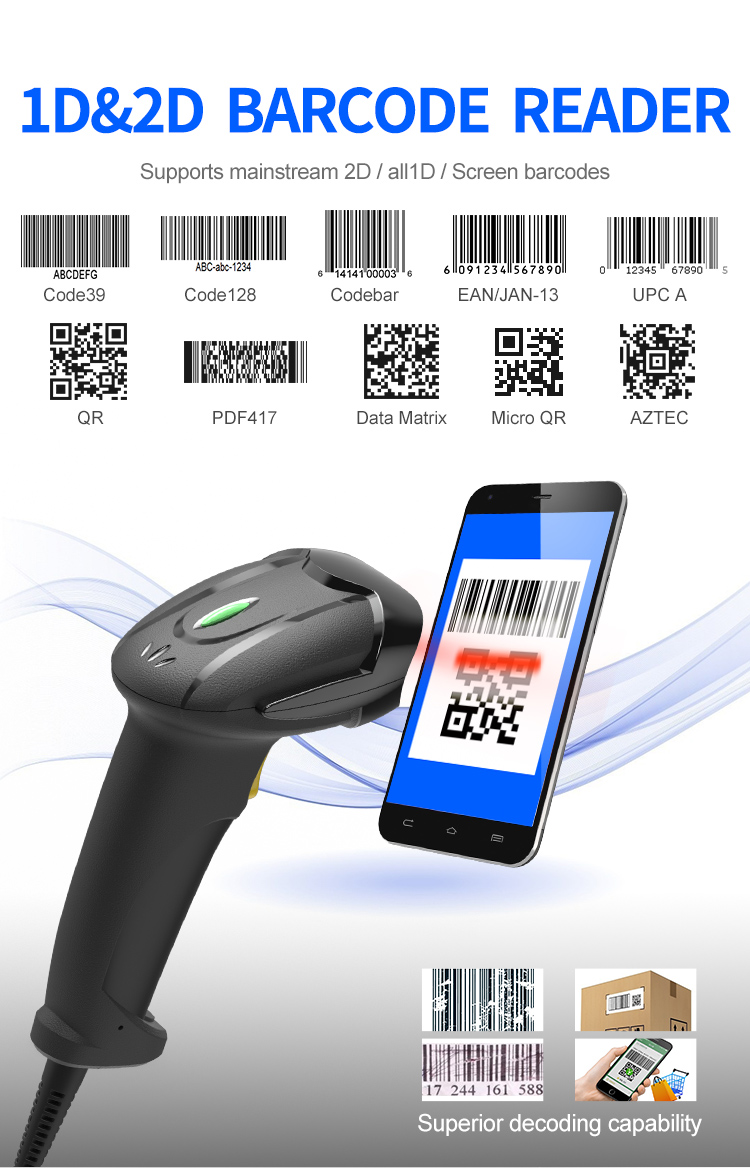

| Decoding Capability | 1D | ● Code25-Interleaved ● Code25-Standard ● Code25-Matrix ● RSS-14 ● Code39-Regular ● Code39-FullASCII ● Code93-Regular ● Code128 ● Code11 ● UPCE0/E1 ● EAN/GS1/UCC-128Auto ● Codabar ● MSI ● EAN/JAN-13 ● UPC-A ● JAN/EAN-8 ● ChinaPost 25 ● Plessey | |||||
| 2D | ● Data Matrix ● QR ● PDF417 ● Micro QR ●HanXin ● Micro PDF 417 ● Maxi Code ●Aztec | ||||||
| Scanning Depth | QR 9.17 mil（7mil）：6cm - 10cm Data Matrix 9.17mil（7mil)：7cm - 10cm code93 5.83mil（14mil）：7cm - 10cm Refund code 28mil：10cm - 15cm WeChat Pay QR Code：9cm - 45cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP42 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||

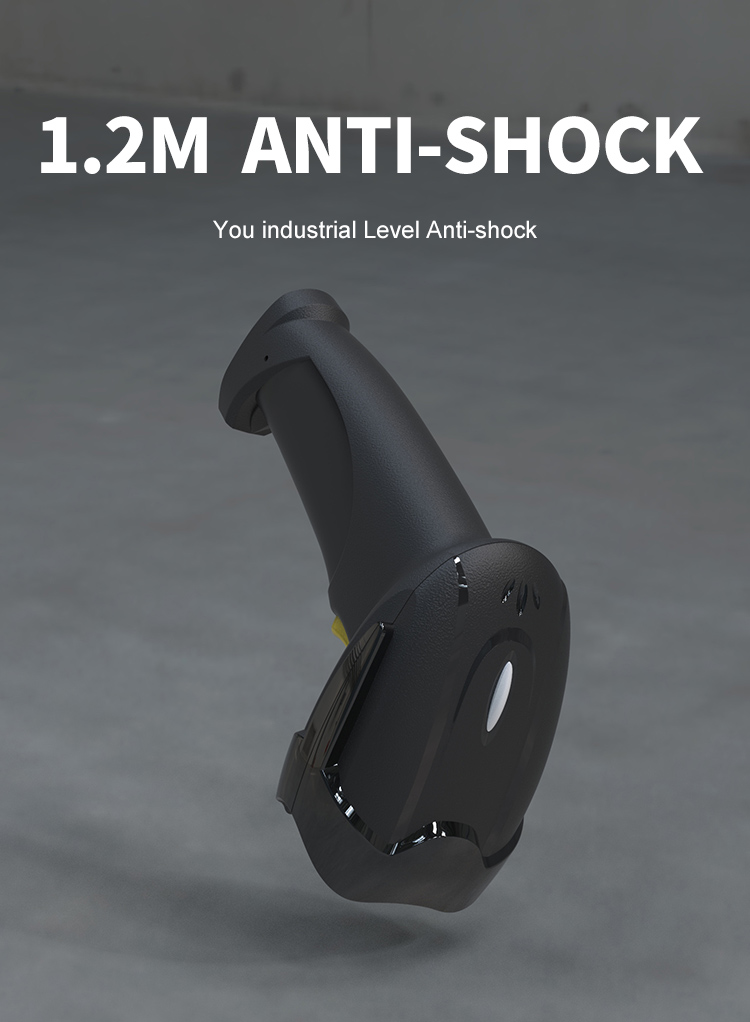

| Shock Resistance | 1.2m free fall on concrete surface | ||||||
| Ambient light | 0~100000LUX | ||||||
| Solutions FAQ | |||||||||
| Q：Can not turn on or turn off immediately after turning on | |||||||||
| A：This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged) | |||||||||
| Q：Barcode data is not uploaded | |||||||||
| A：The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range) | |||||||||
| Q：There is a laser line, but can't read the bar code. | |||||||||
| A：Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual. | |||||||||
| Q：The scanned data is displayed incorrectly on the host | |||||||||
| A：Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center. | |||||||||
| Q：Other cases cannot be decoded | |||||||||
| A：It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again. |
