GTCODESTAR X-35378 Handheld 1D Barcode Scanner 2D Bluetooth Barcode Reader 2.4G QR Code Scanner Inventory Scanning With Stand
| X-35378 Technical Parameter | |||||||
| Model | X-35378 | ||||||
| Item | Wireless 2D Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS + PC + TPU | ||||||
| Power Supply | Charge DC 5V ±5% ; Built-in 3.7V 800mA lithium Battery | ||||||
| Power Consumption | 0.45W（Working）; 0.25W（Stand by）; 0.80W（Maximum） | ||||||
| Weight | 108g±5g（Excluding wire） | ||||||

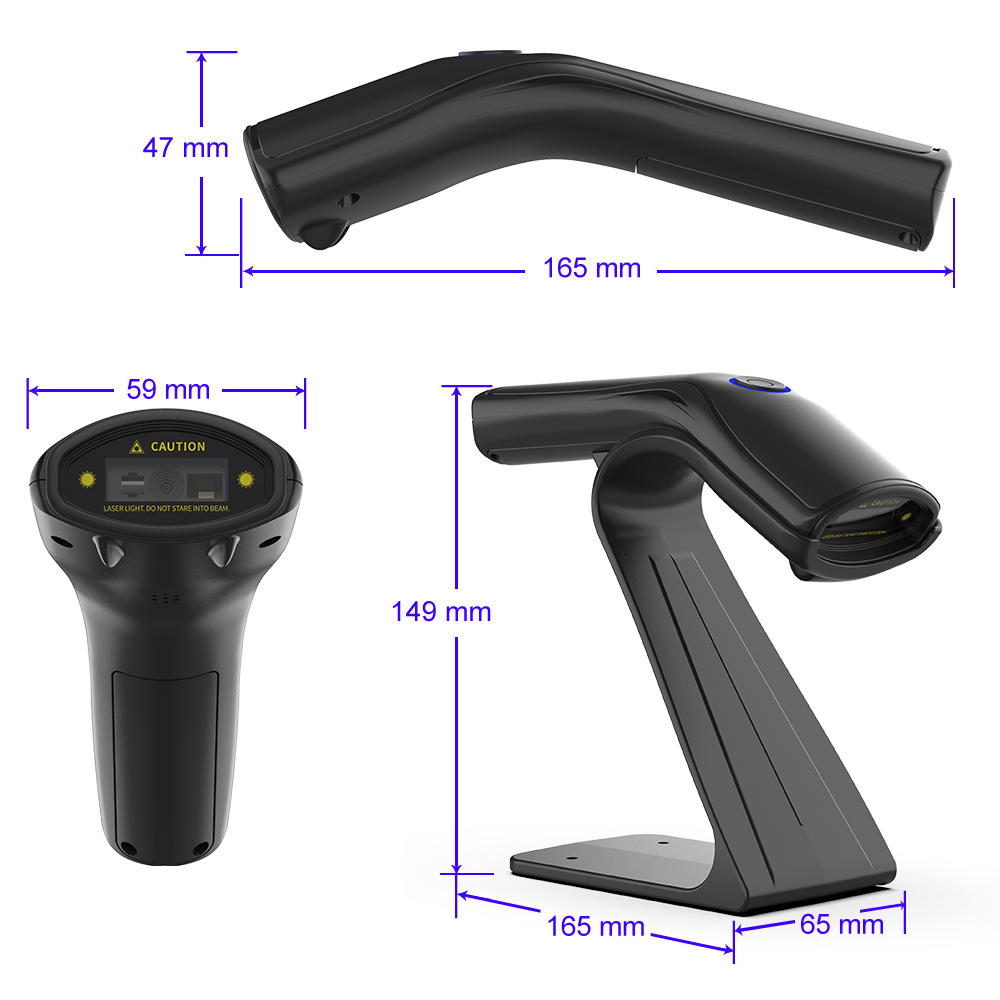

| Size | scanner | L * W * H：165 * 47 * 59（Unit/mm） | |||||
| bracket | L * W * H：136.70 * 126.20 * 64.95（Unit/mm） | ||||||
| Color | Black; White | ||||||
| Button life | ＞100000 | ||||||
| Performance Parameter | |||||||

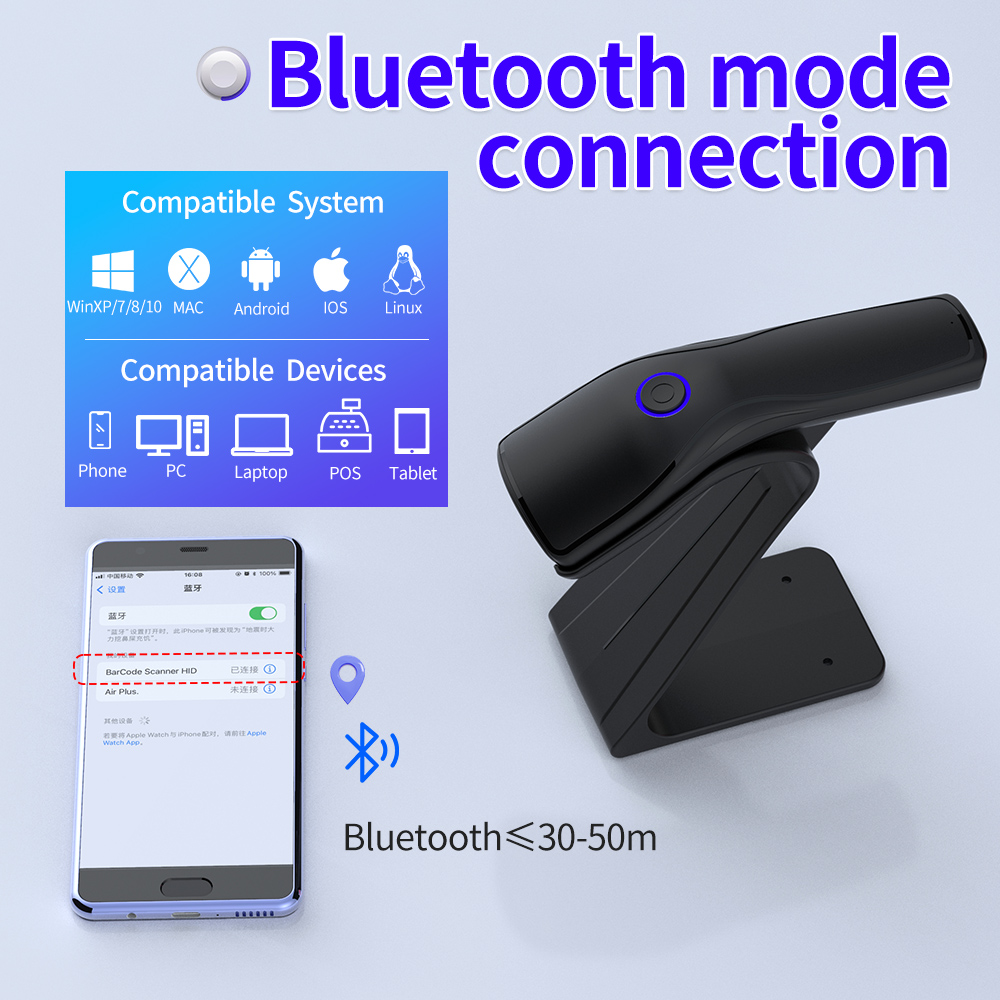

| Interface | USB；2.4G；Bluetooth | ||||||
| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | "English - US; French - Canada; Dutch - Netherlands; Spanish - International; Latin American - Argentina; Portuguese - Brazil; Danish - Denmark; English - UK; Italian - Italy 142; French - France; German - Germany; Portuguese - Portugal; Finnish - Finland; Turkish - F; Japanese; Russian - Russia; North Sami - Norway [Supports keyboards from multiple countries]“ | ||||||
| Sensor | CMOS sensor 480 * 640 | ||||||
| Processor | 32-bit ARM MCU | ||||||
| Storage | 512 KB (customizable capacity) | ||||||
| Light Source | White LED illumination+red LED positioning | ||||||
| Motion Tolerance | Code128： 40cm/sec QR： 45cm/sec | ||||||

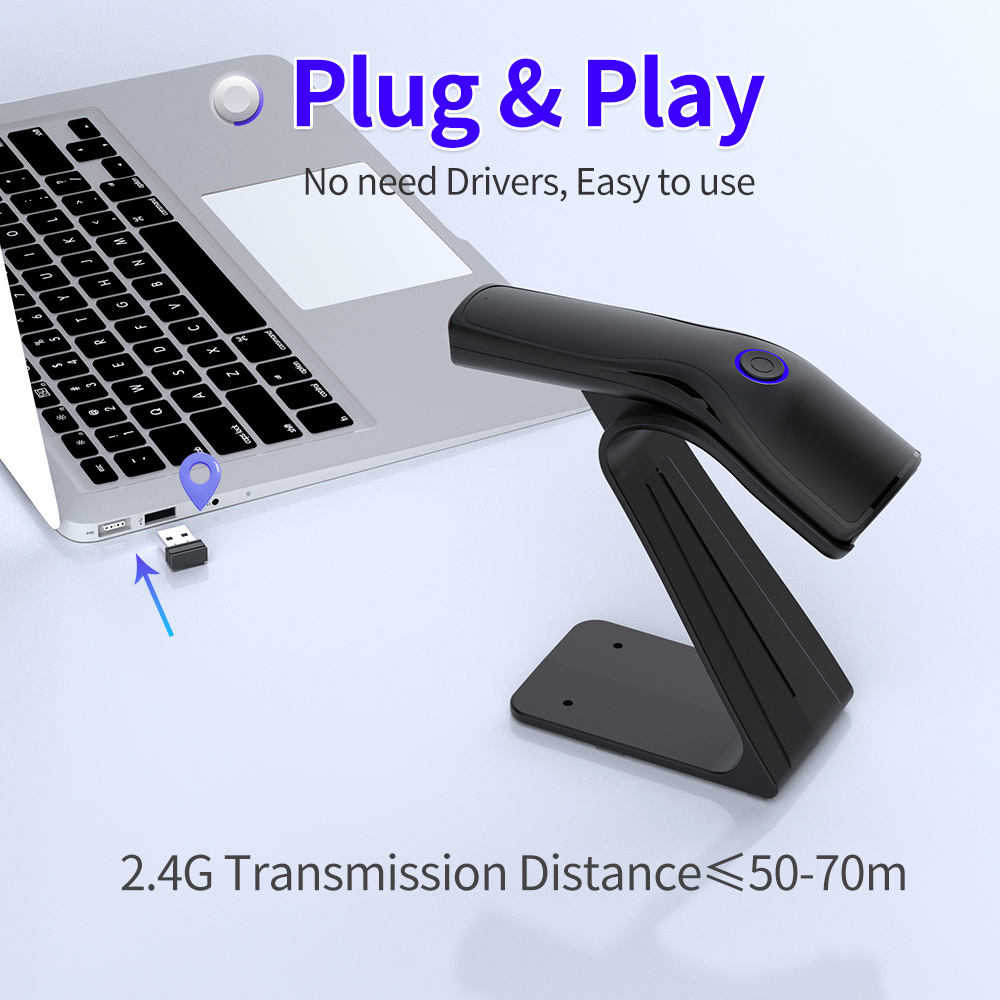

| Wireless Transmission Distance | 2.4G≤90m（Visual range） Bluetooth≤60m（Visual range） | ||||||
| Reading Mod | Image | ||||||
| Resolution | ≥4mil | ||||||
| Bit error rate | 1/500万 | ||||||

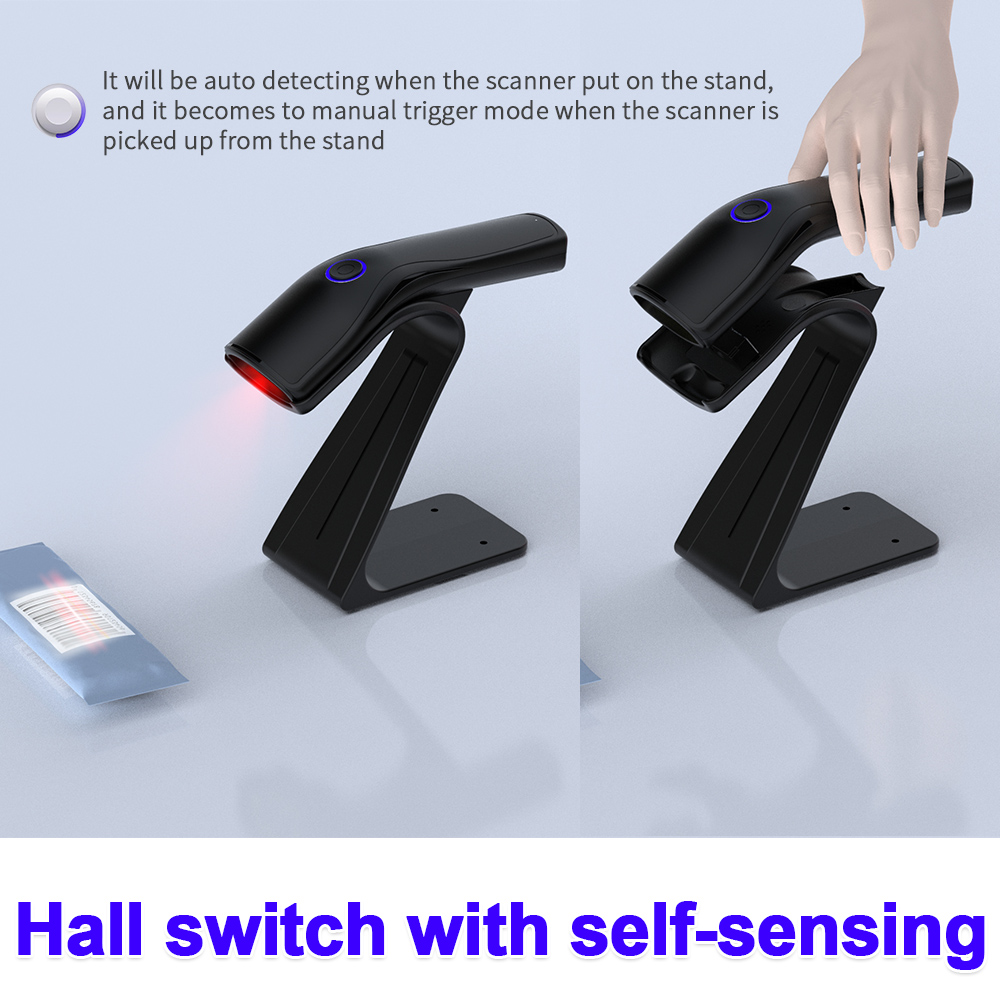

| Trigger Mode | Key triggering mode; Continuous scanning mode; Self sensing mode | ||||||
| Prompt Mode | Buzzer+indicator light+vibration (optional) | ||||||
| Scaning Angle | Tilt ± 55 °, deflect ± 55 °, rotate 360 ° | ||||||
| Reading distance | 1cm-280cm | ||||||
| Print Contrast | ≥25% | ||||||
| Charging Time | appr.2.5h | ||||||
| Continuous work | appr.16h | ||||||

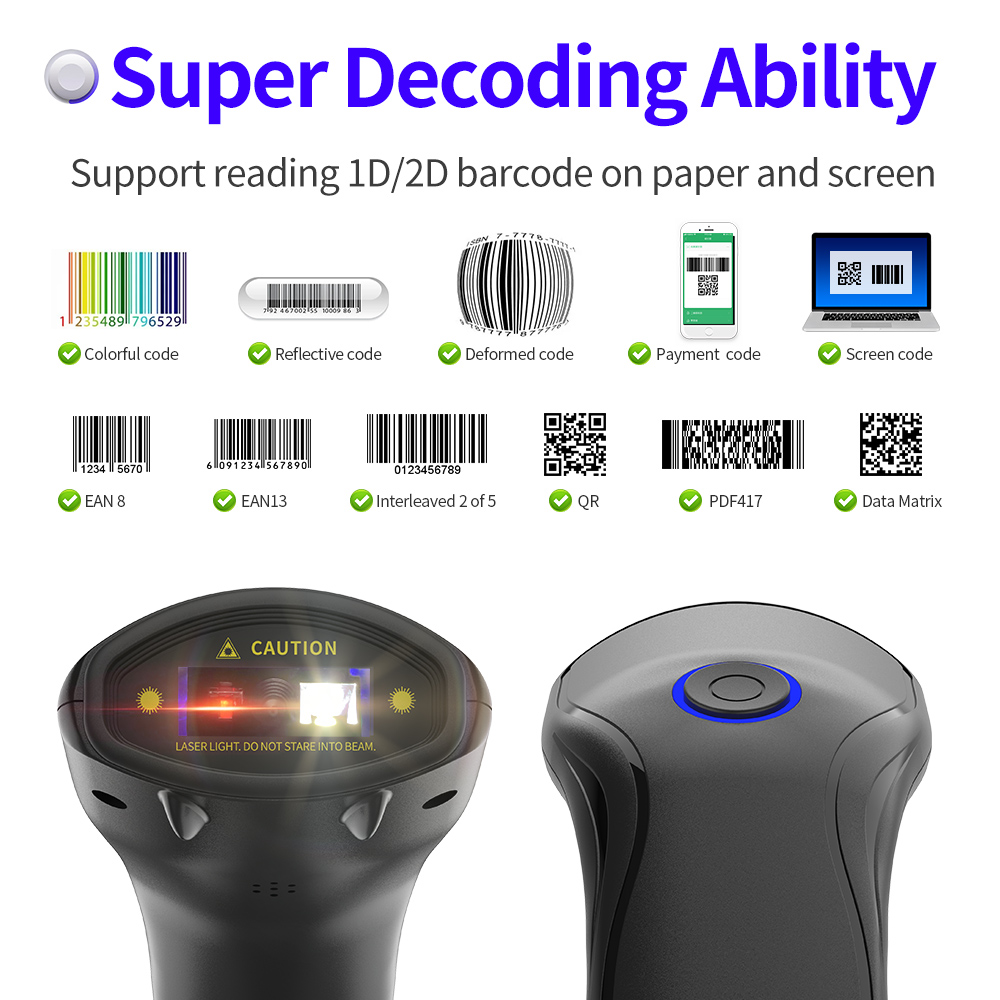

| Decoding Capability | 1D | ◎Interleaved 2 of 5 ◎ITF-6 ◎ITF-14 ◎ISBN ◎Code 11 ◎UCC/EAN-128 ◎GS1 Databar ◎Matrix 2 of 5 ◎Industrial 2 of 5 ◎Code 128 ◎EAN-13 ◎EAN-8 ◎Code 39 ◎UPC-A ◎UPC-E ◎Codabar ◎Standard 2 of 5 ◎Plessey ◎MSI-Plessey ◎Code 93 ◎GS1 composite code ◎Brazilian bank code | |||||
| 2D | ◎PDF417 ◎Data Matrix ◎QR Code ◎HanXin ◎AZTEC ◎Maxicode ◎Codablock F ◎Pharmacode One-Track ◎Micro QR ◎Micro PDF417 | ||||||
| Scanning Depth | Code39 5.83mil（15 byte）：5cm - 15cm Code128 7.50mil（16 byte）：5cm - 21cm Data Matrix 15.83mil（8 byte）：3cm - 12cm Code QR 10.83mil（8 byte）：1cm - 13cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP42 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||
| Shock Resistance | Free Fall 1.2m（concrete surface） | ||||||
| Ambient light | 0~100000LUX | ||||||
1. How about the quality?
Professional QC team and testing machine(Engine age testing,wire bending machine,switch life testing,shock resistance testing).All the products pass CE,FCC,ROSH,FDA etc.
2. Why so competitive?
With almost 10 years experience,we owned a large domestic market in China.We are the best seller in China.So large quantity will reduce our raw material cost directly.What's more,we have mature technology to save cost.
3. How to control the performance stable?
We take the flow line production in the whole processing.Every product will test 4 times at least before it delivery.
4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
5. Why customer choose us?
ISO9001&ISO14001 factory with strictly quality control system.Prompt after-sales service.
6. How about the factory?
We have more than 200 workers with advanced dust-free plant.We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields.
