X-3500 Handheld 2D Barcode Scanner

Details

Parameter

Video

FAQ

GTCODESTAR X-3500 Handheld 2D Barcode Scanner 1D Wired Barcode Reader USB QR Code Scanner Inventory Barcode Scanning With Stand

X-35140 Technical Parameter
Model		X-35140
Item		Wired 2D Barcode Scanner
Physical Parameter
Material		ABS+PC
Power Supply		DC 5V ±5%
Current		200mA（working）；50mA（standby）250mA（maximum）
Power Consumption		1.00W（working）；0.25W（standby）；1.25W（maximum）
Weight		92.0g±5g（Excluding wire）

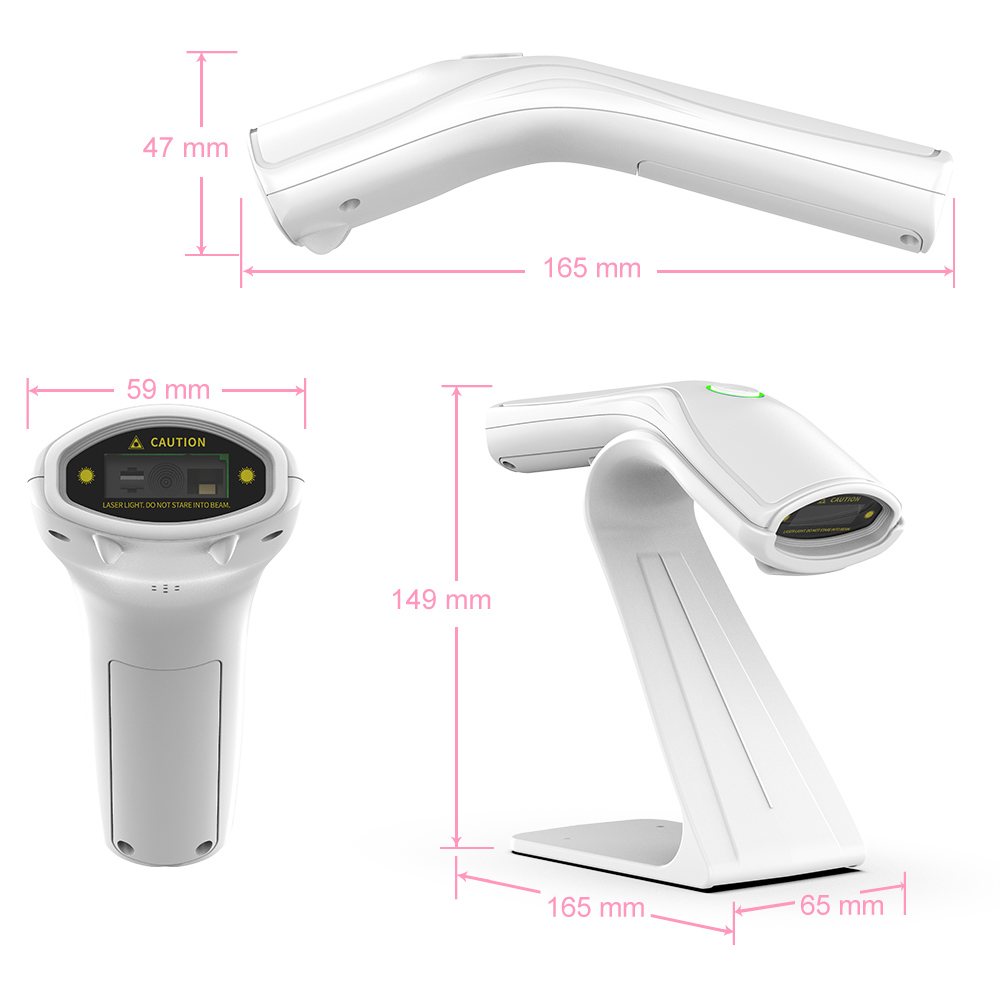

Size		L * W * H：165 * 47 * 59（Unit:mm）
Color		黑色，白色
Performance Parameter

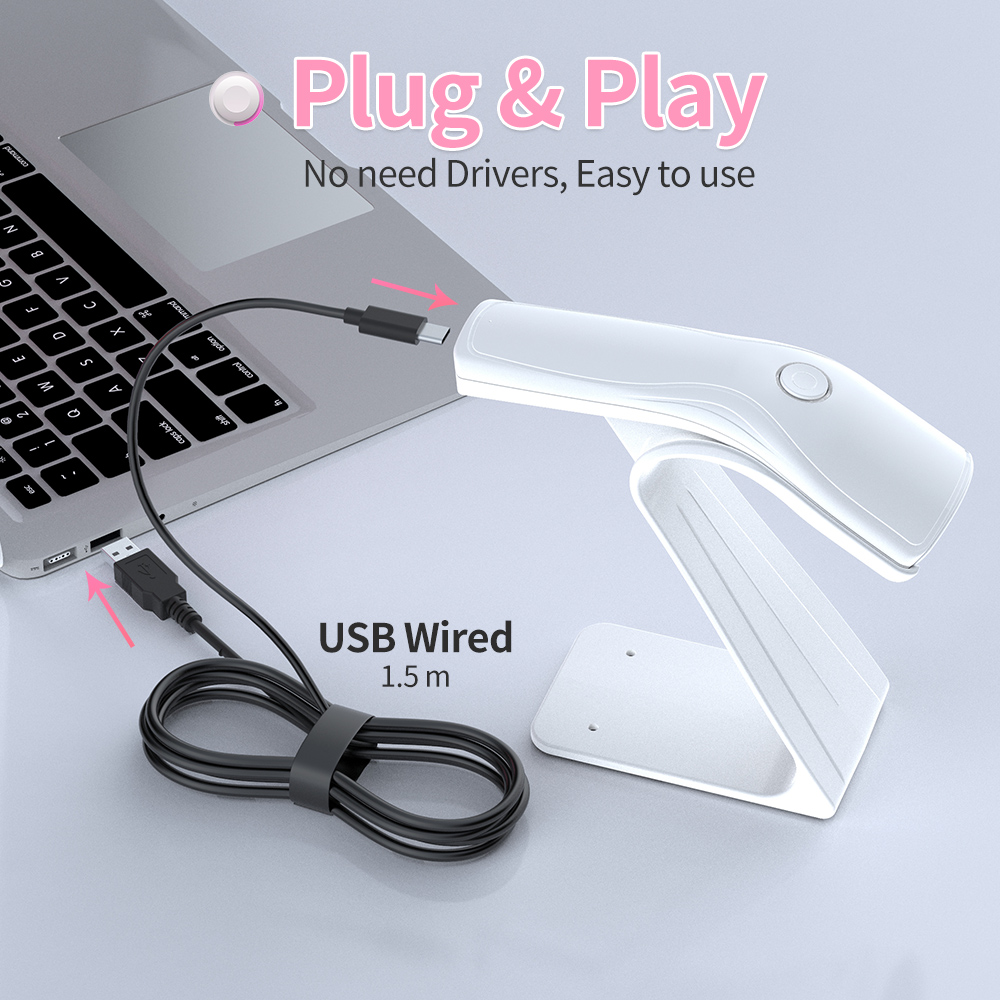

Interface		USB；（RS232 customizable）
System Supported		Linux，Android，Windows XP、7、8、10，MAC
Language Supported		English; Belgium; Finland; France; Germany; Italy; Sweden; Britain; Denmark; Norway; Spain; Portugal; Türkiye Q; Türkiye F; Japan; Russia; Czech Republic; Thailand; Ukraine; Brazil; Greece; Hungary; Netherlands; Poland; Romania; Slovakia; (Support for virtual keyboards)
Sensor		Global CMOS sensor 1280×800
Light Source		Red light（Strip）LED aim + White light LED illumination
processor		32-bit ARM MCU + DSP
Motion tolerance		Code128： 80cm/sec QR： 85cm/sec
Resolution		≥4mil
Bit error rate		1/5000000
Reading Mode		Image
Trigger Mode		Key triggered mode, continuous scanning mode, self sensing mode
Prompt Mode		Buzzer, Indicator Light（LED）
Reading distance		1cm-220cm
Print Contrast		≥25%
Scanning Angel		Rotate 360 °, Horizontal 48 °, Vertical 36 °

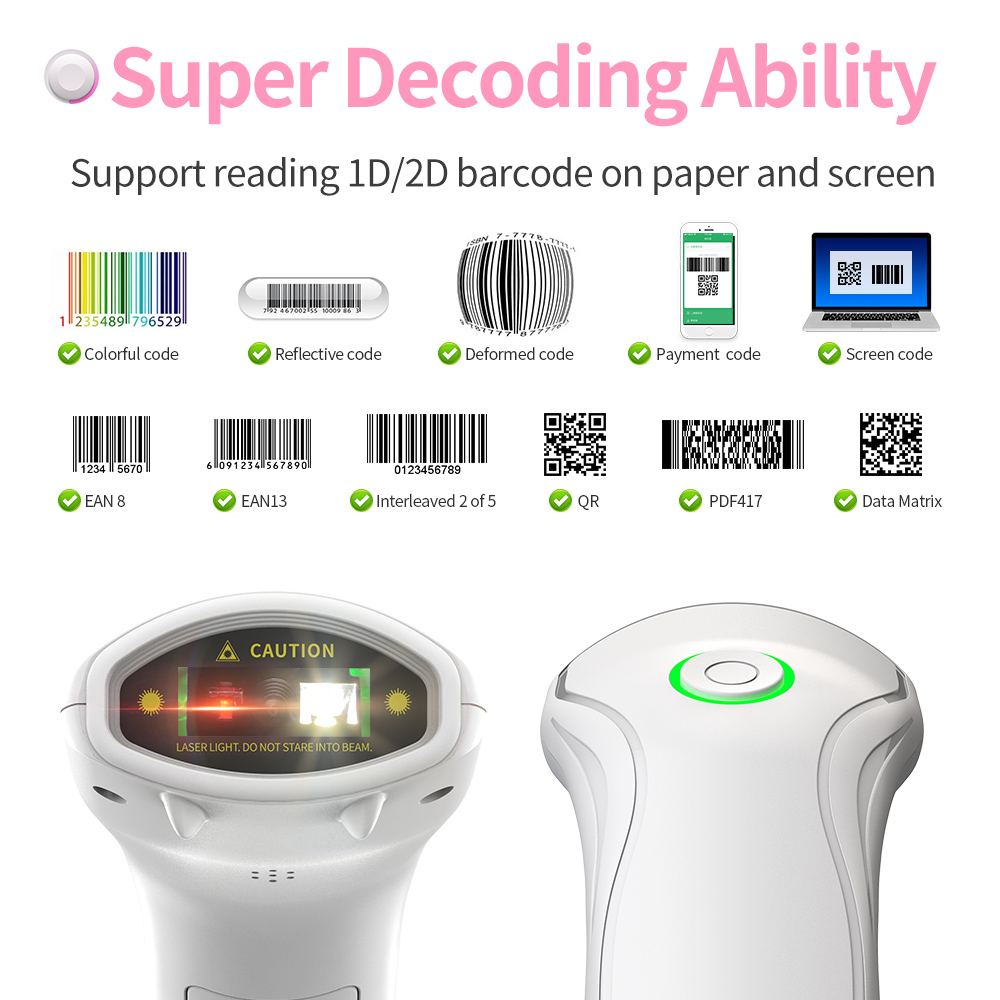

Decoding Capability	1D	◎Interleaved 2-of-5 ◎ITF-6 ◎ITF-14 ◎ISBN-128 ◎Code 11 ◎UCC/EAN-128 ◎GS1 Databar ◎Industrial 2-of-5 ◎Code 128 ◎EAN-13 ◎EAN-8 ◎Code 39 ◎UPC-A ◎UPC-E ◎Codabar ◎Standard 2-of-5 ◎Plessey ◎MSI-Plessey ◎Code 93 ◎GS1 composite code ◎Matrix 2-of-5 ◎Code 32 ◎NEC 2-of-5 ◎Hong Kong 2-of-5/China Post ◎Telepen ◎Trioptic
	2D	◎PDF417 ◎Data Matrix ◎QR Code ◎HanXin ◎AZTEC ◎Maxicode ◎Micro QR ◎Micro PDF417
	Other coding systems	◎Pharmacode One-Track ◎Codablock F ◎Dot Code ◎OCR ◎Brazilian bank
Scanning Depth		QR 14.17mil 8 byte：2cm - 28cm PDF417 7.50mil: 3cm - 21cm EAN-13 10mil：3cm - 23cm Code128 7.50mil 15 byte: 4cm - 22cm WeChat Pay QR Code ：4cm - 45cm
Environment Parameter
IP Grade		IP52
Operating Temp.		0 to 50℃ / 32 to 122℉
Storage Temp.		0 to 50℃ / 32 to 122℉
Operating Humidity		20% to 85%（No Condensation）
Storage Humidity		20% to 85%（No Condensation）
ESD Protection		15KV air discharge
Shock Resistance		1.5m free fall on concrete surface
Ambient light		0→100000Lux

1. How about the quality?
Professional QC team and testing machine(Engine age testing,wire bending machine,switch life testing,shock resistance testing).All the products pass CE,FCC,ROSH,FDA etc.
2. Why so competitive?
With almost 10 years experience,we owned a large domestic market in China.We are the best seller in China.So large quantity will reduce our raw material cost directly.What's more,we have mature technology to save cost.
3. How to control the performance stable?
We take the flow line production in the whole processing.Every product will test 4 times at least before it delivery.
4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
5. Why customer choose us?
ISO9001&ISO14001 factory with strictly quality control system.Prompt after-sales service.
6. How about the factory?
We have more than 200 workers with advanced dust-free plant.We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields.
