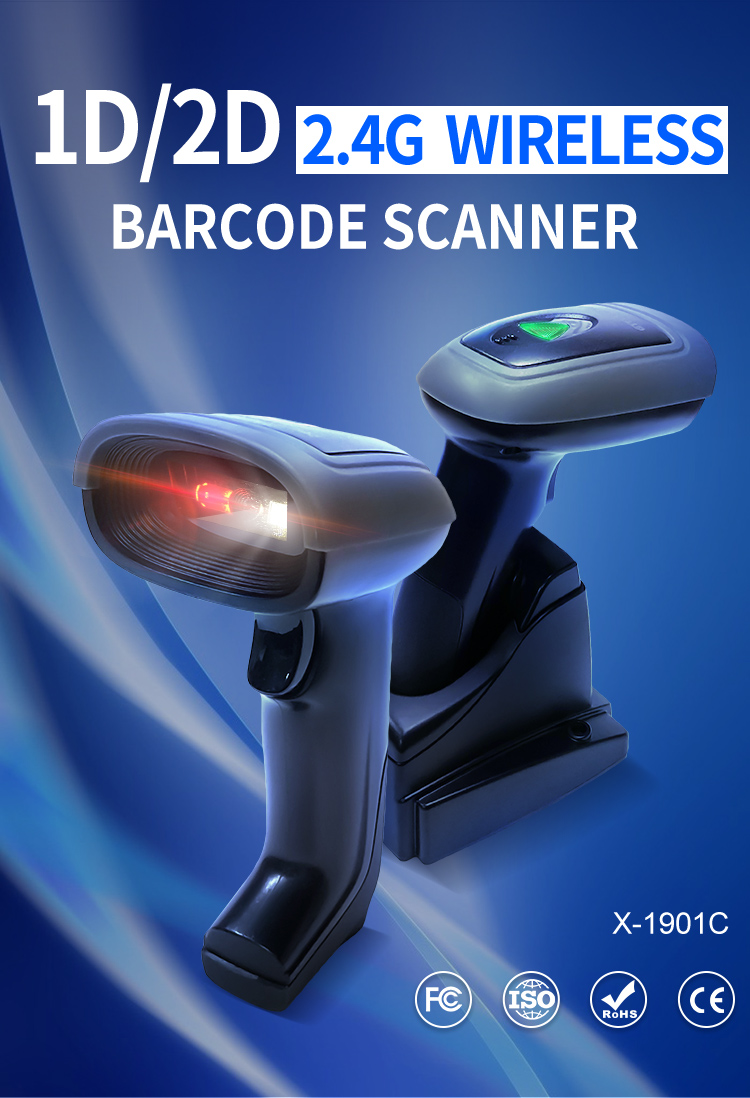

X-1901C Wireless 2.4G 2D Barcode Scanner with Charging Cradle
Read all standard 1D and 2D(QR CODE,PDF417,DATE MATRIX) barcodes even on electronic screen;
Interface: USB/COM;
2.4G wireless distance: 70 meters;

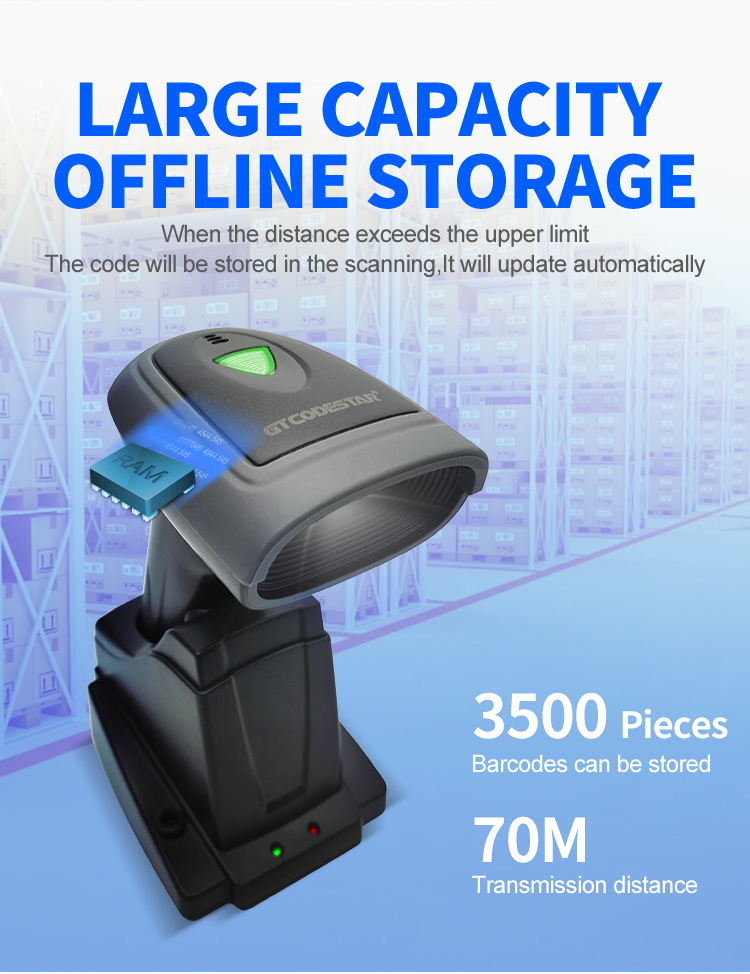

2M capacity for Inventory mode to memory barcode;
Sensor:Planar CMOS sensor;
Processor Type: ARM Cortex™-M3, 32-bit;
Scan Rate: up to 300 scans/second
pass drop test from 1.5meter
Support Windows, Android, Lunix, MAC
X-1901C Product Catalogue
PDF(0.7MB)
X-1901C User's Manual
PDF(0.8MB)
Details
Parameter
Video
FAQ

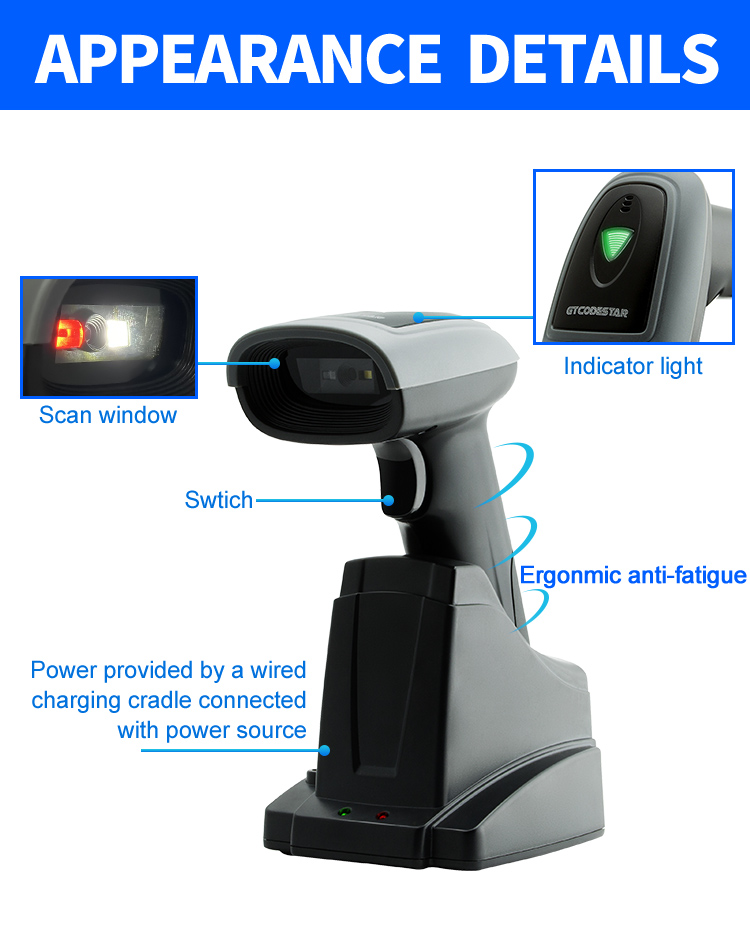

Physical Parameter
MaterialABS+PVC+PC

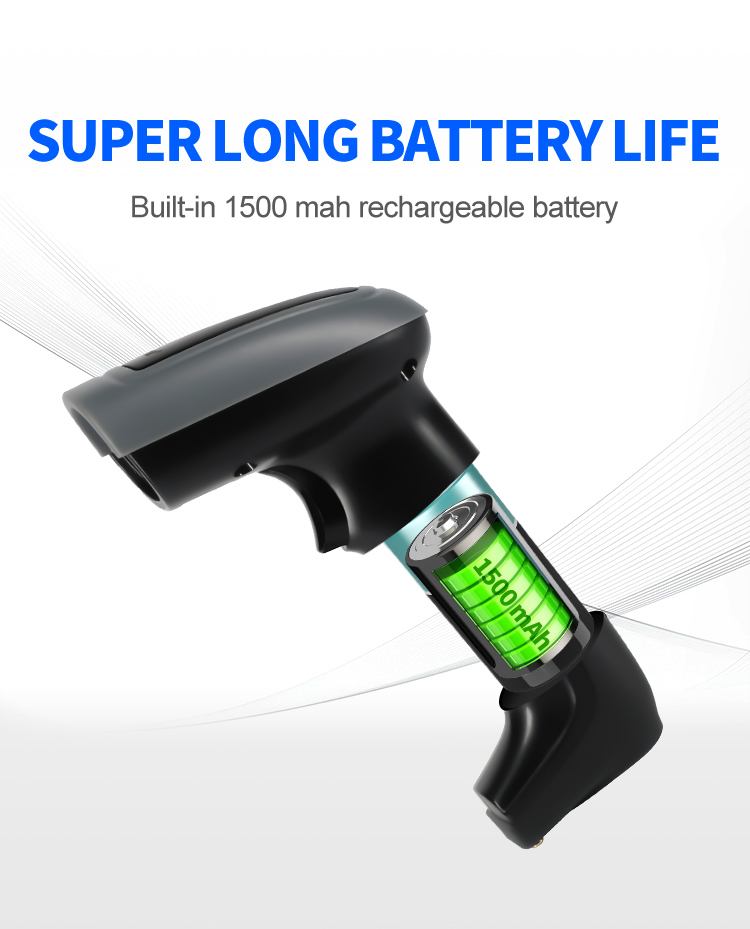

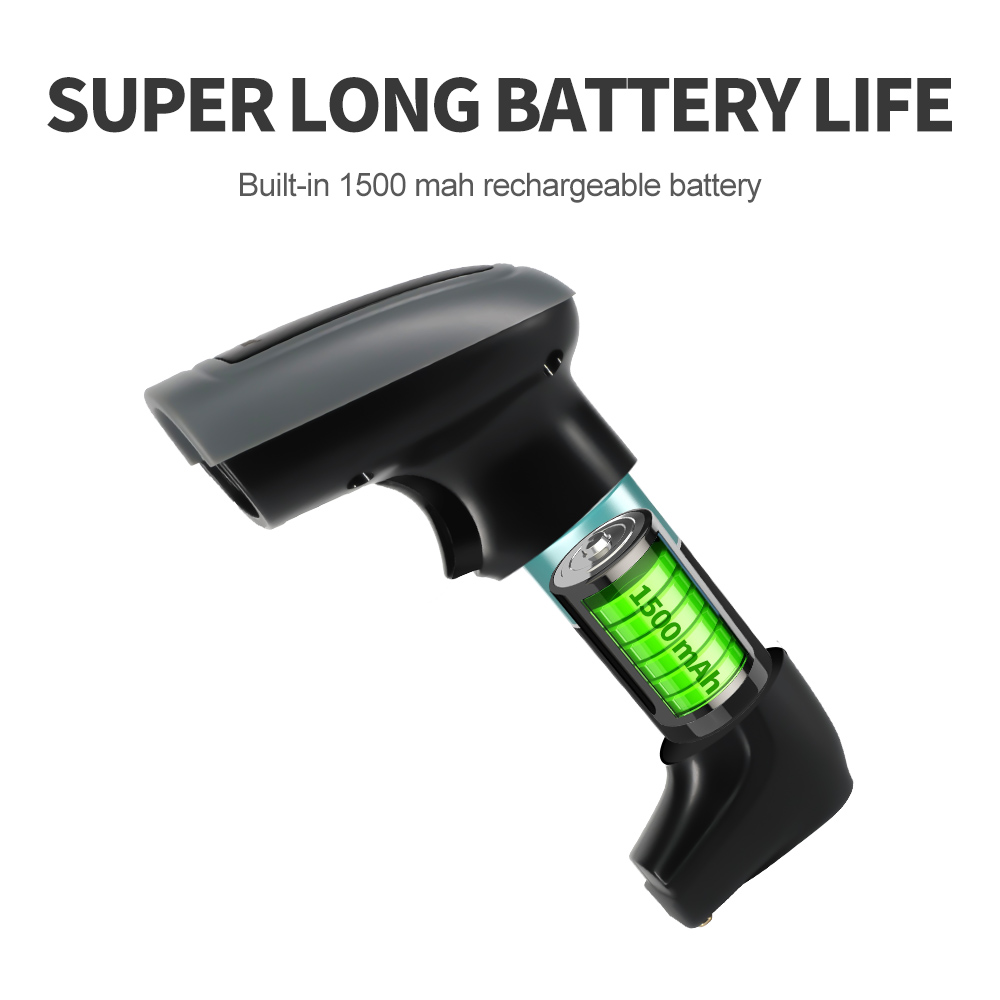

Power SupplyCharge DC 5V ±5% ;Built-in 3.7V 2000mA lithium Battery
Power Consumption0.41W(Working); 0.20W(Stand by); 0.75W(Maximum)
Weight151g±5g(Without Cable)

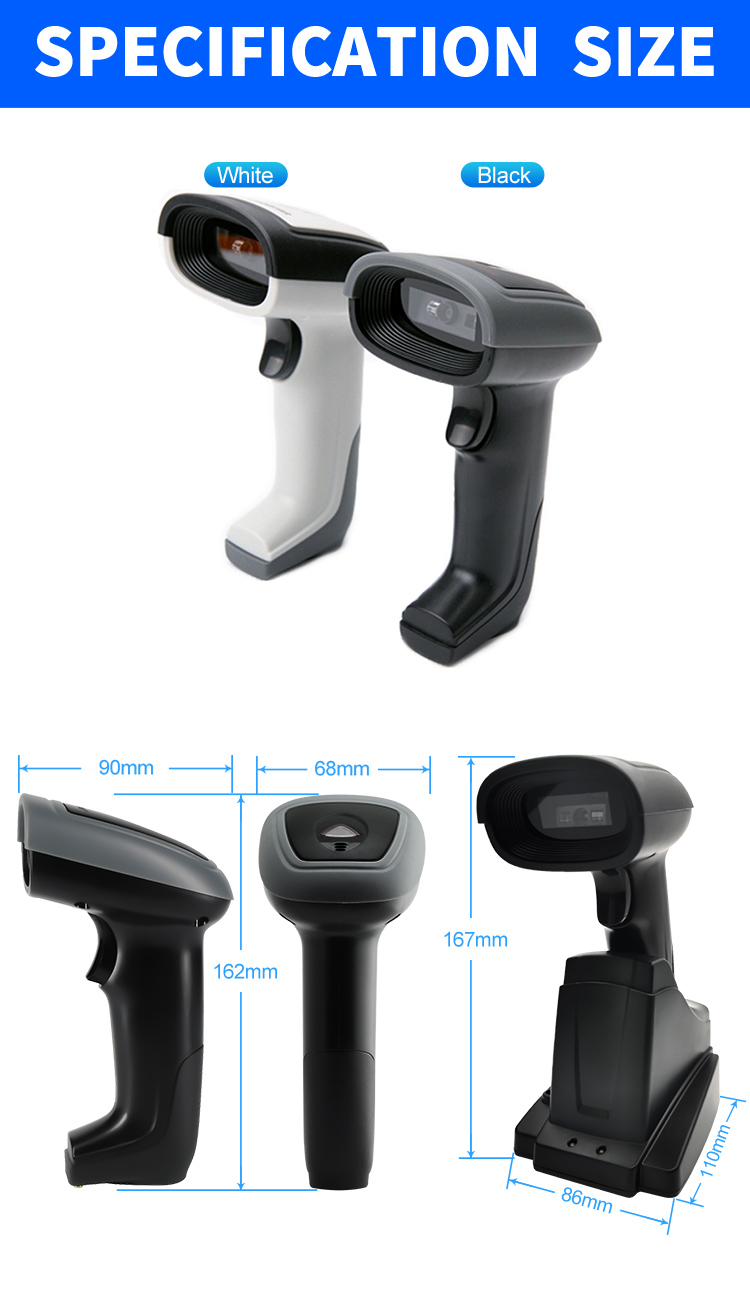

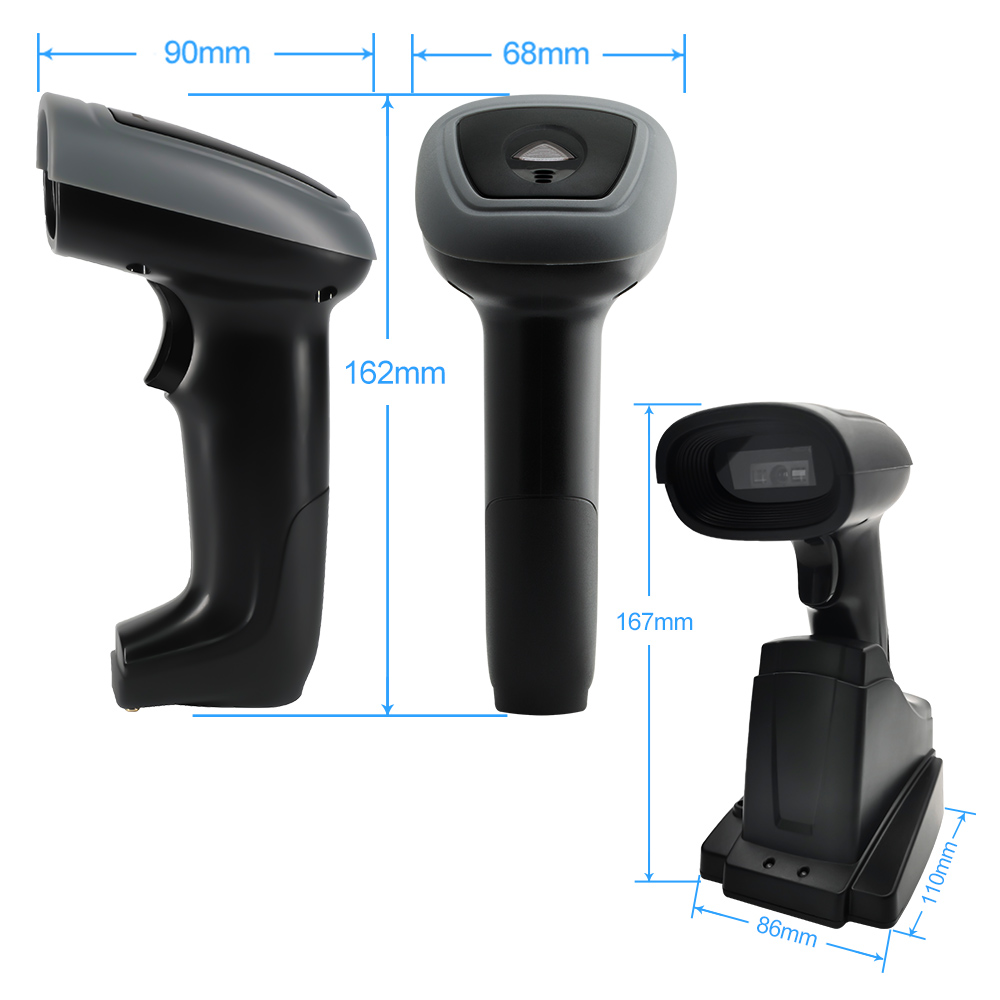

SizeL * W * H:164.5 * 91.0 * 68.0(Unit/mm)

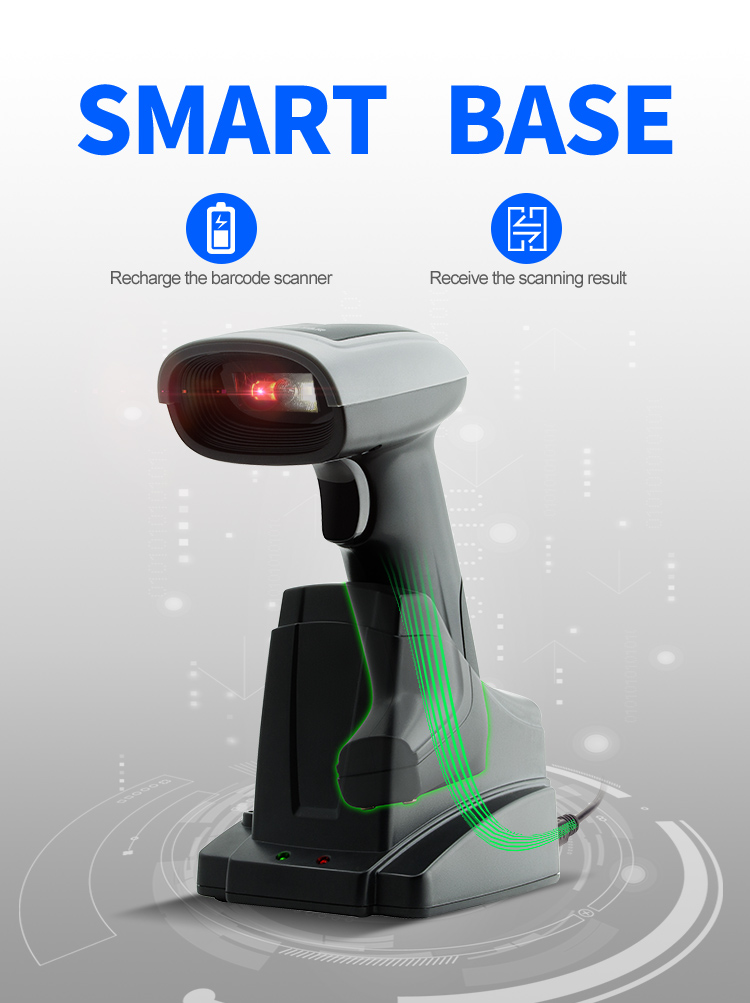

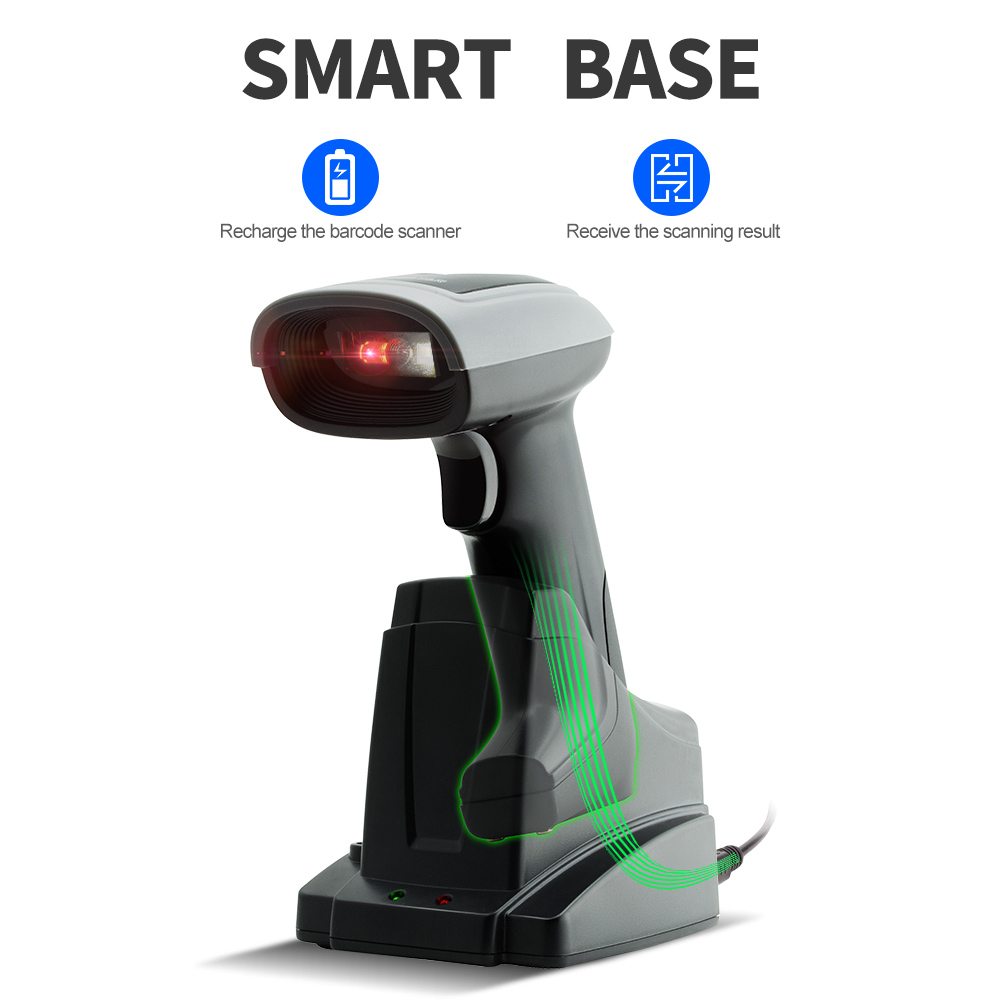

Charging Base SizeL * W * H: 110.0 * 86.0 * 96.0(Unit/mm)【Optional】
ColorBlack;Off-White
Button life>100,000 times
Performance Parameter

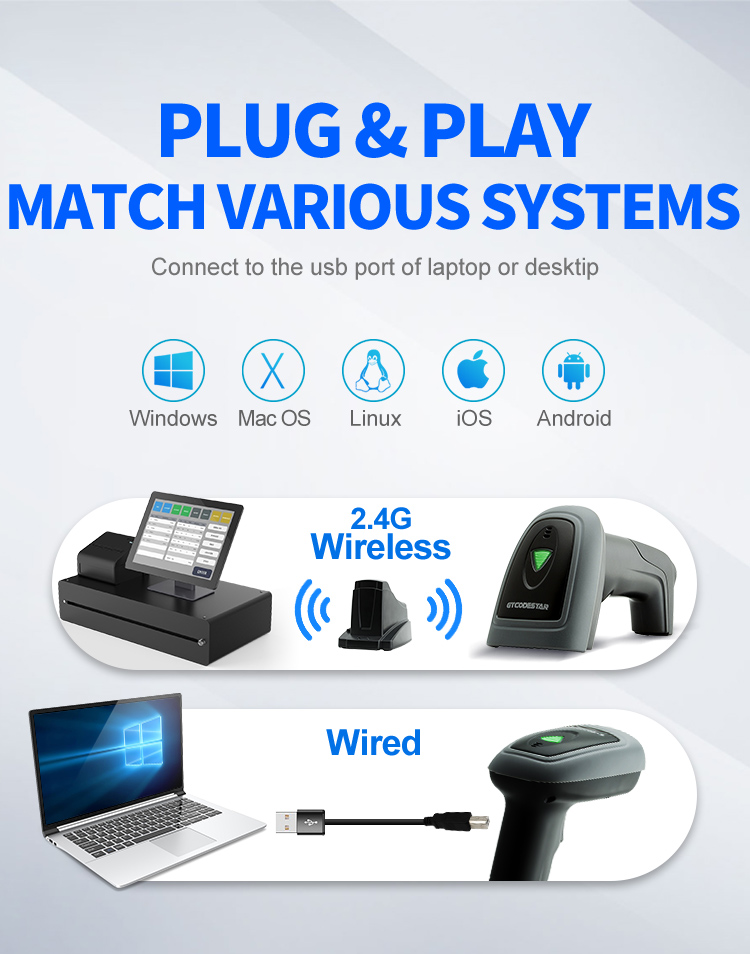

InterfaceUSB;2.4G;Bluetooth
System SupportedLinux,Android,Windows XP、7、8、10,MAC
Language SupportedEnglish-United States; French-Canada; Dutch-Netherlands; Spanish-International; Latin American-Argentina; Portuguese-Brazil; Danish-Denmark; English-UK; Italian-Italy 142; French-France; German- Germany; Portuguese-Portugal; Finnish-Finland; Turkish-F; Japanese;Russian-Russia; Northern Sami-Norway
【Support multi-country keyboard】
SensorFlat CMOS Sensor640*480

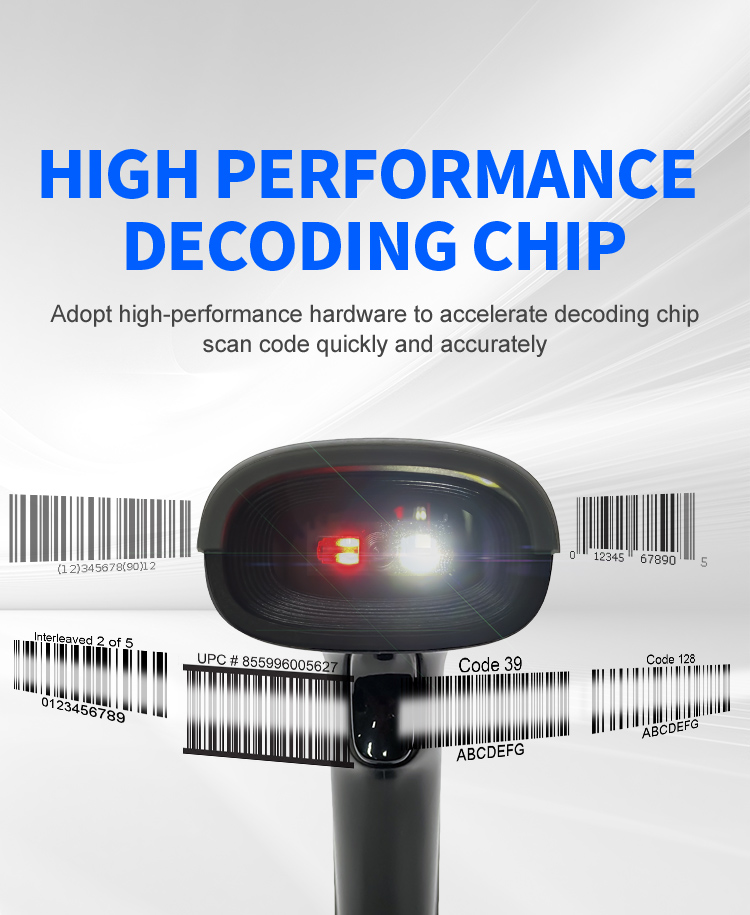

Processor32-bit ARM MCU + BGA
Storage512 KB(Capacity can be customized)
Light SourceWhite light LED illumination + Red light LED Focus
Motion ToleranceCode128: 35cm/sec
     QR: 45cm/sec
Wireless Transmission Distance2.4G≤60m(Visual range)
Bluetooth≤10m(Visual range)
Reading ModImage
Resolution≥5mil
Bit error rate1/5 milion
Trigger ModeManual;Auto-Sensing;Continuous scanning
Prompt ModeBuzzer, Indicator Light(LED)
Scaning AngleTilt ± 55°, deflection ± 55°, rotation 360°
Reading Distance10mm-600mm
Print Contrast25%
Charging Time appr.8h
Working Timeappr.42h
Scan speed100 times/sec

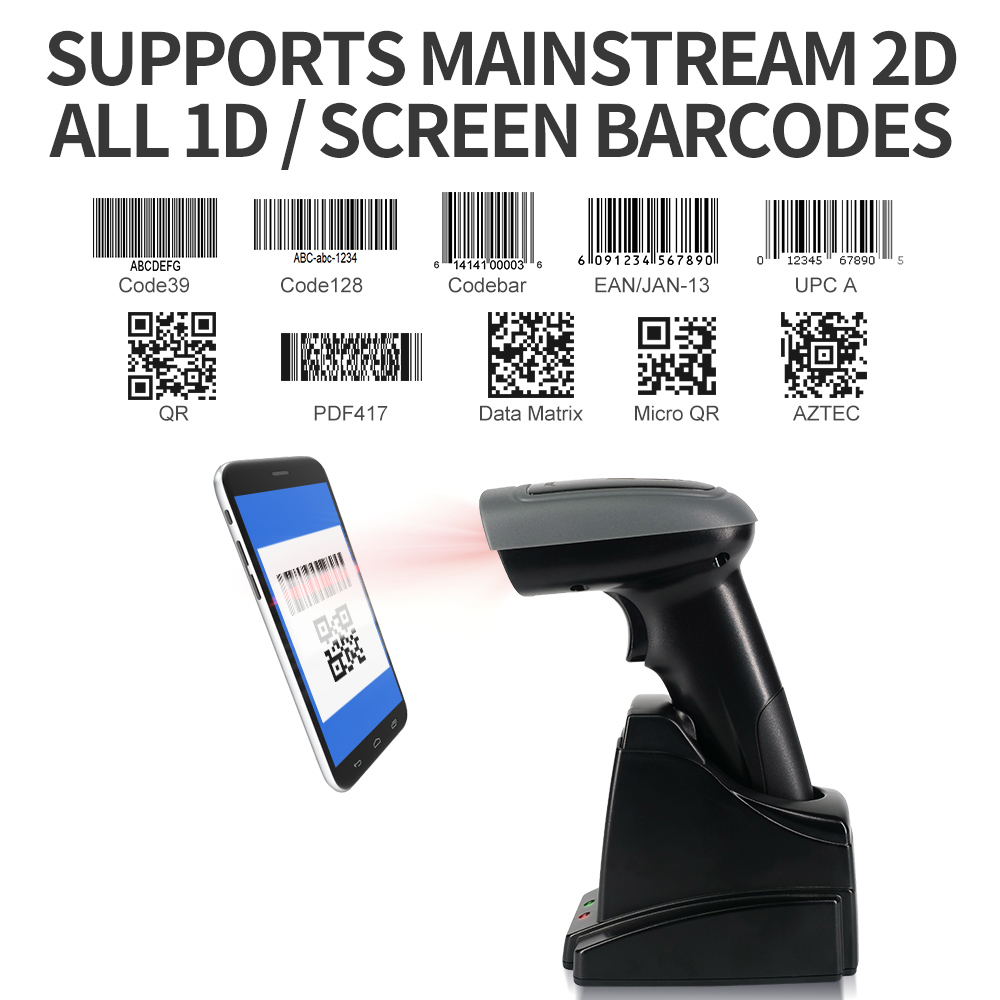

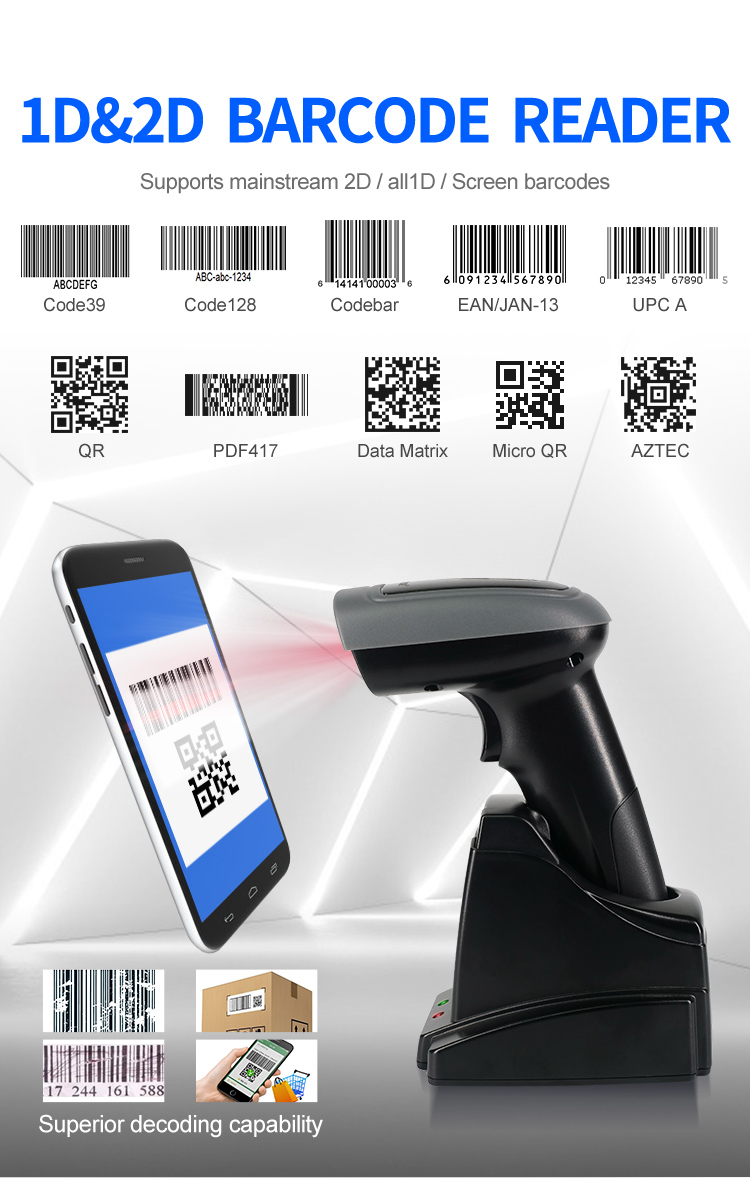

Decoding
 Capability
1D◎Interleaved 2 of 5   ◎ITF-6         ◎ITF-14        ◎ISBN
◎Code 11              ◎UCC/EAN-128   ◎GS1 Databar   ◎Matrix 2 of 5
◎Industrial 2 of 5    ◎Code 128      ◎EAN-13        ◎EAN-8
◎Code 39              ◎UPC-A         ◎UPC-E         ◎Codabar
◎Standard 2 of 5      ◎Plessey       ◎MSI-Plessey   ◎Code 93
◎GS1 composite code
2D◎PDF417      ◎Data Matrix      ◎QR Code       ◎HanXin      ◎AZTEC       ◎Maxicode    ◎Micro QR         ◎Micro PDF417
Scanning Depth                  Code39 5mil:5cm  -  8cm
                     QR 20mil:4cm  -  25cm
Environment Parameter
IP GradeIP52
Operating Temp.0 to 50℃ / 32 to 122℉
Storage Temp.0 to 50℃ / 32 to 122℉
Operating Humidity20% to 85%(No Condensation)
Storage Humidity20% to 85%(No Condensation)
ESD Protection15KV air discharge
Shock ResistanceFree Fall 1.5m(concrete surface)
Ambient light0→100000Lux


Solutions FAQ
Q:Can not turn on or turn off immediately after turning on
A:This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged)

Q:Barcode data is not uploaded
A:The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range)

Q:There is a laser line, but can't read the bar code.
A:Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual.

Q:The scanned data is displayed incorrectly on the host
A:Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center.

Q:Other cases cannot be decoded
A:It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again.
