| Specifications | |||||||
| Model NO. | X-1901B | ||||||

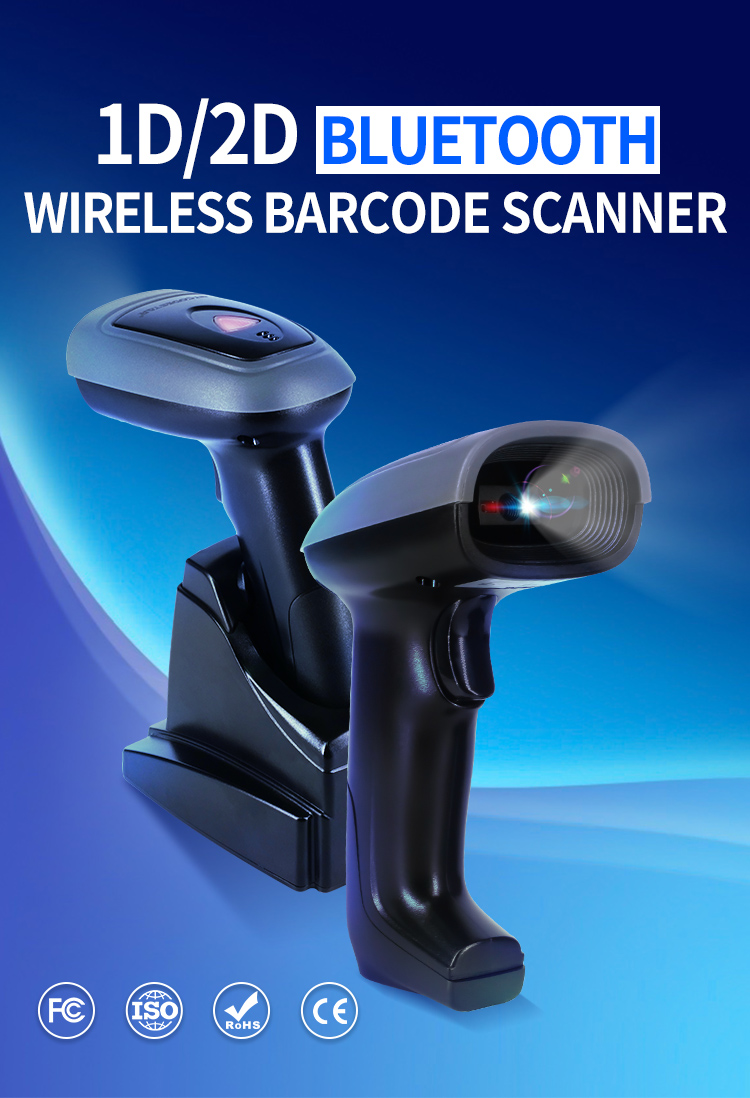

| Description | 2D Bluetooth Barcode Scanner With Charging Base | ||||||
| Physical Paramaters | |||||||
| Material | ABS + PC + TPU + PMMA | ||||||

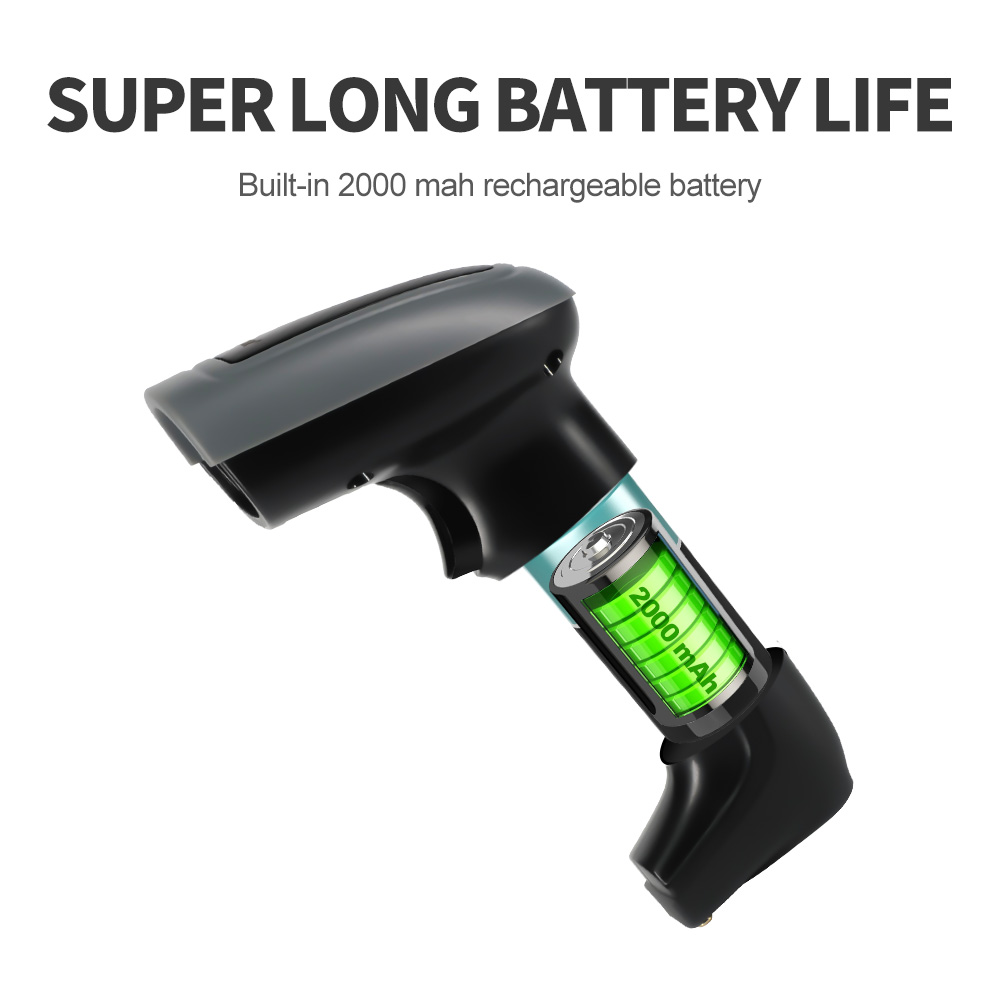

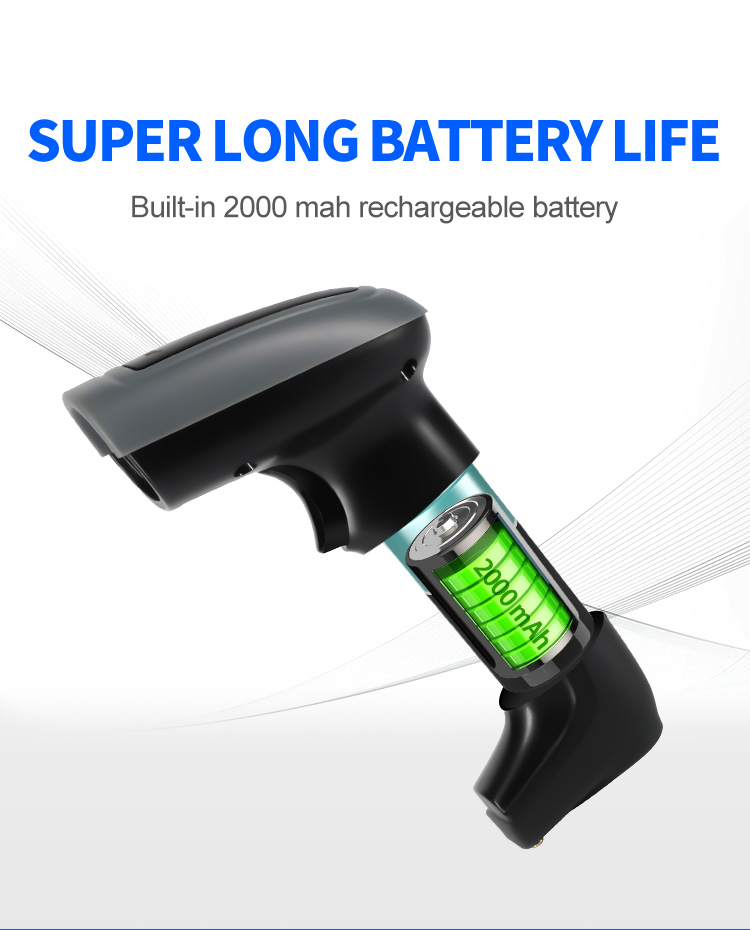

| Power Supply | Chargin: 5VDC built-in 3.7V 2000mA Lithium Battery | ||||||
| Power Adapter | 5V,1A,European Standard | ||||||
| Configuration | A software product with a graphical interface is provided for configuring the barcode scanners and updating their operating system. | ||||||
| Power consumption | 0.75W（working）；0.25W（standby）；1.15W（maximum） 【Average power consumption】 | ||||||
| Current consumption | 150mA（working）；49mA（standby）；230mA（maximum） 【Average power consumption】 | ||||||
| Weight | 205g(Scanner without cable) & 187g(Base) | ||||||
| Deminsion | L*W*H：164.5 * 91 * 68（mm） | ||||||
| Base Deminsion | L*W*H：110.0 * 86.0 * 96（mm）(Base) | ||||||

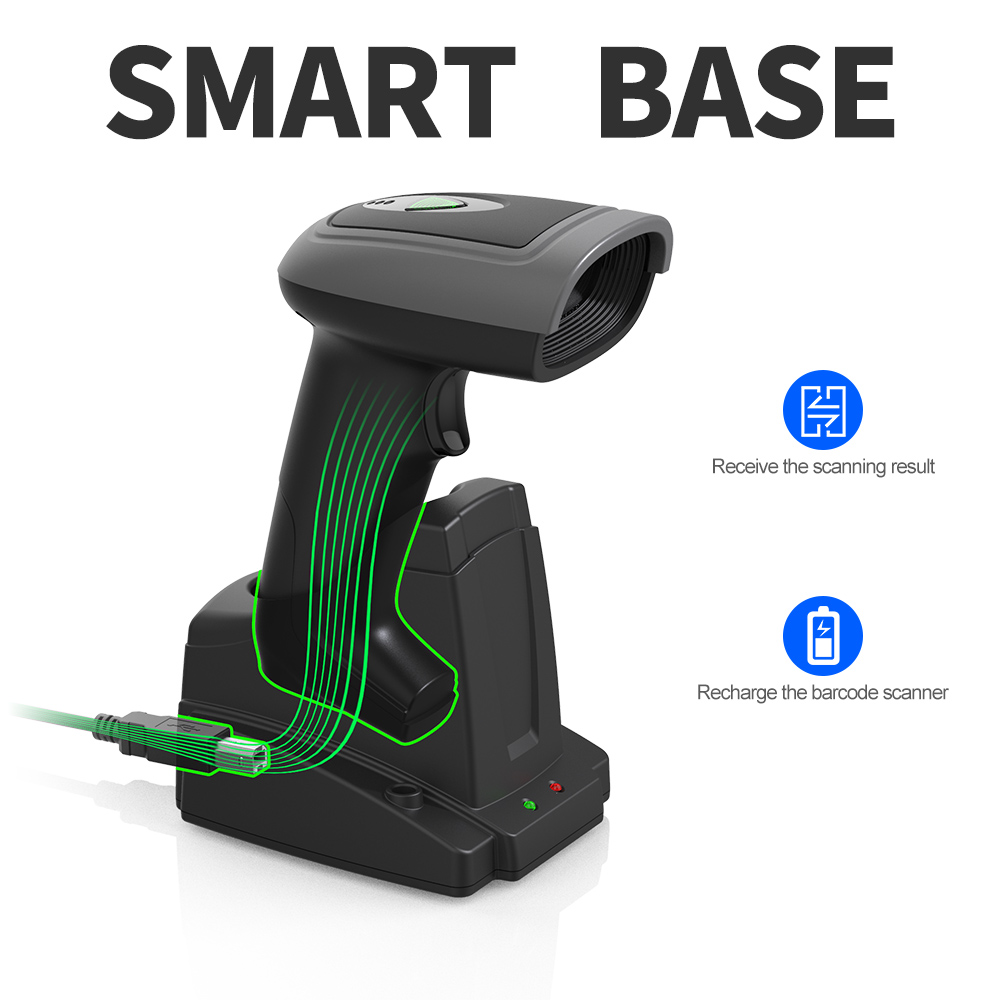

| Accessories | A USB interface cable with a length of 1.5 meters. A docking station that can charge the scanner and transmit the data from the scanned barcodes | ||||||
| Button life | ＞100000 times | ||||||
| Performance Paramaters | |||||||

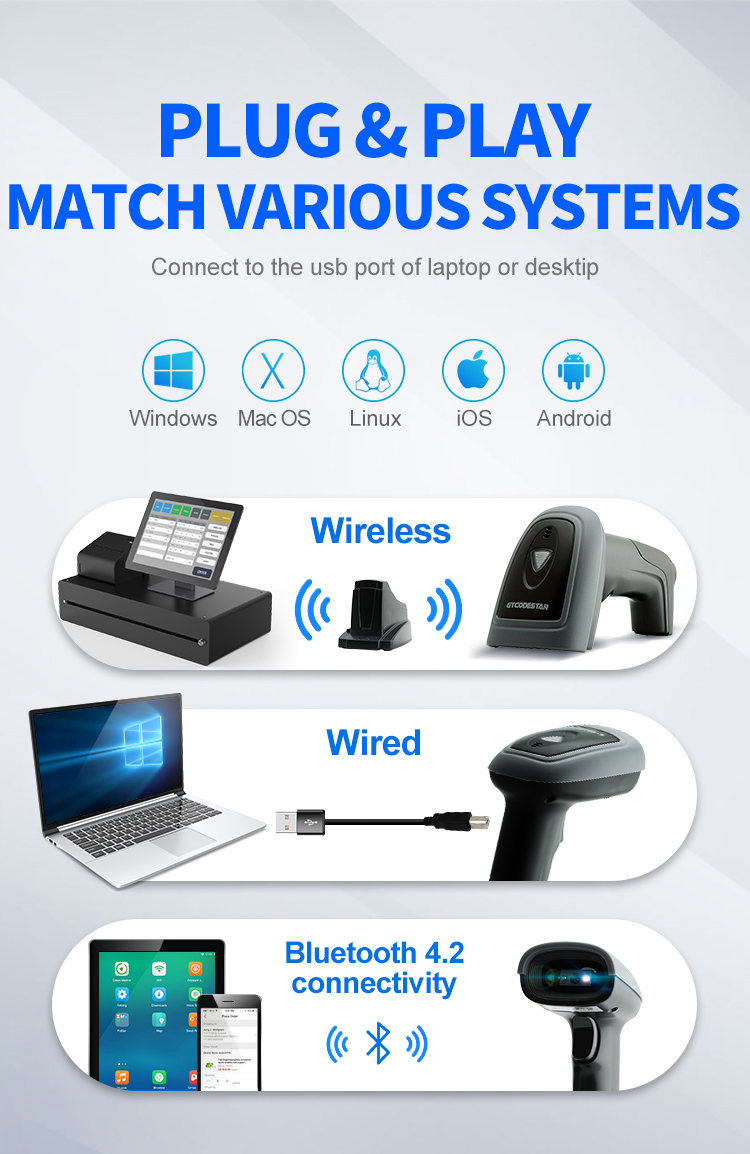

| Interface | Bluetooth, 2.4G and USB interface, the possibility of wireless operation at least 30 meters and up to 70 meters from the docking station | ||||||

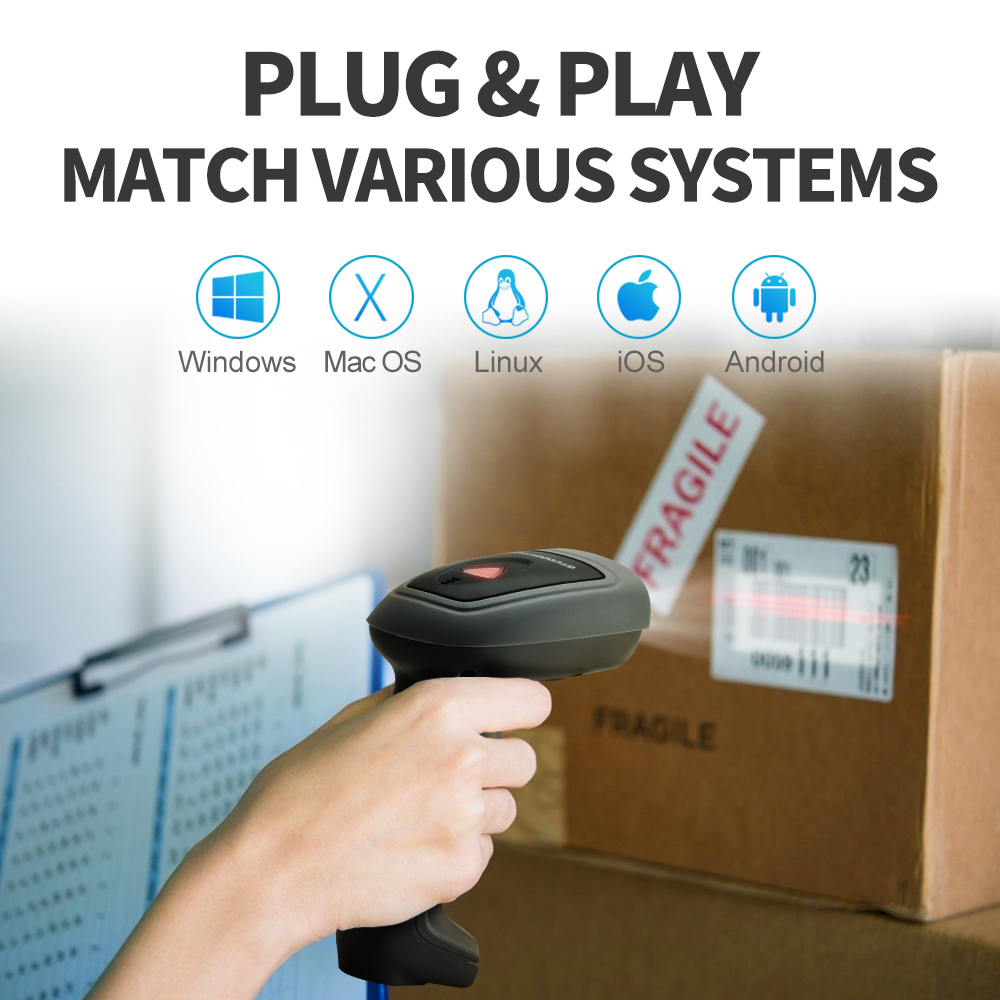

| Operating System | Linux/Android/iOS/Windows/macOS | ||||||
| Language Keyboard | United States/China (American English); Bulgarian(Bulgaria); Greece (Greek); Netherlands (Dutch); Spain (Spanish); Switzerland (German); Brazil (Portuguese); Denmark; United Kingdom (British English); Italy (Italian) ); France (French); Germany (German); Hungary; Sweden (Swedish); Slovakia; Portugal (Portuguese); Romania; Belgium (French); Turkish-F; Turkish-Q; Poland (Polish) ); Russia (Russian); Arabia; Thailand (Thai) [Support virtual keyboard] | ||||||
| Scanner Type | Wireless 2D Barcode Reader + Docking Station: Features the functionality to read barcodes, 1D/2D both from paper media and from the screen of a mobile phone, tablet, monitor, | ||||||

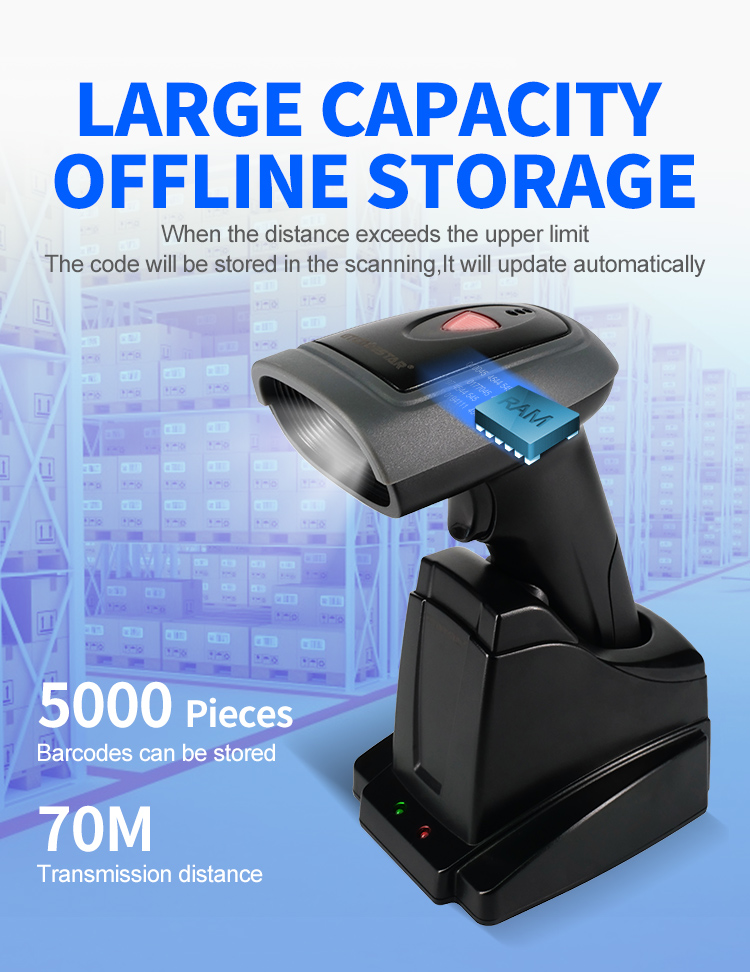

| Mode of operation | The proposed configuration allows barcode reading in both manual and desktop mode of operation Built-in memory for at least 5000 barcodes with up to 40000 barcodes. | ||||||
| Scan field | Clear view of the scanning field that allows the operator to immediately distinguish which barcode the scanner is aiming at when scanning multiple barcodes located in close proximity with a red indicator light on the scanned barcode | ||||||

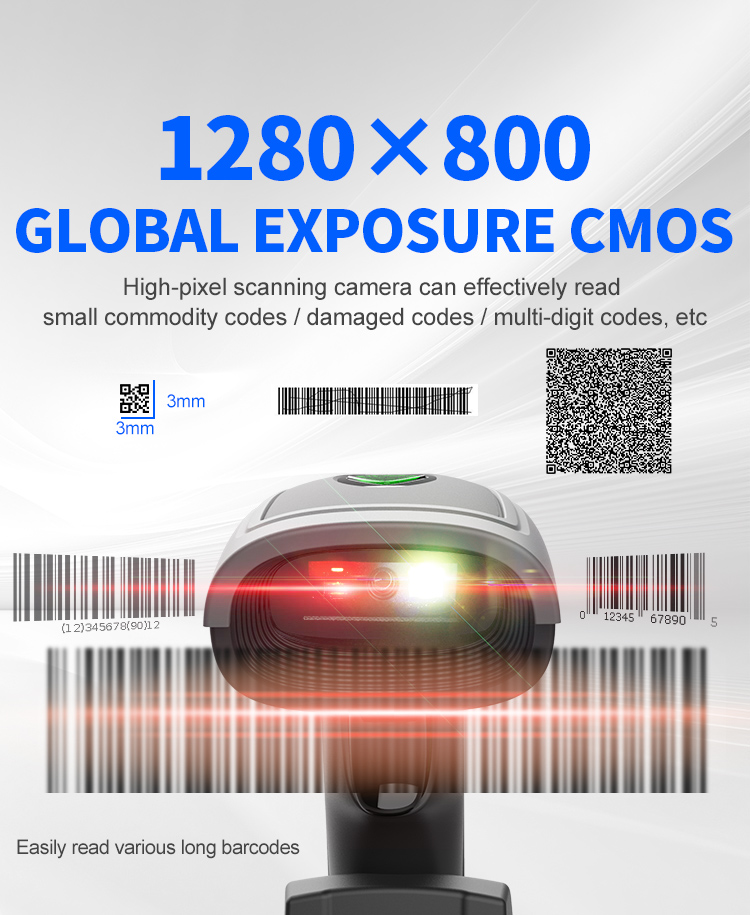

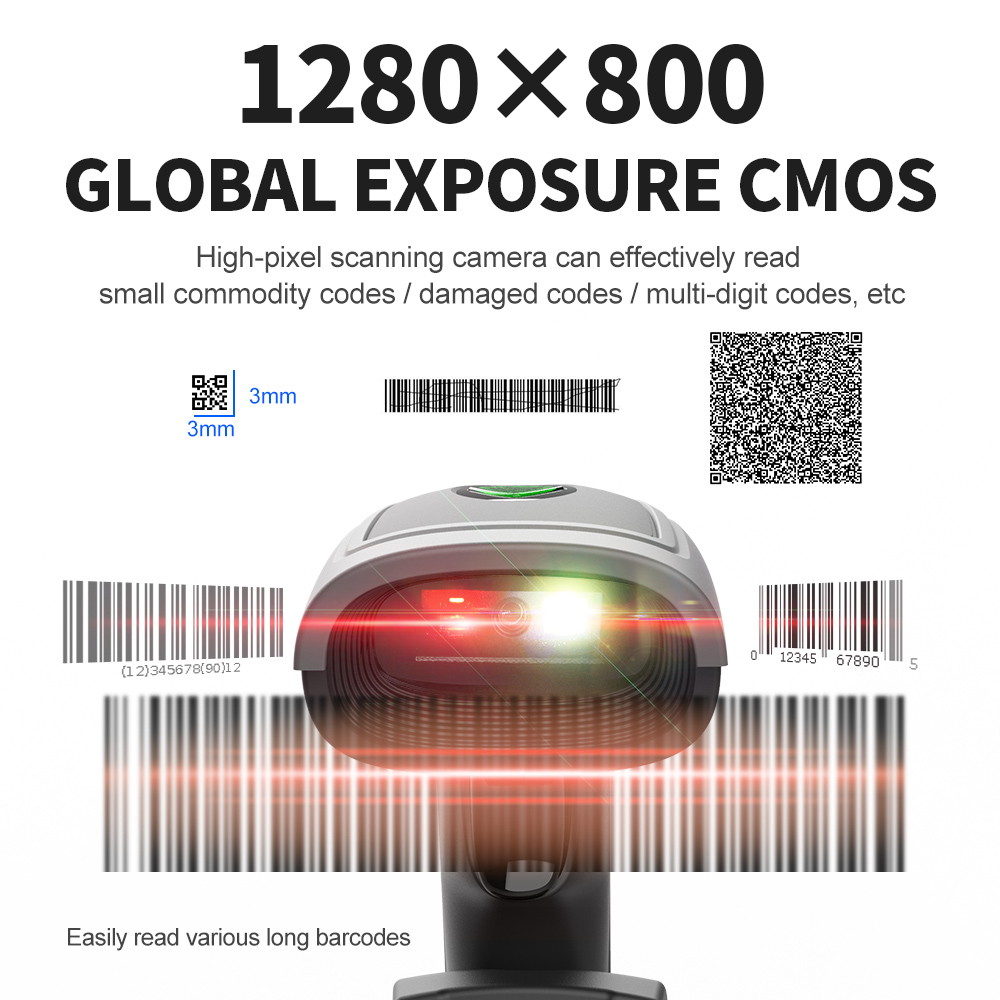

| Sensor | Global Shutter CMOS 1280×800(1 Mega Pixels) | ||||||
| Frame rate | 60fp/s | ||||||
| Light Source | Red LED(Aiming)+White LED(Lighting) | ||||||
| Processor | 32-bit ARM MCU+DSP | ||||||
| Internal Memory | 512000 bytes | ||||||
| Move Tolerance | Code128： 80cm/sec QR： 85cm/sec | ||||||
| Resolution | ≥3mil | ||||||
| Bluetooth | Bluetooth 4.2,BLE,SPP,HID | ||||||
| Error rate | 1/5M | ||||||
| Reading Mode | Manual trigger, Auto sensing, Auto continuous scanning,command trigger | ||||||
| Indicator | Buzzer+LED indicator | ||||||
| Singaling | Provides clear visual, audible and vibration feedback when a barcode is successfully read. | ||||||
| Print contrast | 20% | ||||||
| Full Charging time | appr.8h | ||||||
| Working Period | appr.42h continuously | ||||||
| Viewing angle | 41 °horizontal, 28°vertical | ||||||
| Reading capability | 1D | ■UPC/EAN/JAN ■UPC-A ■UPC-E ■EAN-8 ■EAN-13 ■JAN-8 ■JAN-13 ■ISBN ■ISSN ■GS1-128 ■ISBT ■Code39(with full ASCII) ■Code 32 ■Code 93 ■Code 11 ■Codabar (NW7) ■Code 128 & EAN 128 ■Code 93 ■Codabar（NW-7） ■Interleaved 2 of 5 ■Matrix 2 of 5 ■Industrial 2 of 5(Straight 2 of 5) ■Code 128 ■Standard 2 of 5（IATA 2 of 5） ■NEC 2of 5 ■MSI ■Telepen ■Trioptic ■BC412 ■Febraban code ■Coupon | |||||
| 2D | ■QR Code ■Micro QR Code ■Data Matrix ■PDF417 ■Micro PDF 417 ■MaxiCode ■Aztec ■HanXin Code ■Pharma Code(One-Track) ■Codablock A ■Codablock F ■Dot Code ■Grid Matrix It is possible to read the MRZ zone of Bulgarian identity cards and international passports. | ||||||
| other | ■GS1 Databar Stack ■GS1 Databar(Omnidirectional ■Limited, Expanded) ■GS1 Composite Code ■TLC 39 Code ■Chinese ID Card OCR ■Foreign Passport OCR ■HongKong 2 of 5(China Post) ■Korea Post ■Australian Post ■British Post ■USPS Intelligent Mail ■Japanese Post ■Planet Code ■Postnet Code ■UPU 4-State ■KIX Code | ||||||
| Depth | Read barcodes: - minimum in the range of 2.5 cm to 30 cm at 13 mil 100% UPC/EAN; - minimum in the range 3 cm. to 35 cm with QR code 20 mil. | ||||||
| Environmental | |||||||
| IP Grade | IP51 | ||||||
| Working temp. | -20℃ to 60℃ | ||||||
| Storage Temp. | -20℃ to 60℃ | ||||||
| Working Humidity | 20% to 85%（non-condensing） | ||||||
| Storage Humidity | 20% to 85%（non-condensing） | ||||||
| ESP | 15KV air discharging | ||||||
| Shock resistance | 1.5m falling on ground | ||||||
| Lumination | 0→100000Lux | ||||||
| Solutions FAQ | |||||||||
| Q：Can not turn on or turn off immediately after turning on | |||||||||
| A：This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged) | |||||||||
| Q：Barcode data is not uploaded | |||||||||
| A：The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range) | |||||||||
| Q：There is a laser line, but can't read the bar code. | |||||||||
| A：Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual. | |||||||||
| Q：The scanned data is displayed incorrectly on the host | |||||||||
| A：Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center. | |||||||||
| Q：Other cases cannot be decoded | |||||||||
| A：It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again. |
