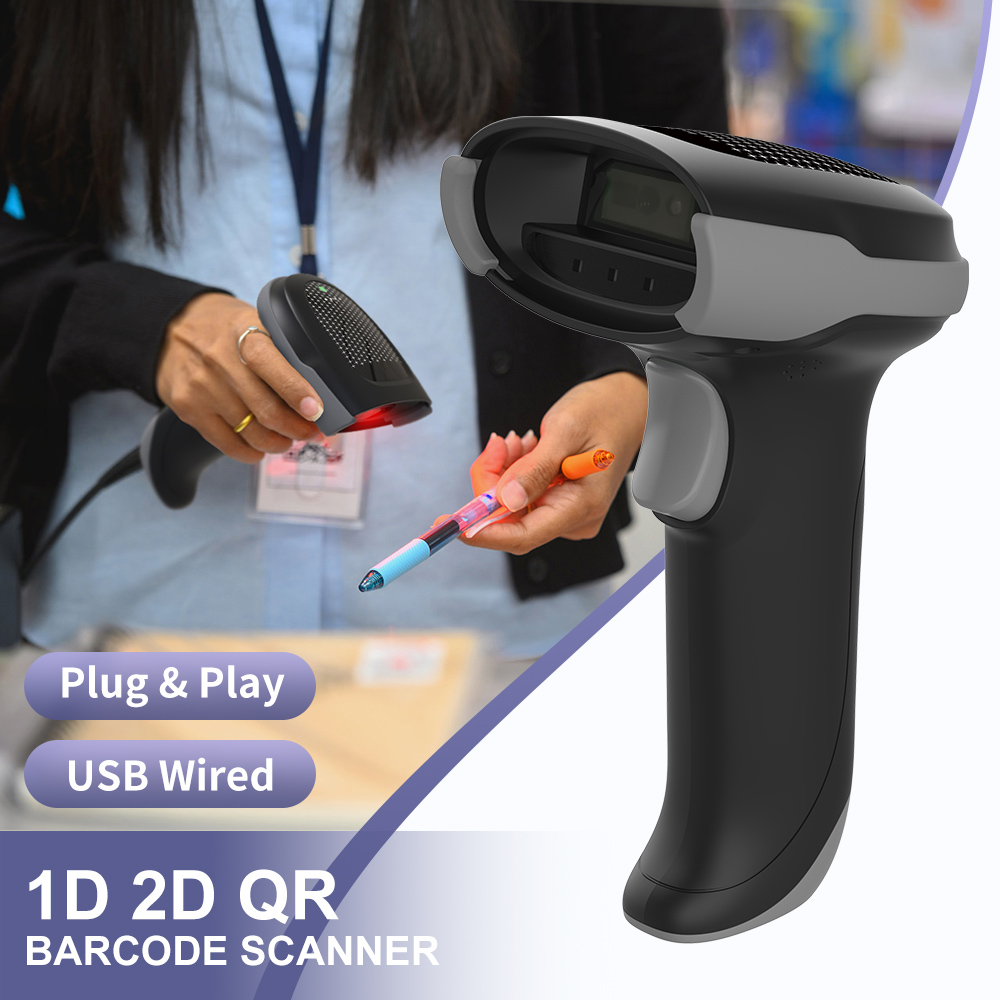

● Read common 1D/2D bar codes on screen or paper.

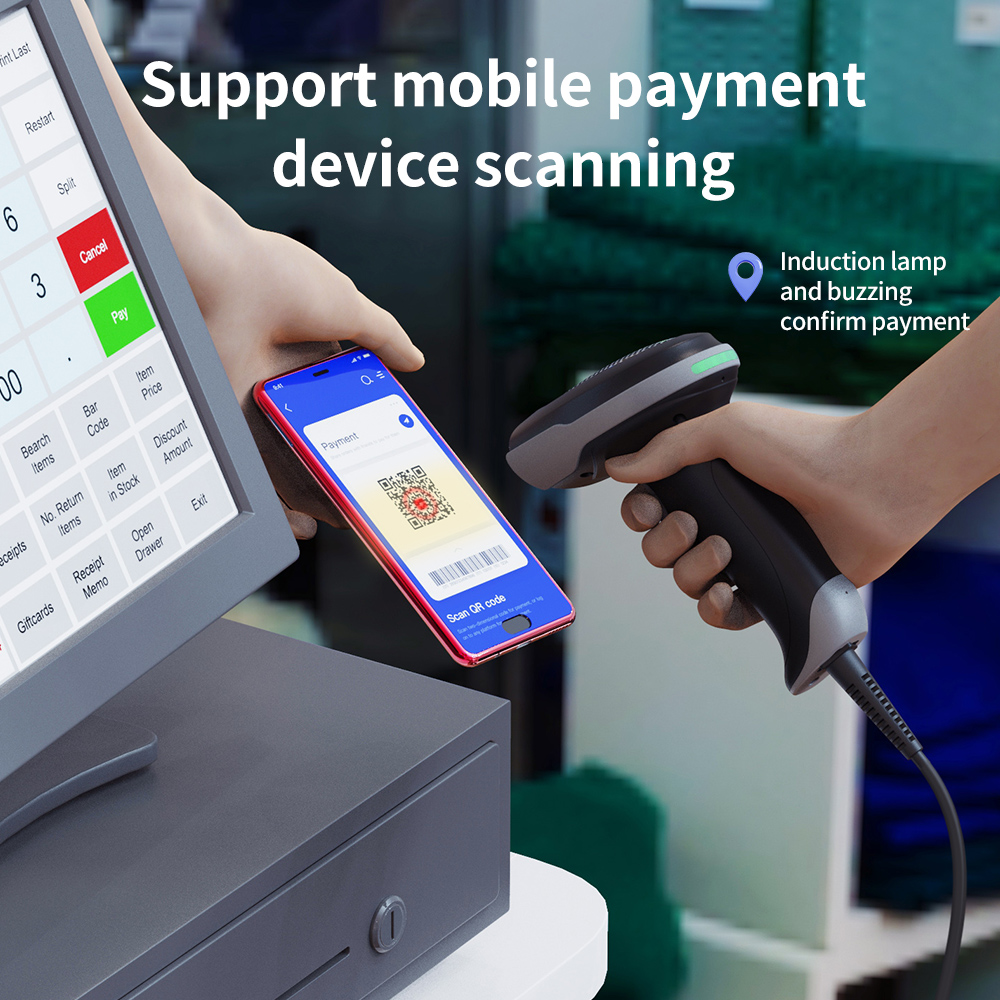

● Simple and fast screen payment code capture ability, which can accurately cope with
various mobile payment scenarios.

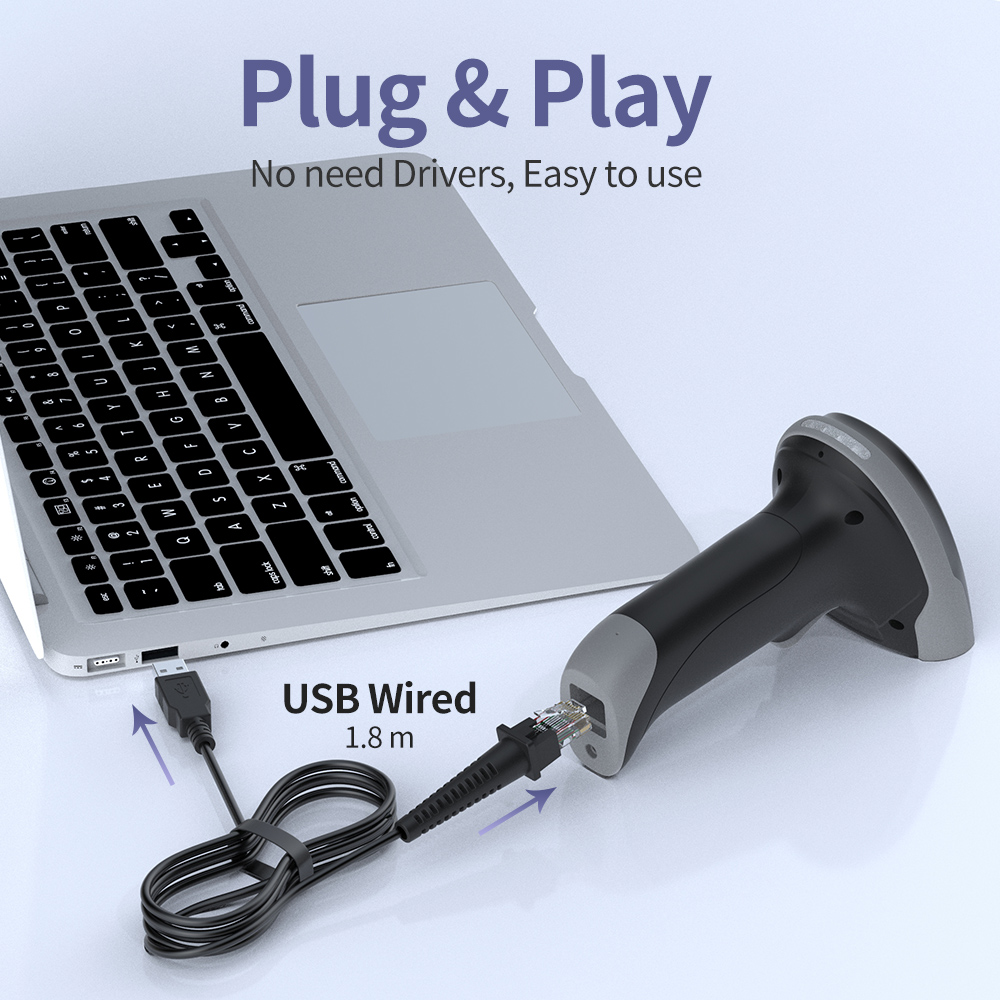

● Drive-free, plug and play."
● Support continuous scanning and automatic scanning.
● Three colours of fill light to better capture all types of coloured barcodes.
| Performance Parameter | |||||||
| Power Supply | DC 5V ±5% | ||||||
| Power Consumption | 0.58W（working） ；0. 18W（ standby） ；0.95W（ maximum） | ||||||
| Current | 115mA（working） ；35mA（ standby） ； 190mA（ maximum） | ||||||
| Weight | 108g±5g（ Excluding wire） | Reading mode | Image | ||||
| Interface | USB； （ RS232 customizable） | Resolution | ≥4mil | ||||
| Error Rate | 1/5000000 | ||||||

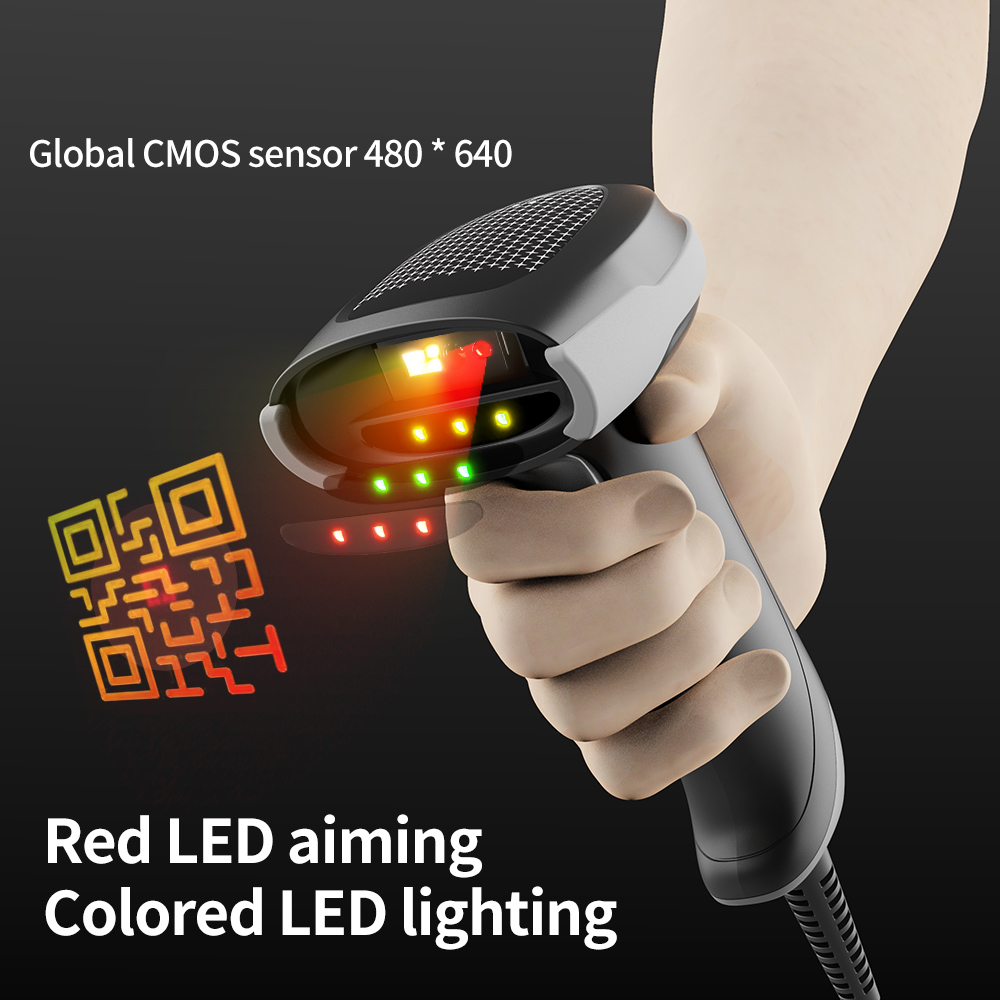

| Sensor | Global CMOS sensor 480 * 640 | ||||||
| Light Source | Red light LED aim + Colored light LED illumination | ||||||
| Reading distance | 1cm-210cm | ||||||
| Motion toleranc | Code128： 45cm/sec QR： 50cm/sec | ||||||
| Triggle Mode | Manual mode, continuous scanning mode, self sensing mode | ||||||
| Print contrast | ≥30% | ||||||
| Scanning Angle | Rotation 360° , Horizontal 42° , Vertical 32° | ||||||
| Language supported | English; Czech; French; German; Hungarian; Italian; Japanese (Katakana); Spanish; Turkish F; Turkish Q; Portuguese; Dutch; Finnish; Danish; Polish; Swedish; South Sami; Slovak; Romanian; Hebrew; Latin American; Russian; Greek, Thai [virtual keyboard supported]. | ||||||

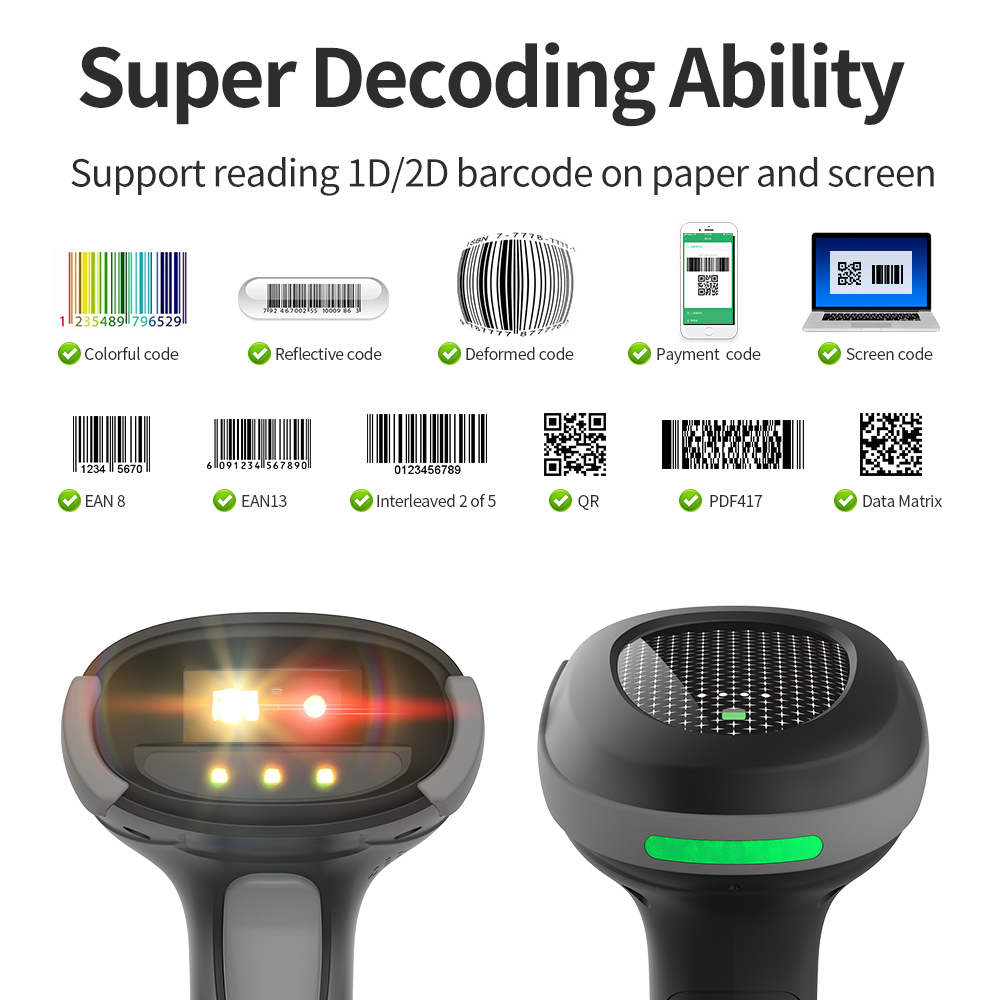

| 1D：Interleaved 2 of 5 Code25-Standard | Matrix 2 of 5 | ||||||
| ITF-14 ITF-6 Code39 | Code93 | 2D：Data Matrix QR | |||||
| ISBN Code128 Code11 | UPCE | PDF417 Micro QR | |||||
| Decoding Capability | EAN/GS1/UCC-128Auto Codabar | MSI | Micro PDF 417 | ||||
| EAN/JAN-13 UPC-A | JAN/EAN-8 | Aztec | |||||
| GS1 Databar(RSS) Industrial 2 of 5 | ISSN | ||||||
| Scanning Depth | QR 9.17 mil： 3cm - 10cm | Data Matrix 12.50mil：2cm - 10cm | |||||
| Code93 10.83mil： 3cm - 20cm | EAN13 10.83mil：3cm - 20cm | ||||||
| Refund code 28 byte ：4cm - 19cm | WeChat Pay QR Code：4cm - 43cm | ||||||
| Solutions FAQ | |||||||||
| Q：Can not turn on or turn off immediately after turning on | |||||||||
| A：This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged) | |||||||||
| Q：Barcode data is not uploaded | |||||||||
| A：The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range) | |||||||||
| Q：There is a laser line, but can't read the bar code. | |||||||||
| A：Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual. | |||||||||
| Q：The scanned data is displayed incorrectly on the host | |||||||||
| A：Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center. | |||||||||
| Q：Other cases cannot be decoded | |||||||||
| A：It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again. |
