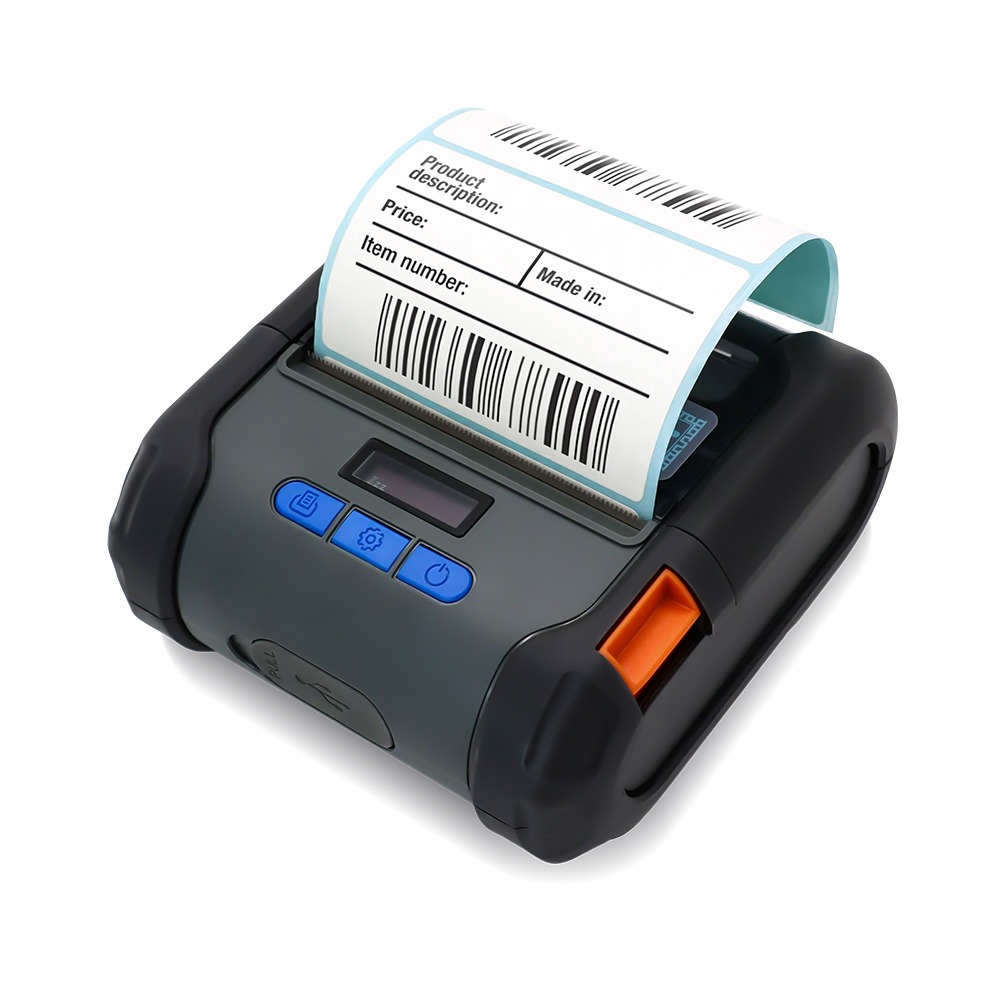

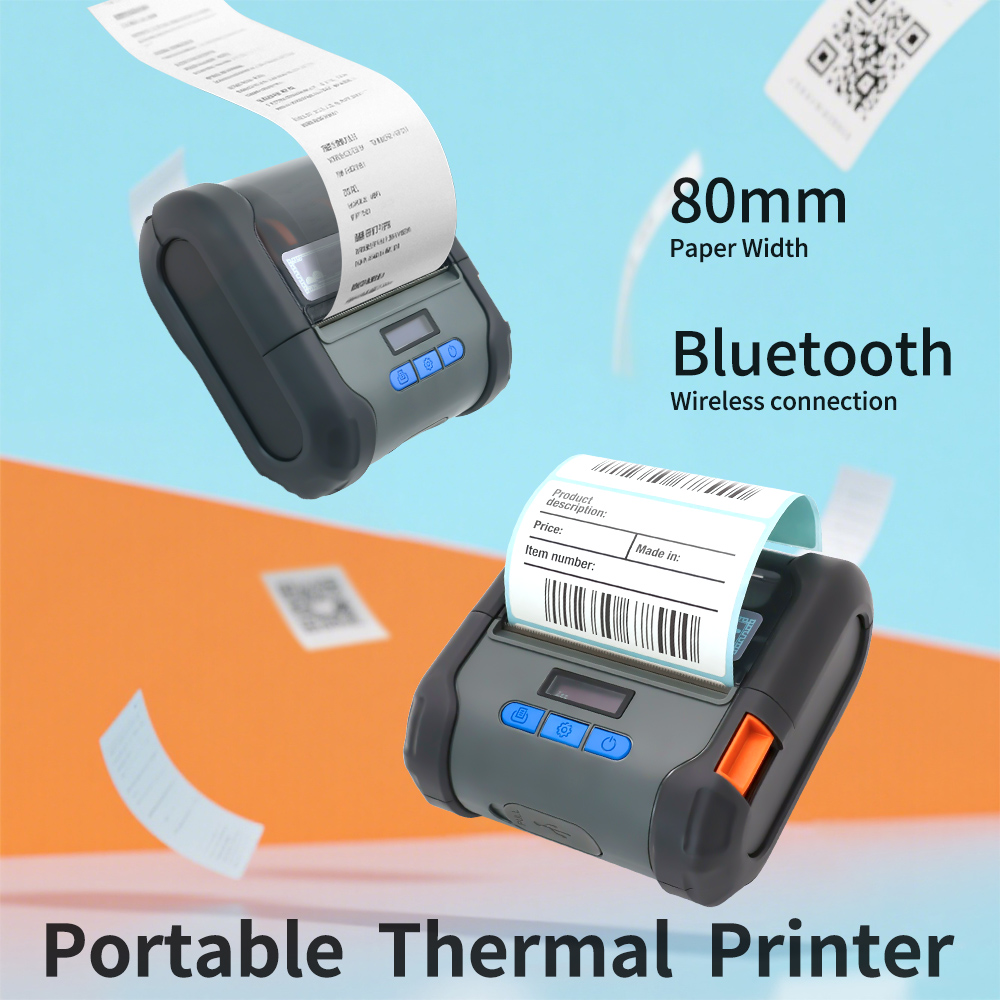

GT-P809 80mm Receipt&Label Portable Thermal Printer

Product model：GT-P809
Printing method: Direct thermal
Resolution: 203 DPI
Max.print speed :100mm/s
Max.print width : 72 mm
Paper type : Thermal label paper/Thermal Receipt Paper
Paper width: 58mm or 80mm
Label roll diameter : 50 mm
Driver:Android, ios, Windows
Memory : Input buffer: 256k bytes/NV Flash: 4M

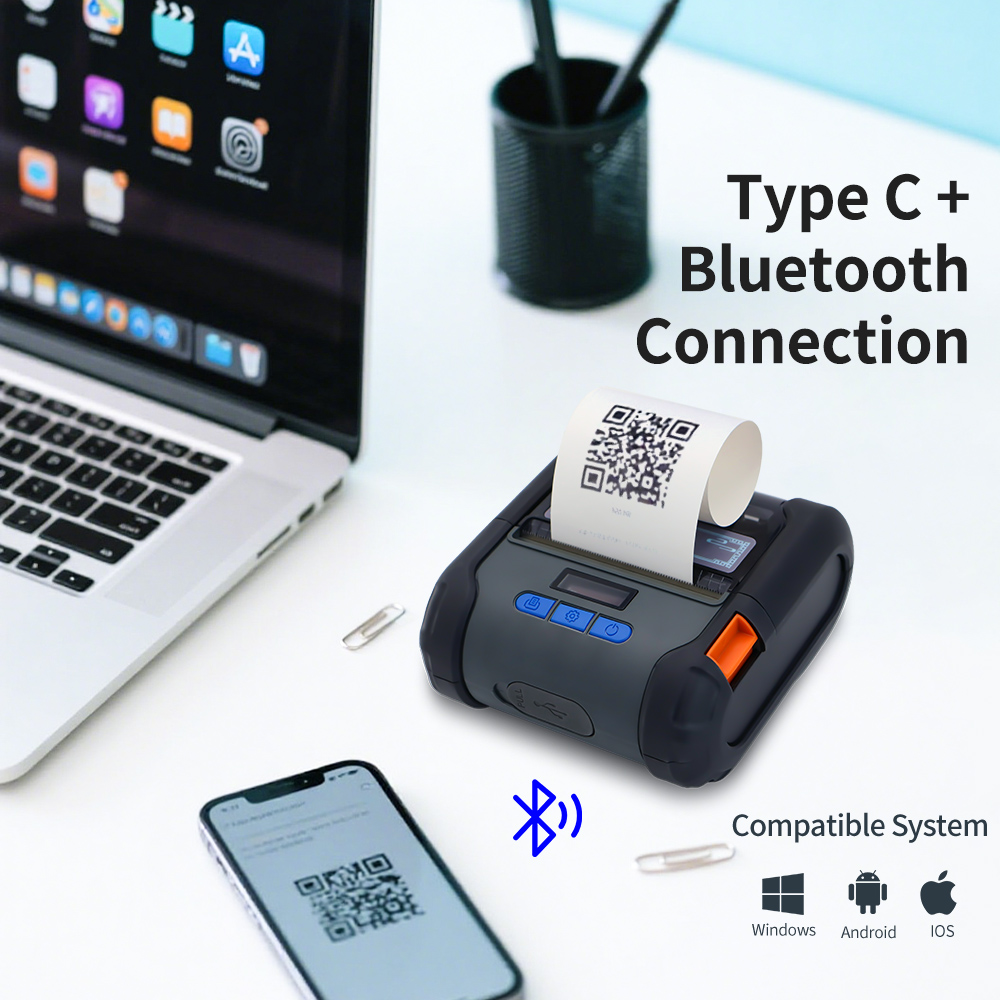

Interface: Type C+ Bluetooth

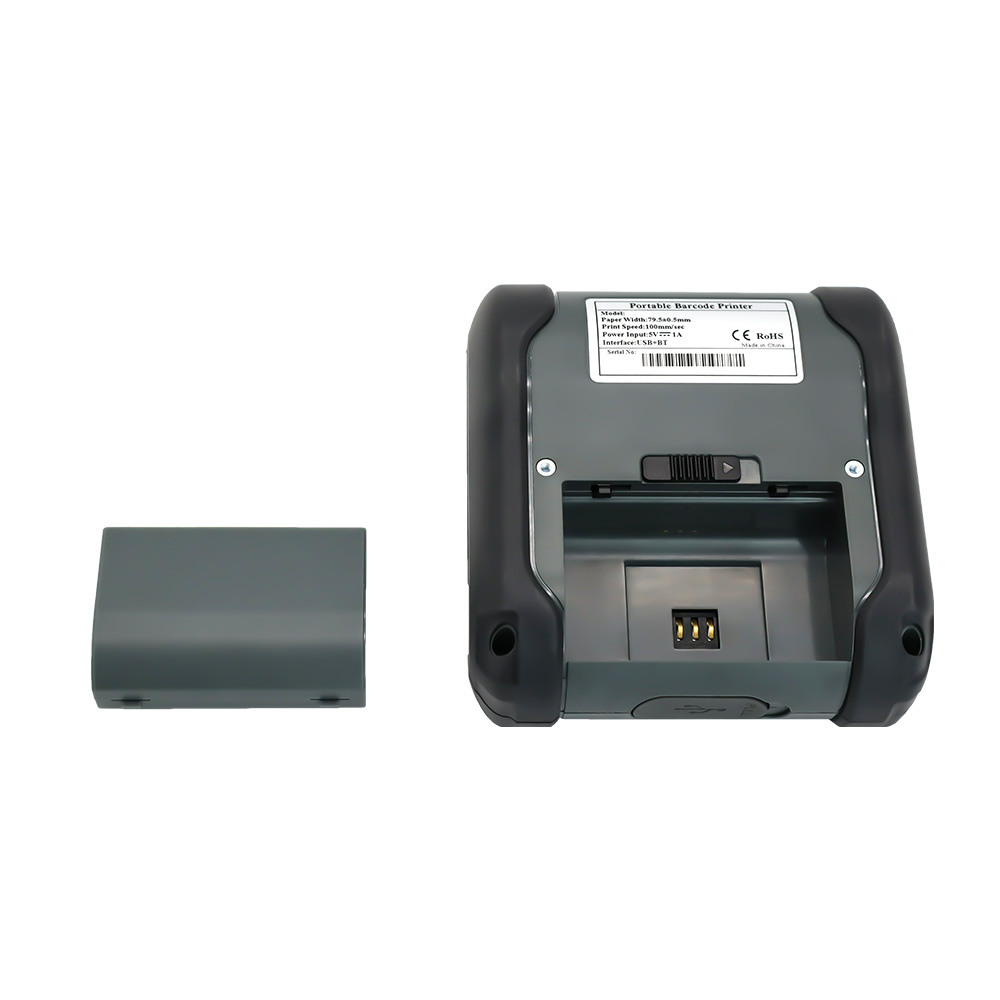

Battery:2000mAh
Function:Support Type-C interface charging and communication
2000mAh high-capacity battery, long standby time
Low noise, high speed printing
Support TSPL, CPCL, ESC command set

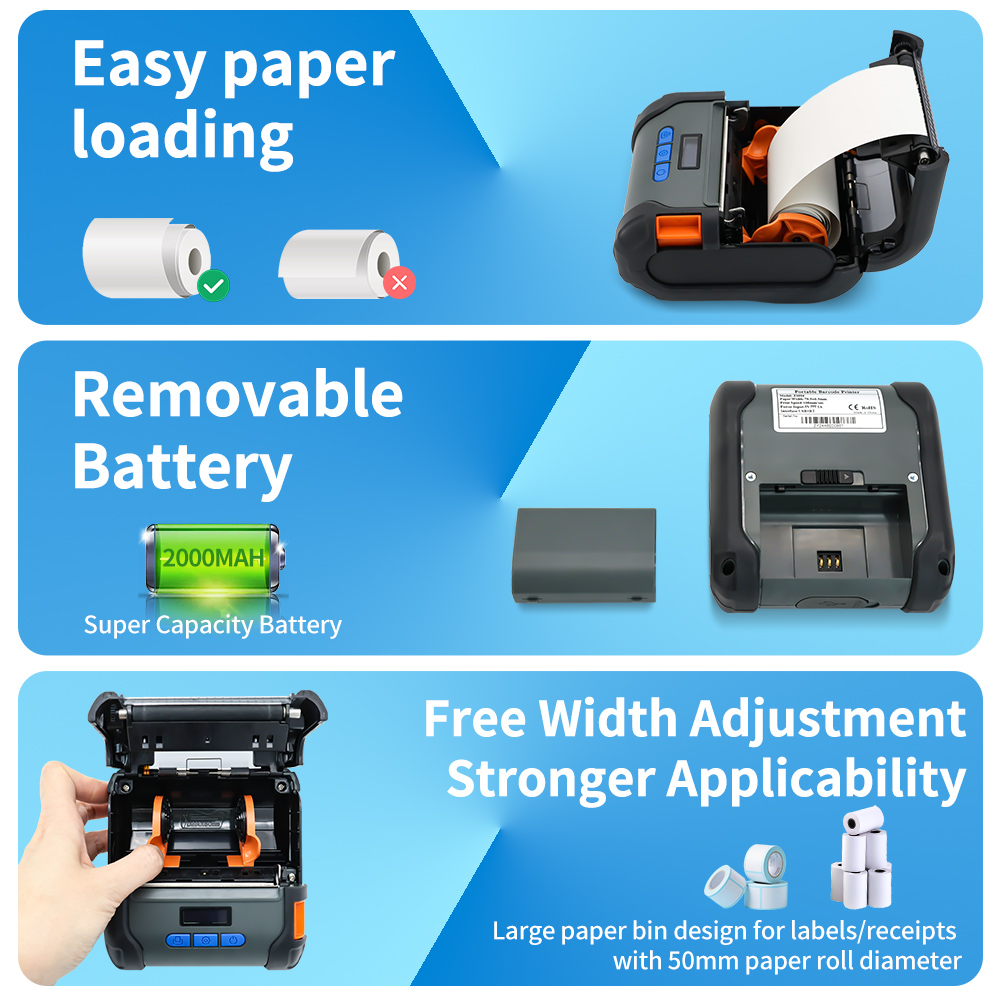

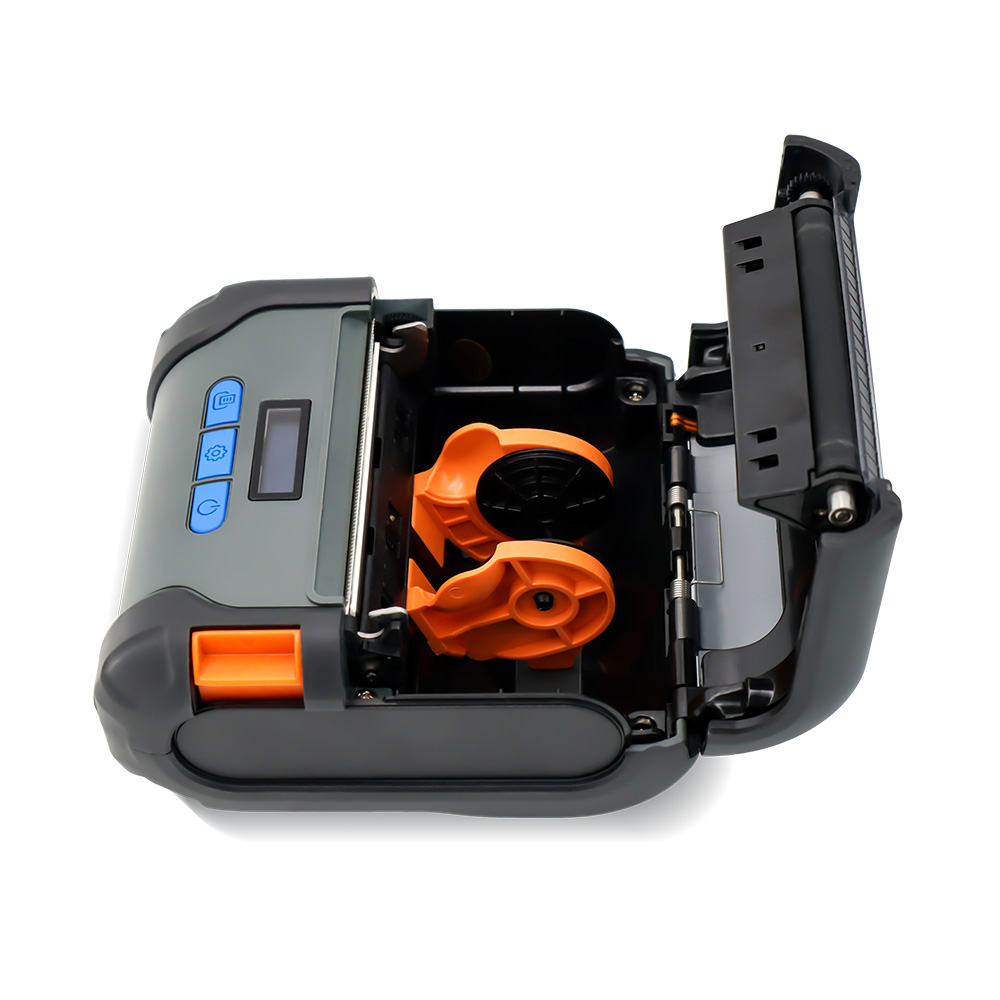

Large paper bin design, 50mm diameter paper roll for labels/receipts

Details

Parameter

Video

FAQ

Printer specification parameter table
project	Project Description	Specifications
Printing Features	Printing method	Direct Thermal
	Resolution	203 DPI
	Max.print speed	100mm/s
	Max.print width	72mm
Media	Media type	Continuous, gap, black mark
	Media width	58mm or 80mm
	Label roll diameter	50 mm
Performance Features	Processor	32-bit CPU
	Memory	Input buffer: 256k bytes/NV Flash: 4M
	Interface	Type C+ Bluetooth
Fonts/Graphics/Symbclogics	Internal fonts	8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software

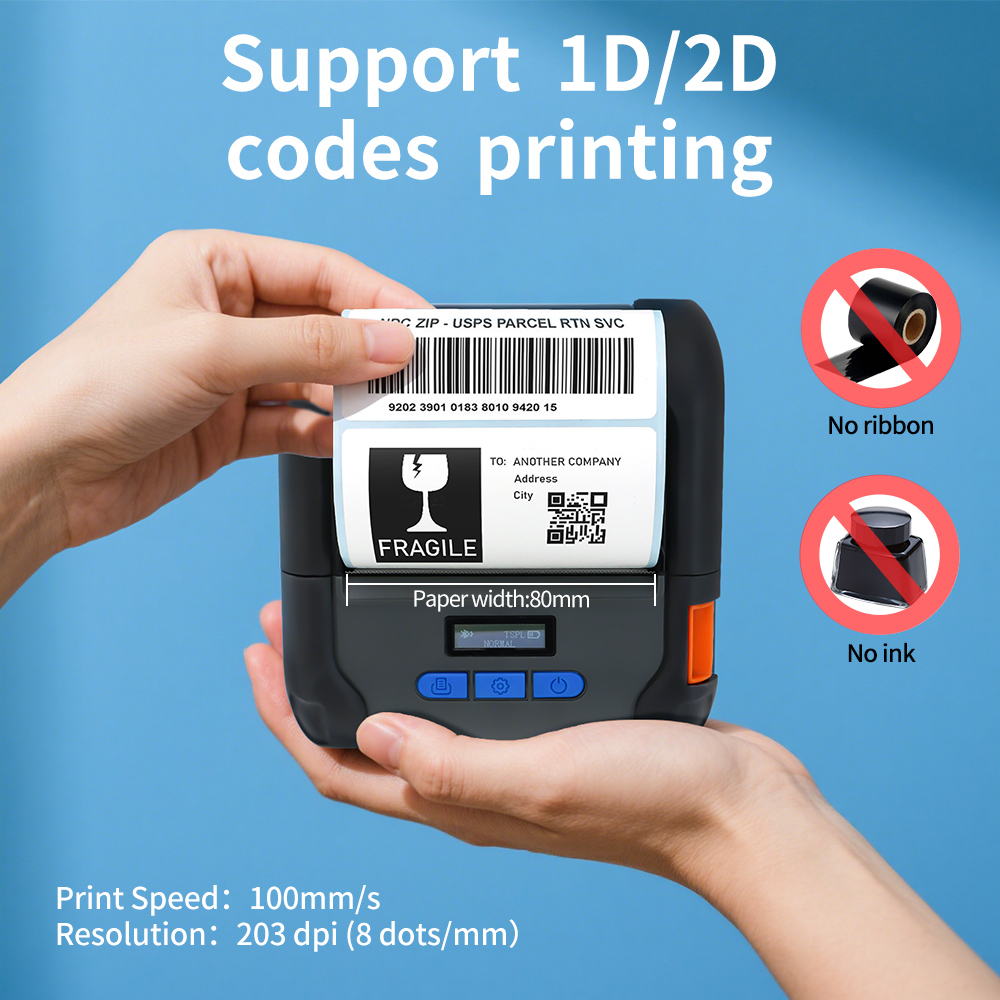

	1D barcode	UPC-A UPC-E EAN-8 EAN-13 CODE 39 ITF CODE 128 CODE 93
	2D bar code	PDF-417 QR code
	Emulation	TSPL/CPCL/ESC

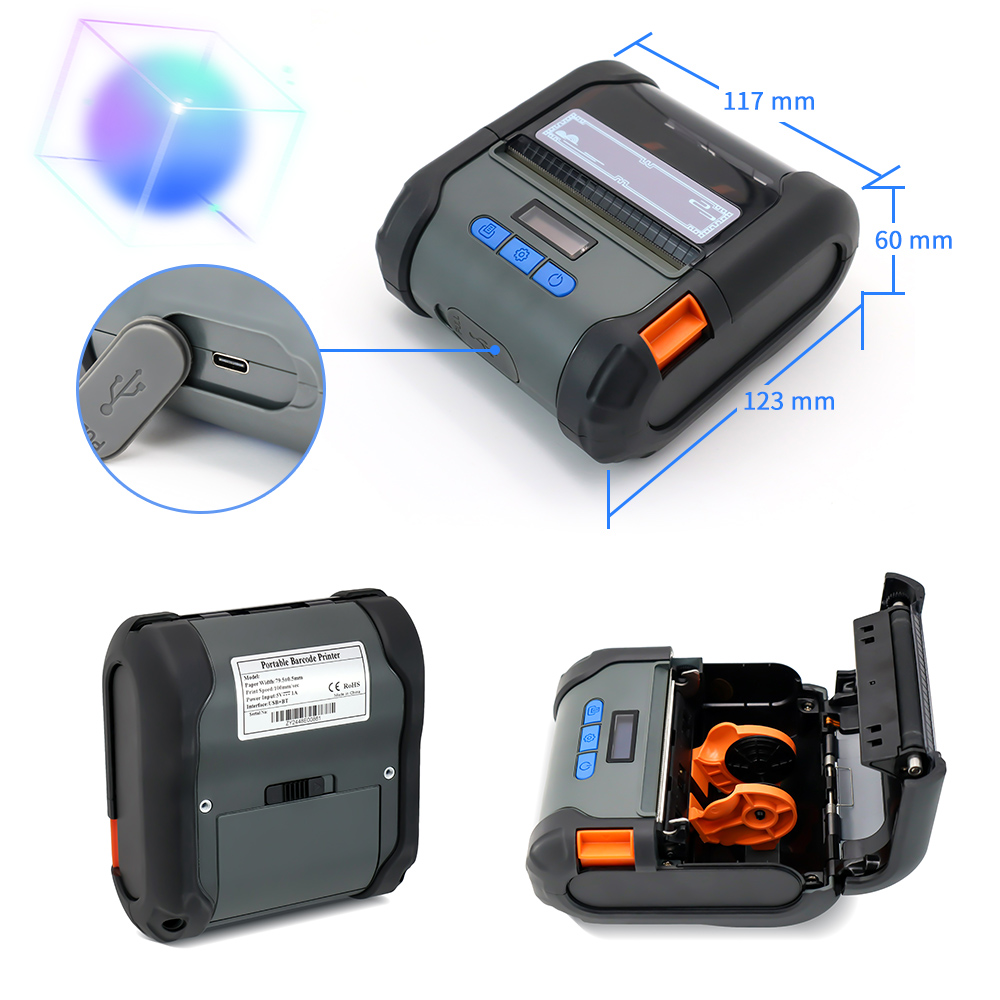

Physical Features	Dimension	123(D)x117(W)x60(H)mm
Physical Features	Weight	Net Weight: 378g
Reliability	Printer head life	50 KM
Software	Operation system	Windows/Android/IOS
Software	SDK	Windows/Android/IOS
Power supply	Output	DC 5V, 1A
Power supply	Battery	2000mAh
