GT-P808 80mm Receipt&Label Portable Thermal Printer

Printing method: Direct thermal Resolution: 203 DPI Max.print speed : Max. 70mm (2.7″) /s Max.print width : 72 mm (2.8″) Max.print length : 1778 mm (70″) Media type : Continuous, gap, black mark Media width: 20 mm~76 mm Media thickness: 0.06 mm~0.254 mm Label roll diameter : 50 mm Performance : Features Processor: 32-bit CPU Memory : 8MB Flash Memory; 8MB SDRAM/MicroSD Interface: USB+Bluetooth ; USB+WIFI Screen OLED (1.3″) Resolution:128*64 pix

Details

Parameter

Video

FAQ

GT-M3详情-1月_01.jpg GT-M3详情-1月_02.jpg GT-M3详情-1月_03.jpg GT-M3详情-1月_04.jpg GT-M3详情-1月_05.jpg GT-M3详情-1月_06.jpg GT-M3详情-1月_07.jpg GT-M3详情-1月_08.jpg

Printer specification parameter table
project	Project Description	Specifications
Printing Features	Printing method	Direct Thermal
	Resolution	203 DPI

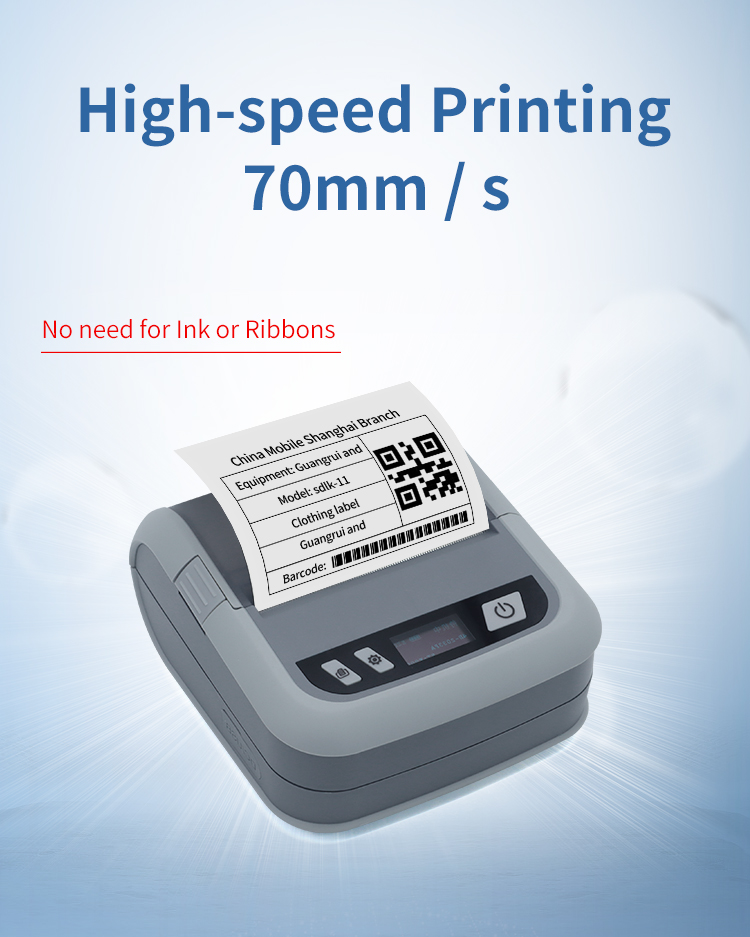

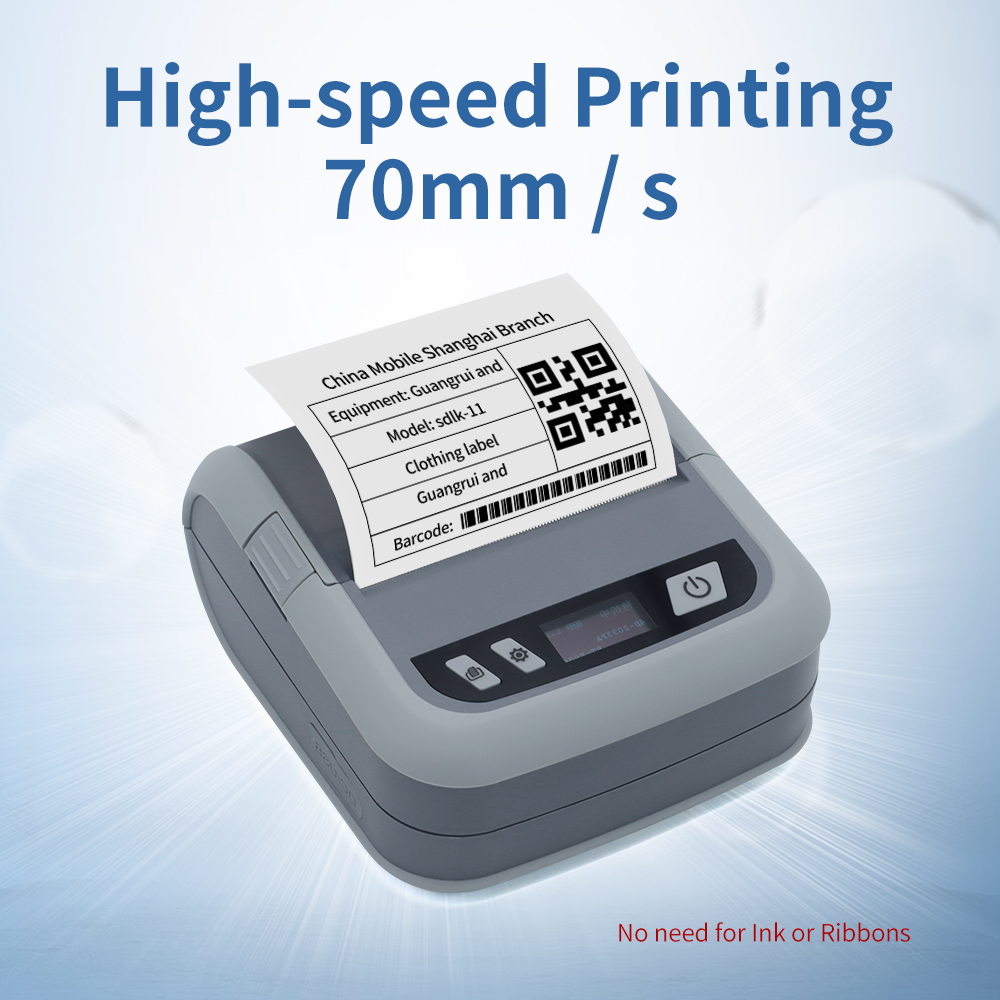

	Max.print speed	Max. 70mm (2.7") /s
	Max.print width	72 mm (2.8")
	Max.print length	1778 mm (70")
Media	Media type	Continuous, gap, black mark

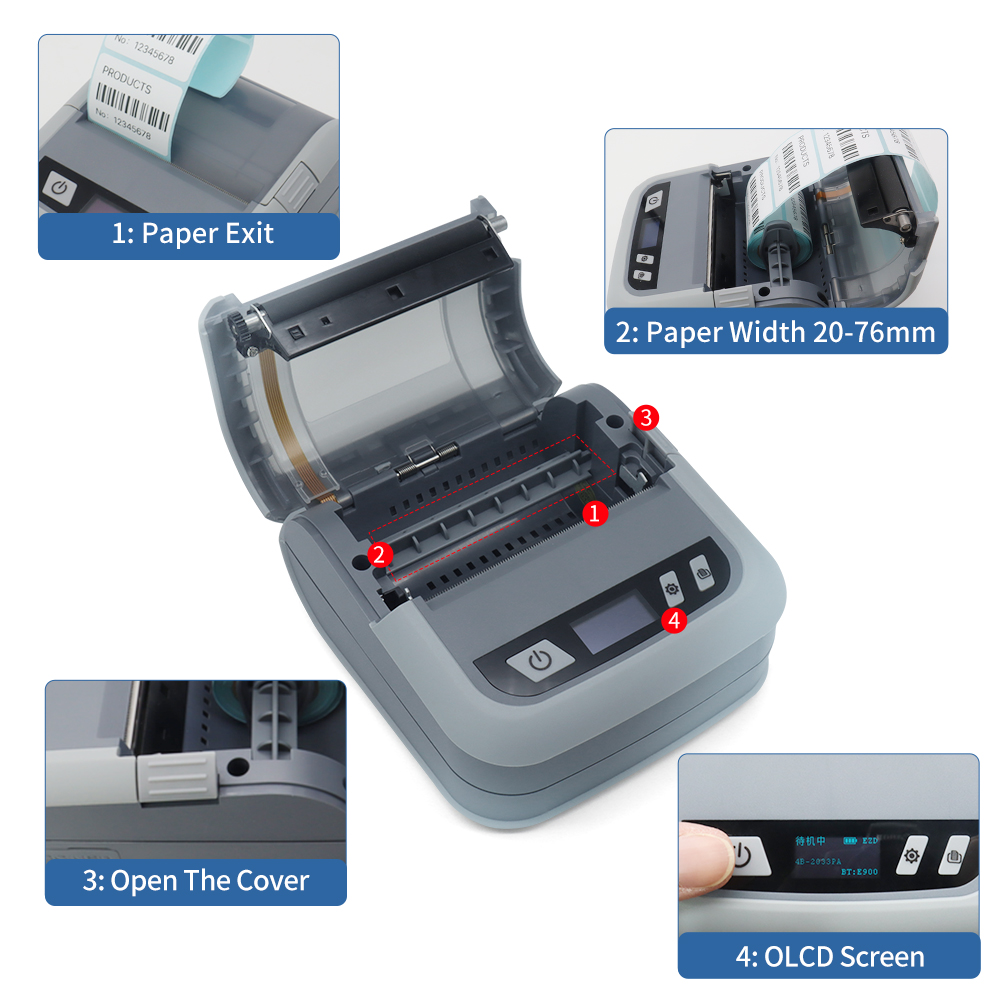

	Media width	20 mm~76 mm
	Label roll diameter	50 mm
Performance Features	Processor	32-bit CPU
	Memory	8MB Flash Memory/8MB SDRAM/MicroSD
	Interface	USB+Bluetooth : USB+WIFI
	Screen	OLED (1.3") Resolution:128*64 pix
Fonts/Graphics/Symbclogics	Internal fonts	8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software
	1D barcode	Code 39,Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8.EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST
	2D bar code	PDF-417, Maxicode, DataMatrix, QR code,Aztec
	Emulation	TSPL;EPL;ZPL;DPL;CPCL;ESC/POS

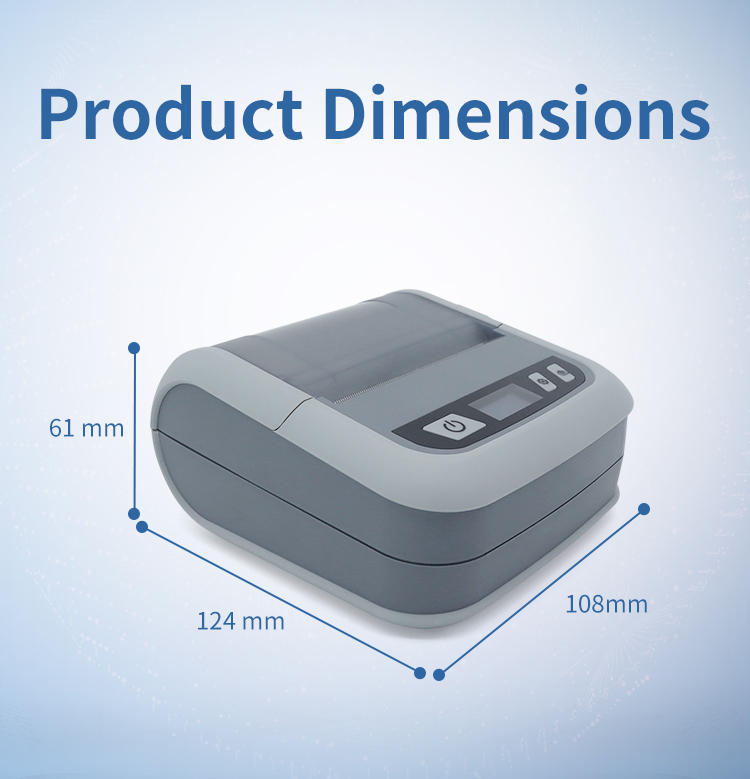

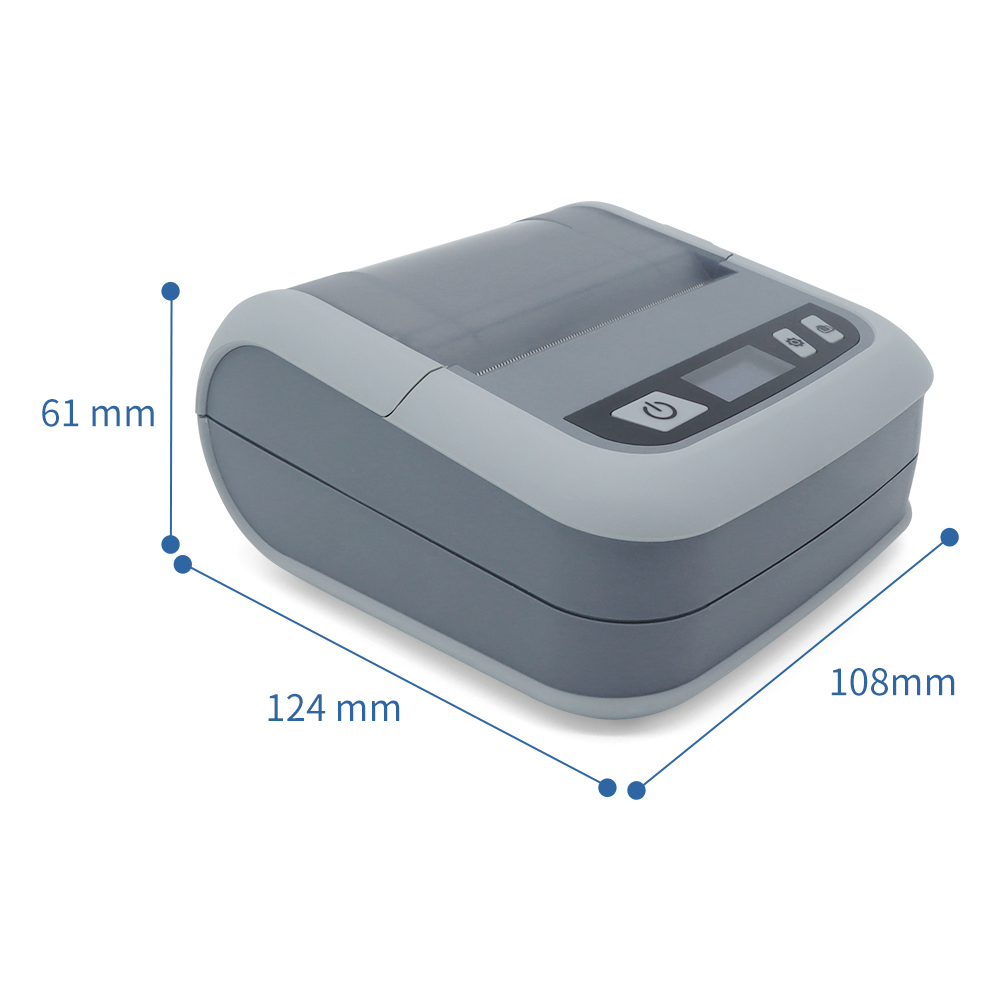

Physical Features	Dimension	12410861 mm(DWH)
Physical Features	Weight	0.357 KG
Reliability	Printer head life	30 KM

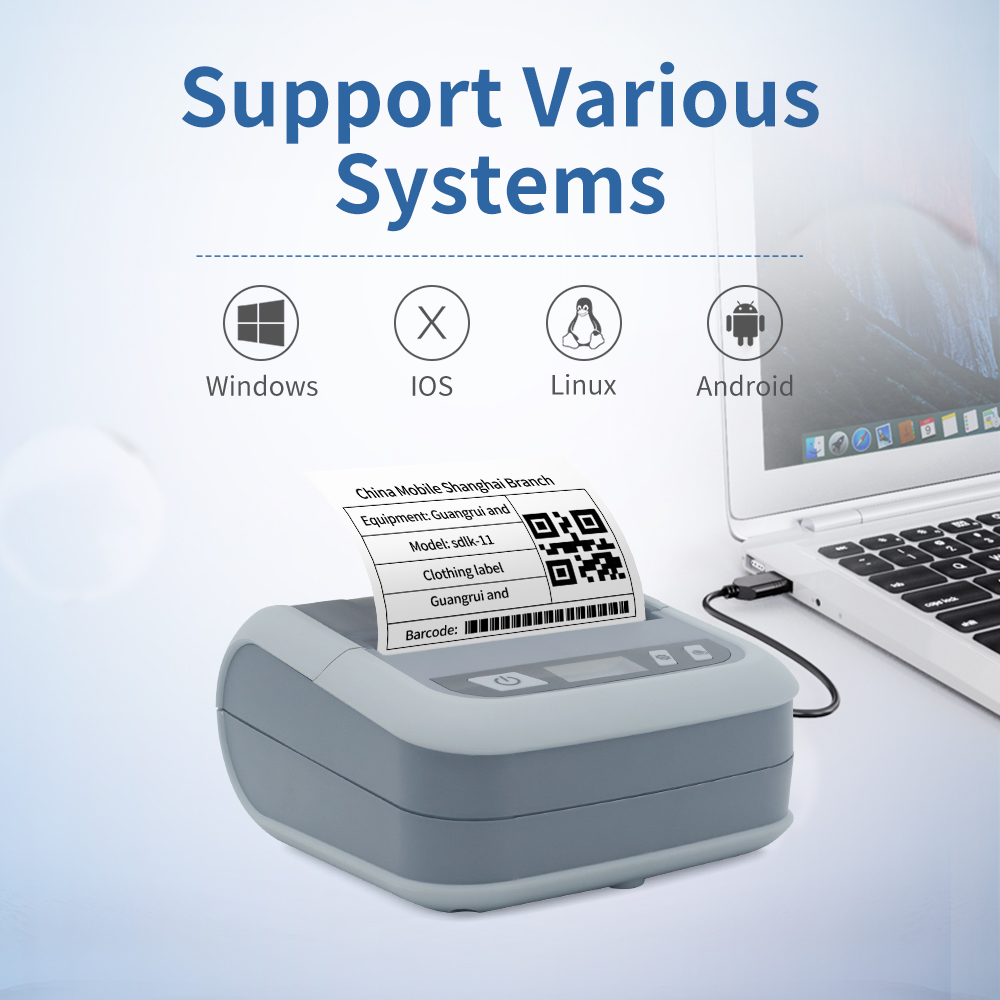

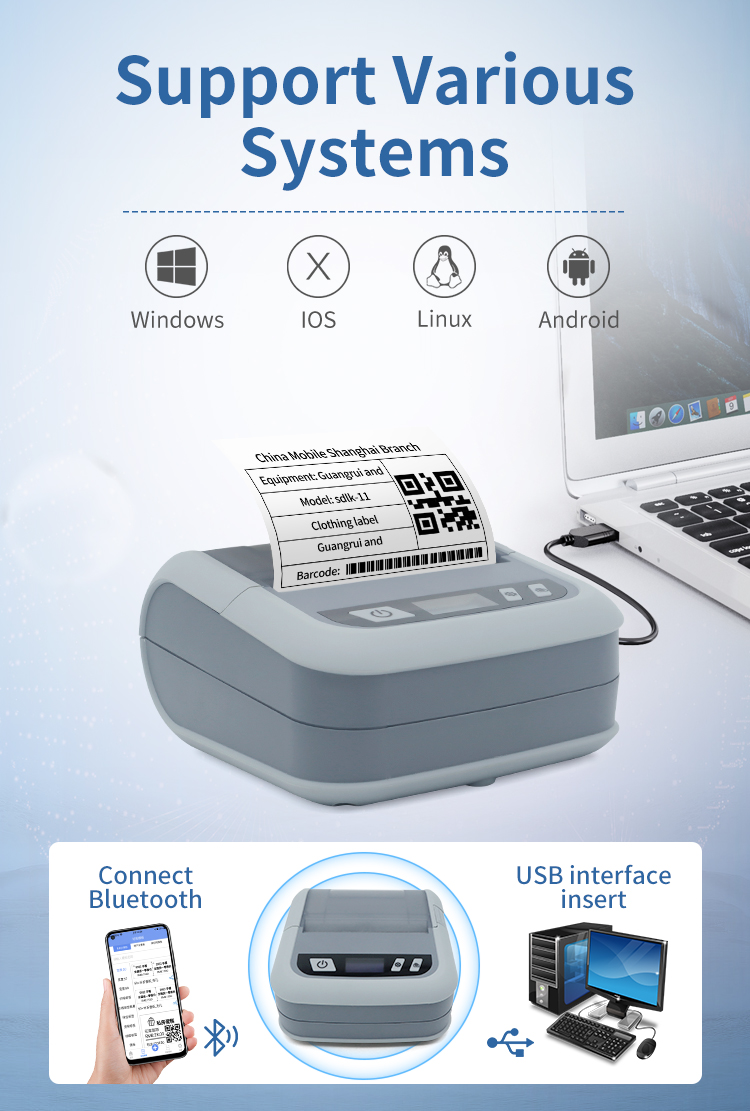

Software	Operation system	Windows/Android/IOS
Software	SDK	Windows/Android/IOS
Power supply	Output	DC 9V/2A

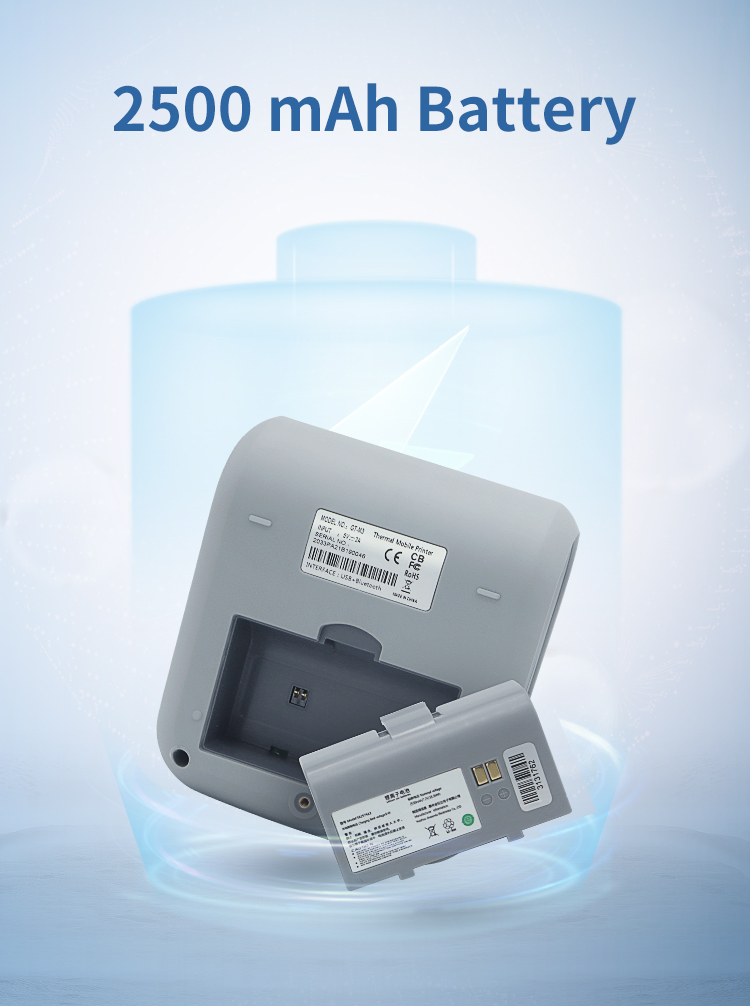

Power supply	Battery life	7.4V/2500mAh
