| Printer specification parameter table | ||
| Project | introduction | specification |
| Printing | printing mode | direct line thermal |

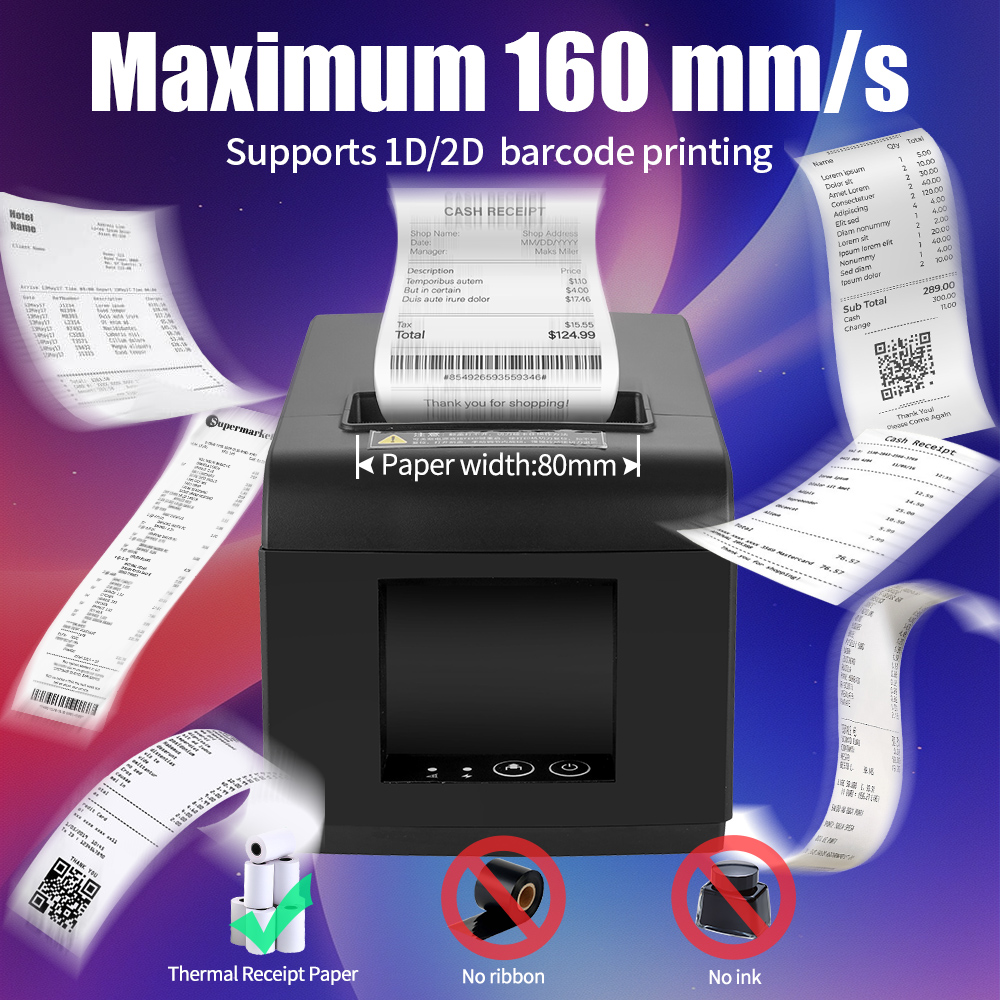

| Printing speed | 160mm/s | |
| Printing width | 72mm | |
| Printing paper width | 79.5±0.5mm | |
| Black mark positioning | support | |
| Print density | 576 dots / line or 512 dots / line | |

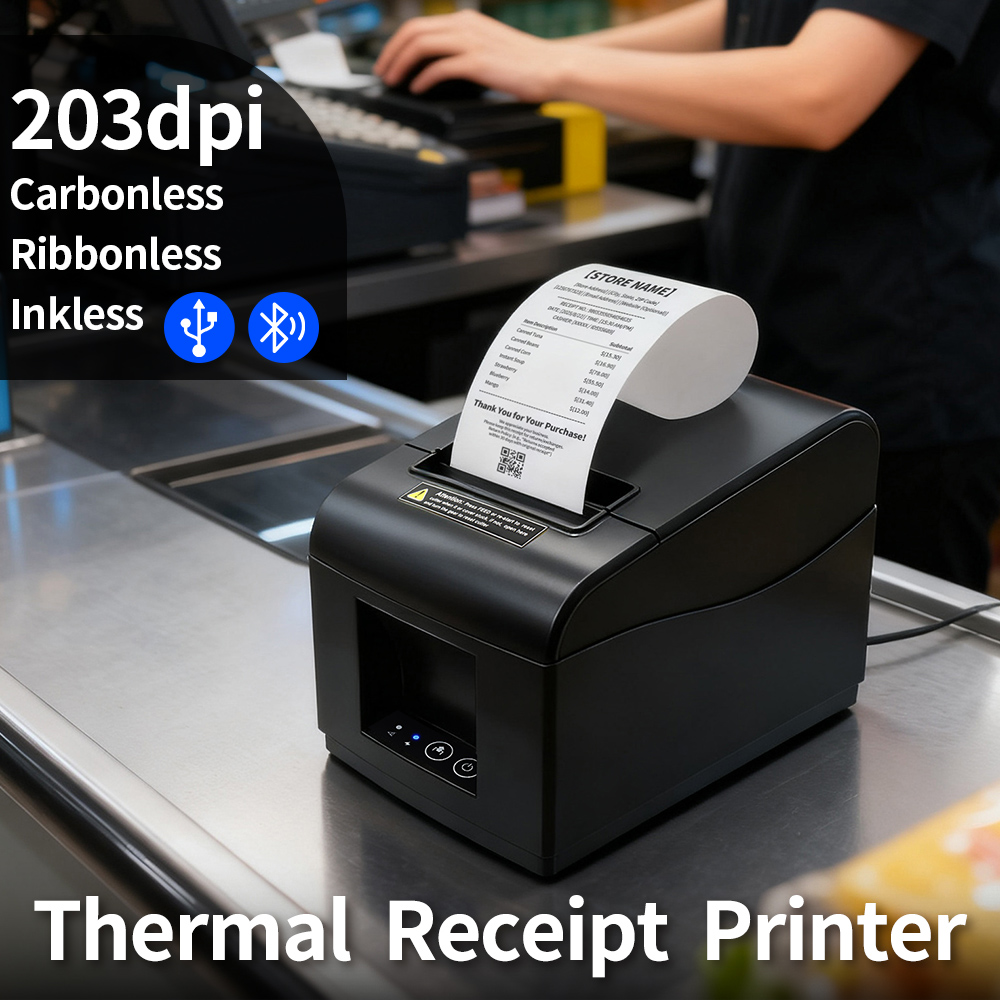

| Resolution | 203dpi | |
| Character size | ANK character,FontA:1.5*3.0mm FontB:1.1*2.1mm Simple / traditional:3.0*3.0mm | |
| Paper presence detection | photoelectric sensor | |
| Row spacing | 3.75mm | |
| Interface type | USB, USB + LAN, USB + Bluetooth, USB + WiFi | |
| Barcode character | barcode type | 1D:UPC-A/UPC-E/JAN13(ean13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE123 2D:QR CODE/PDF417（USB + LAN only supports QR code） |
| Extended character table | PC347(Standard Europe)、Katakana、PC850(Multilingual)、PC860(Poryuguese)、PC863(Canadian-French)、PC865(Nordic)、West Europe、Greek、Hebrew、East Europe、lran、WPC1252、PC866(Cyrillic#2)、PC852(Latin2)、PC858、lranll、Latvian、Arabic、PT151(1251) | |
| Buffer | NV FLASH buffer | 256KB |
| Input buffer | USB、USB+ Bluetooth、USB+wifi：64KB；USB+LAN：256KB | |

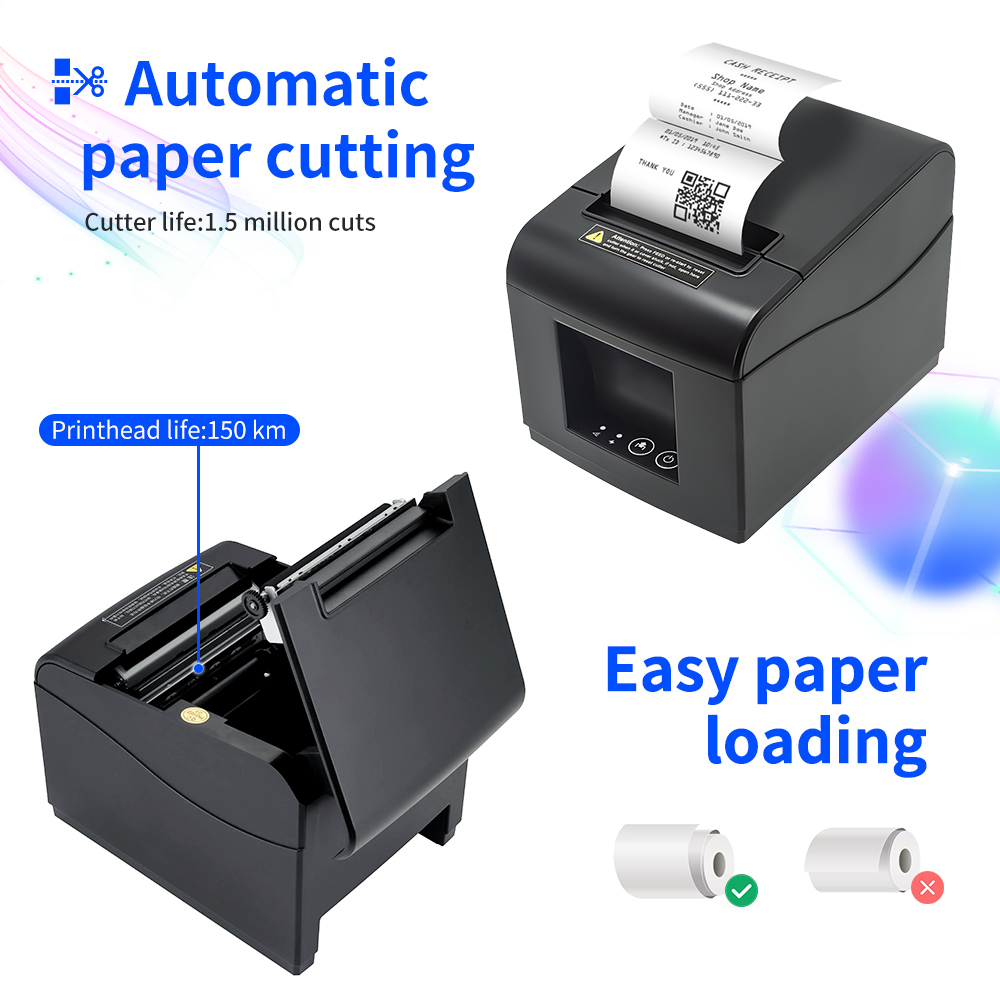

| Cutter | automatic cutter | half cutting |
| Power | adapter voltage | input：AC 100-240V/50-60Hz、2.0A； Output：DC 24V/2.5A |
| Printer input voltage | DC 24V/2A | |
| Cassette output | DC 24V/1A | |
| Life | reliability | print head life:150Km；Cutter life:1.5 million times |
| Environmental requirements | working environment | temperature:0-45℃,temperature:10-80℃（no frost） |
| Storage environment | temperature:-10-60℃,temperature:10-90℃ | |
| Environment instruction | operating environment | Windows、Linux |
| Print command | ESC/POS command | |
| Physical characteristics | weight | 0.85KG（excluding paper roll） |

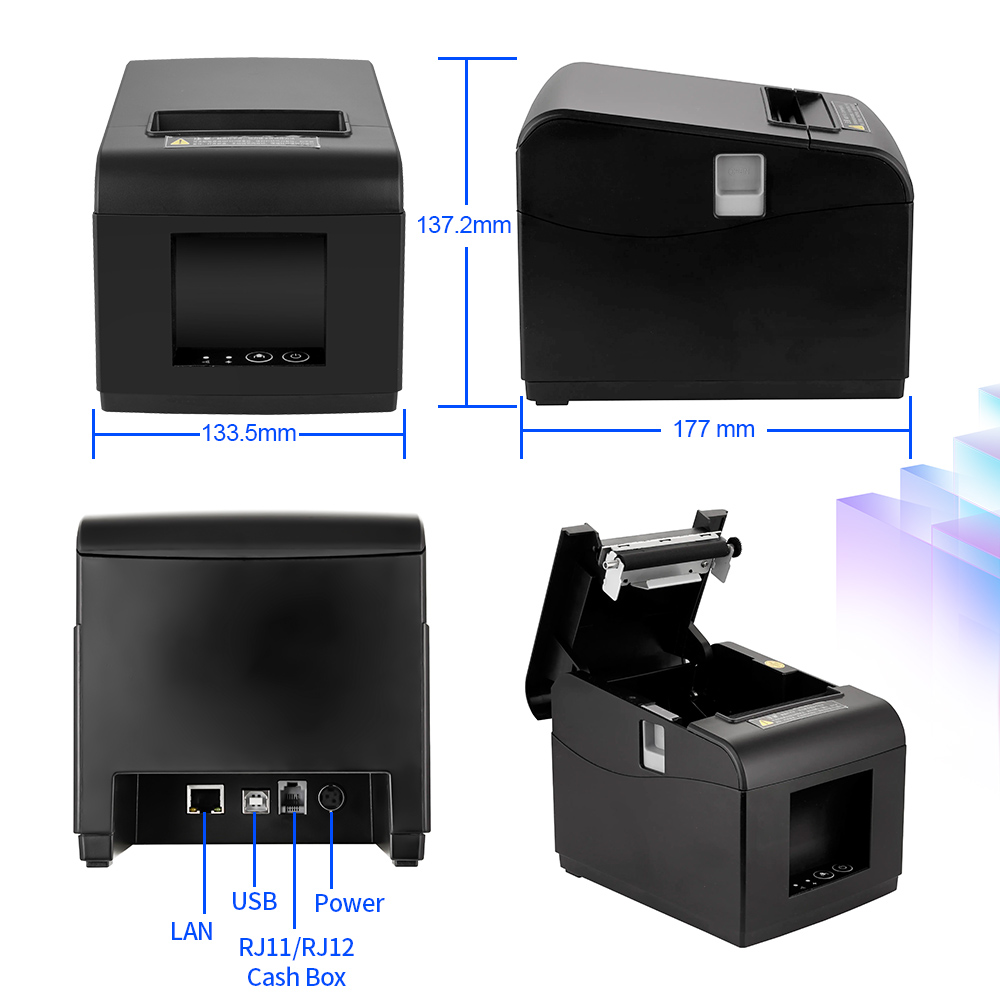

| External dimension | 177*133.5*137.2mm | |
