| 80mmThermal printer product specification | ||
| GT-P8010 | ||
| Printer specification parameter table | ||
| project | Project Description | Specifications |
| printing method | Thermal printer | |
| Print width | 72mm or 48mm (compatible with 58 paper) | |
| Resolution | 203dpi | |
| printing speed | 250mm/S | |
| Print density | 576 dots/line or 384 dots/line | |
| character | Standard GB18030 Simplified Chinese | |
| Cutter | Half cut | |
| Character size | ASCII Font A: 12×24 ASCII Font B: 9×17 Chinese characters 24×24 | |
| Number of columns | Font A 48 columns/Font B 64 columns/Simplified and Traditional Chinese-24 columns | |
| Line spacing | 3.75 mm (the line spacing can be adjusted by command) | |

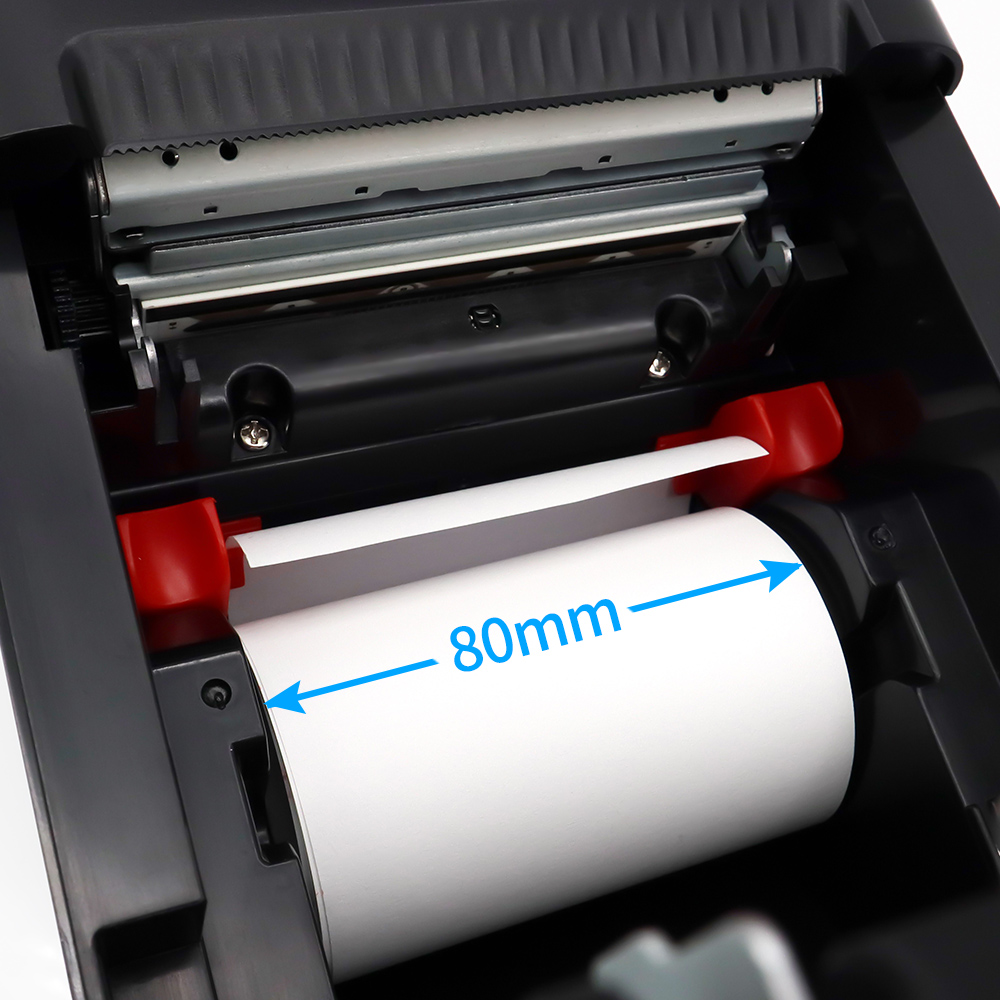

| Paper | Paper width | 79.5±0.5mm |
| Outer diameter of paper roll | Φ80mm | |

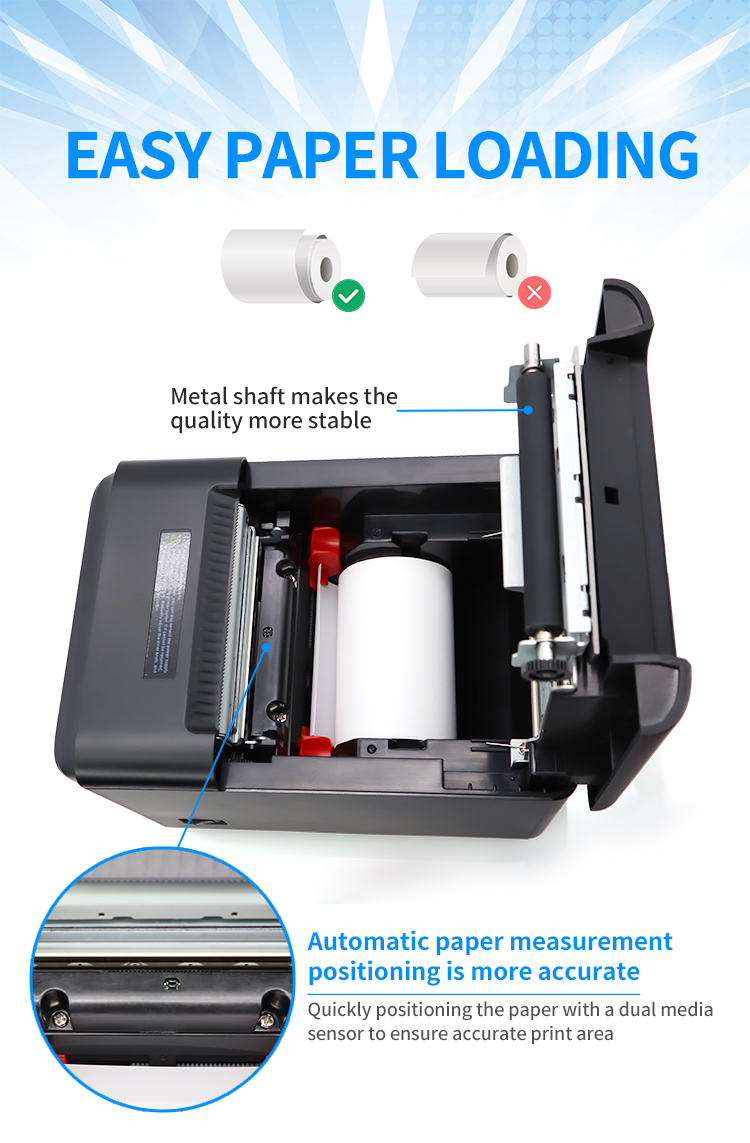

| Paper loading method | Easy paper loading structure | |
| Barcode type | Barcode type | UPCA/UPCE/EAN13/EAN8/CODE39/I25/CodeBar/CODE128/CODE93/CODE11/MSI/QRCORE/PDF417 |
| Extended character table | CP437 [American, European Standard] 26 Thai (customized) 1 KataKana [Katakana] 27 CP720[Arabic] 2 CP850 [Multilingual] 28 CP855 3 CP860 [Portugal] 29 CP857[Turkish] 4 CP863 [Canada-French] 30 WCP1250[Central Europe] 5 CP865 [Northern Europe] 31 CP775 6 WCP1251 [Cyrillic] 32 WCP1254[Turkish] 7 CP866 Cyrillic 2 33 WCP1255[Hebrew] 8 MIK[Slavic/Bulgarian] 34 WCP1256[Arabic] 9 CP755 [Eastern Europe, Latvia 2]35 WCP1258 [Vietnamese](customized) 10 [Iran, Persia] 36 ISO-8859-2[Latin 2] 11 Reserved 37 ISO-8859-3[Latin 3] 12 Reserved 38 ISO -8859-4[Baltic] 13 Reserved 39 ISO-8859-5[Slavic] 14 Reserved 40 ISO-8859-6[Arabic] 15 CP862 [Hebrew] 41 ISO-8859-7[Greek] WCP1252 [Latin 1] 42 ISO-8859-8[Hebrew] 17 WCP1253 [ Greece] 43 ISO-8859-9[Turkish] 18 CP852 [Latin 2] 44 ISO-8859-15[Latin 9] 19 CP858 [Multilingual Latin 1+European symbols] 45 [Thai 2] (customized ) 20 Iran II [Persian] 20 Iran II [Persian] 46 CP856 21 Latvia 47 Cp874 (customized) 22 CP864 [Arabic] 48 CP1251k [Kazakh] (customized) 23 ISO-8859-1 [Western Europe] 24 CP737 [Greece] 25 WCP1257 [Baltic Sea ] | |
| reliability | Automatic paper cutter | 15000000 cuts |
| Print head life | 150 km | |

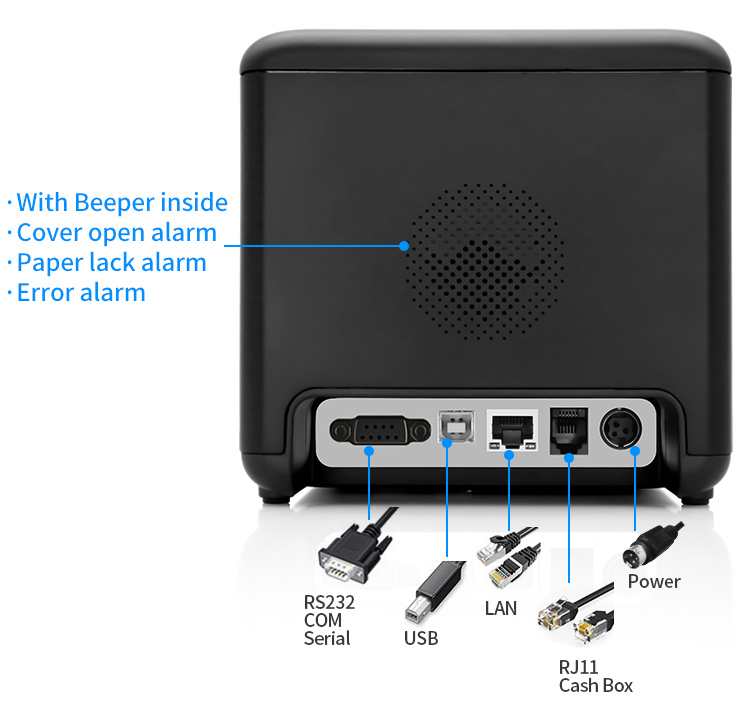

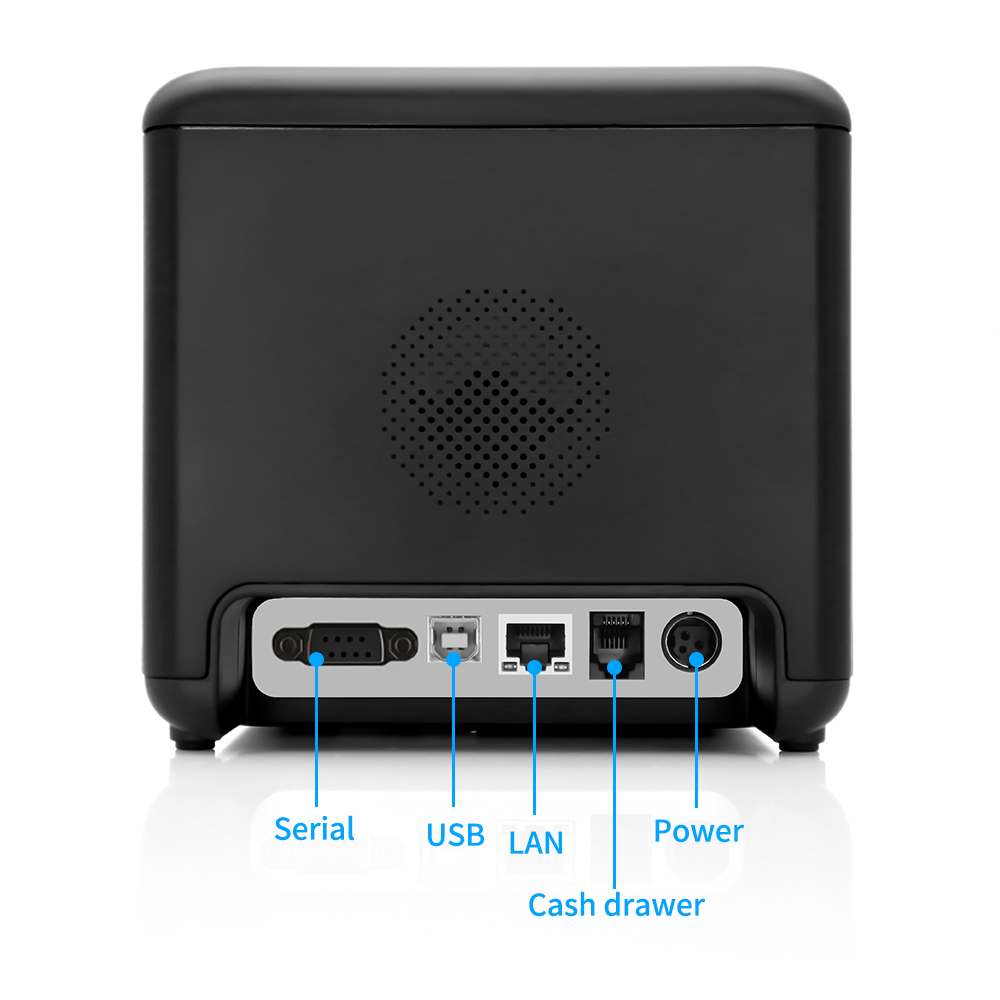

| interface | USB, USB+network port, USB+network port+serial port, USB+Bluetooth, USB+WiFi | |
| Receive buffer size | 4KBytes (non-page mode) 1M (page mode) | |
| NV bitmap Flashd size | 64KBytes \can be customized to expand to 128K | |
| Out of paper detection | Optocoupler detection | |
| Print command | Compatible with ESC/POS commands/OPOS | |
| drive | WIN2003/WINXP/WIN7/WIN8/WIN10/LINUX/Mac | |
| Printer input power | DC 24V,2.5A | |
| Cash drawer control | DC 24V,1A | |
| Pass the certification | 3C、CE、ROHS、REACH、CB | |

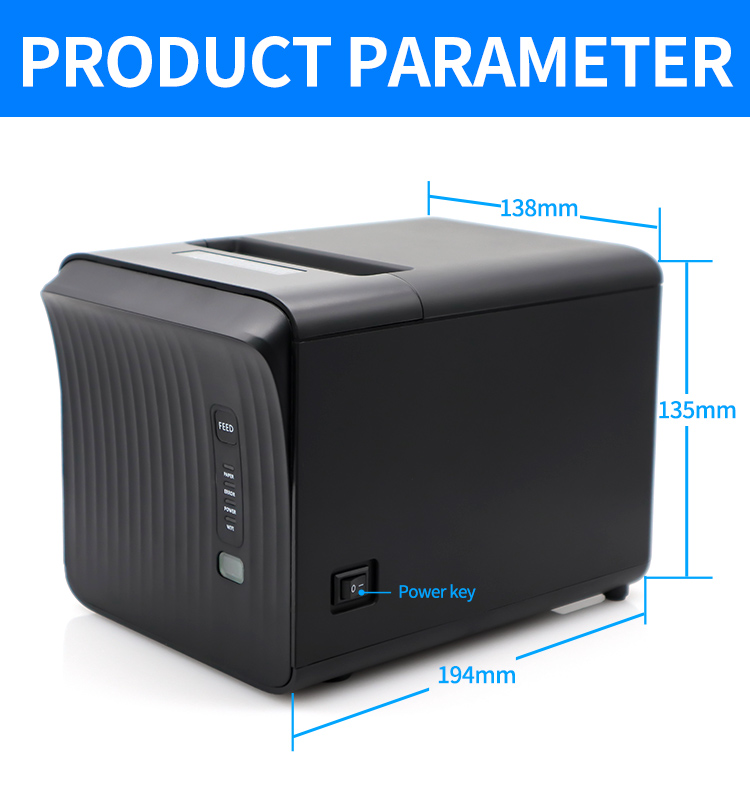

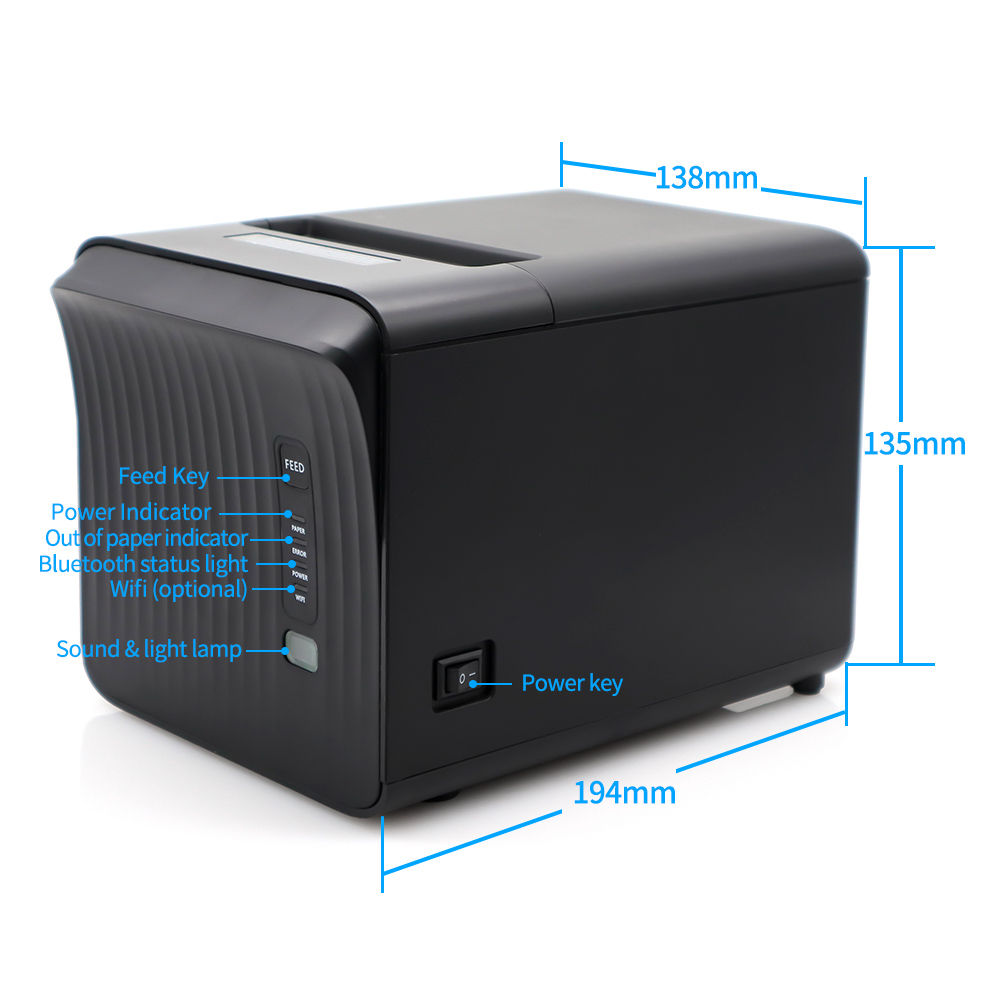

| Dimensions (L × W × H) | 194*138*135mm | |
| Outer box size (1 unit) | 222*215*174mm | |
| Outer box size (8 units) | 470*455*375mm | |
| weight | 1.13kg | |
| working environment | Temperature: 0-45℃ Humidity: 20-90% | |
| Storage environment | Temperature: -10-60℃ Humidity: 10-90% (except paper rolls) | |
