| 58mmThermal printer product specification | ||
| GT-P5808 | ||
| Printer specification parameter table | ||
| project | Project Description | Specifications |
| printing method | Thermal printer | |
| Print width | 48mm | |
| Print instruction | ESC/TSPL | |
| printing speed | 90mm/s | |
| Print density | 576 dots/line | |
| Character size | 12*24，24*24 | |
| Connection method | Android & iOS & Windows | |
| Print interface | Bluetooth+USB | |
| show | Display screen | Electronic screen LCD |
| Status Display | Out of paper, open cover, power, charging, lack of power, normal, etc. | |
| Automatic sleep | support | |
| Interface language | Support Chinese, English, and Portuguese | |

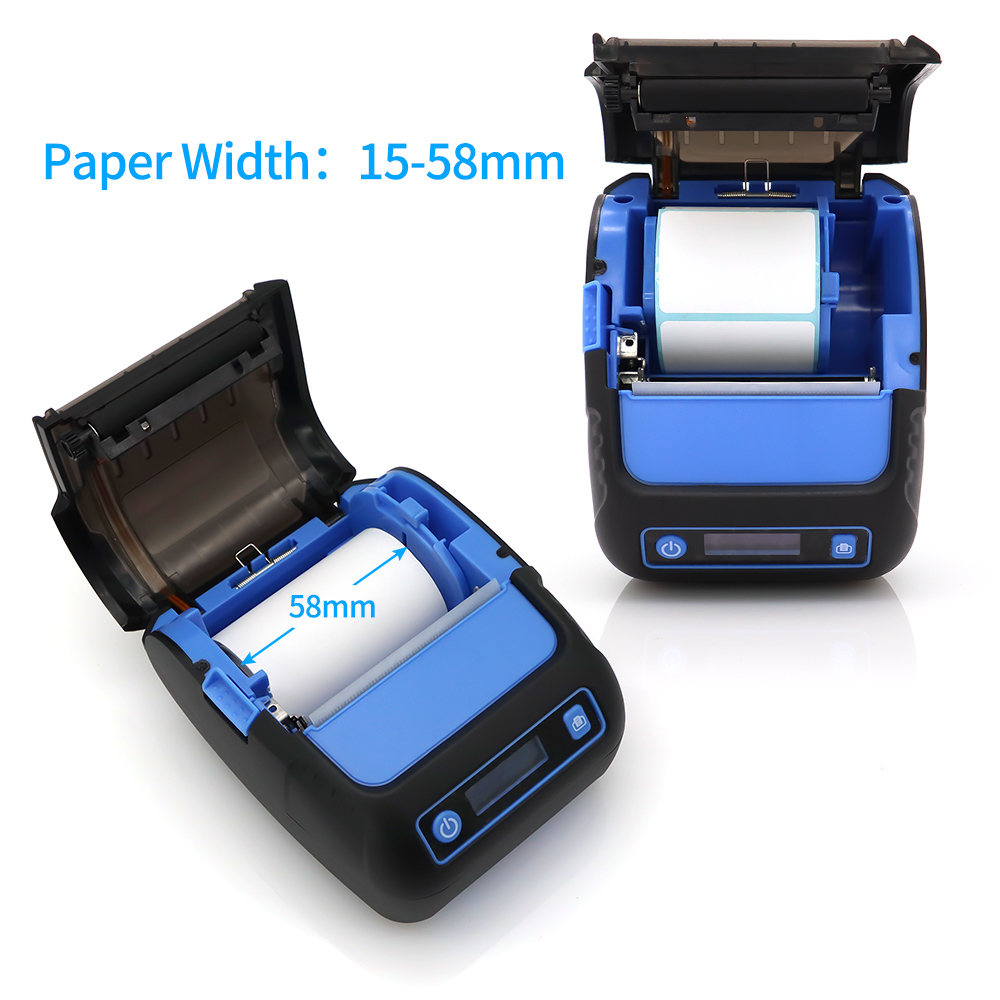

| Paper | Paper width | 58 (adjustable 15-58mm) |
| Support paper | Thermal receipt paper/adhesive label | |
| Outer diameter of paper roll | ≦50mm | |
| Paper thickness | 0.05-0.15mm | |
| Paper loading method | Easy paper loading structure | |
| Targeting | Photoelectric sensor | |
| Barcode type | Barcode type | Code39,CODE128,QR Code |
| Extended character table | GBK-Chinese and English UTF-8, Unicode CP437 - American/Canada English CP737 - Greek CP775 - Baltic CP850 - including Western European languages (German, Spanish, Italian) CP852 - including Central and Eastern European languages (Albanian, Croatian, Czech, English, Finnish, Hungarian, Irish, German, Polish, Romanian, Serbian, Slovak, Slovenian, Sorbian) CP855 - Cyrillic CP857 - Turkish CP858 - "Multilingual CP860 - Portuguese CP862 - Hebrew CP863 - Canadian CP865 - Germanic languages CP866 - Cyrillic/Russian CP1251 - Old Cyrillic CP1253 - Greek CP1254 - Turkish CP1255 - Hebrew | |
| reliability | Standby time | 28 hours |
| Sleep standby | 31 hours | |
| Print head life | 100KM | |
| Full power printing | 250m | |
| Charging time | 3 hours | |
| Mechanical behavior | Drop-proof, shock-proof, splash-proof | |
| Out of paper detection | Optocoupler detection | |
| Polymer battery | 1200mA | |
| USB type | MicroUSB interface | |
| RAM memory | 96Kb | |
| ROM flash | 8M | |
| Processor frequency | 120M | |
| Boot animation | Customizable boot animation (128*32 size) | |
| Software adaptation | Self-developed label & receipt app | |
| adapter | DC 9V, 1A 3.5mm round hole charging port | |
| Pass the certification | CCC/CE | |

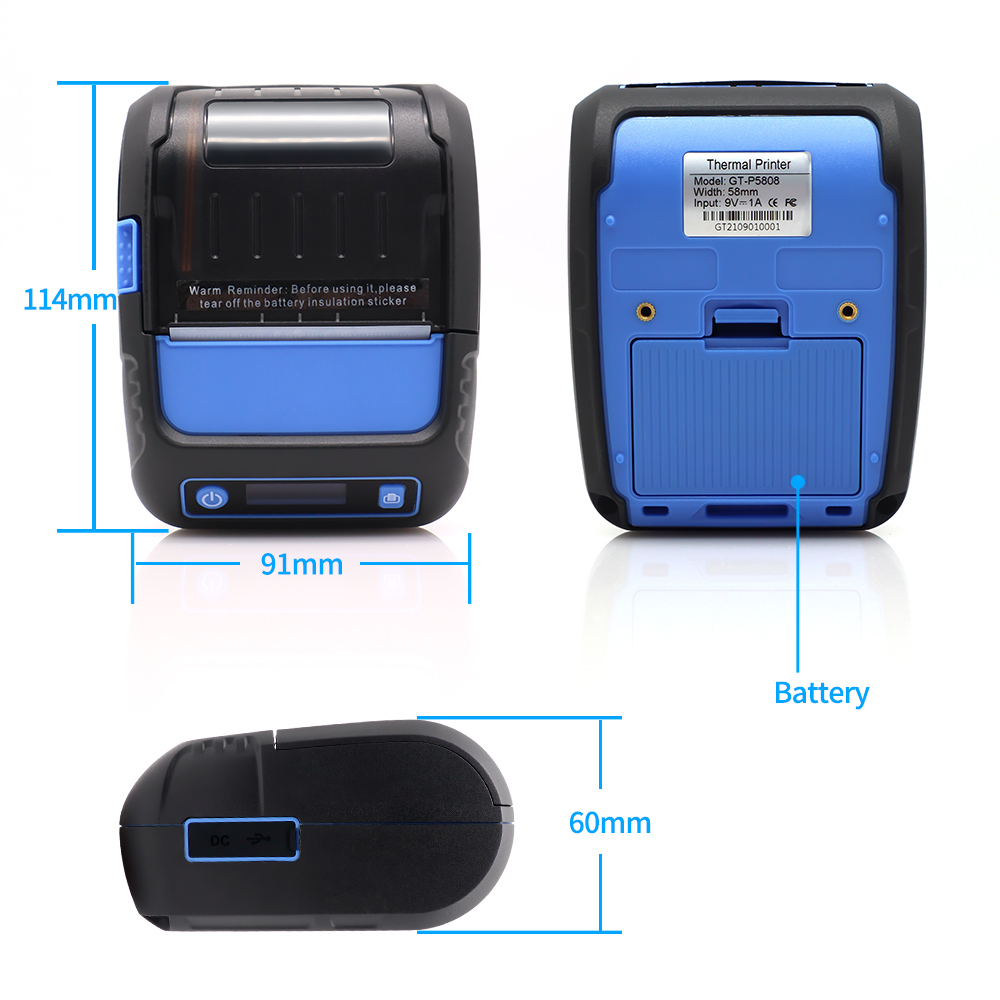

| size | Dimensions | 114*91*60mm |
| Outer box size | 127*115*117mm | |
| weight | 0.5kg | |
| working environment | Temperature: 0-45℃ | |
| Humidity: 20-90% | ||
| Storage environment | Temperature: -10-60℃ | |
| Humidity: 10-90% (except paper rolls) | ||
