| Printer specification parameter table | ||
| project | Project Description | Specifications |
| Printing Features | Printing method | Direct Thermal |
| Resolution | 203 DPI | |
| Max.print speed | 70mm/s | |
| Max.print width | 48mm | |
| Media | Media type | Continuous, gap, black mark |
| Media width | 58 mm | |
| Outer diameter of printing paper | 40 mm | |
| Performance Features | Processor | 32-bit CPU |
| Memory | NV flash buffer:4MB CPU storage:128KB | |
| Interface | USB+Bluetooth | |
| Fonts/Graphics/Symbclogics | Extended character table | PC347(Standard Europe)、Katakana、PC850(Multilingual)、PC860(Poryuguese)、PC863(Canadian-French)、PC865(Nordic)、West Europe、Greek、Hebrew、East Europe、lran、WPC1252、PC866(Cyrillic#2)、PC852(Latin2)、PC858、lranll、Arabic、PT151(1251) |
| 1D barcode | UPC-A/UPC-E/JAN13(ean13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE123 | |
| 2D bar code | PDF-417, QR code | |
| Physical Features | Dimension | 125.46*90.39*58.57mm(D*W*H) |
| Weight | 0.243KG（including battery） | |
| Reliability | Printer head life | 50 KM |
| Software | Operation system | Windows、Linux、Android、IOS |
| SDK | Windows、Linux、Android、IOS | |
| Power supply | Input voltage | DC 5V/1A |

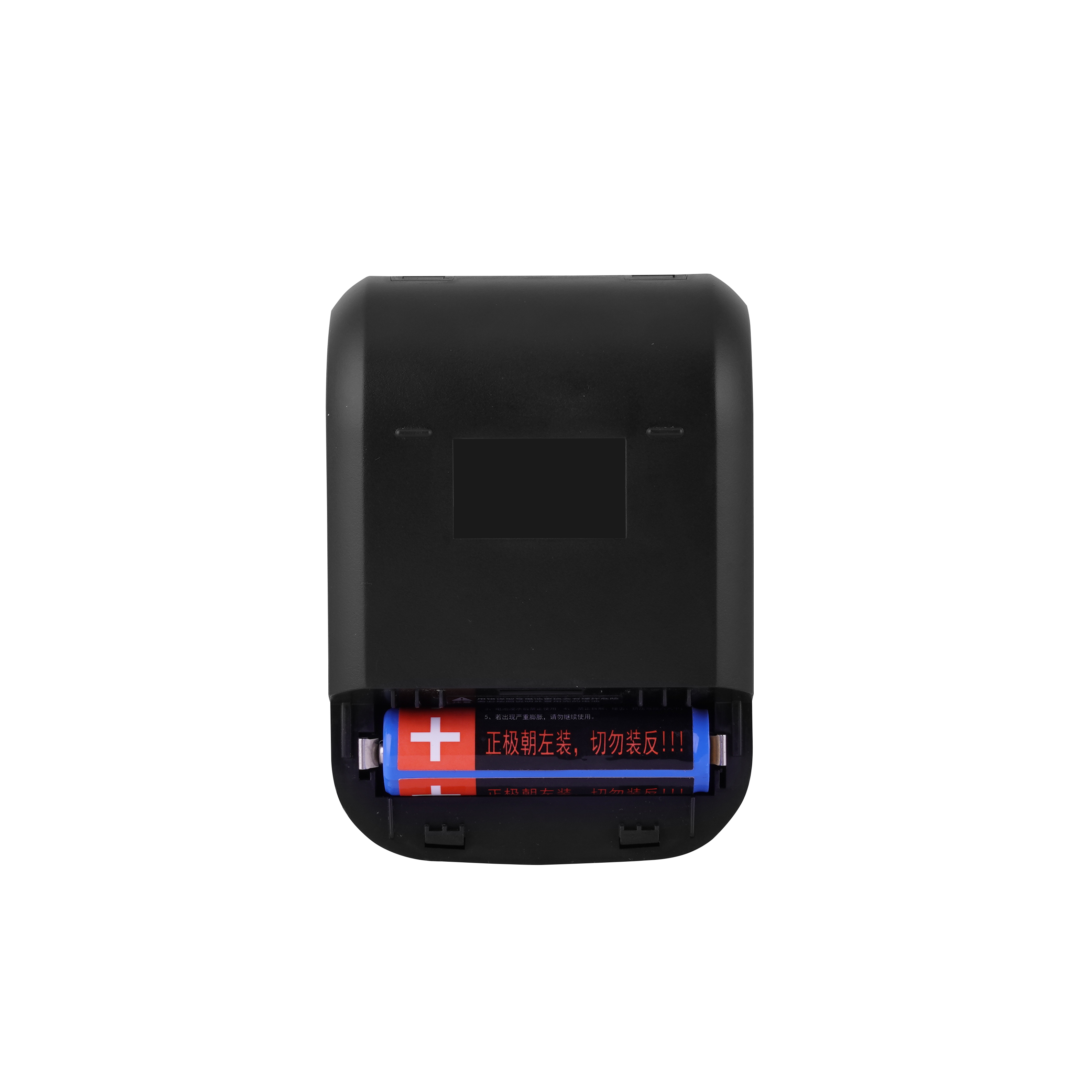

| Battery life | 3.7V/2600MAh | |
