| GT-P5070 PRINTER PRODUCT SPECIFICATION | ||
| Printer specification parameter table | ||
| project | Project Description | Specifications |

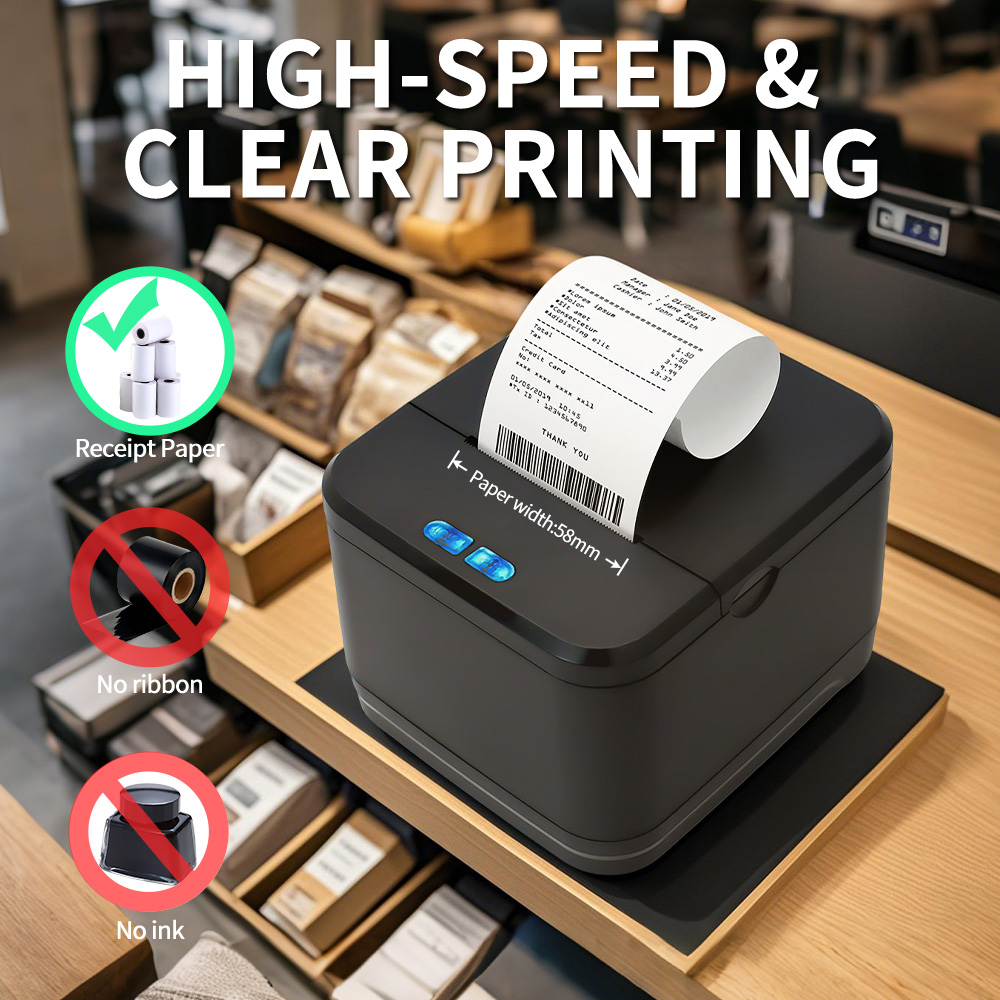

| Printing | Printing method | Direct Thermal |
| Print width | 48mm | |
| resolving power | 203DPI | |
| Column capacity | 384 dots/line | |
| Printing speed | 101mm/s(Max) | |

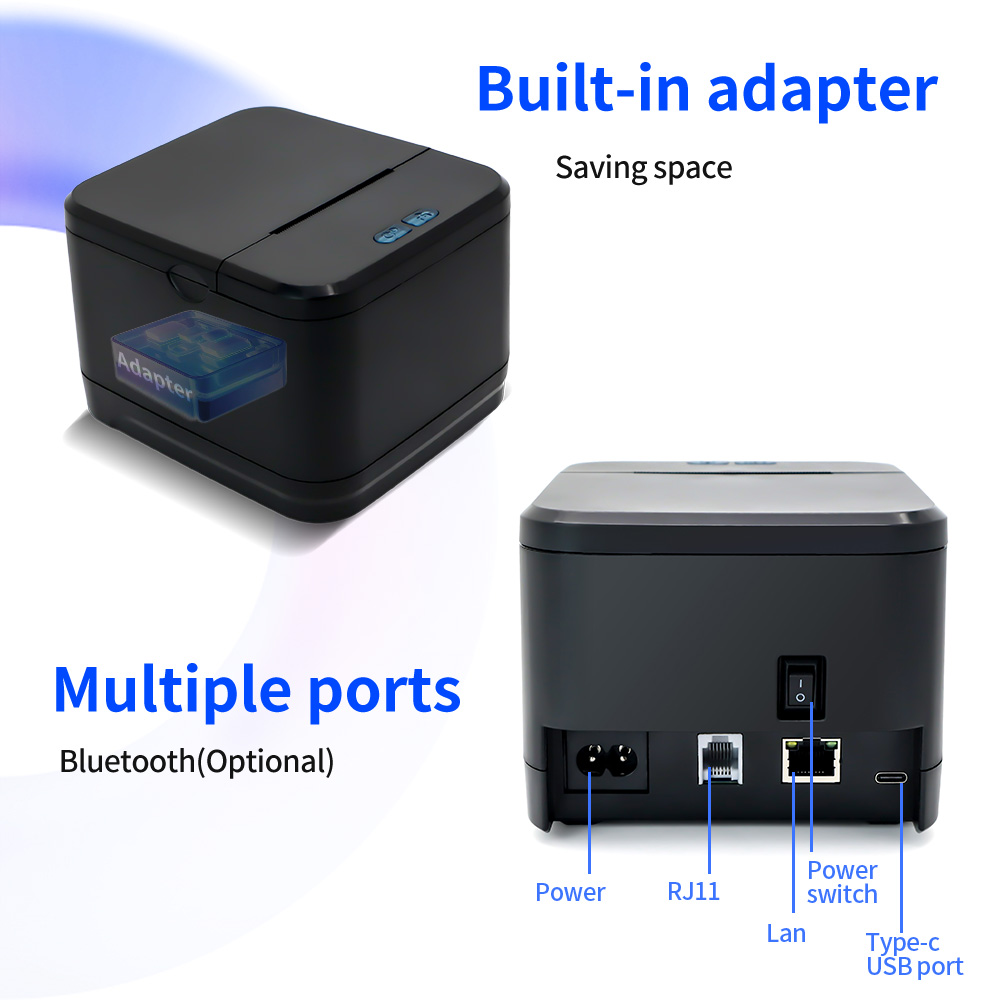

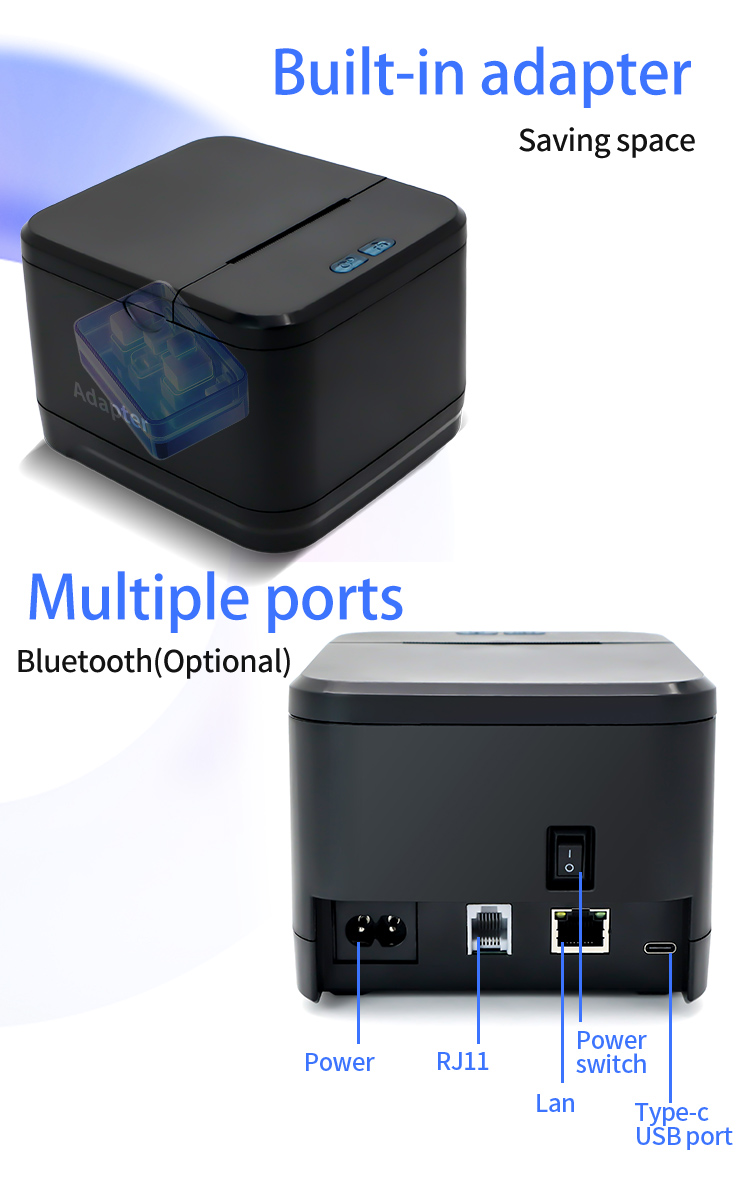

| Interface | USB+LAN/USB+LAN+ BLUETOOTH(Optional) | |

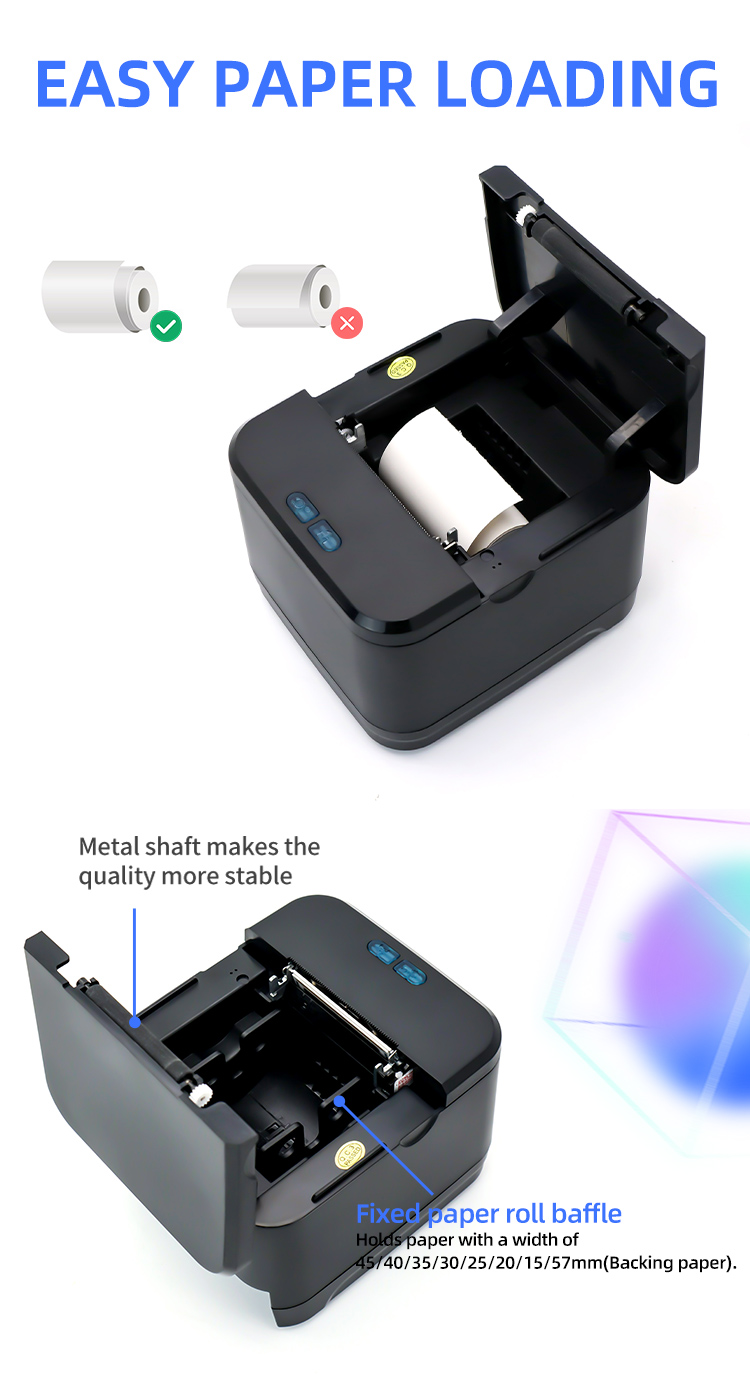

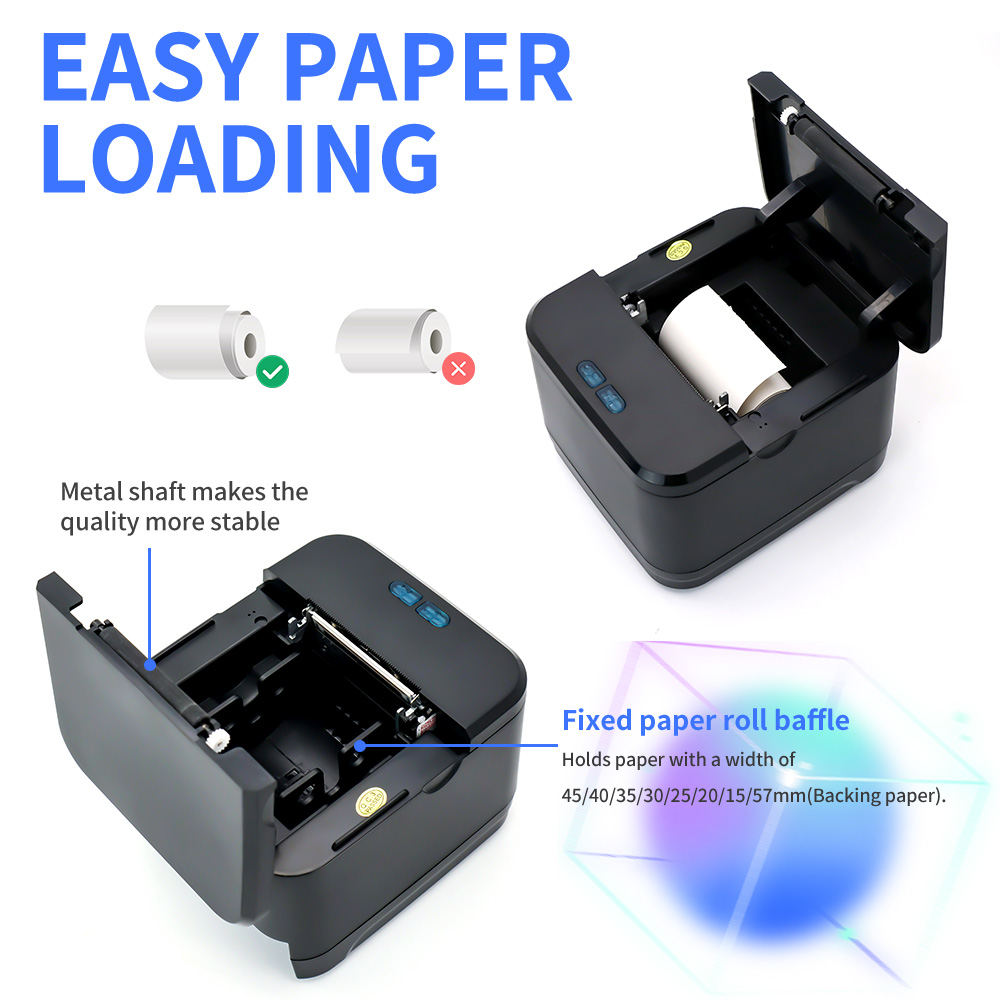

| Paper Width | 45/40/35/30/25/20/15/57mm(Backing paper) | |
| Paper Thickness | 0. 06mm-0.19mm | |
| Simulate | ESC/POS | |
| Driver | Windows XP/ Vista/ Win7/ Win8 / Win10/ Win2000/Win11 | |
| Emulation | TSPL、CPCL、ESC/POS | |
| Barcode Characte | Font | Alphanumeric; Simplified Chinese; Traditional Chinese; 35 international character sets |
| 1D code | CODE128 128M EAN128 CODE39 39C 39S CODE93 EAN13 EAN13+2 EAN13+5 AN8 EAN8+2 EAN8+5/25/ 25C CODABAR POSTNET UPC- A UPCA+2 UPCA+5 UPC-E UPCE+2 UPC- E+5 CPOST MSI MSIC PLESSEY ITF14 EAN14 | |
| 2D code | QR Code PDF417 Data matrix | |
| Buffer | Memory | 4M |
| Power | Power adaptor | AC 100V-240V 50/60H |
| Power source | Output: DC 9V/ 2.0A | |
| Physical characteristics | Weight | Net Weight: 0.45KG Gross Weight: 0.6KG |

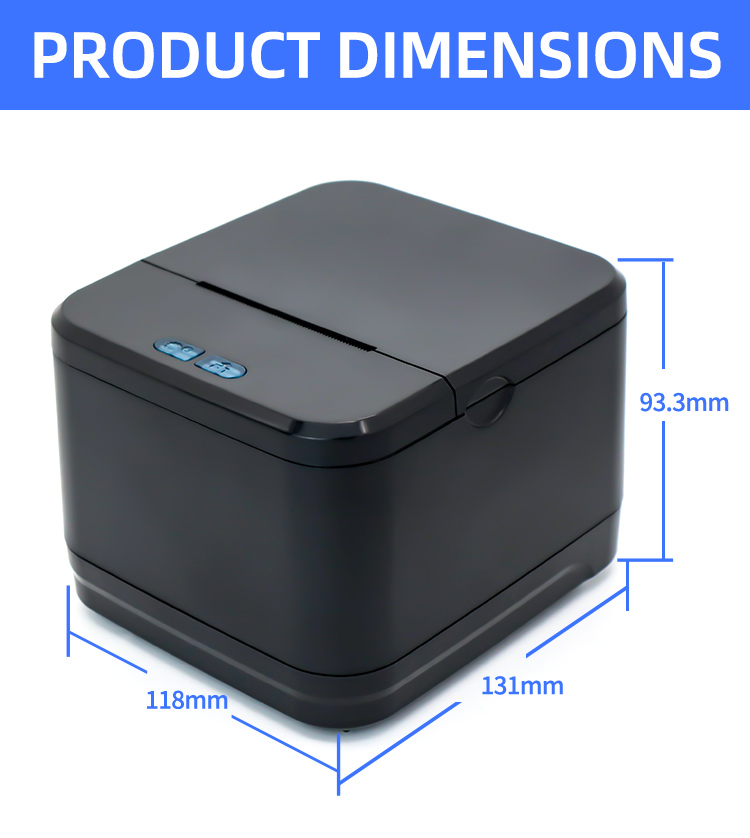

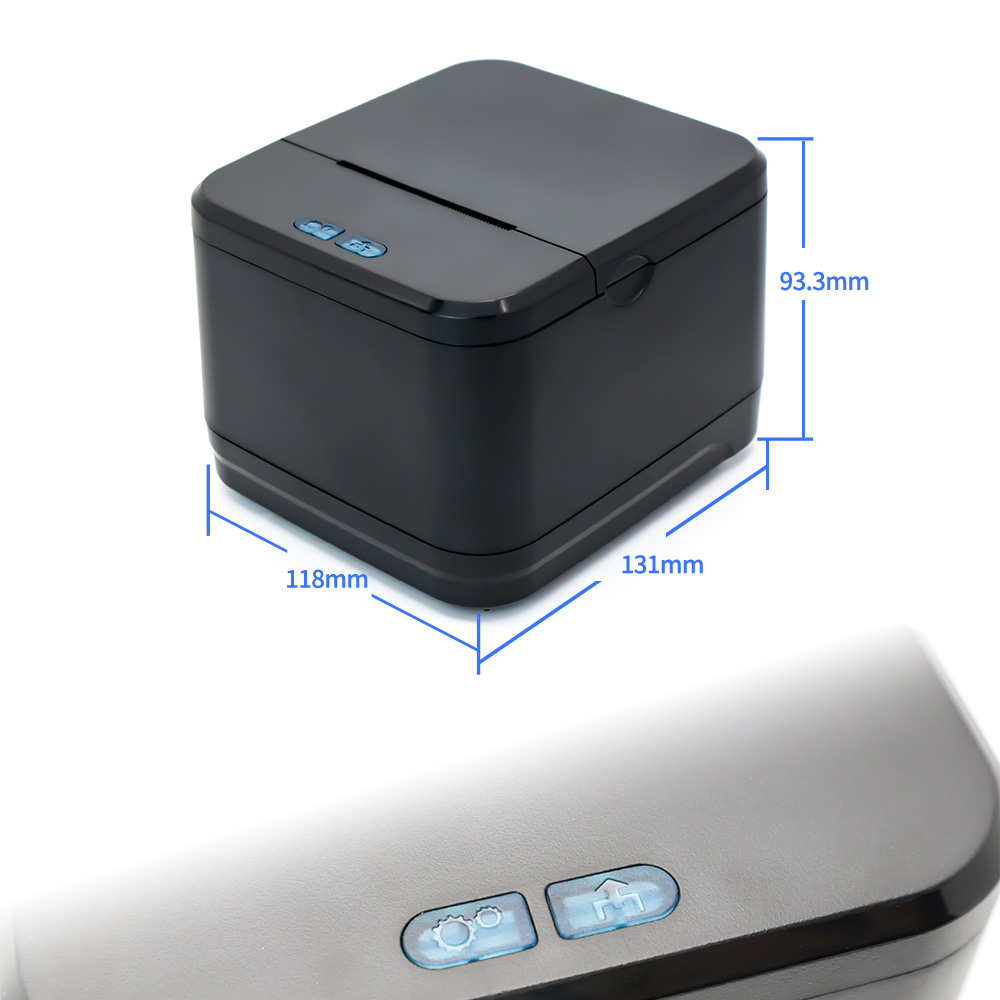

| Dimensions | 131 (D)x118(W)x93.3(H)mm | |
| Environmental Requirements | Work environment | 5° C~45° C.20%~80%RH (no condensation) |
| Storage environment | -40°C-55°C,s93%RH(40°C) | |
| Reliability | Printer head life | 50KM |
