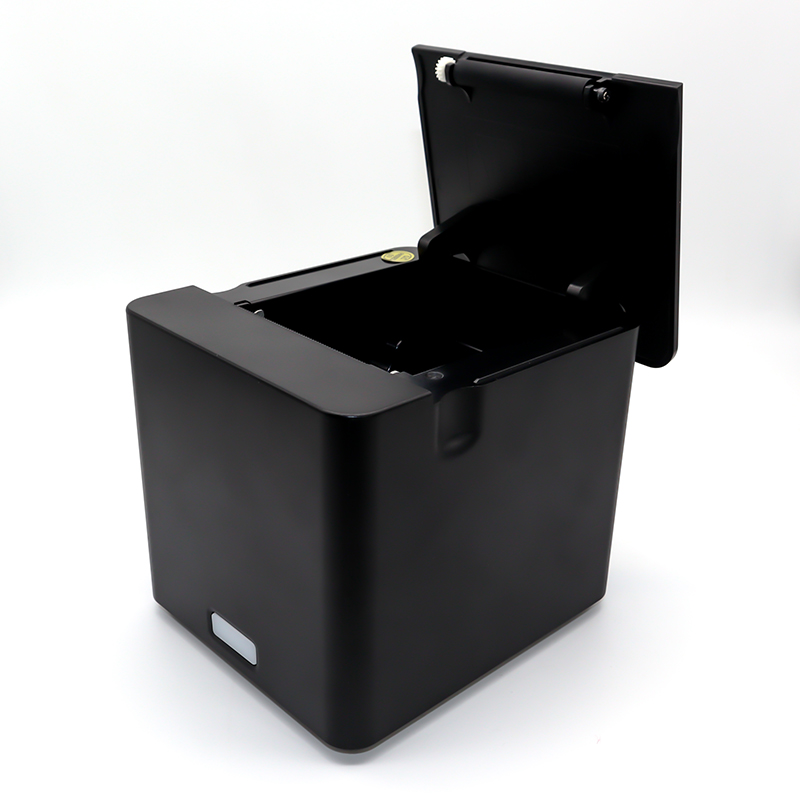

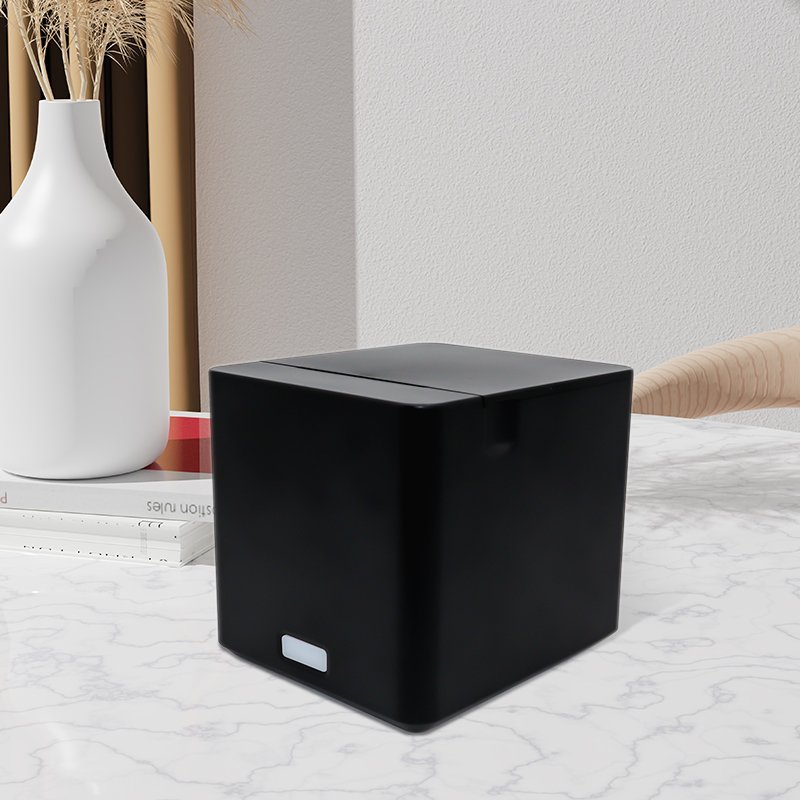

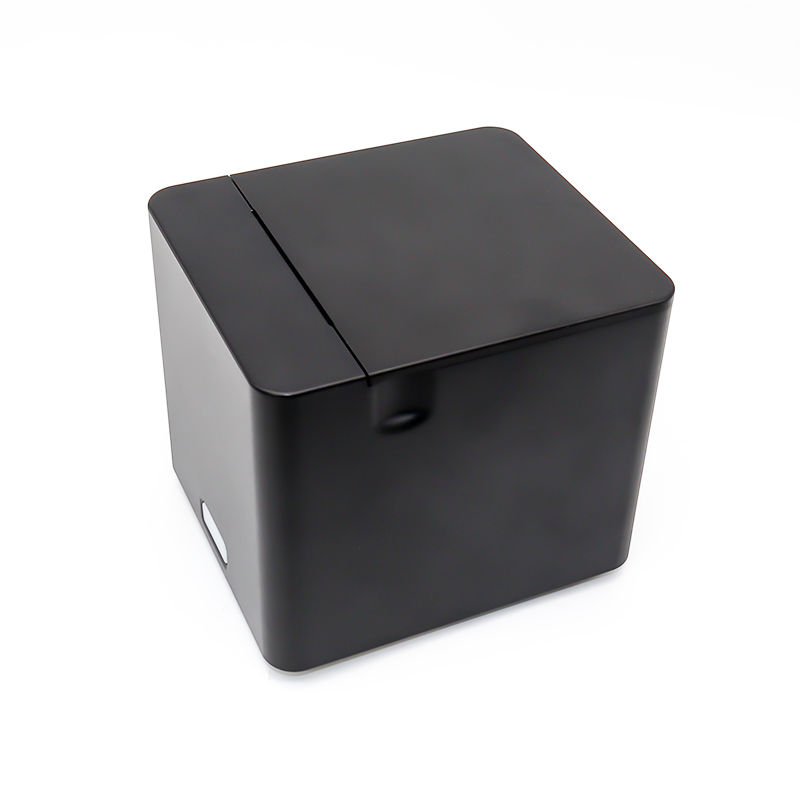

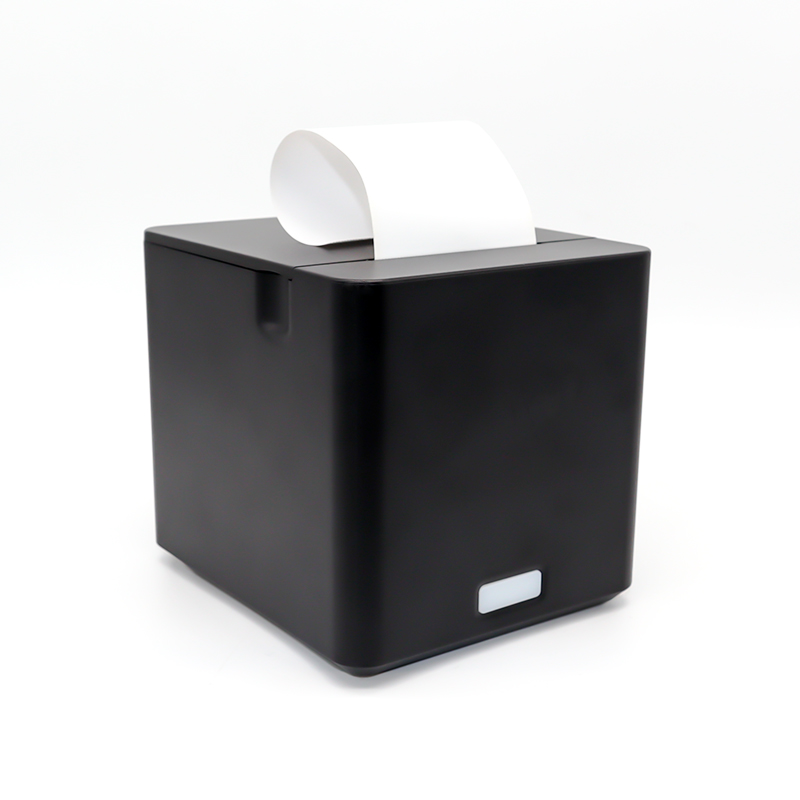

| 58mm Thermal printer product specification | ||
| GT-P5020 | ||
| Printer specification parameter table | ||
| project | Project Description | Specifications |
| printing method | Thermal printer | |
| Print width | 48mm | |
| printing speed | 90mm/s | |
| Print density | 384 dots/line | |
| Character size | ANK character,FontA:1.5*3.0mm FontB:1.1*2.1mm Simple / traditional:3.0*3.0mm | |
| Operating environment | Android & iOS & Windows | |
| Print interface | USB/USB + Bluetooth | |
| Paper | Paper width | 58mm |
| Support paper | Thermal receipt paper | |
| Outer diameter of paper roll | ≦50mm | |
| Paper loading method | Easy Loading Paper Structure | |
| Print Command | ESC/POS | |
| Barcode type | Barcode type | 1D:UPC-A/UPC-E/JAN13(ean13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE123 2D:QRCODE/PDF417 |
| Extended character table | PC347(Standard Europe)、Katakana、PC850(Multilingual)、PC860(Poryuguese)、PC863(Canadian-French)、PC865(Nordic)、West Europe、Greek、Hebrew、East Europe、lran、WPC1252、PC866(Cyrillic#2)、PC852(Latin2)、PC858、lranll、Arabic、PT151(1251) | |
| reliability | Print head life | 50KM |
| Out of paper detection | Optocoupler detection | |
| Memory | 128KB bytes Input buffere/ 1MB NV Flash | |
| Software adaptation | Self-developed label & receipt app | |
| adapter | DC 9V/2A | |
| Pass the certification | Appearance patent/CCC/CE/ROHS | |
| size | Dimensions | 120*105*106.8mm |
| weight | 0.47KG（Including battery） | |
| working environment | Temperature: 0-45℃ | |
| Humidity: 10-80% | ||
| Storage environment | Temperature: -10-60℃ | |
| Humidity: 10-90% (except paper rolls) | ||
