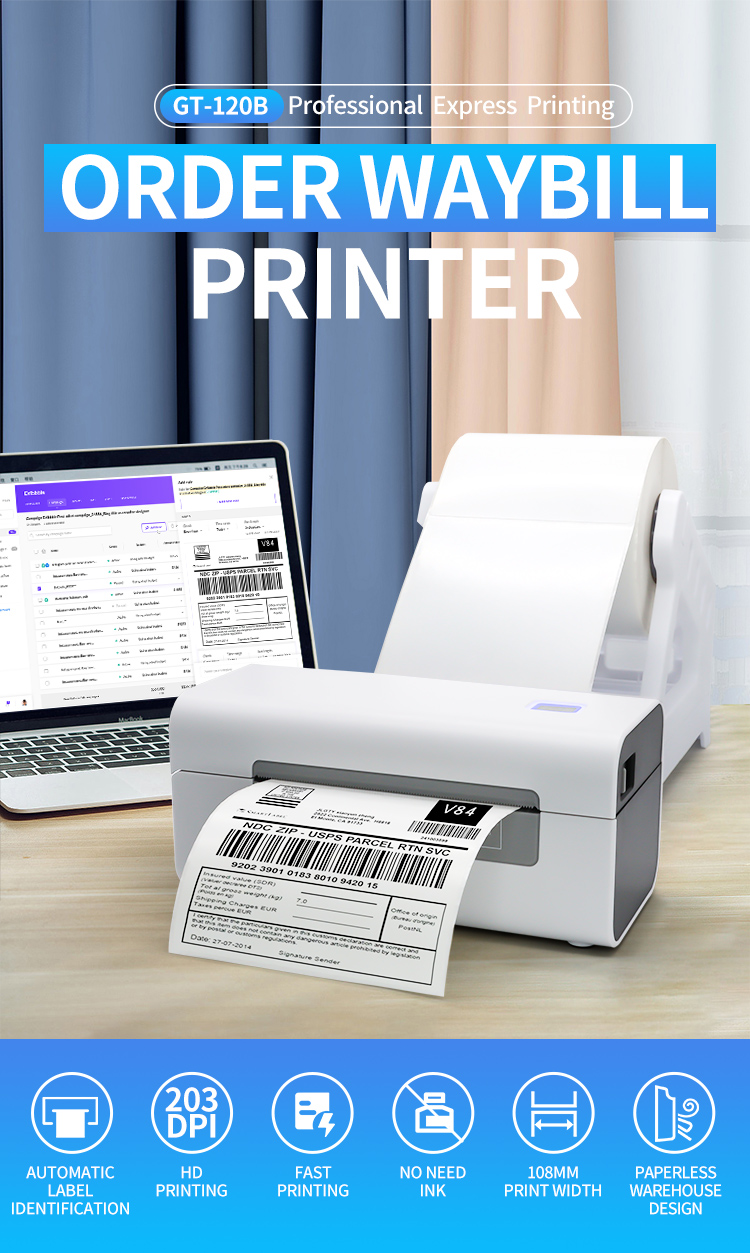

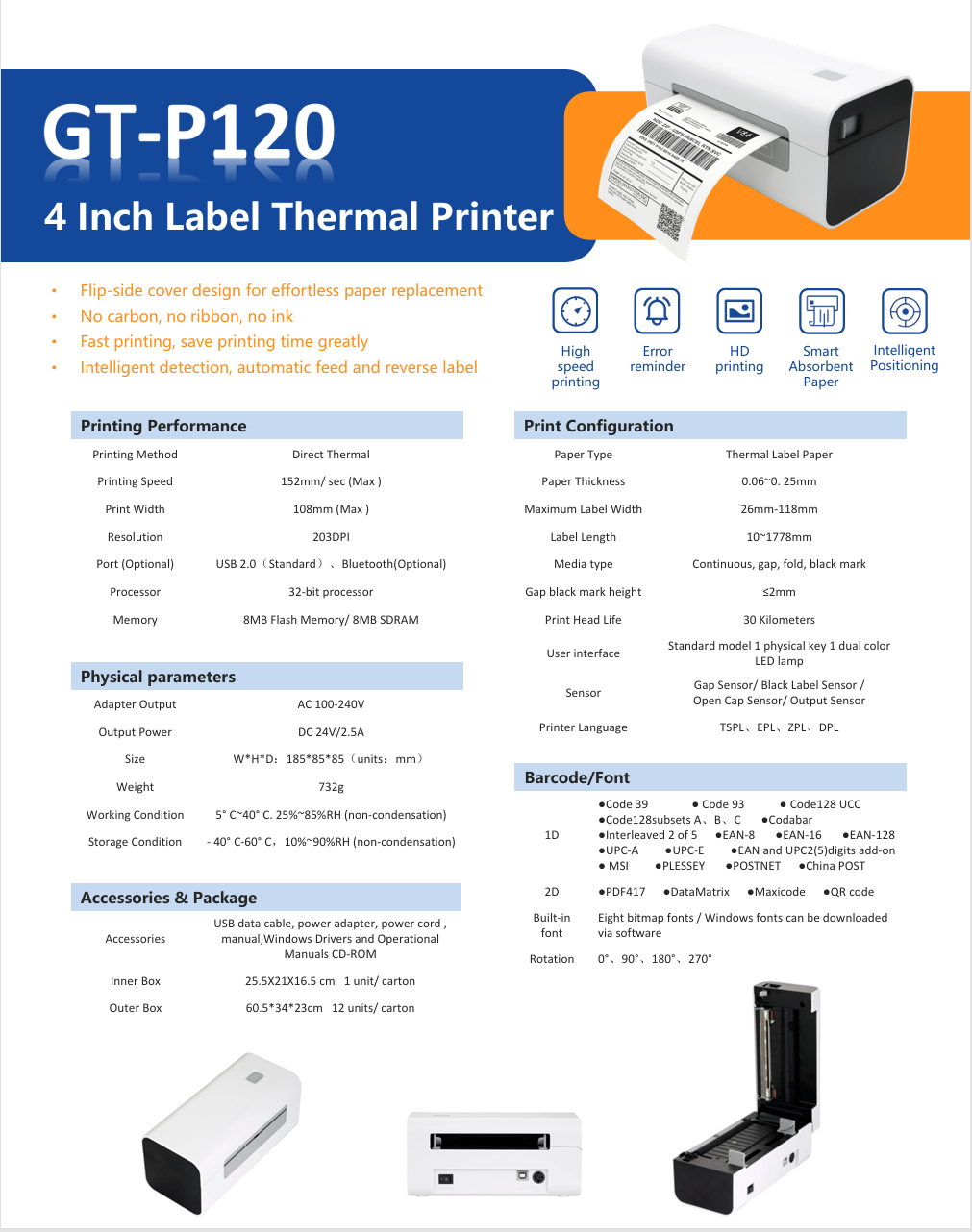

| Model | GT-120B |
| resolving power | 203DPI |
| Print mode | Direct Thermal |
| Printing Speed | 152mm/S |
| Print Width | 108mm |
| Print Length | 1778mm |
| Media winding type | Inward/Outward Roll |
| Media type | Continuous, gap, fold, black mark |

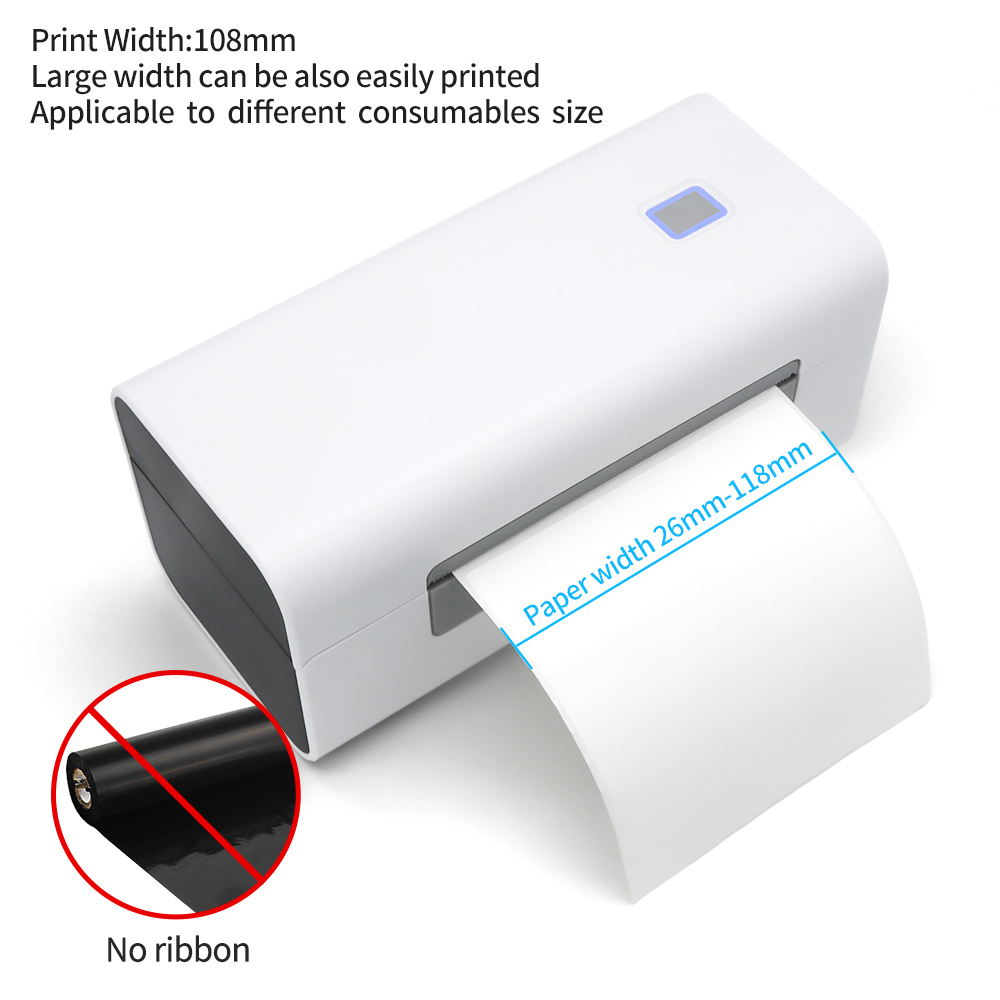

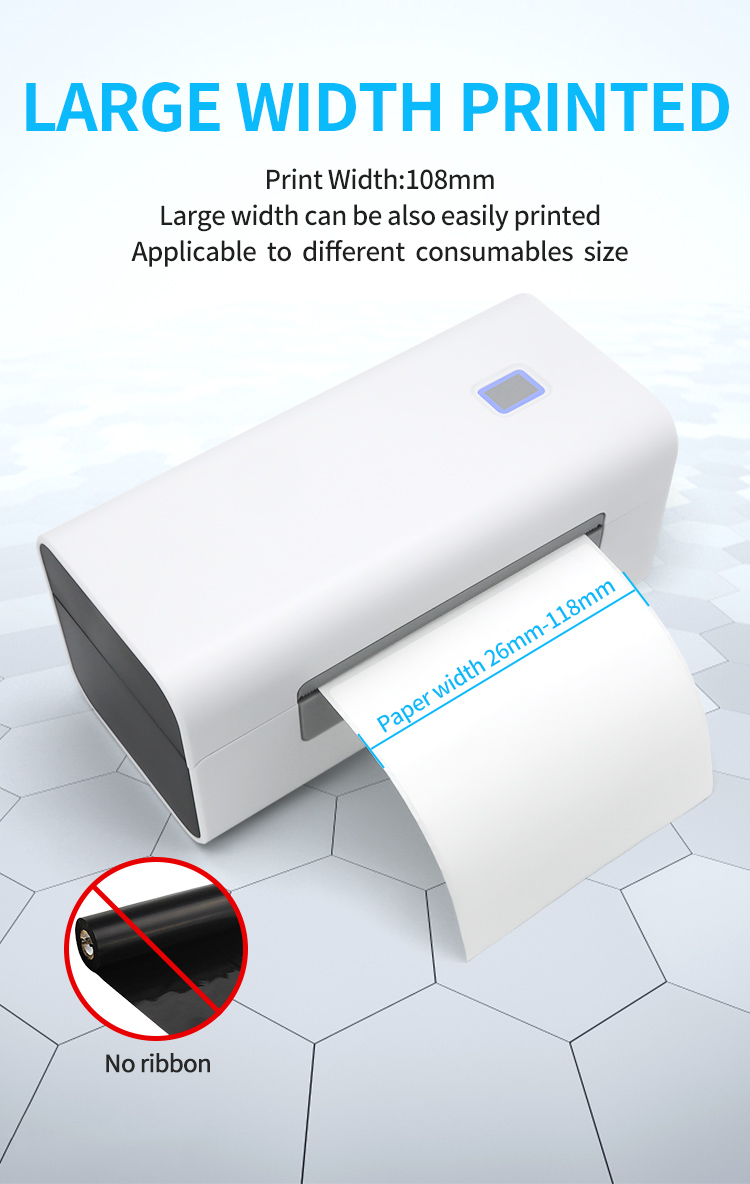

| Media Width | 26mm-118mm |
| Dielectric thickness | 0.06mm-0.25mm |
| Label length | 10mm-1778mm |
| Gap black mark height | ≤2mm |
| Print Output Deviation | Vertical：≤1mm，Horizontal：≤1mm |
| Chassis | Plastic cement |

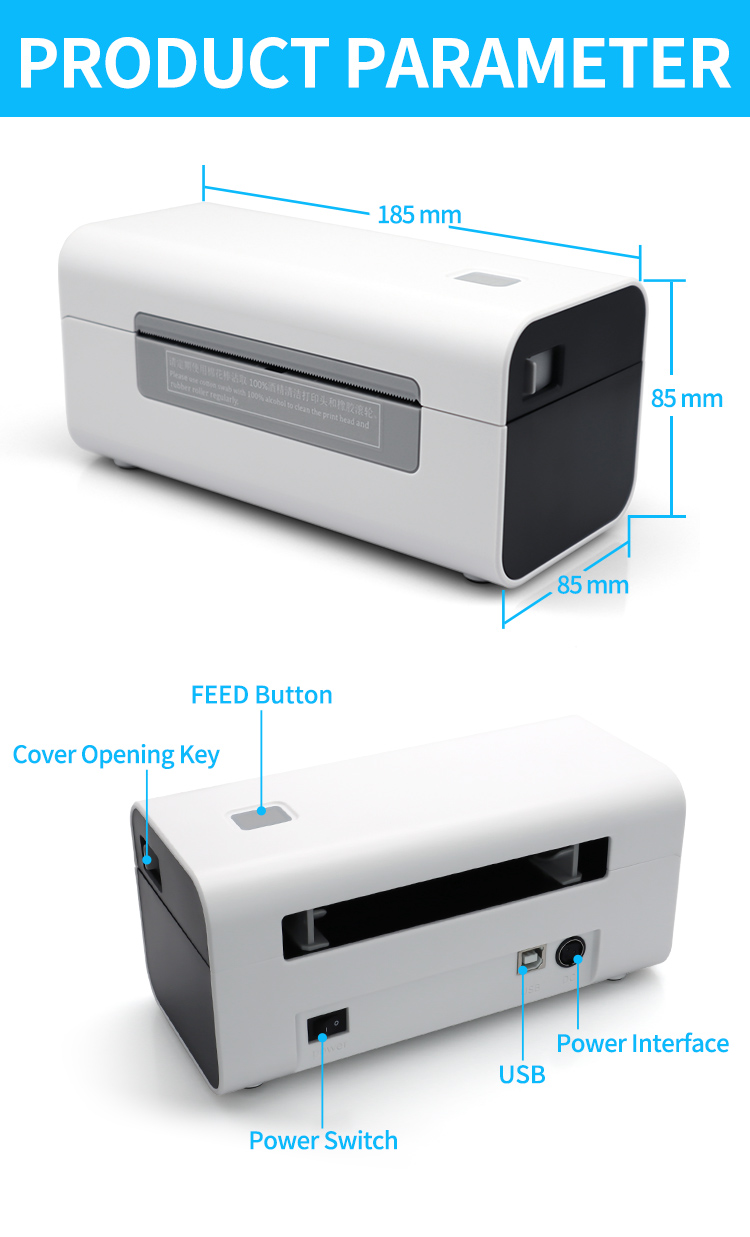

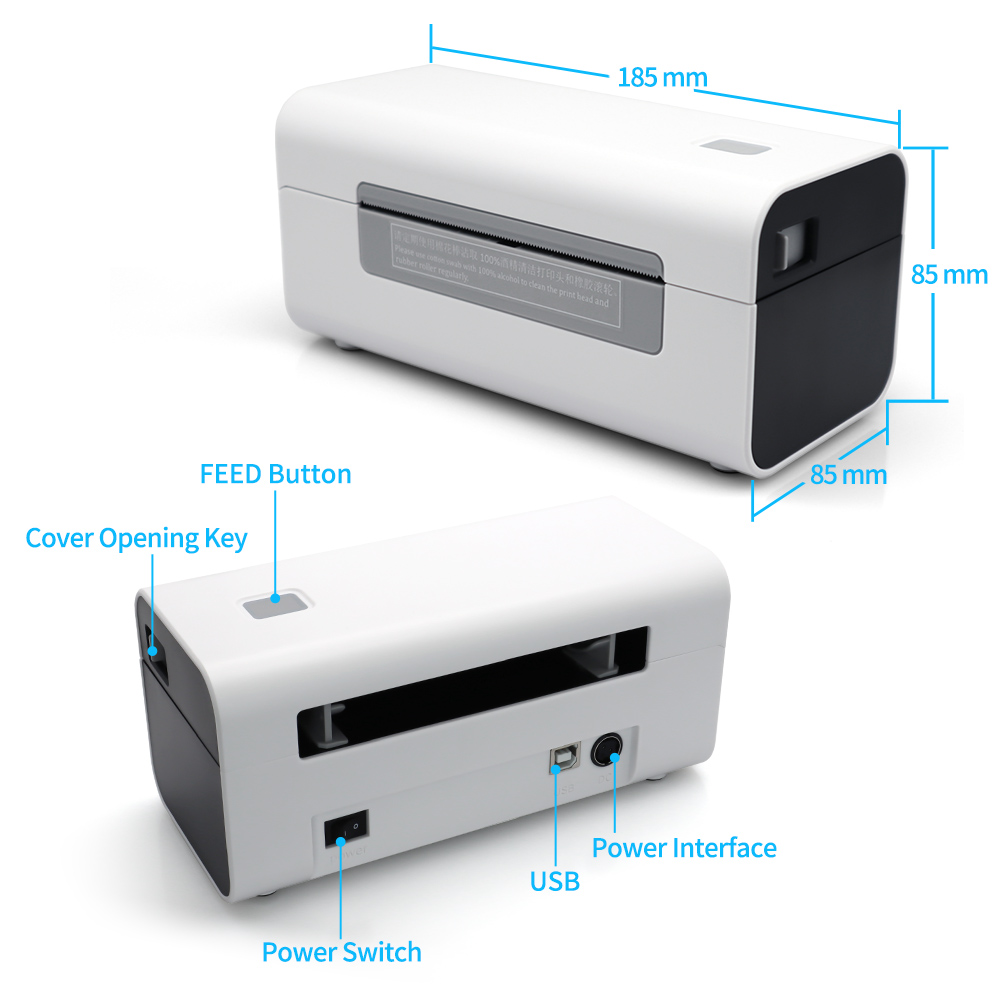

| Volume Size | W*H*D：185*85*85（units：mm） |
| weight | 732g |
| Label Volume Capacity | External paper compartment |
| A central processor | 32-bit processor |
| Memory | 8MB FLASH memory 8MB SDRAM |
| communication interface | USB 2.0（Standard）、Bluetooth(Optional) |
| Power specification | Adapter Output：AC 100-240V Output：DC 24V 2.5A |
| user interface | Standard model 1 physical key 1 dual color LED lamp |

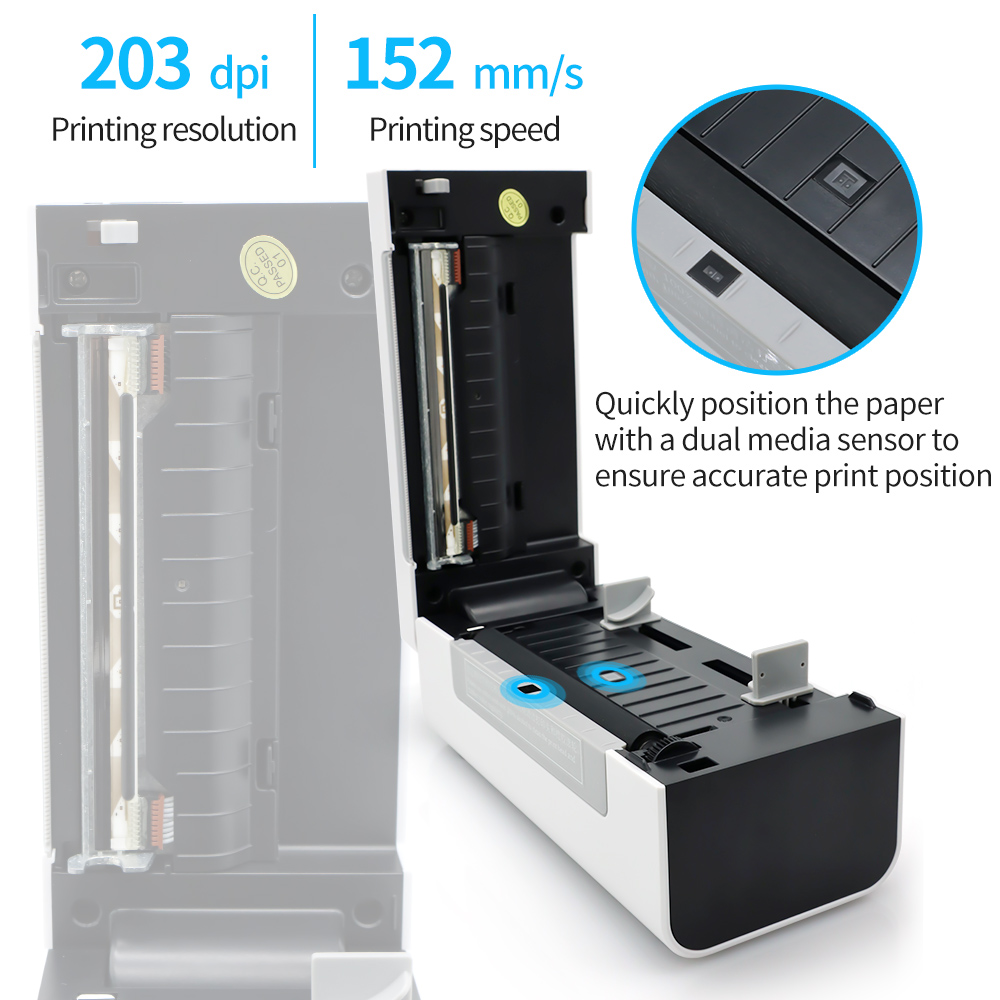

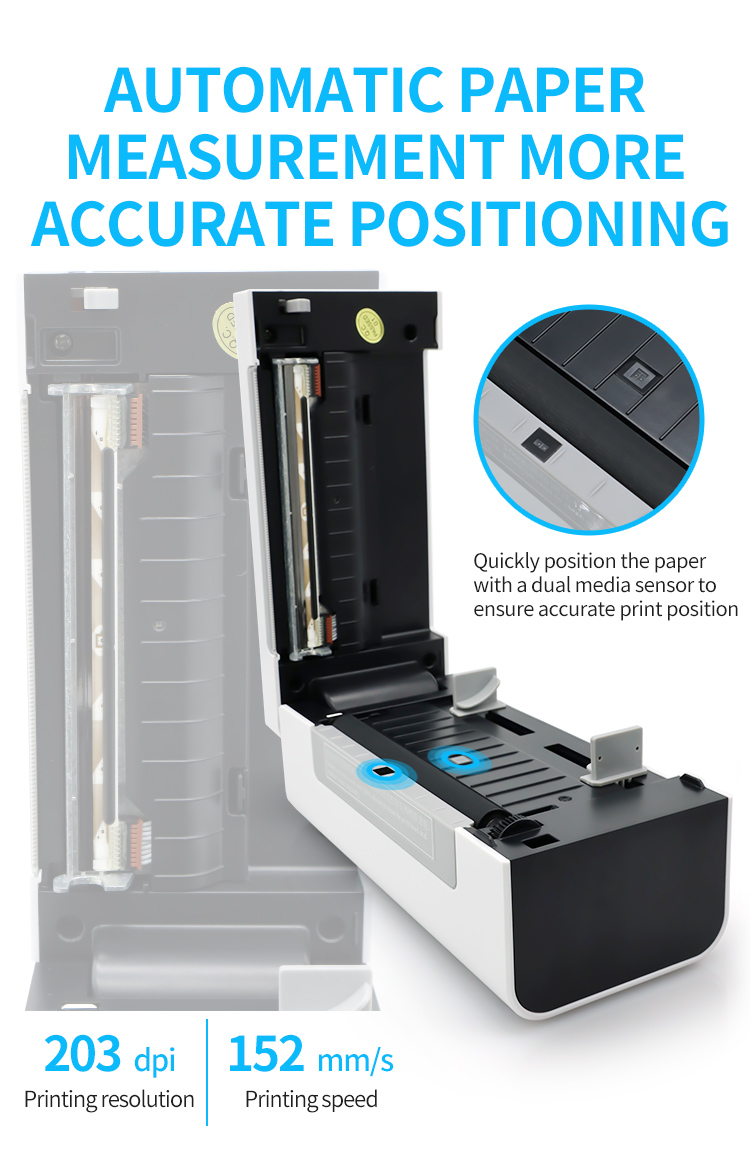

| sensor | Gap Sensor Black Label Sensor Open Cap Sensor Output Sensor |
| Built-in font | Eight bitmap fonts / Windows fonts can be downloaded via software |
| Supports bar codes | 1D：Code39, Code93, Code128UCC, Code128subsets A、B、C Codabar, Interleaved 2 of 5, EAN-8, EAN-16, EAN-128, UPC-A UPC-E, EAN and UPC2(5)digits add-on, MSI, PLESSEY, POSTNET China POST 2D:PDF-417, Maxicode, DataMatrix, QRcode |
| Font type and bar code rotation | 0°、90°、180°、270° |
| Printer Language | TSPL、EPL、ZPL、DPL |
| environment condition | Operating environment: 5-40 C (41-104), 25-85% humidity (non-condensation) Storage environment -40-60 (-40-140) and humidity (non-condensation) 10-90% |
| Security certification | FCC，CE，CB，CCC |

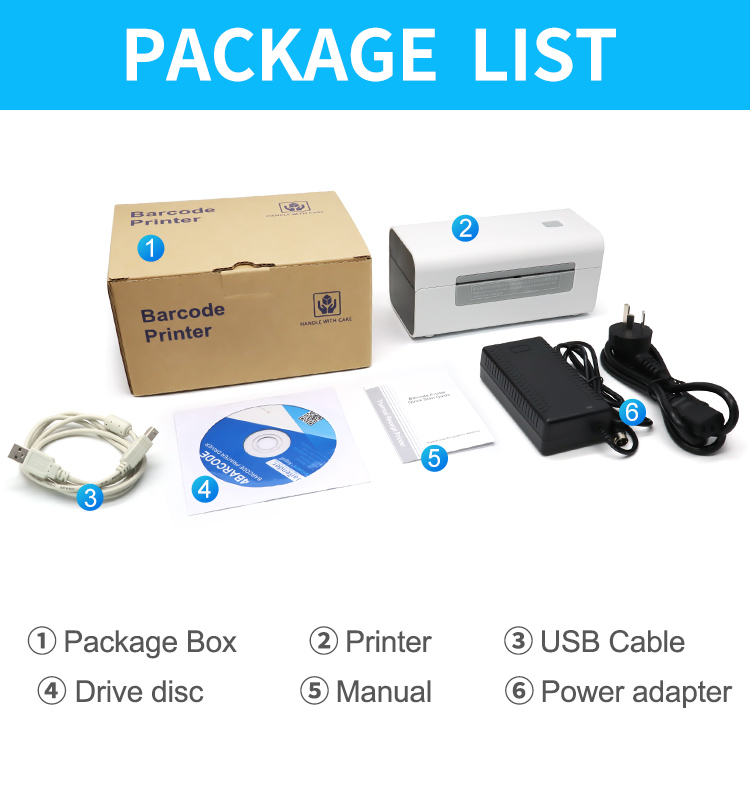

| parts | ①Windows Drivers and Operational Manuals CD-ROM ②Quick Installation Guide ③Power adapter④Power cord⑤USB transmission line |
| reliability | Printer year, print first 30km or first come in one year Cotton rollers 30 km or one year first come to the main |
| Plant Matching | Bluetooth Module |

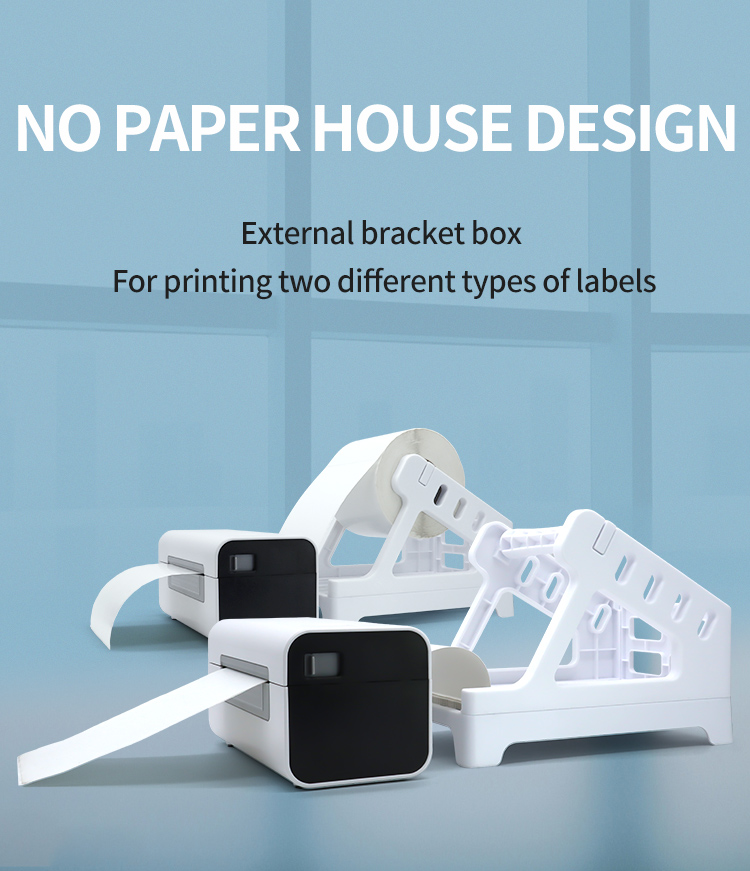

| Customer Matching | ①External paper reel holder②Paper reel ③External stand extension board④Electronic surface single box |
