| Printer specification parameter table | ||
| project | Project Description | Specifications |
| printing method | Thermal printer | |
| Resolution | 203dpi; Optional 300dpi | |
| Print Instruction | Tspl (Customizable Cpcl/Zpl/Ep) | |
| Print Width | 104mm | |

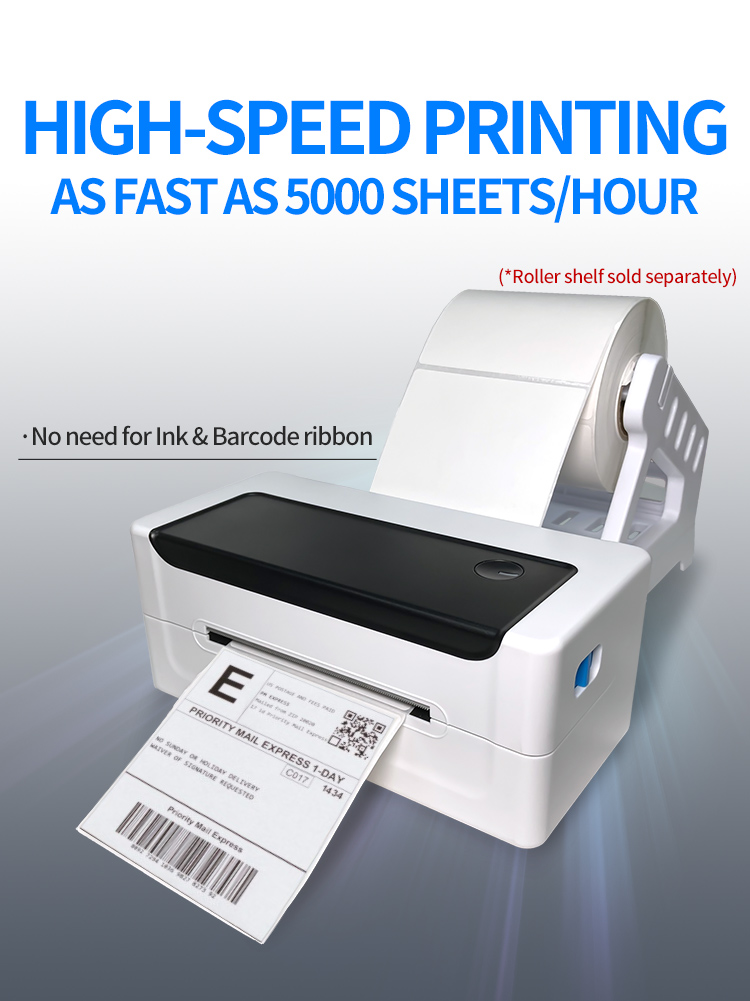

| Printing Speed | 127mm/s; Optional 150mm/s | |
| Print Head Life | 50 Km (Label Paper); 150km (Continuous Paper) | |
| Operating Platform | Usb Version: Windows/Linux/Mac Os Bluetooth Version: Windows/Android/Ios | |
| Run Memory Ram | 2Mb | |
| Flash | 2Mb (Usb Version); 4mb (Bluetooth Version) | |
| Connection Method | Usb/Usb+Bluetooth (Wifi Can Be Customized) | |
| Opening Method | Side Button Toggle | |

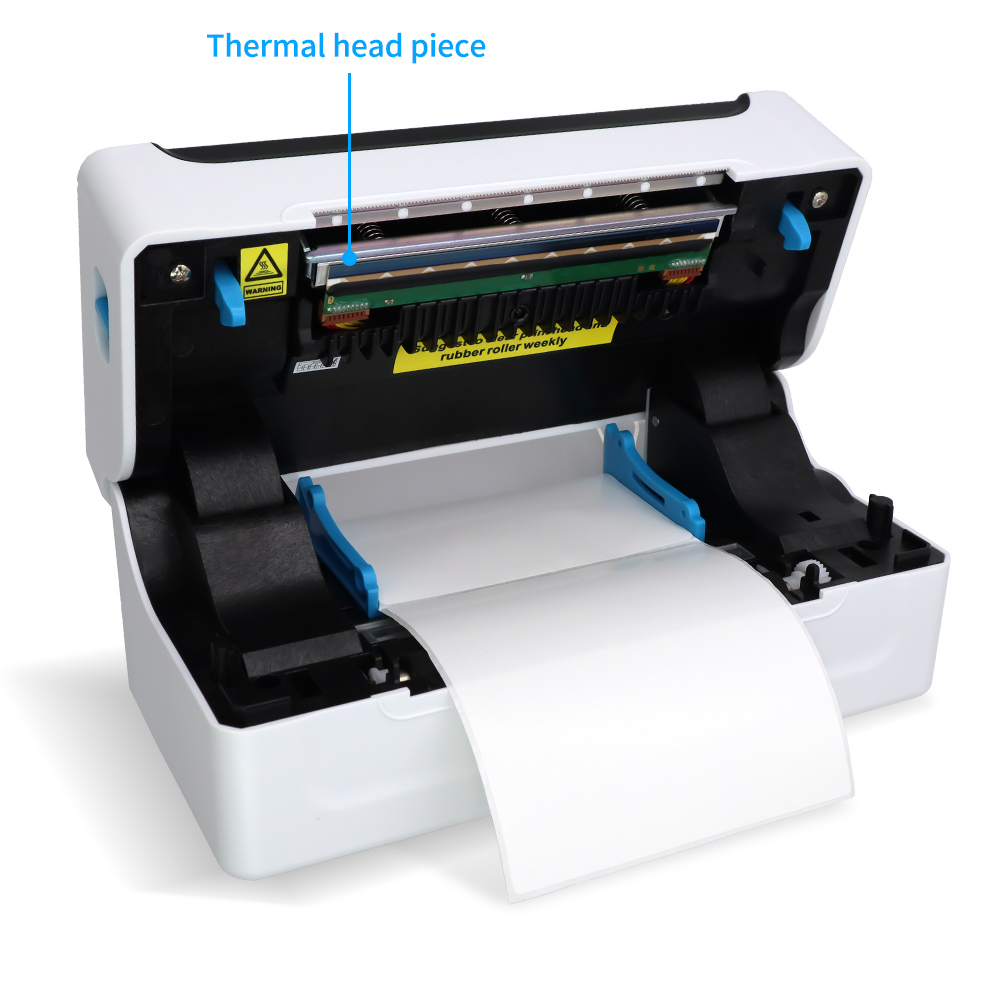

| Heating Head Temperature Detection | Thermistor | |
| Paper | Paper Type | Label Paper, Continuous Paper, Black Label Paper, Stacked Paper |
| Paper Loading Method | Easy Paper Loading/Automatic Feeding | |

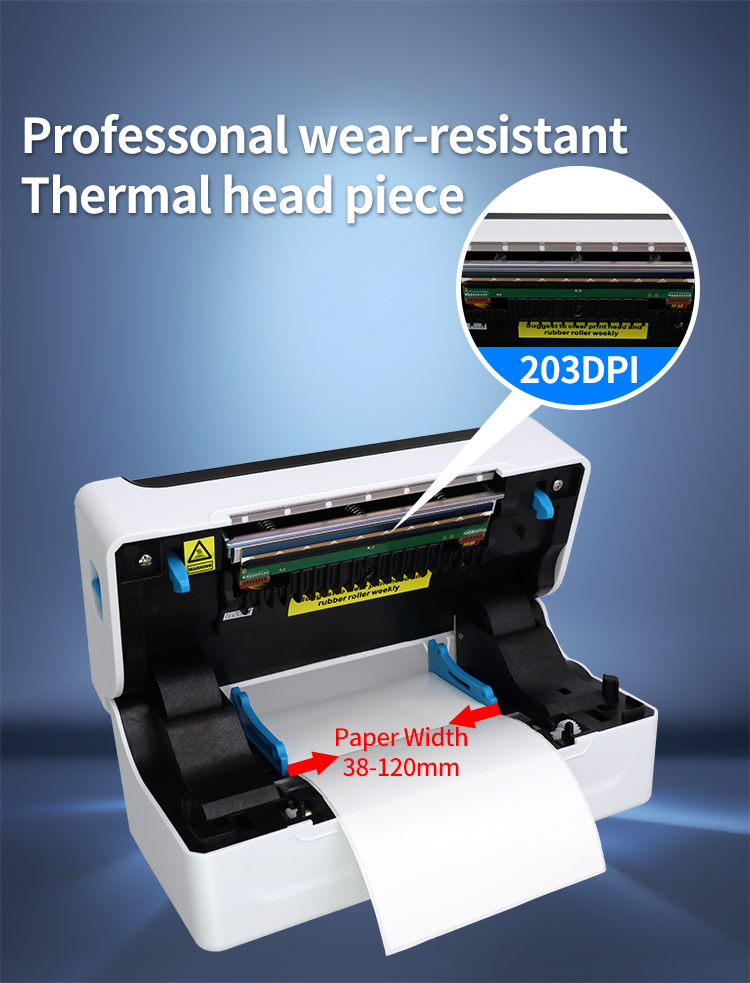

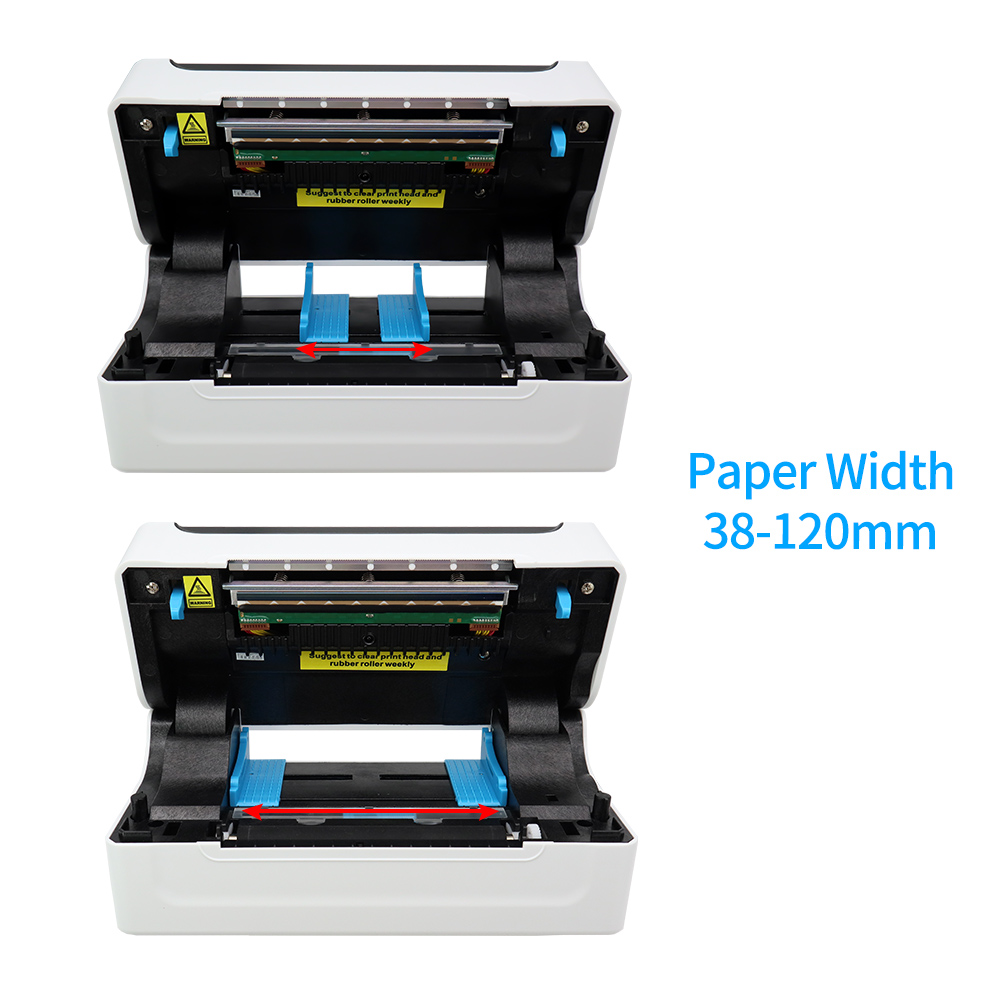

| Paper Width | 38-120mm | |
| Label Height | Minimum 30mm; Maximum 250mm | |
| Label Width | Minimum 38mm; Maximum 112mm | |
| Media Thickness | 0.06-0.18mm | |
| Paper Cutting Method | Manual Tearing | |
| Axis Detection Method | Mechanical Detection Switch | |
| Out Of Paper Detection | Optocoupler | |

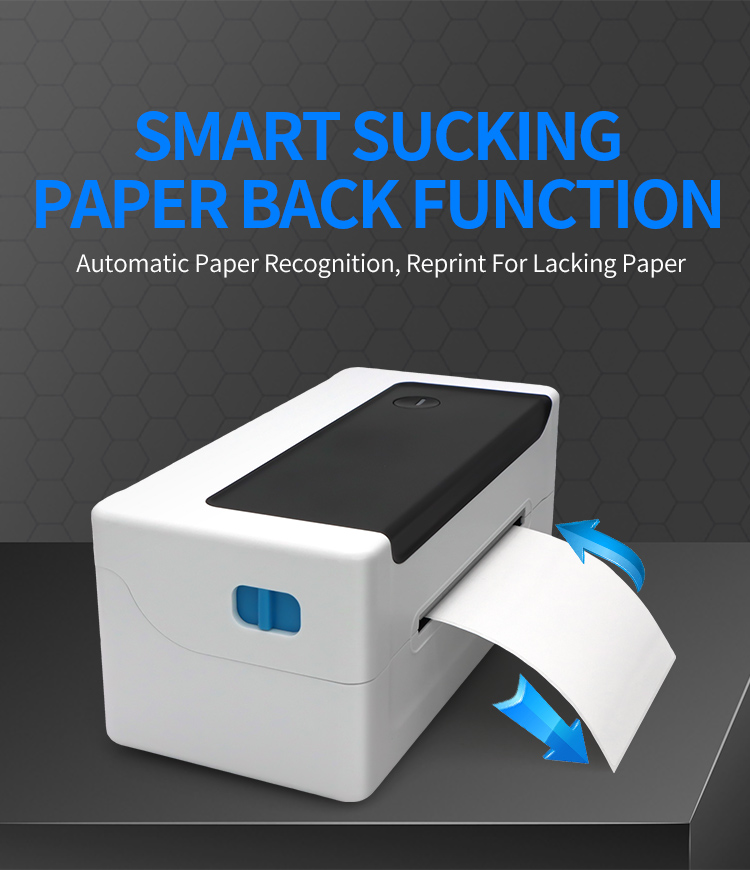

| Print Function | Automatic Paper Recognition, Intelligent Paper Return And Suction, Reprint For Lacking Paper, Defective Pixel Detection And Other Functions | |
| Paper Bin Type | No Built-In Paper Bin (Paper Stand Optional) | |

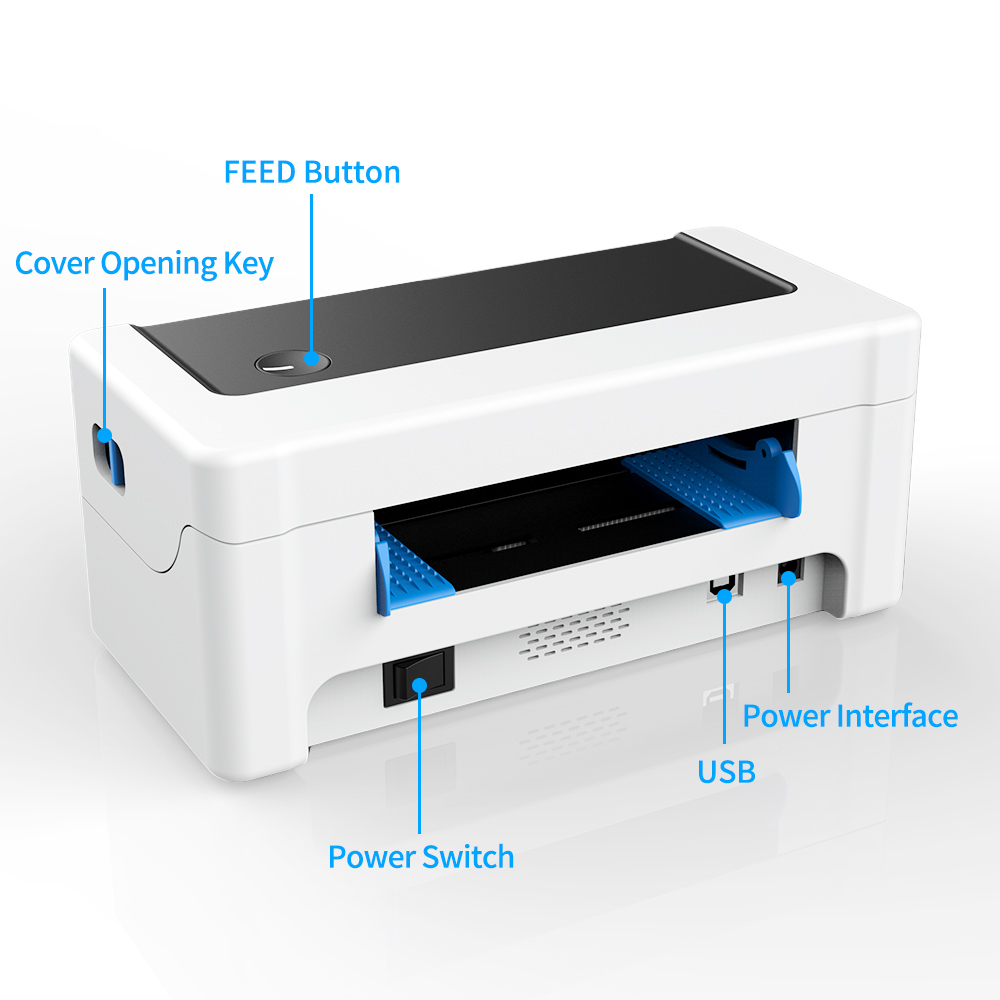

| Key Parameters | Key Operation | Power Button (Black Power Button On The Rear Side) Lid Opening Button (Opening Button On Both Sides) Feed Key (Black Feed Key Above) |
| Key Operation Function In This Scenario | 1. Turn Off, Long Press Feed Key And Power Key : Self-Check Page Printing 2. Standby, Long Press Feed Key For 3 Seconds: Enter The Face-Sheet Learning Mode 3. Open Lid And Press Feed Key For 10 Seconds: Restore Factory Settings 4. Standby, Short Press Feed Key: Automatically Enter a Blank Sheet 5. During Continuous Printing, Short Press Feed Key: Printing Pauses 6. Pause Printing, Short Press Feed Key: Continue Printing | |
| Indicator Status Description | The Indicator Light Keeps On: Normal Standby Indicator Light Flashes: Buzzer Alarm | |
| Buzzer Alarm Prompt | 2 Beeps: Printer Head Error 3 Beeps: Lacking Paper 5 Sounds: Overheating Error 6 Sounds: Wrong Opening 7 Sounds: Wrong Stitch Mark | |
| Barcode Parameters | Support Language | Support Most Languages, Individual Languages Need To Be Customized |
| Character | Standard Gb18030 Simplified Chinese | |
| Character Size | Ascii Font a: 12×24 Ascii Font b: 9×17 Chinese Characters: 24×24 | |
| Extended Character Table | Cp437，Cp850，Cp852，Cp860，Cp863，Cp865，Cp866，Wpc1250，Wpc1251，Wpc1252，Wpc1253，Wpc1254 | |
| Barcode Type | One-Dimensional Code: Code 39，39c，i25，Code 93，Itf25，Ean128，Code 128，Codabar，Ean-8，Ean8+2，Ean8+5，Ean-13，Ean13+2，Ean13+5，Upc-a，Upca+2，Upca+5，Upc-e，Upce+2，Upce+5 Msic，Itf14，Ean14，Code11，Post QR Code: Qrcode, Pdf417 (Optional) | |
| Font And Barcode Rotation | Supports | |
| Packing Specification | Usb Interface | 1*Standard Usb |
| Charging Port | DC | |
| Adapter | 24v/2.5a | |

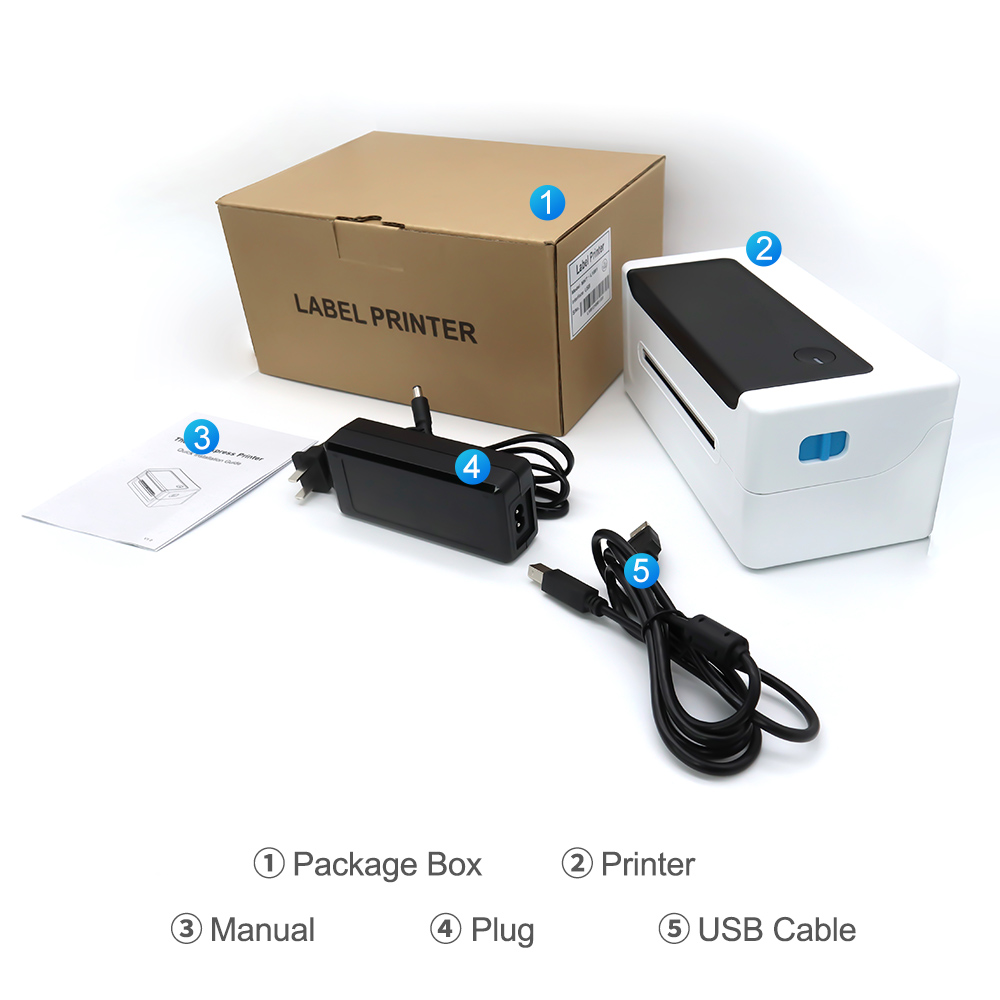

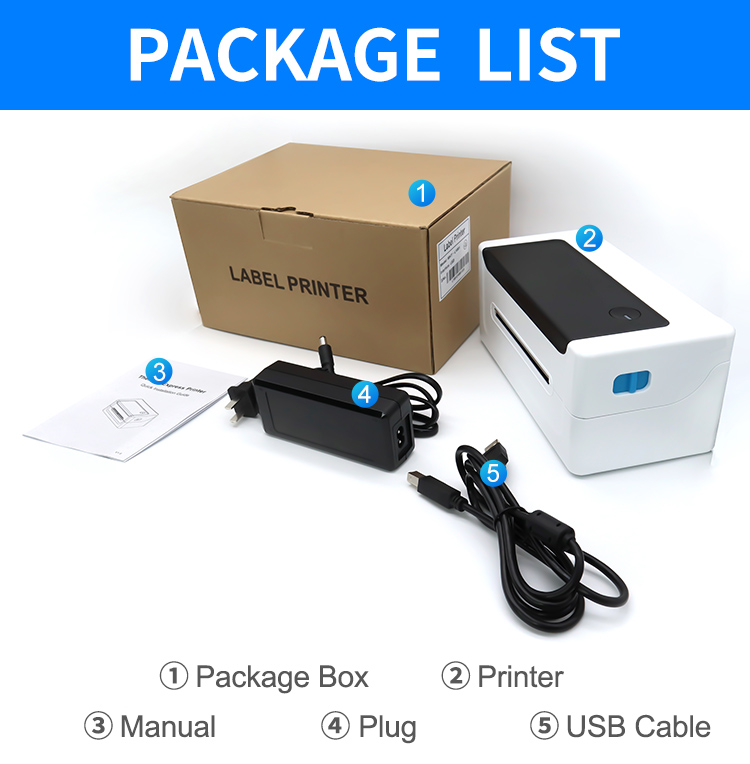

| Accessories | ■Power Adapter ■Power Cord ■Usb Data Cable ■Quick Safety Guide | |
| Package | ■Kraft Paper ■Pearl Cotton Partition ■Pearl Cotton Lining | |
| Product Weight | 1kg | |

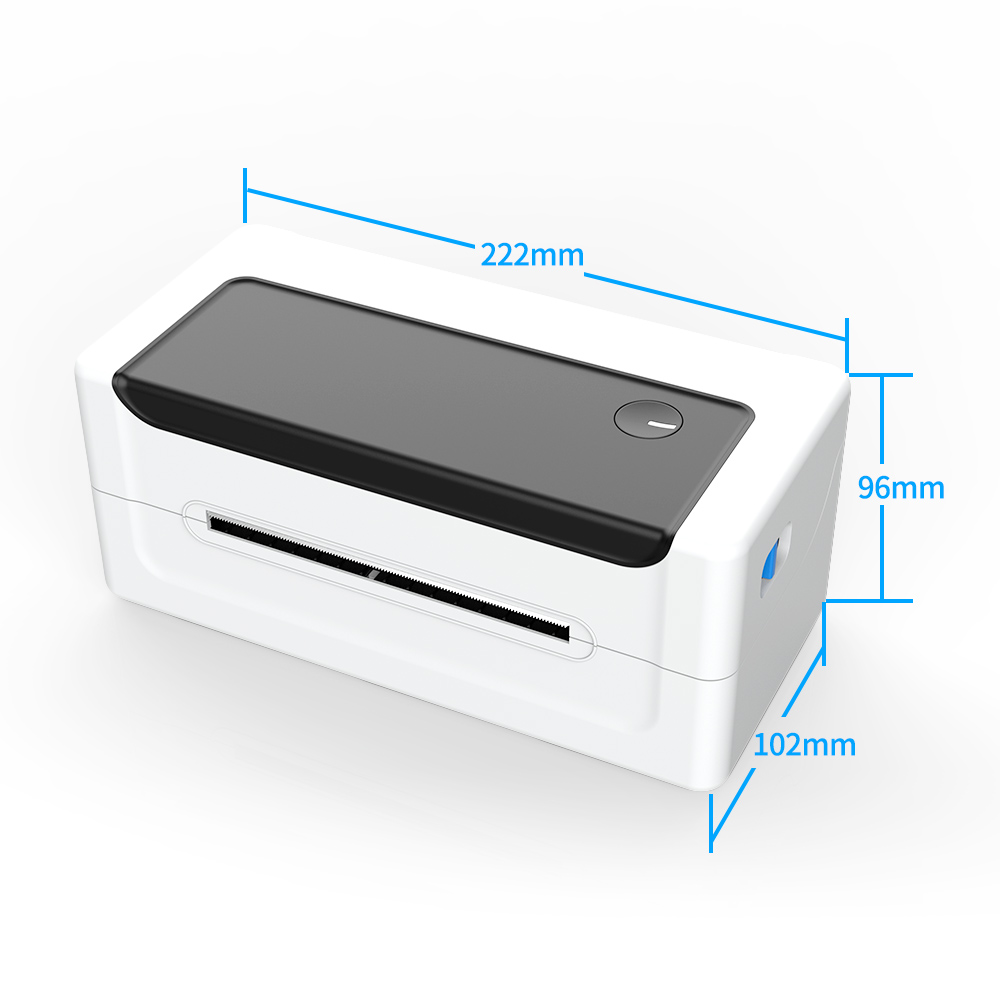

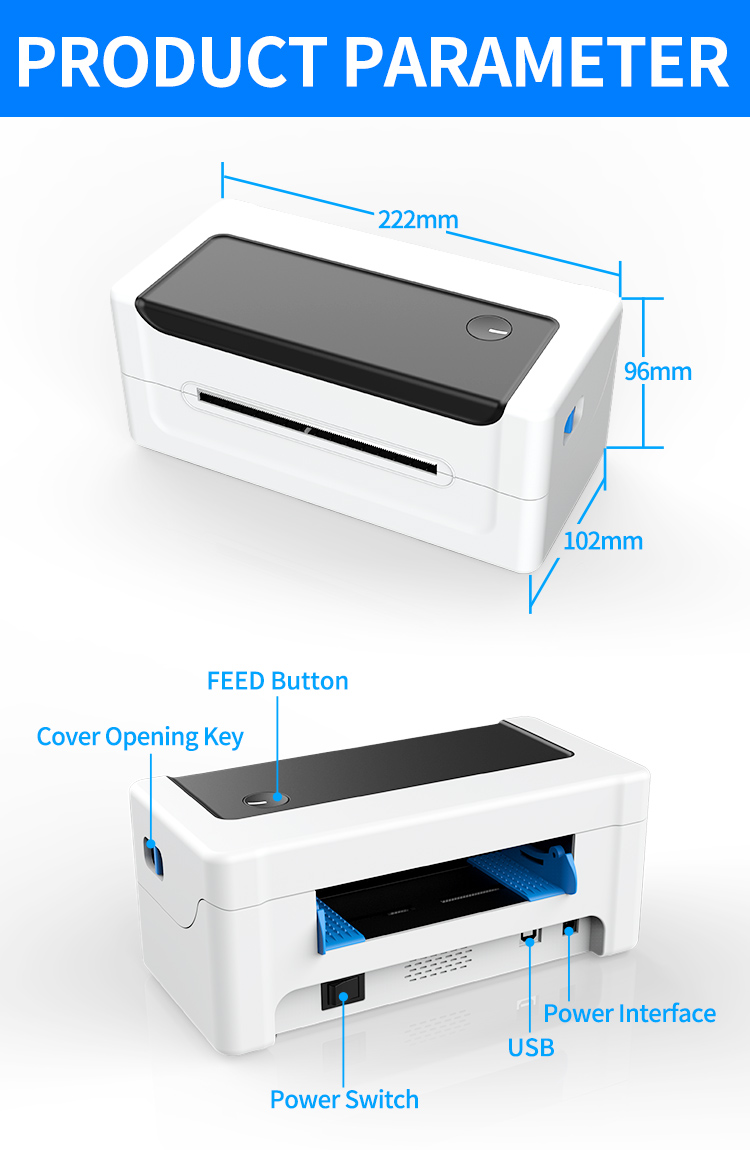

| Product Size | 222x102x96mm | |
| Outer Box Size (Single Unit) | 26x13.6x19.1cm, 1.71kg | |
| Outer Box Size (8 Units) | 53x39.6x29cm, 16kg | |
| Temperature | Working Temperature: 0-45℃; Storage Temperature: -10-60℃ | |
| Humidity | Working Humidity: 20-90%; Storage Humidity: 10-90% | |
| Certification Specifications | Certification Requirements | CCC, CE, FCC |
