| GT-9800 Technical Parameters | |||||||
| Model | GT-9800 | ||||||

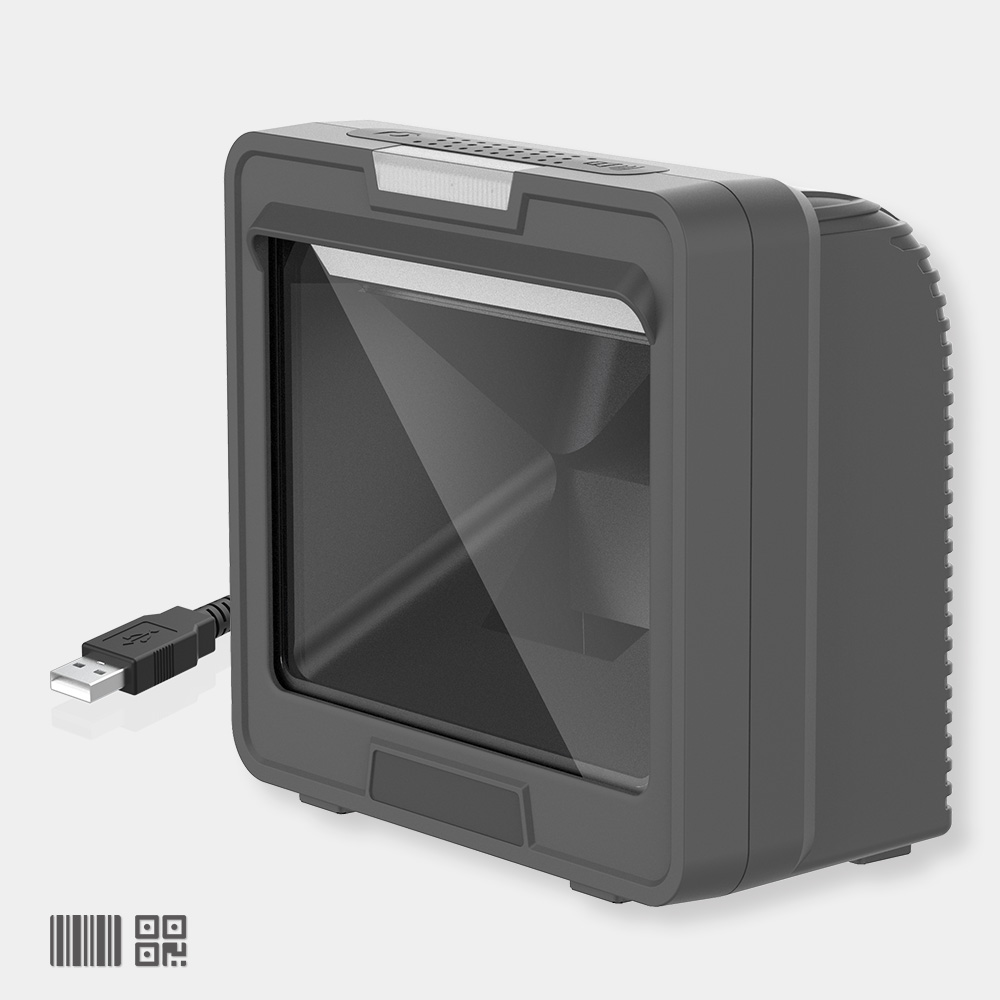

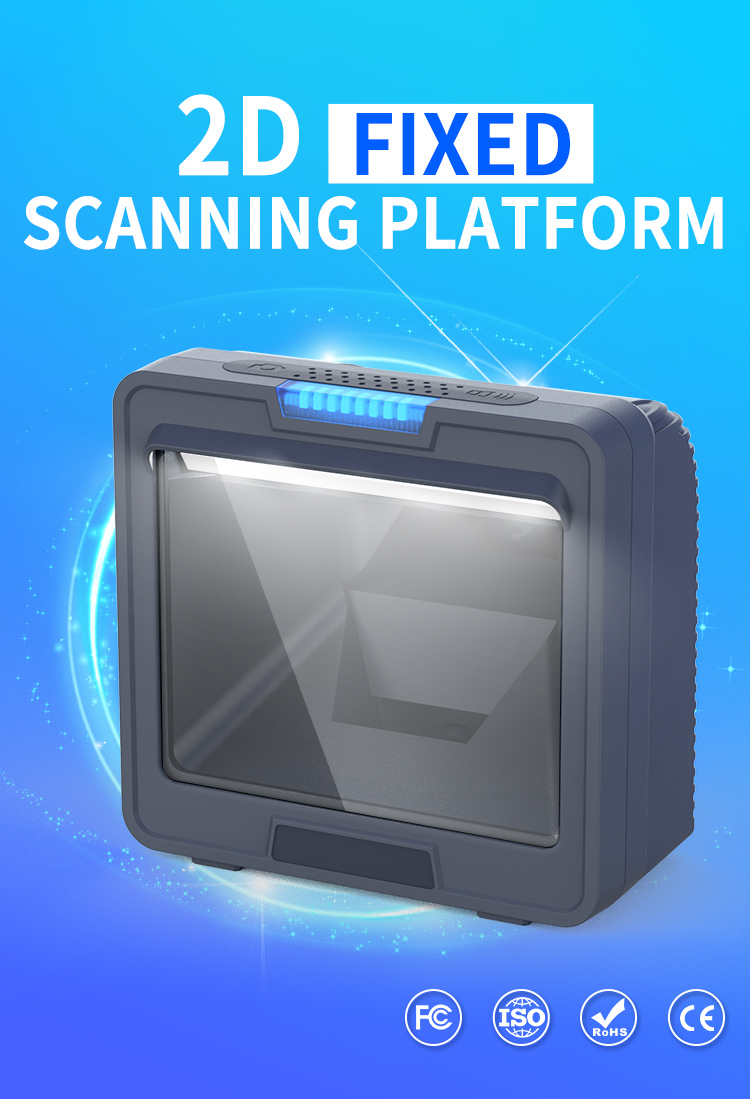

| Item | Omnidirectional 2d barcode scanning platform | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC | ||||||
| Power Supply | DC 5V 500mA±5% | ||||||
| electric current | 230mA（working）；200mA（standby）；250mA（maxium） | ||||||
| Weight | 480.0g±5g（without cable） | ||||||

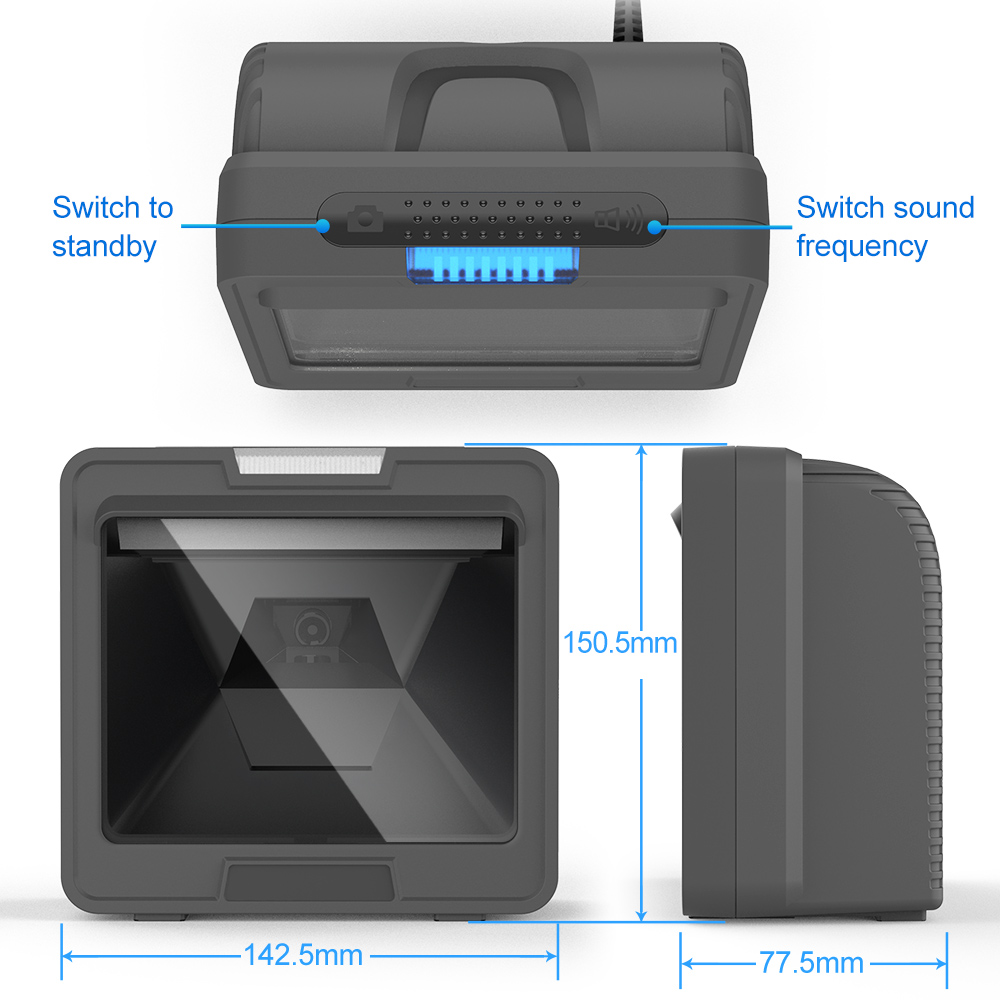

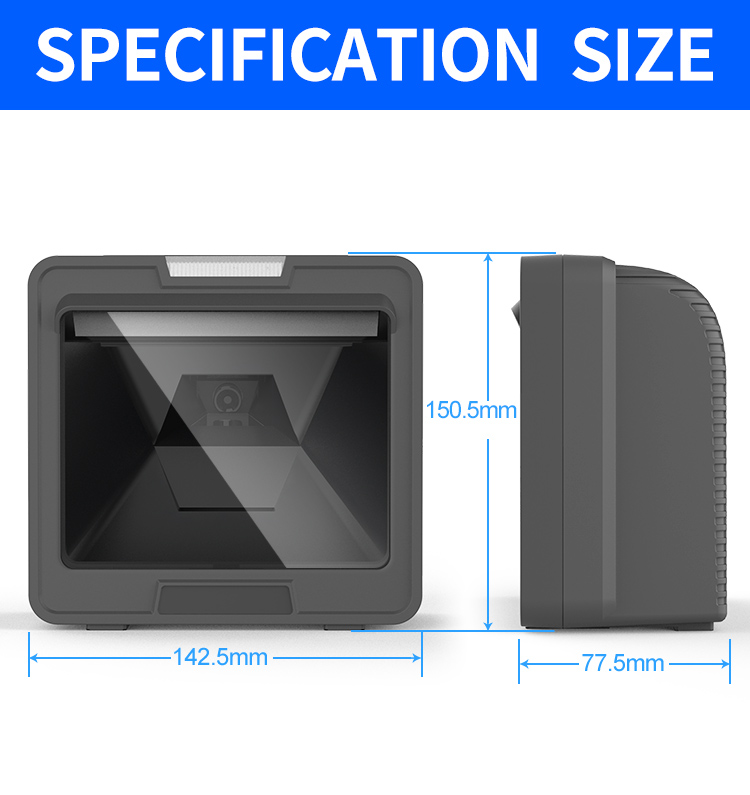

| Size | L*W*H：151.5 * 146 * 75.3（unit：mm） | ||||||
| Color | Black | ||||||
| Performance Parameter | |||||||
| Interface | USB；USB COM；RS232;TTL232 | ||||||
| System Supported | Linux，Android，Windows，MAC | ||||||
| Language Supported | English; German; French; Italian; Russian; Finnish; norwegian; Spanish; Czech; Polish; Portuguese; Türkiye Q; Türkiye F; Greek; Swedish; irish .etc. | ||||||
| Sensor | Global sensors 1280 * 800 | ||||||
| Light source | white LED | ||||||
| Processor | 32-bit ARM MCU + DSP | ||||||
| Decoding speed | 500次/s | ||||||
| Resolution | 1D：4mil；2D:6mil | ||||||
| Error Rate | 1/5000000 | ||||||
| Reading Mode | Image | ||||||
| Trigger Mode | Imaging Sensor | ||||||

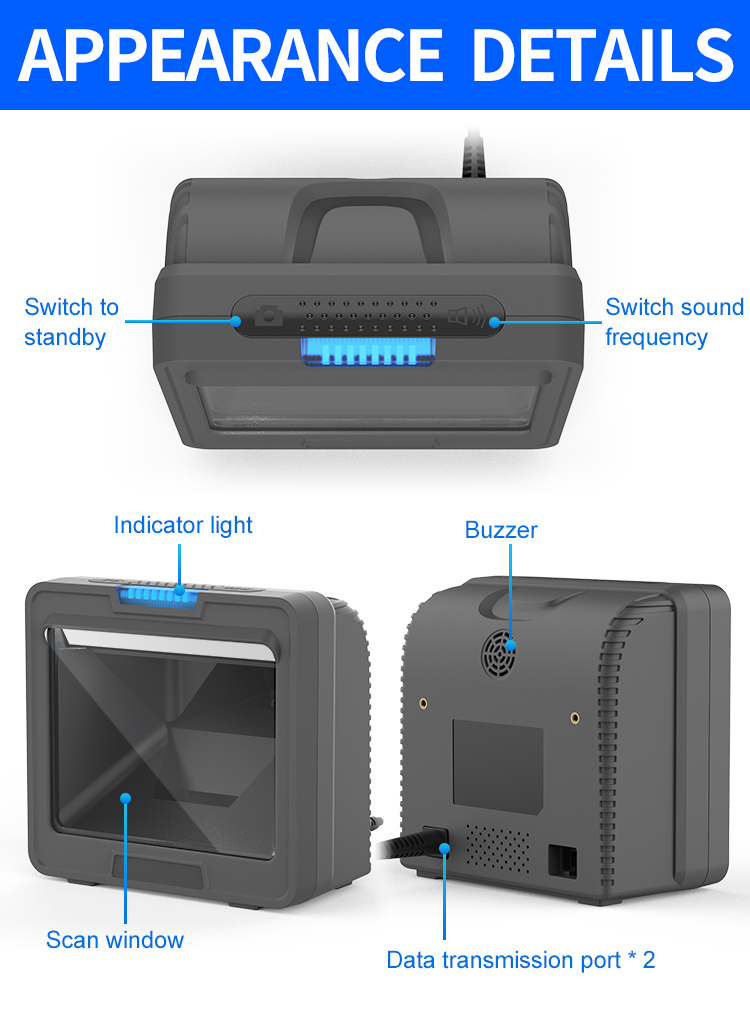

| Prompt Mode | Buzzer, Indicator Light（LED） | ||||||
| Image code | Support | ||||||
| Invoice Function | Support | ||||||
| Button | Switchable mode (3 seconds self extinguishing; Switchable successful reading prompt tone (three kinds) | ||||||
| Print Constrast | ≥25% | ||||||
| Decoding Capability | 1D | EAN-13,EAN-8,UPC-A,UPC-E ,ISSN,ISBN,Codabar,Code 128 ,Code 93 ,ITF-6,ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5,Matrix 2 of 5,,Code 39,Code11,MSI-Plessey ,UK-Plessey, Pharmacode One-Track ,Telepen ,Trioptic code ,Brazilian bank code ,GS1 Databar ,GS1 Compsite code,GS-128 ,Code32 | |||||
| 2D | QR Code;Mirco QR;Data MartrixPDF 417;Mirco PDF 417;Aztec;Maxicode;Hanxin;Grid Matrix;DOT code | ||||||
| Post Office | Australian;Royal Mail（RM4CSS）;Intelligent Mail Bar;Japanese Post ;KIX Post ;Planet code ;USPS Postnet;China post | ||||||
| Scanning Angle | Roll360°,Pitch50°,Yew50° | ||||||
| Scanning Depth | EAN-13(13bit): 10mm -- 250mm Code 39 5mil(5bit): 10mm -- 90mm Code 128 5mil(5bit)： 10mm -- 80mm QR(18bit)： 10mm -- 400mm Alipay payment code(18bit)： 10mm -- 400mm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | -20 to 60℃ | ||||||
| Storage Temp. | -40 to 70℃ | ||||||
| Operating Humidity | 5% to 95%（No condensationc） | ||||||
| Storage Humidity | 5% to 95%（No condensationc） | ||||||
| ESD Protection | 15KV air discharge; 10KV contact discharge | ||||||
| Shock Resistance | 1.2m free fall on concrete surface | ||||||
| Solutions FAQ | |||||||||
| Q：Can not turn on or turn off immediately after turning on | |||||||||
| A：This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged) | |||||||||
| Q：Barcode data is not uploaded | |||||||||
| A：The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range) | |||||||||
| Q：There is a laser line, but can't read the bar code. | |||||||||
| A：Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual. | |||||||||
| Q：The scanned data is displayed incorrectly on the host | |||||||||
| A：Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center. | |||||||||
| Q：Other cases cannot be decoded | |||||||||
| A：It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again. |
