| GT-780A Technical Parameter | |||||||
| Model | GT-780A | ||||||
| Item | Wireless CCD Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC | ||||||
| Power Supply | Charge DC 5V ±5% ； 3.7V 1000mA lithium battery | ||||||
| Operating Current | 114mA（working）;50mA（standby）;205mA（maximum） | ||||||
| Weight | 74g±5g（Without cable） | ||||||

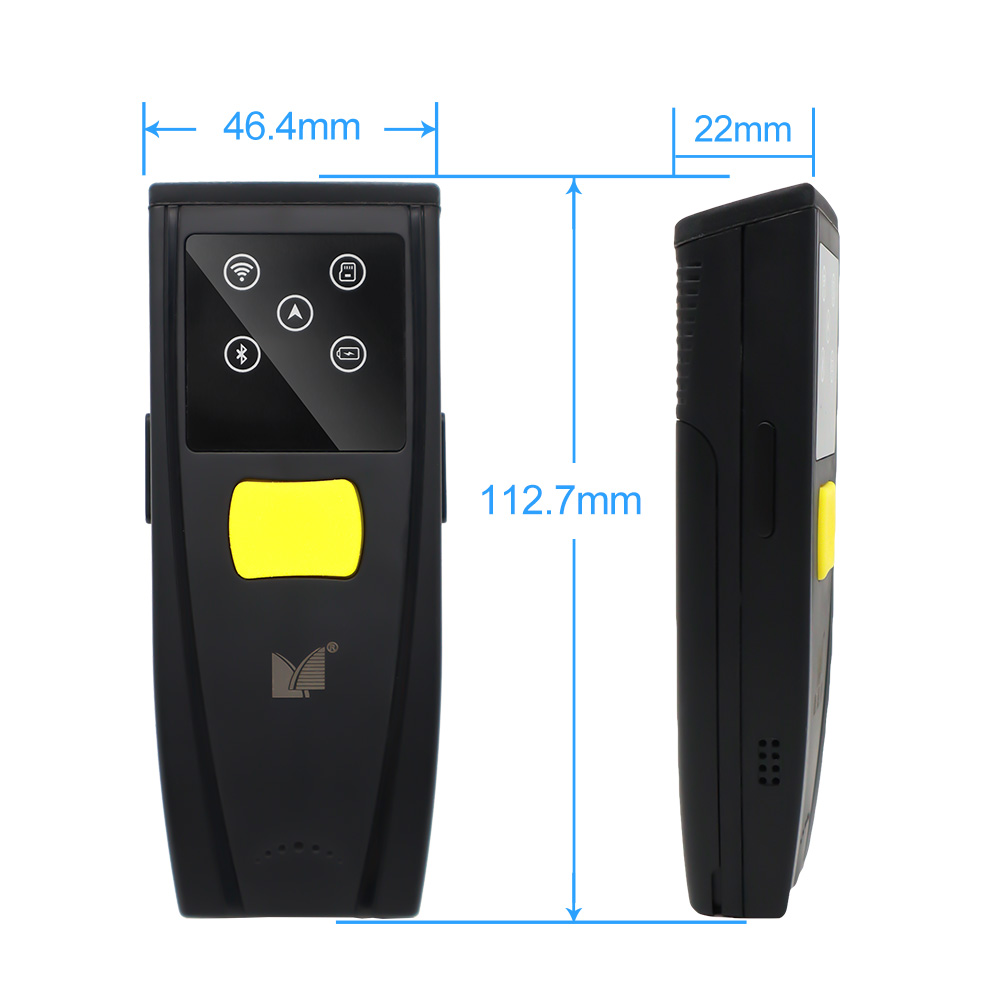

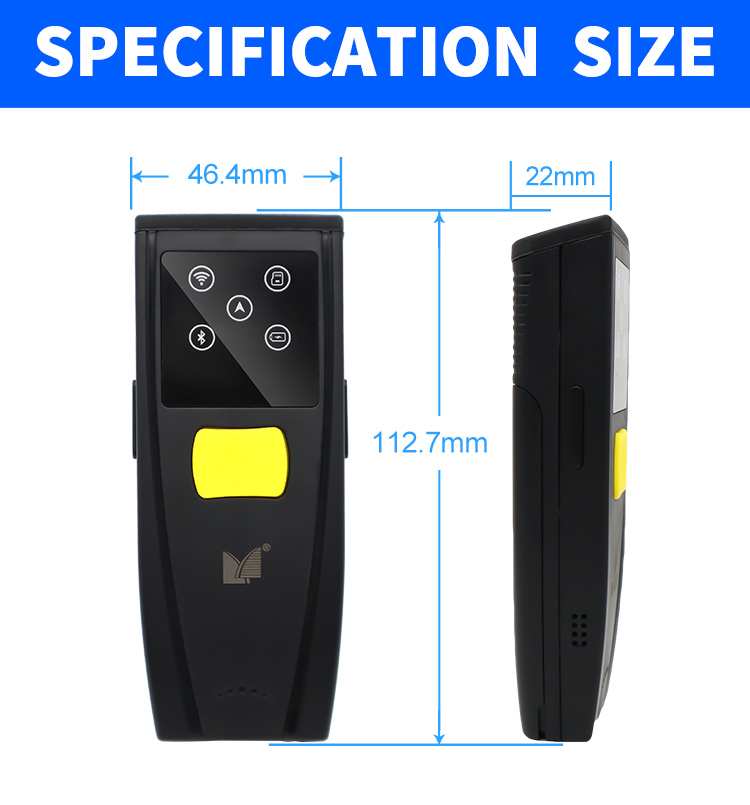

| Size | L * W * H ：112.7 * 46.4 * 22.0（unit：mm） | ||||||
| Color | Black | ||||||
| Button Lifespan | ＞100000times | ||||||
| Performance Parameter | |||||||
| Interface | USB；2.4G；Bluetooth | ||||||
| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | English-United States；French-Canada；Dutch-Netherlands；Spanish-International；Latin American-Argentina；Portuguese-Brazil；Danish-Denmark；Italian-Italy 142；French-France；German-Germany；Portuguese-Portugal；Finnish-Finland；Turkish-F；Japanese； Russian-Russia；Northern Sami-Norway 【Support multi-country keyboard】 | ||||||
| Processor | 32-bit ARM MCU | ||||||

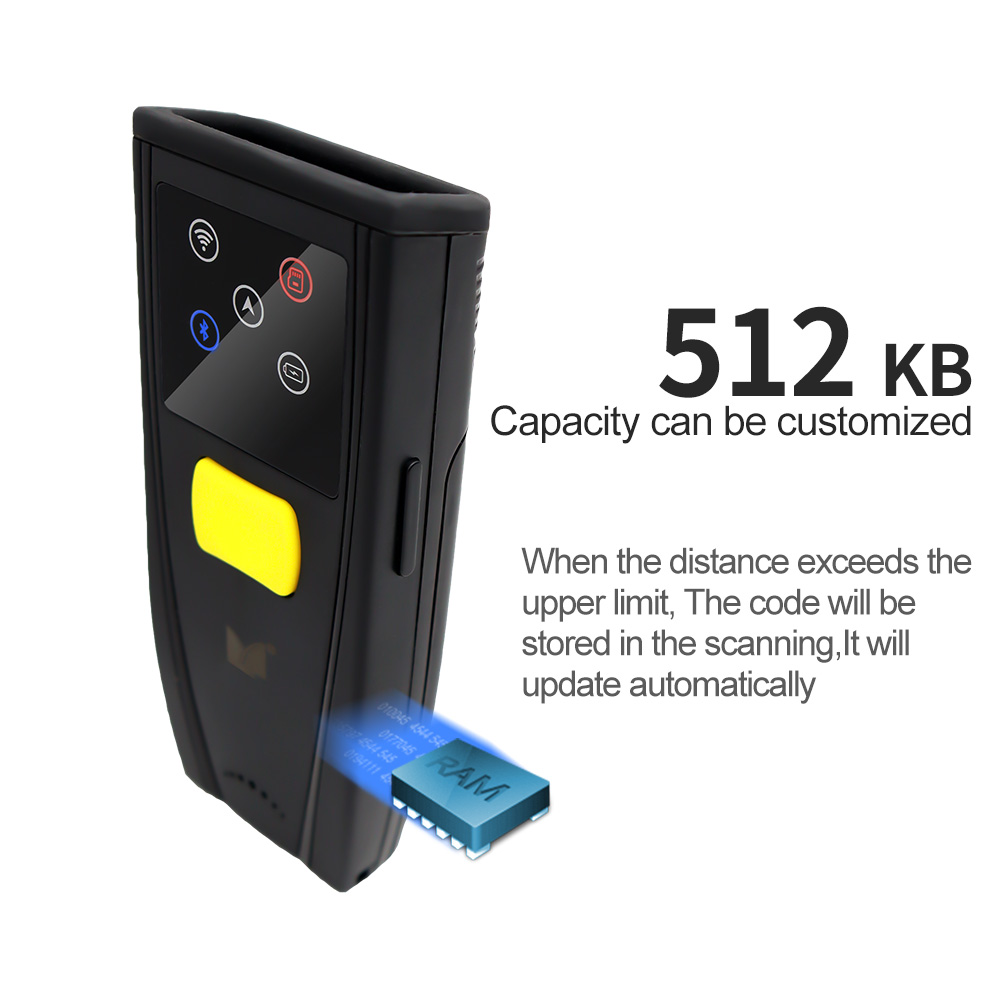

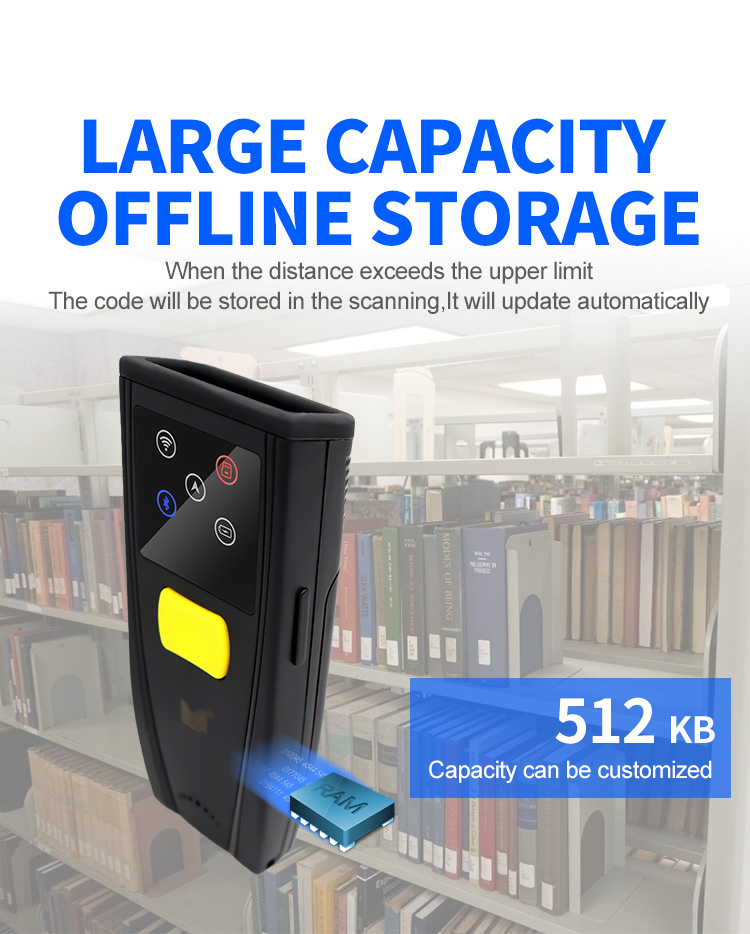

| storage | 512 KB（Capacity can be customized） | ||||||
| Light Source | 632nm Red light diode（LED） | ||||||
| Decoding speed | 500Times/second | ||||||
| Sensor | Linear CCD sensor 2500 point | ||||||
| Reading Mode | Image | ||||||
| Resolution | ≥4mil | ||||||
| Wireless transmission distance | 2.4G≤60m（Visual range） Bluetooth≤10m（Visual range） | ||||||
| Bit Error Rate | 1/5000000 | ||||||
| Trigger Mode | Manual ；Continuous scanning;Auto-sensing | ||||||
| Prompt Mode | Buzzer, Indicator Light,Vibration (can be set) | ||||||
| Scanning Distance | 10mm-600mm | ||||||
| Scan width | 5cm―15cm | ||||||
| Scanning Angel | Corner 30°、Elevation 65°、inclination 65° | ||||||
| Print Contrast | 25% | ||||||
| Charging time | appr.4h | ||||||
| Working time | appr.10h | ||||||
| Decoding Capability | Code25-Interleaved Code25-Standard Code25-Matrix Code39-Regular Code39-FullASCII Code32 Code93-Regular Code93-FullASCII Code128 EAN/GSL/UCC-128Auto Codabar MSI EAN/JAN-13 UPC-A JAN-8 Code11 UPCE0 Datalogic 25 | ||||||
| Scanning Depth | Code128 4.17mil : 5 -- 12 cm Code128 5.83mil : 5 -- 16 cm EAN-13 4.17mil : 3 -- 14 cm Code39 5.83mil : 5-- 18 cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 60℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 60℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||

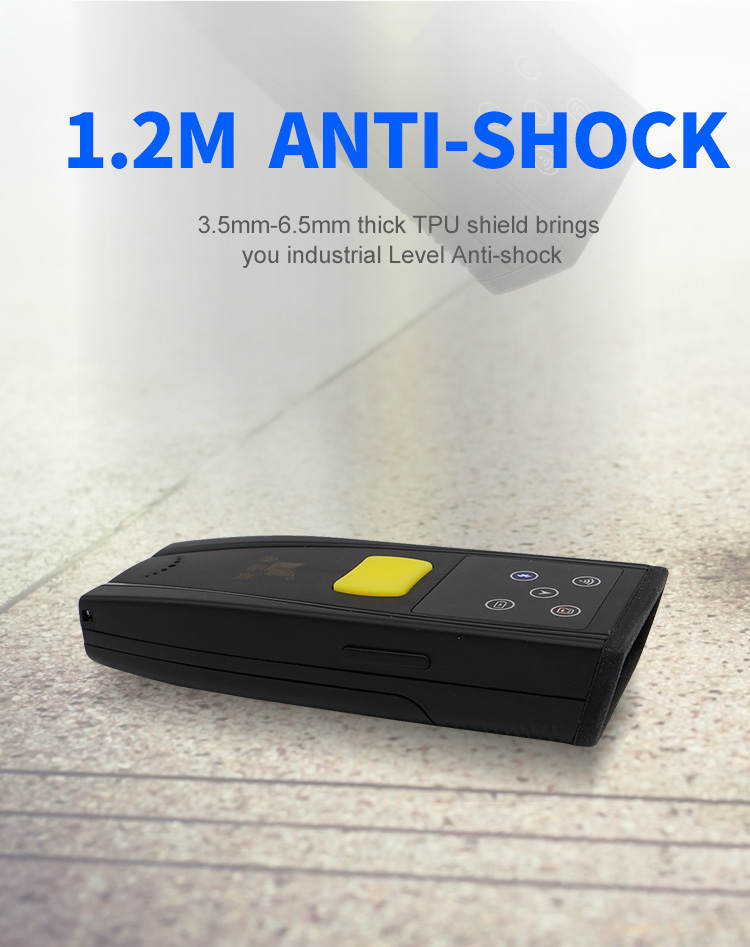

| Shock Resistance | 1.2m free fall on concrete surface | ||||||
| Ambient light | 0→100000Lux | ||||||
| International Certification | |||||||
| GT-780A Technical Parameter | |||||||
| Model | GT-780A | ||||||
| Item | Wireless CCD Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC | ||||||
| Power Supply | Charge DC 5V ±5% ； 3.7V 1000mA lithium battery | ||||||
| Operating Current | 114mA（working）;50mA（standby）;205mA（maximum） | ||||||
| Weight | 74g±5g（Without cable） | ||||||
| Size | L * W * H ：112.7 * 46.4 * 22.0（unit：mm） | ||||||
| Color | Black | ||||||
| Button Lifespan | ＞100000times | ||||||
| Performance Parameter | |||||||
| Interface | USB；2.4G；Bluetooth | ||||||
| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | English-United States；French-Canada；Dutch-Netherlands；Spanish-International；Latin American-Argentina；Portuguese-Brazil；Danish-Denmark；Italian-Italy 142；French-France；German-Germany；Portuguese-Portugal；Finnish-Finland；Turkish-F；Japanese； Russian-Russia；Northern Sami-Norway 【Support multi-country keyboard】 | ||||||
| Processor | 32-bit ARM MCU | ||||||
| storage | 512 KB（Capacity can be customized） | ||||||
| Light Source | 632nm Red light diode（LED） | ||||||
| Decoding speed | 500Times/second | ||||||
| Sensor | Linear CCD sensor 2500 point | ||||||
| Reading Mode | Image | ||||||
| Resolution | ≥4mil | ||||||
| Wireless transmission distance | 2.4G≤60m（Visual range） Bluetooth≤10m（Visual range） | ||||||
| Bit Error Rate | 1/5000000 | ||||||
| Trigger Mode | Manual ；Continuous scanning;Auto-sensing | ||||||
| Prompt Mode | Buzzer, Indicator Light,Vibration (can be set) | ||||||
| Scanning Distance | 10mm-600mm | ||||||
| Scan width | 5cm―15cm | ||||||
| Scanning Angel | Corner 30°、Elevation 65°、inclination 65° | ||||||
| Print Contrast | 25% | ||||||
| Charging time | appr.4h | ||||||
| Working time | appr.10h | ||||||
| Decoding Capability | Code25-Interleaved Code25-Standard Code25-Matrix Code39-Regular Code39-FullASCII Code32 Code93-Regular Code93-FullASCII Code128 EAN/GSL/UCC-128Auto Codabar MSI EAN/JAN-13 UPC-A JAN-8 Code11 UPCE0 Datalogic 25 | ||||||
| Scanning Depth | Code128 4.17mil : 5 -- 12 cm Code128 5.83mil : 5 -- 16 cm EAN-13 4.17mil : 3 -- 14 cm Code39 5.83mil : 5-- 18 cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 60℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 60℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||
| Shock Resistance | 1.2m free fall on concrete surface | ||||||
| Ambient light | 0→100000Lux | ||||||
| International Certification | |||||||
