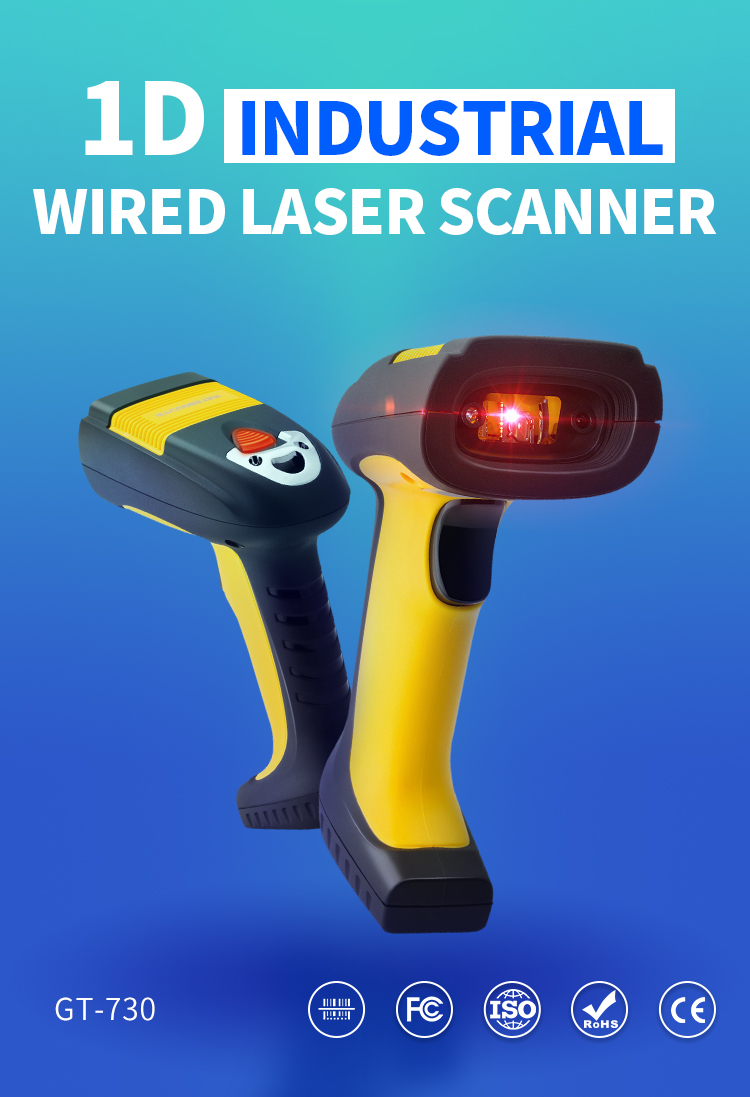

| GT-730 technical parameters | |||||||
| Product model | GT-730 | ||||||
| Product name | Industrial laser wired bar code scanning | ||||||
| Physical parameters | |||||||
| texture of material | ABS+PC+TPE | ||||||
| Power supply | DC 5V ±5% | ||||||
| power waste | 500MW (working);420mw (standby);650MW (peak) [average power consumption] | ||||||
| weight | 300 ± 5g (including wire) | ||||||

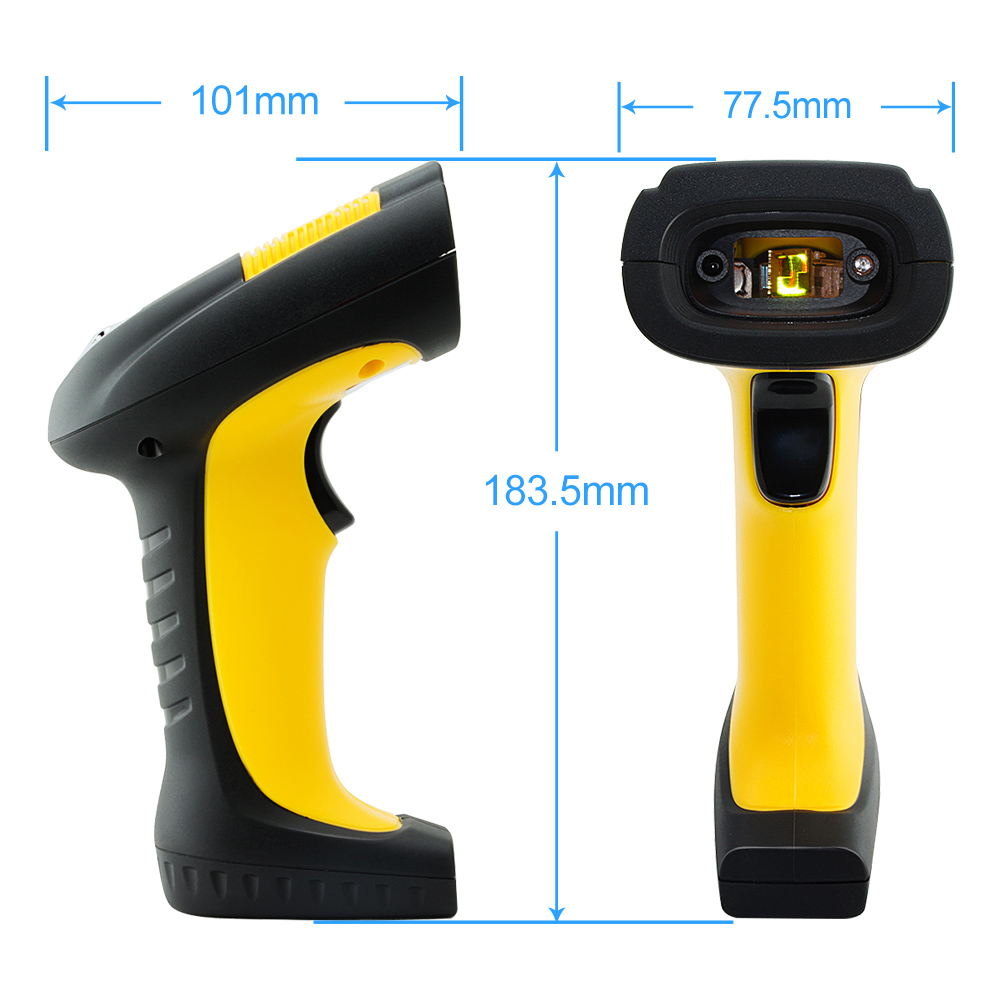

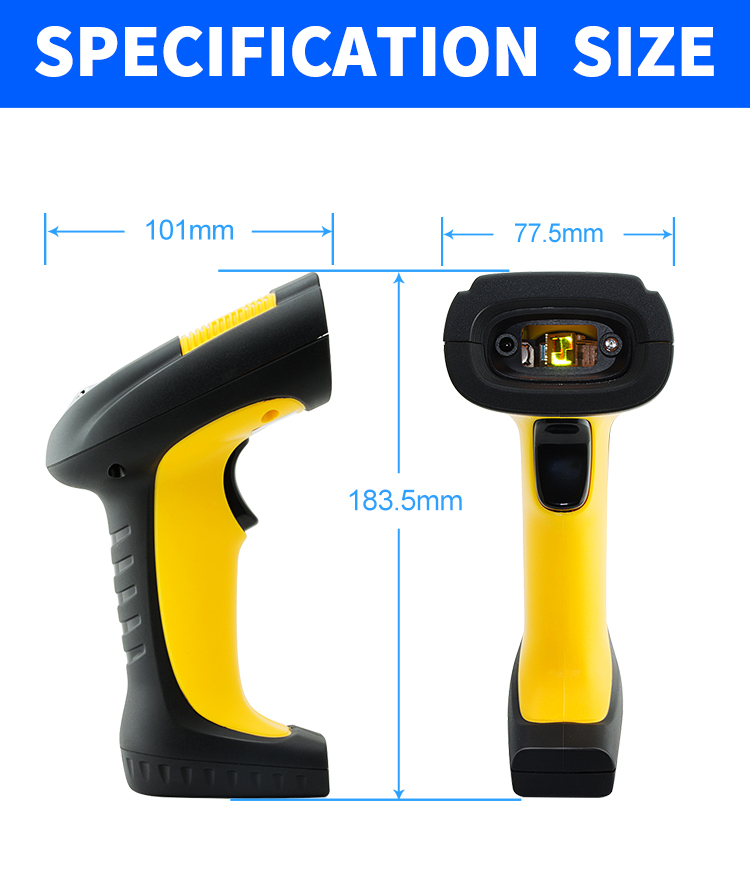

| size | Length * width * height: 183.5 * 101.0 * 77.5 (unit: mm) | ||||||
| colour | Yellow;Blue;Black ash;dark grey | ||||||
| Key life | > 100000 times | ||||||
| performance parameter | |||||||

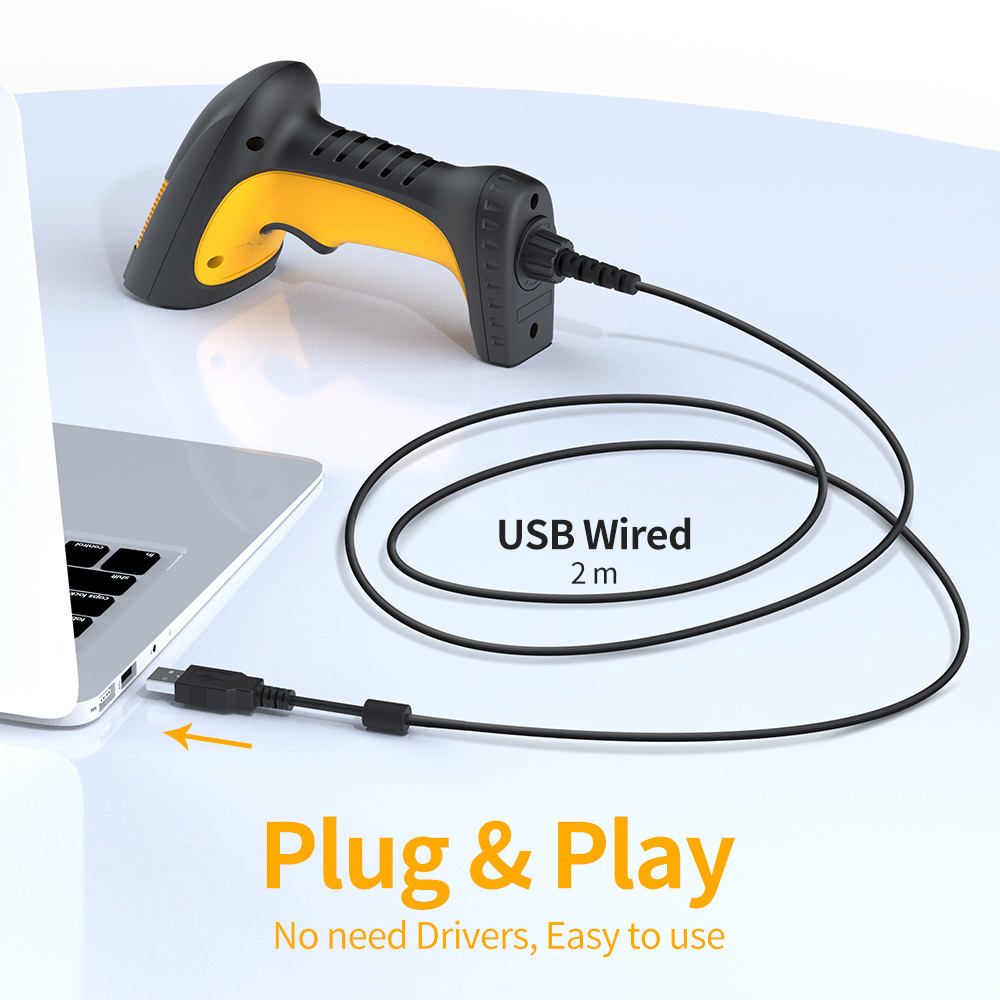

| Interface | USB；(RS232 can be customized) | ||||||

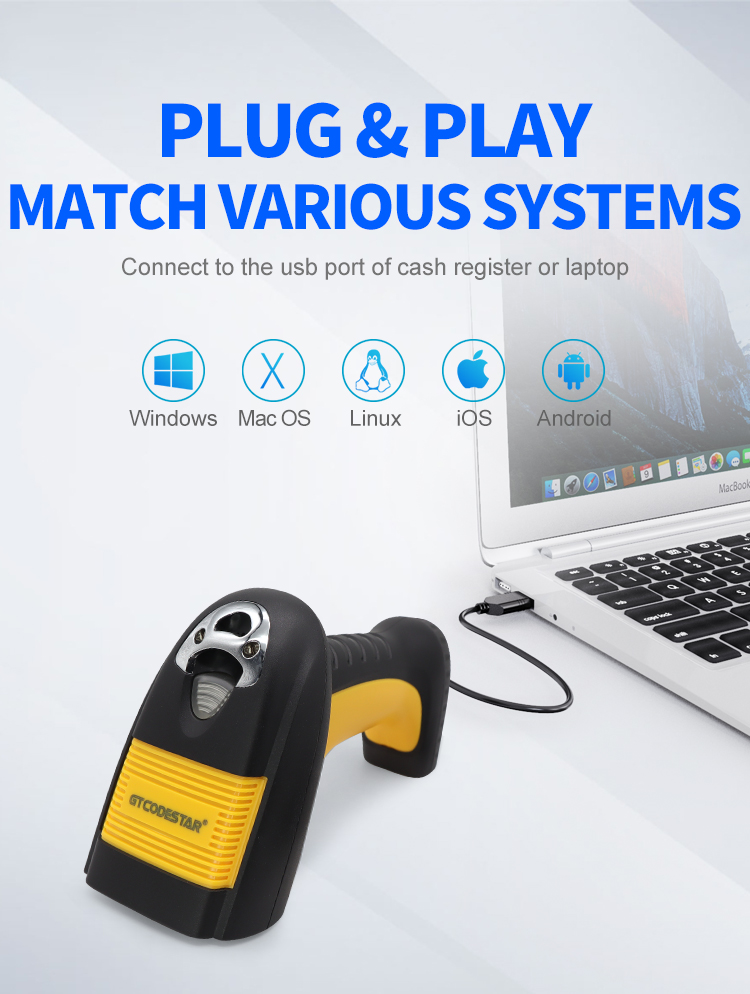

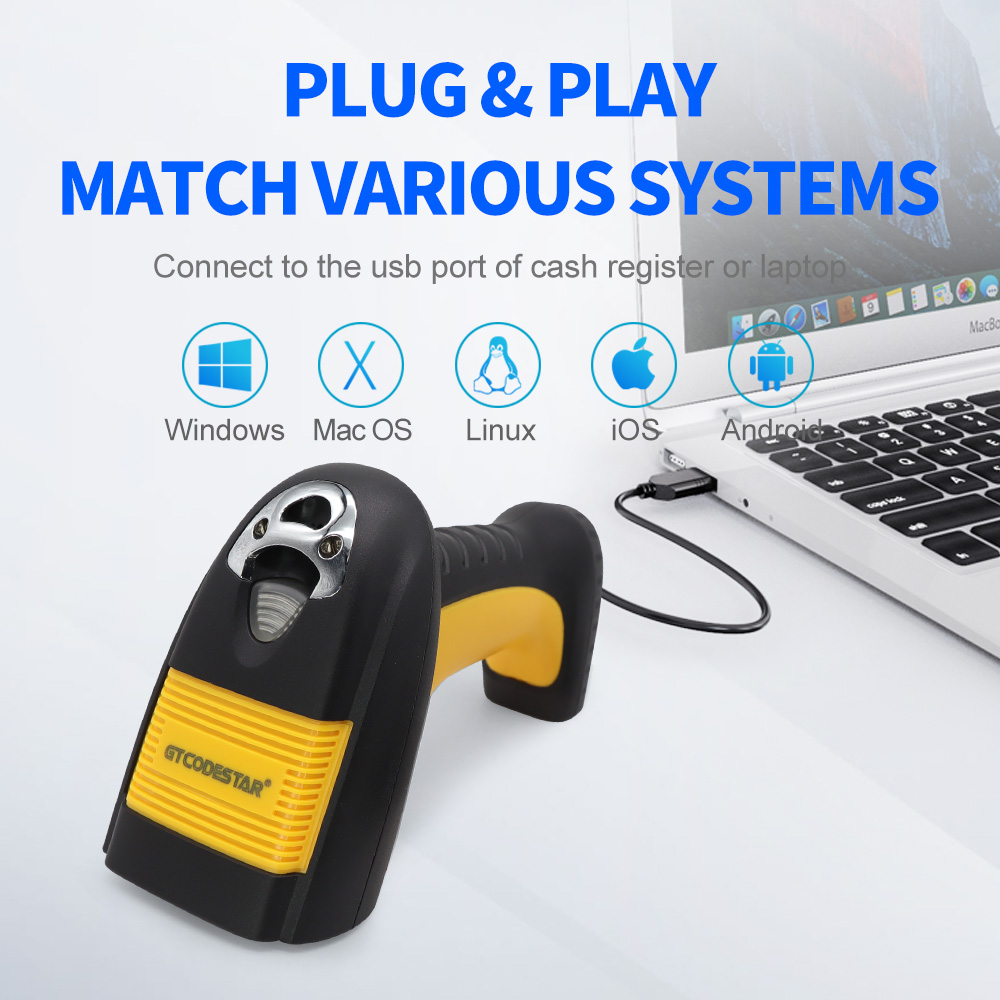

| System support | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language support | English;French;Dutch;Spanish (International);Italian (Italy 142);German | ||||||
| light source | Visible laser 650nm | ||||||
| resolving power | 4mil | ||||||
| error rate | 1 / 5 million | ||||||

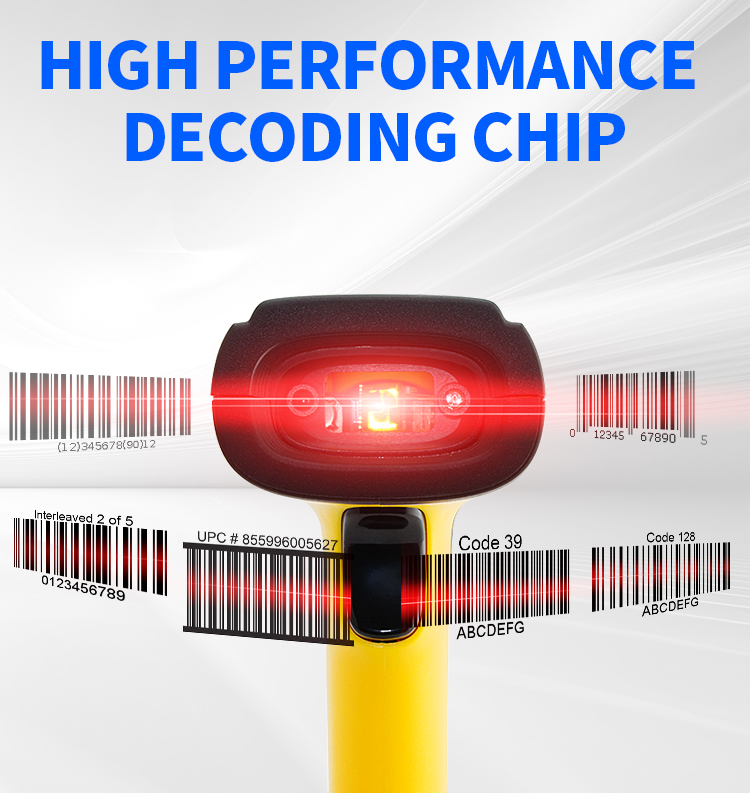

| Decoding speed | 300 times / S | ||||||
| Reading mode | laser | ||||||
| Trigger mode | Key trigger mode | ||||||
| Induction speed | 100 times / second | ||||||
| Code reading distance | 10mm-600mm | ||||||
| Scan width | 5cm―30cm | ||||||

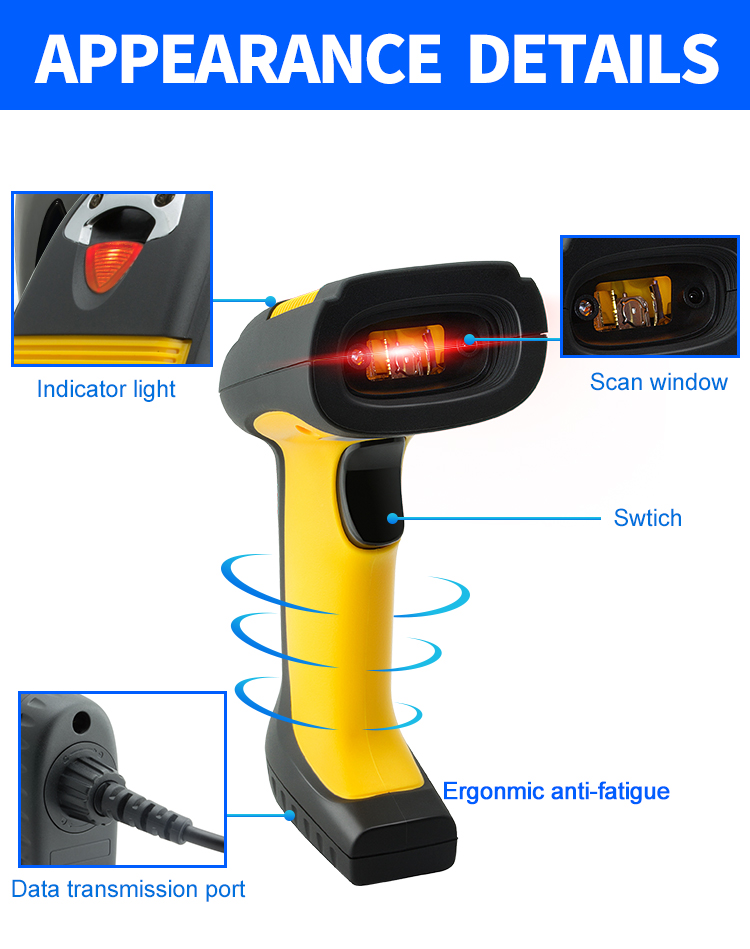

| Feedback mode | Buzzer + indicator (LED) | ||||||
| Print contrast | ≥30% | ||||||

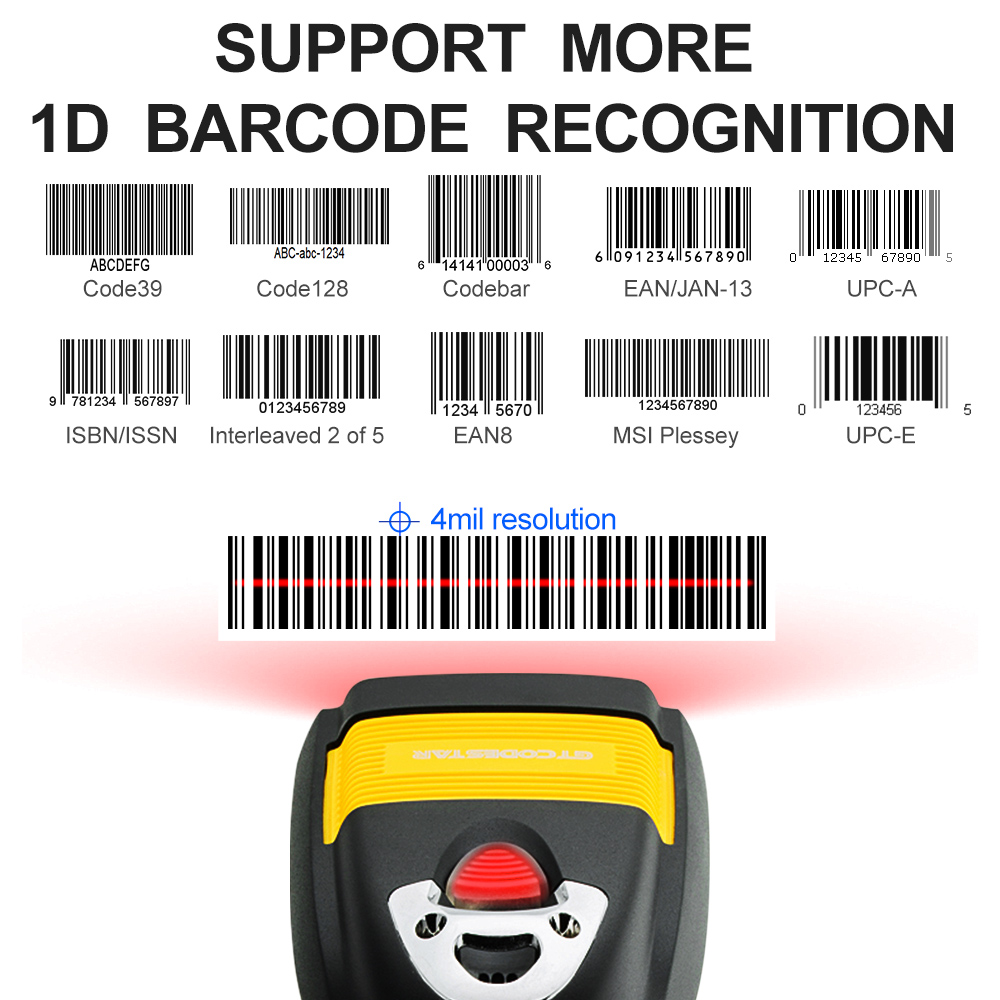

| Reading code system | ●Code25-Interleaved ●Code25-Standard ●Code25-Matri ●Code39-Regular ●Code39-FullASCII ●Code32 ●Code93-Regular ●Code93-FullASCII ●Code128 ●EAN/GSL/UCC-128Auto ●Codabar ●MSI ●EAN/JAN-13 ●UPC-A ●JAN-8 ●Code11 ●UPCE0 | ||||||
| Recognition angle | Angle 30 °;Elevation 75 °;Inclination 75 ° | ||||||
| Depth of field | Code39 4mil：3cm-7cm Code39 10mil：4cm-30cm | ||||||
| Environmental parameters | |||||||
| IP level | IP52 | ||||||
| Operating temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating humidity | 20% to 85% (no condensation) | ||||||
| Storage humidity | 20% to 85% (no condensation) | ||||||
| Electrostatic protection | 15kV air discharge | ||||||

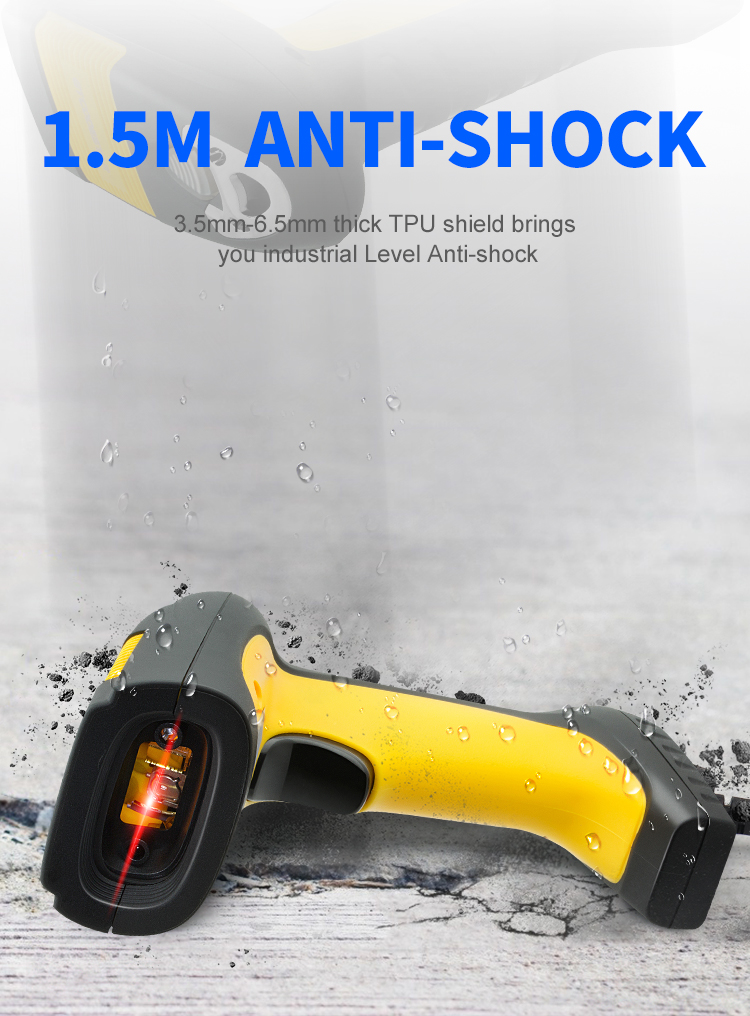

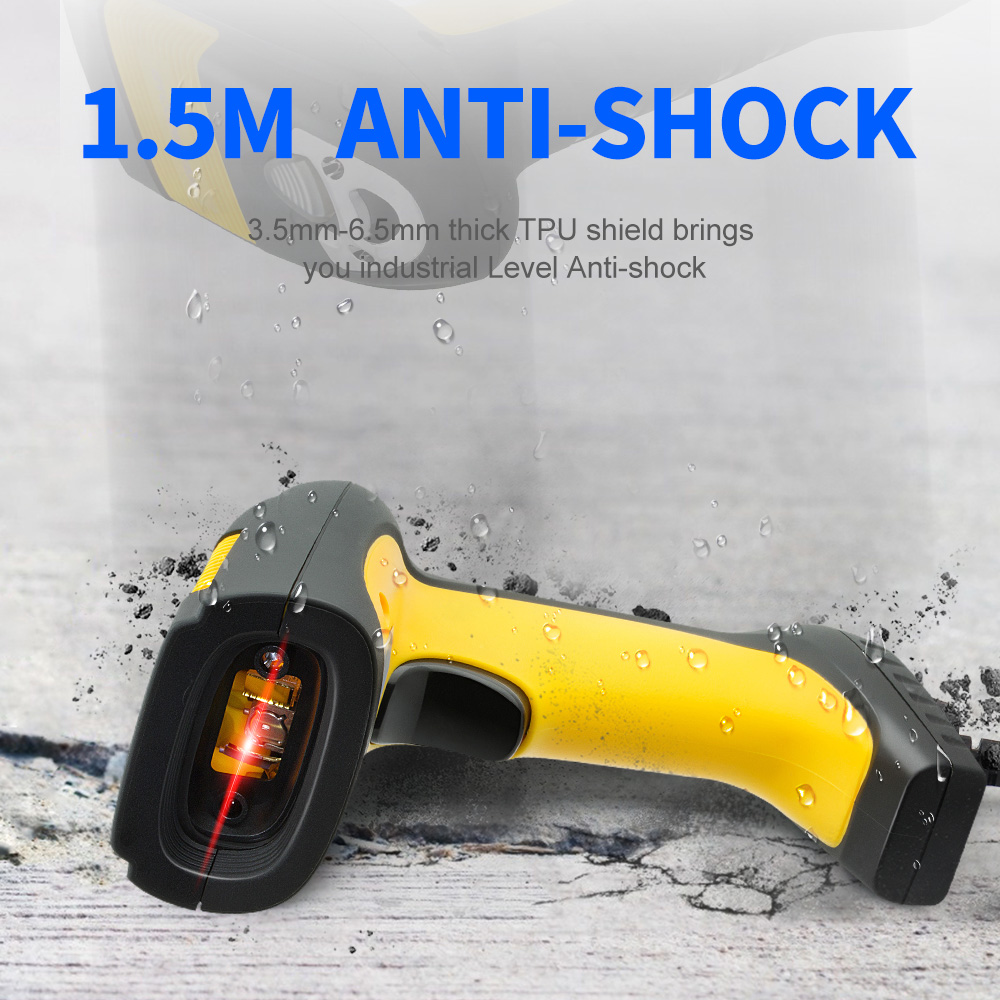

| Seismic capacity | Free fall 1.5m (concrete ground) | ||||||
| Solutions FAQ | |||||||||
| Q：Can not turn on or turn off immediately after turning on | |||||||||
| A：This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged) | |||||||||
| Q：Barcode data is not uploaded | |||||||||
| A：The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range) | |||||||||
| Q：There is a laser line, but can't read the bar code. | |||||||||
| A：Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual. | |||||||||
| Q：The scanned data is displayed incorrectly on the host | |||||||||
| A：Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center. | |||||||||
| Q：Other cases cannot be decoded | |||||||||
| A：It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again. |
