| Technical parameters of GT-7100C | |||||||

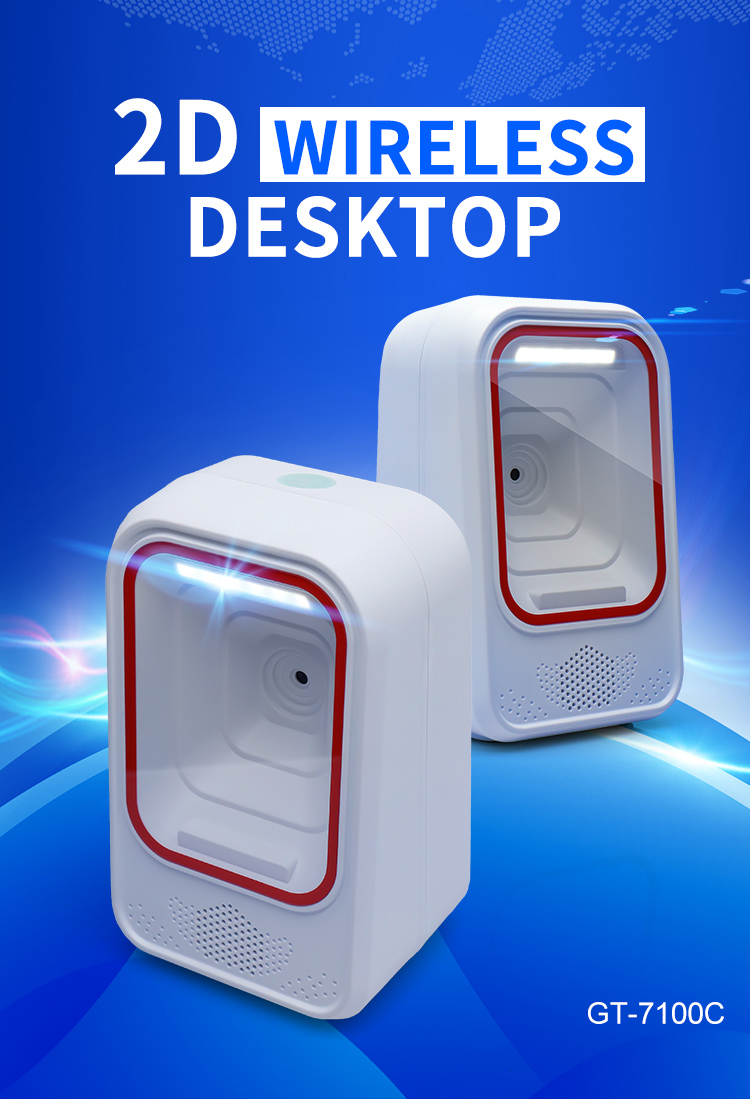

| Product model | GT-7100C | ||||||
| Product name | Two dimensional bar code scanning platform | ||||||
| Physical parameters | |||||||
| texture of material | ABS+PVC+PC | ||||||
| Power supply | Charging DC 5V ± 5%;Built in 3.7V 2000mA lithium battery | ||||||
| electric current | 410Ma (working);2mA (standby);750ma (maximum peak) [average current] | ||||||
| weight | 283g ± 5g (excluding wire) | ||||||

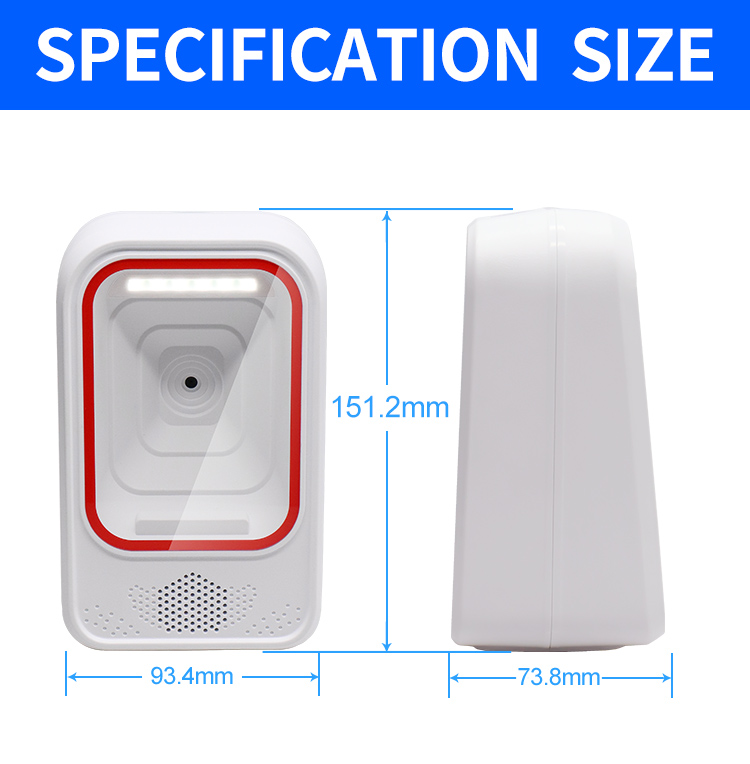

| size | Length * width * height: 93.4mm * 73.8mm * 151.2mm | ||||||
| colour | Black;white | ||||||
| Key life | > 100000 times | ||||||
| performance parameter | |||||||

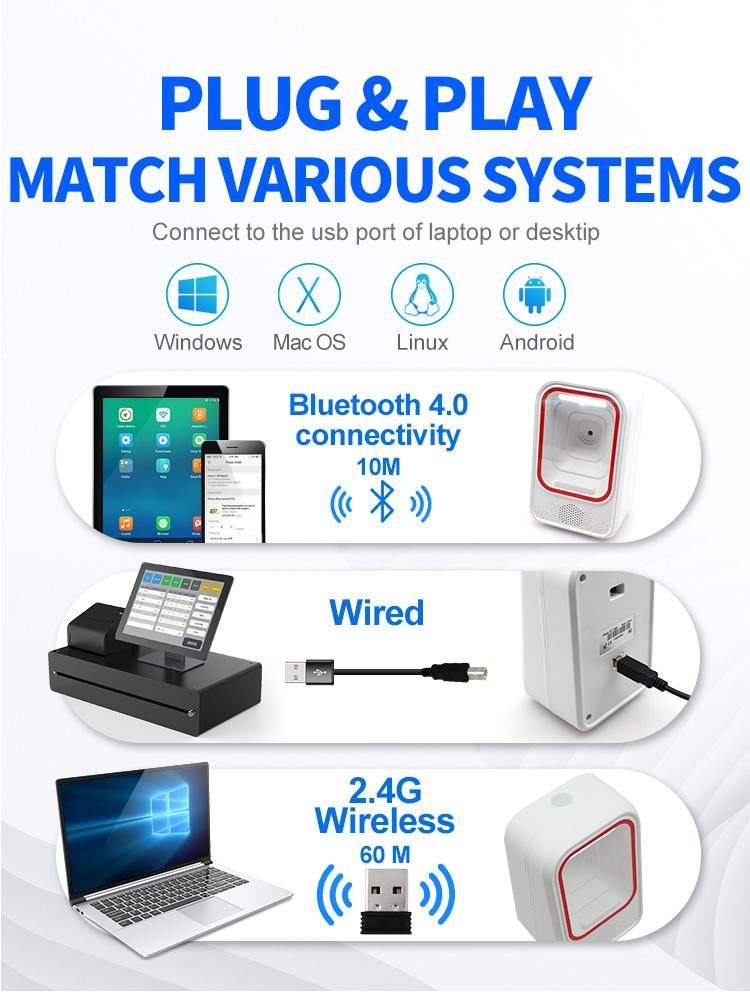

| Data upload | USB；2.4G；Bluetooth | ||||||
| System support | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language support | English - USA;French - Canada;Dutch - Netherlands;Spanish - International;Latin American - Argentina;Portuguese - Brazil;Danish - Denmark;English - UK;Italian - Italy 142;French - France;German - Germany;Portuguese - Portugal;Finnish - Finland;Turkish-f;Japanese; Russian Russian;North Sami - Norway [support multi-national keyboard] | ||||||
| sensor | one thousand two hundred and eighty×800 global exposure CMOS | ||||||
| processor | 32-bit ARM MCU | ||||||

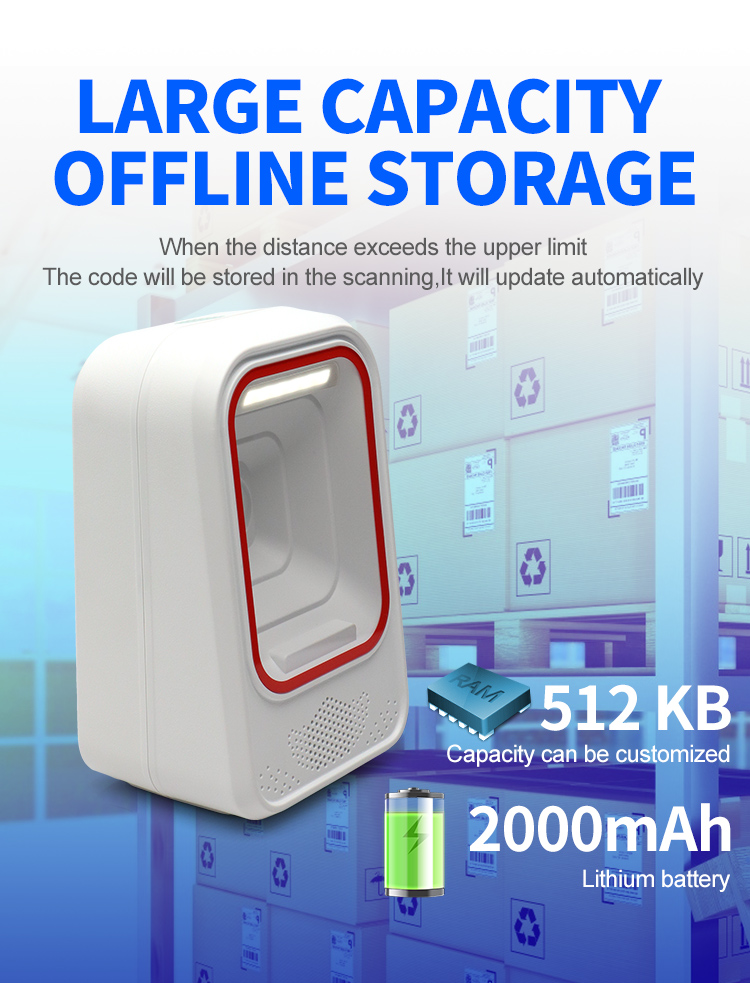

| storage space | 512 KB (customizable) | ||||||

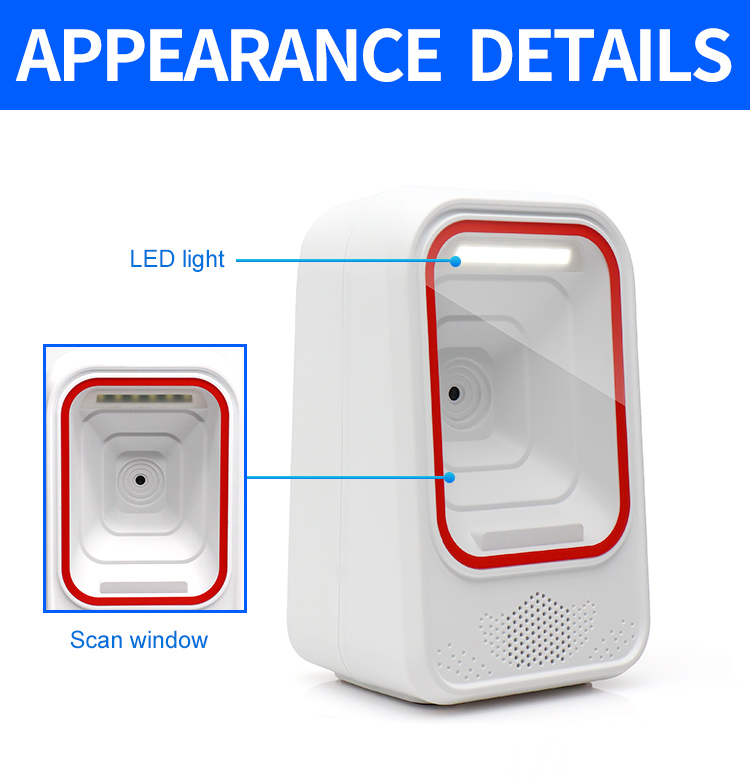

| light source | White LED lighting | ||||||
| Motion tolerance | Code128： 3.28m/sec QR： 3.56m/sec | ||||||

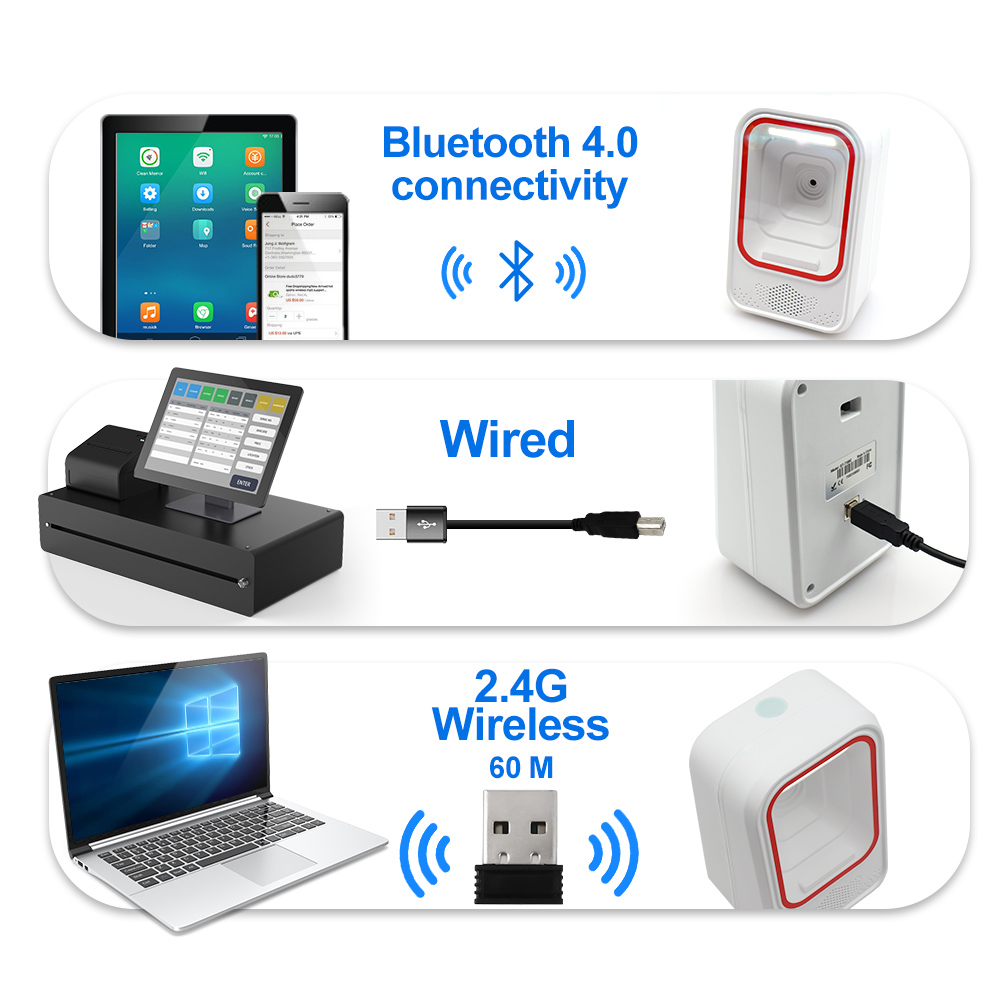

| Wireless transmission distance | 2.4G ≤ 60m (visual range) Bluetooth ≤ 10m (visual range) | ||||||
| Reading mode | image | ||||||
| resolving power | ≥5mil | ||||||
| error rate | 1 / 5 million | ||||||
| Reading mode | image | ||||||
| Trigger mode | Induction mode | ||||||
| Feedback mode | Horn + indicator | ||||||
| Recognition angle | Tilt ± 55 °, deflection ± 55 °, rotation 360 ° | ||||||
| Scan Distance | 10mm-500mm | ||||||
| Print contrast | 25% | ||||||
| Charging time | appr.5h | ||||||
| Working hours | appr.8h | ||||||
| 扫描速度 | 100 times/sec | ||||||

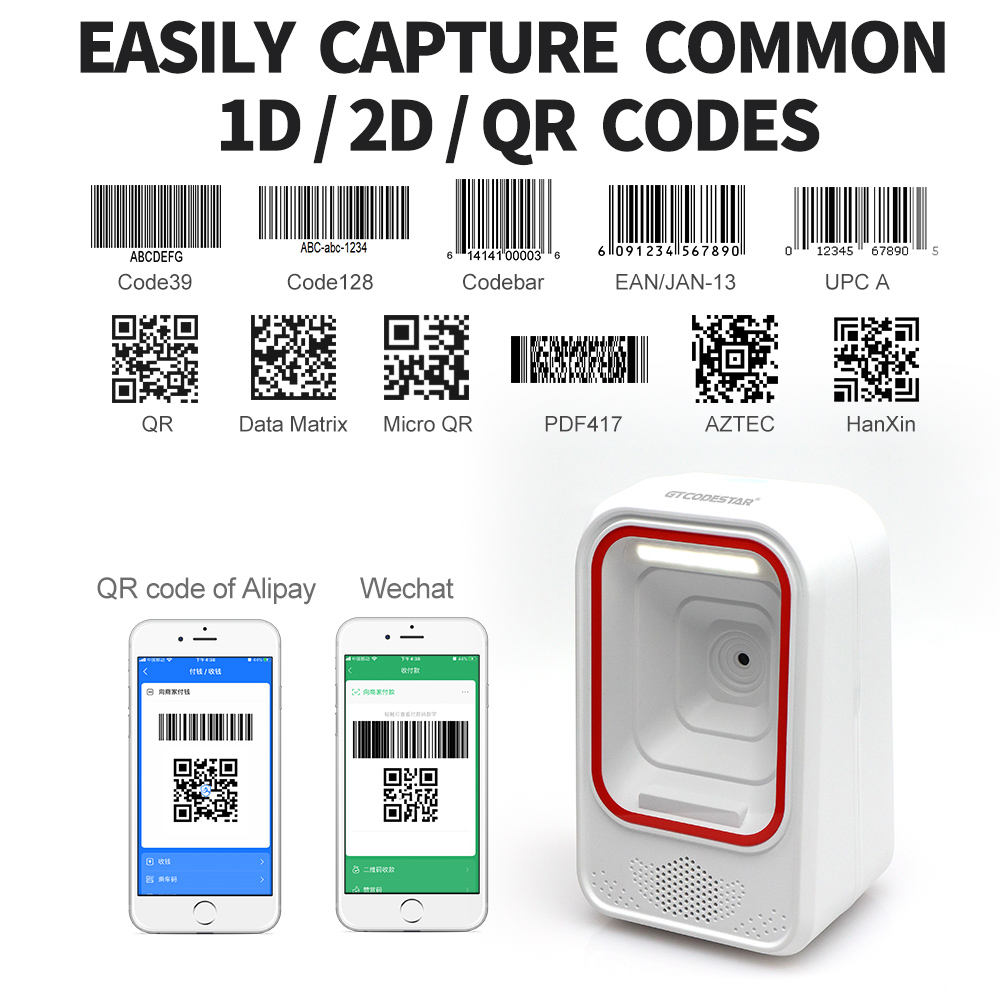

| Reading code system | 1D | ◎Interleaved 2 of 5 ◎ITF-6 ◎ITF-14 ◎ISBN ◎Code 11 ◎UCC/EAN-128 ◎GS1 Databar ◎Matrix 2 of 5 ◎Industrial 2 of 5 ◎Code 128 ◎EAN-13 ◎EAN-8 ◎Code 39 ◎UPC-A ◎UPC-E ◎Codabar ◎Standard 2 of 5 ◎Plessey ◎MSI-Plessey ◎Code 93 ◎GS1 composite code | |||||
| 2D | ◎PDF417 ◎Data Matrix ◎QR Code ◎HanXin ◎AZTEC ◎Maxicode ◎Micro QR ◎Micro PDF417 | ||||||
| Depth of field | Wechat payment QR Code: 60mm - 500mm Wechat payment one-dimensional code: 100mm - 350mm Qr10.83mil 16 bytes: 10mm - 90mm QR 15.83mil 16 bytes: 10mm - 150mm Code39 9.17mil 15 bytes: 60mm - 120mm | ||||||
| Environmental parameters | |||||||
| IP level | IP52 | ||||||
| Operating temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating humidity | 20% to 85% (no condensation) | ||||||
| Storage humidity | 20% to 85% (no condensation) | ||||||
| Electrostatic protection | 15kV air discharge | ||||||
| Seismic capacity | Free fall 1.5m (concrete ground) | ||||||
| Ambient light | 0→100000Lux | ||||||
| Solutions FAQ | |||||||||

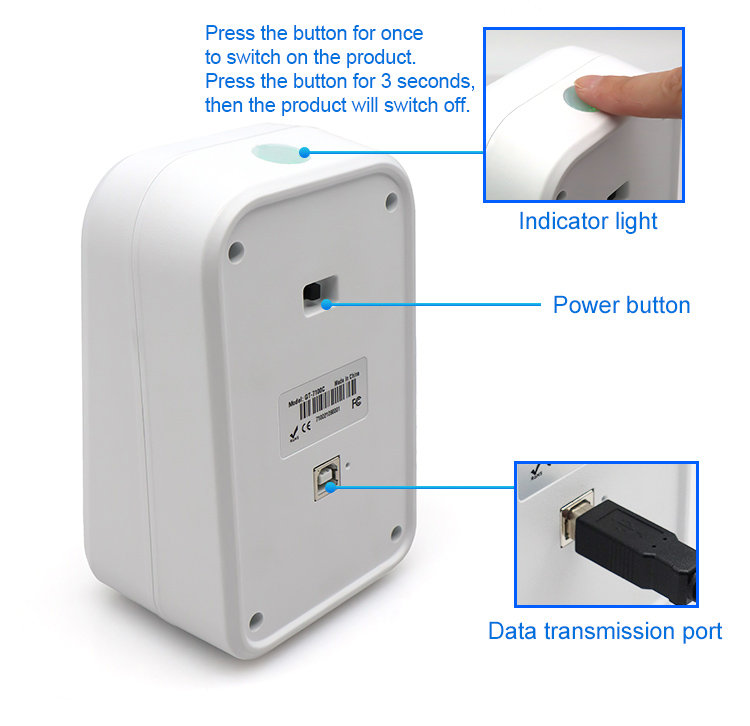

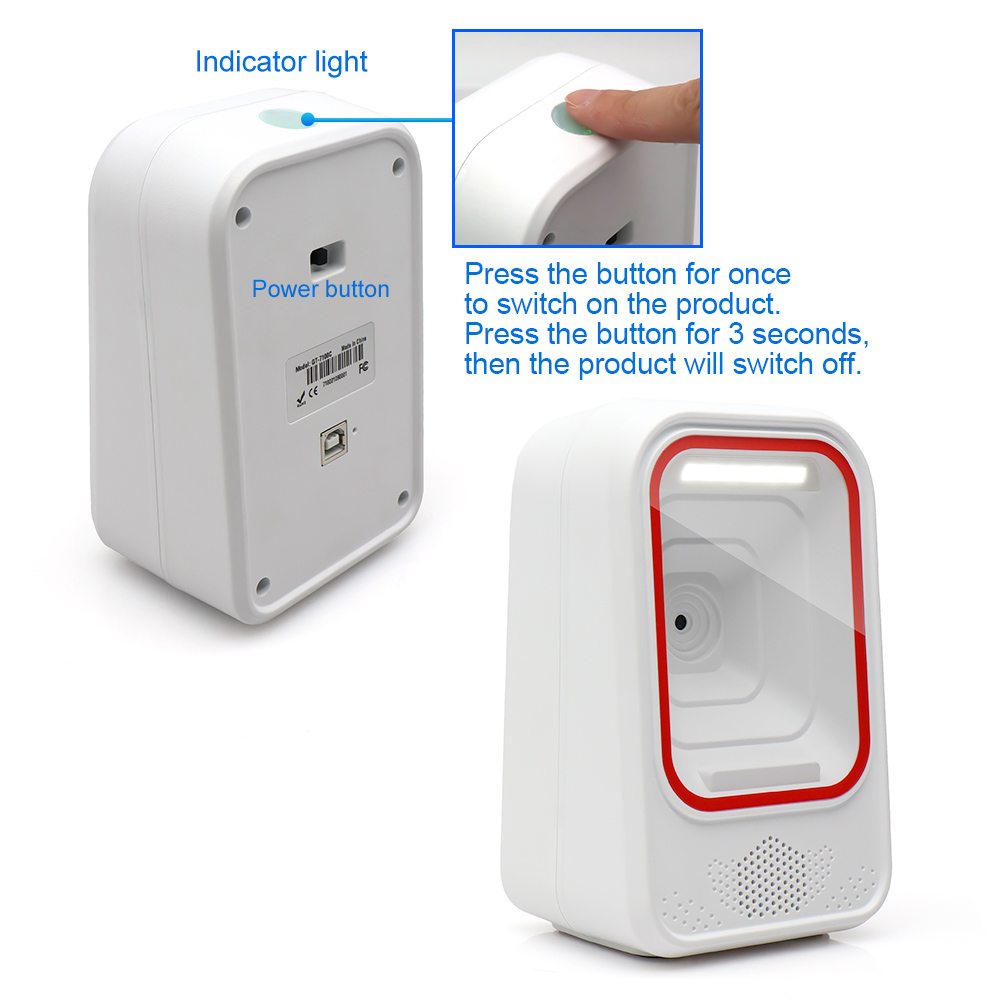

| Q：Can not turn on or turn off immediately after turning on | |||||||||
| A：This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged) | |||||||||
| Q：Barcode data is not uploaded | |||||||||
| A：The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range) | |||||||||
| Q：There is a laser line, but can't read the bar code. | |||||||||
| A：Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual. | |||||||||
| Q：The scanned data is displayed incorrectly on the host | |||||||||
| A：Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center. | |||||||||
| Q：Other cases cannot be decoded | |||||||||
| A：It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again. |
