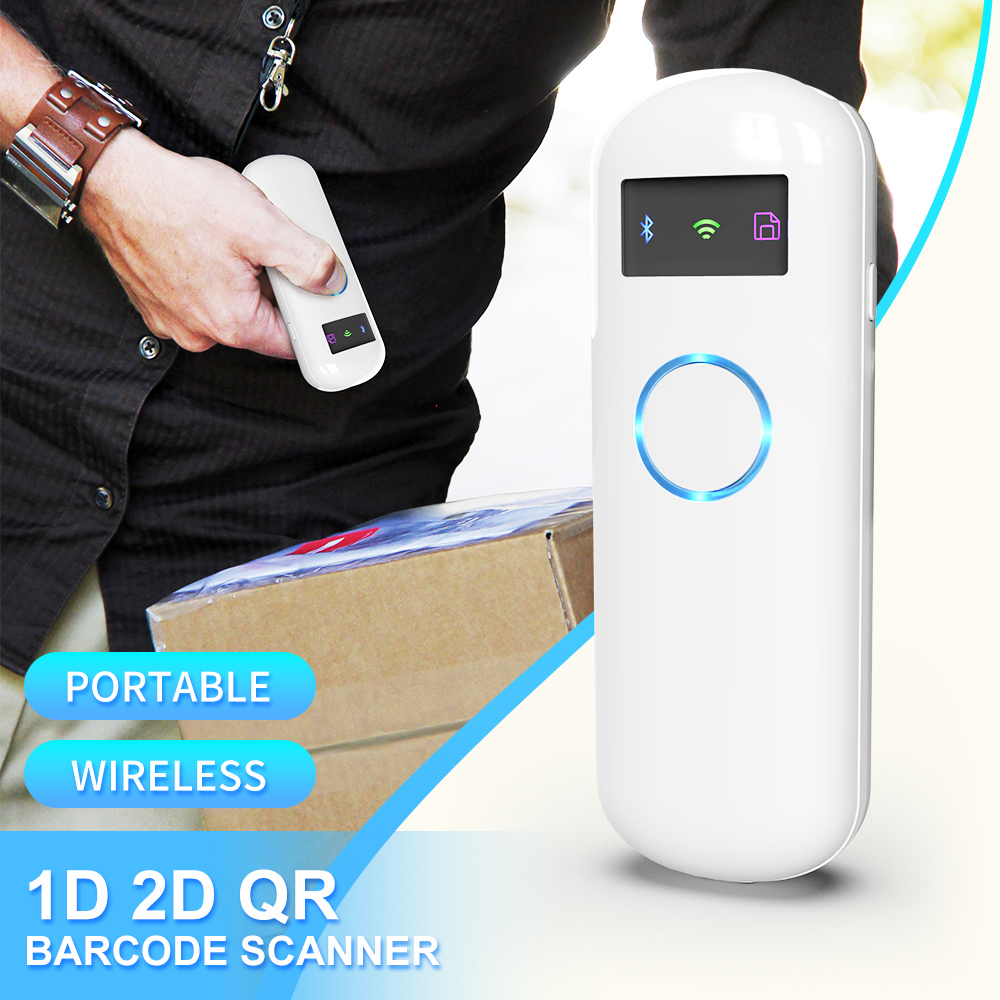

GTCODESTAR 2D Mini Barcode Scanner Portable Wireless Barcode Reader QR Code Scanner Bluetooth Scanning Gun for Supermarket
| GT-265A Technical Parameter | |||||||
| Model | GT-265A | ||||||
| Item | Wireless 2D Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS + PC | ||||||
| Power Supply | DC 5V ±5% ； 3.7V 1000mA lithium Battery | ||||||
| current | 0.41W（Working）; 0.20W（Stand by）; 0.75W（Maximum） | ||||||
| Weight | 77g±3g（Without Cable） | ||||||

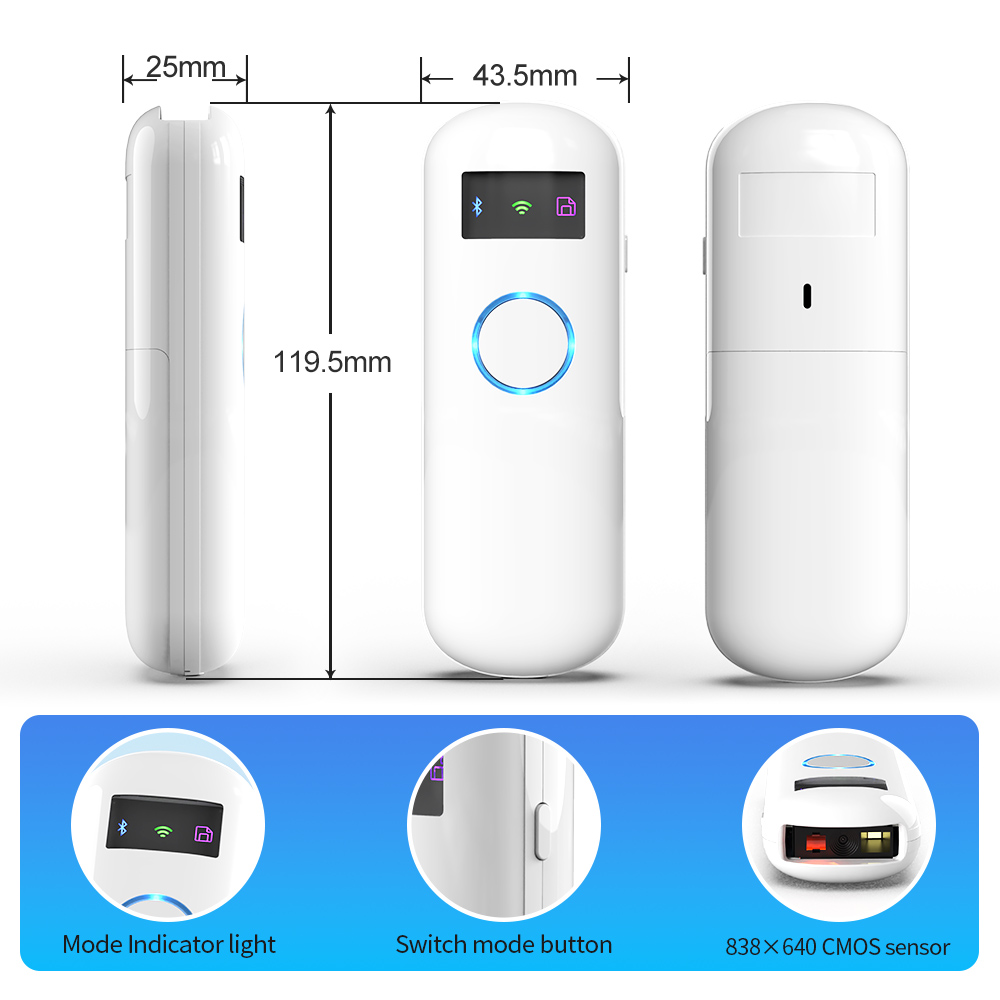

| Size | L * W * H：119.5 *43.5 * 25.5（Unit：mm） | ||||||
| Color | white | ||||||
| Button life | ＞100000 | ||||||
| Performance Parameter | |||||||
| Interface | USB；2.4G；Bluetooth | ||||||
| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | English US; French Canada; Dutch Netherlands; Spanish International; Latin American Argentina; Portuguese Brazil; Danish Denmark; English UK; Italian Italy 142; French France; German Germany; Portuguese Portugal; Finnish Finland; Turkish F; Japanese; Russian - Russia; Northern Sami - Norway [Supports keyboards from multiple countries] | ||||||
| Sensor | 838×640 CMOS | ||||||
| Processor | 32-bit ARM MCU + BGA | ||||||
| Storage | 512 KB（Capacity can be customized） | ||||||
| Light Source | White LED lighting+green LED positioning | ||||||
| Motion Tolerance | Code128： 35cm/sec QR： 45cm/sec | ||||||
| Wireless transmission distance | 2.4G≤90m（Visible range） Bluetooth≤60m（Visible range） | ||||||
| Reading Mod | Image | ||||||
| Resolution | ≥5mil | ||||||
| Bit error rate | 1/5000000 | ||||||

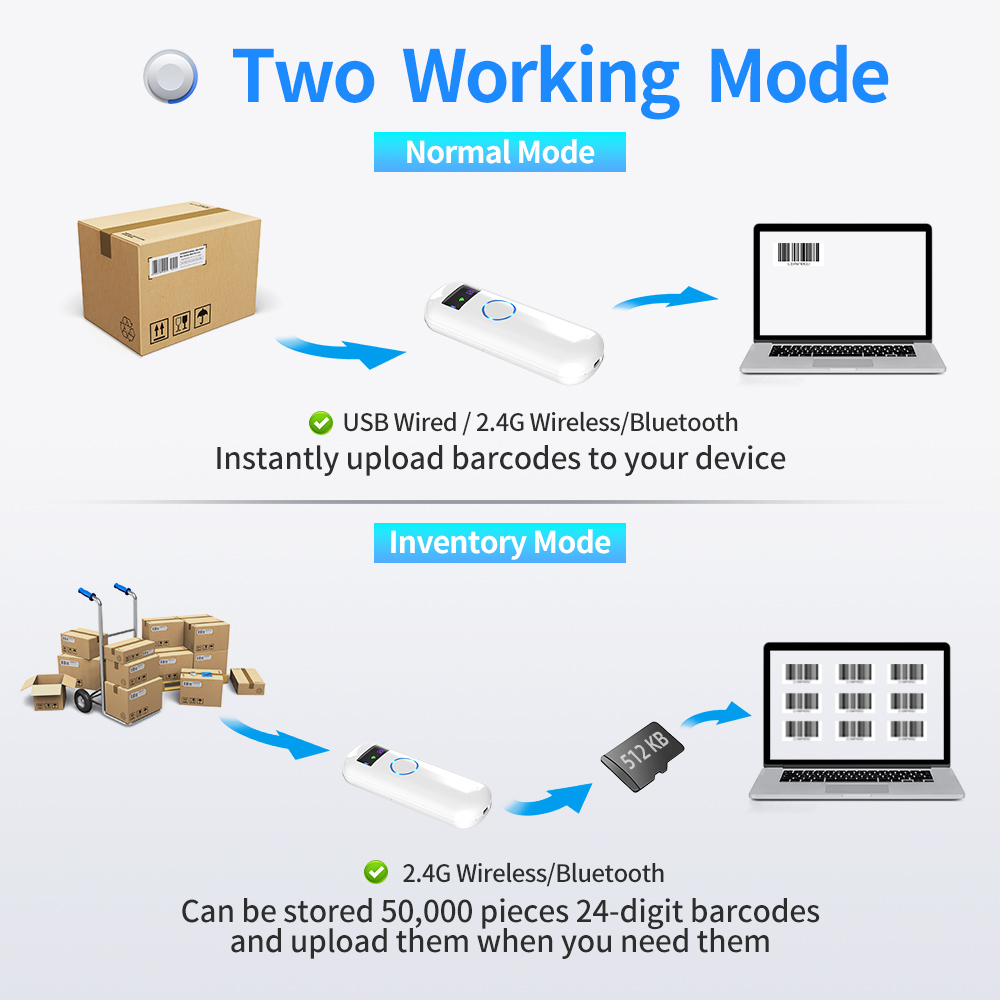

| Key function | 1. Side button (double-click to enter storage mode+long press for 8 seconds to shut down) 2. Main button (click scan mode+long press for 10 seconds to enter Bluetooth mode) | ||||||
| Trigger Mode | Key triggered mode; Continuous scanning mode; Self sensing mode | ||||||
| Prompt Mode | Buzzer+indicator light+vibration | ||||||
| Scaning Angle | Corner 360 °, horizontal ± 60 °, vertical ± 60 ° | ||||||
| Scan Distance | 2cm-300cm | ||||||
| Print Contrast | ≥25% | ||||||
| Charging Time | appr.4h | ||||||
| Working Time | appr.20h | ||||||
| Decoding Capability | 1D | ◎Interleaved 2 of 5 ◎ITF-6 ◎ITF-14 ◎ISBN ◎Code 11 ◎UCC/EAN-128 ◎GS1 Databar ◎Matrix 2 of 5 ◎Industrial 2 of 5 ◎Code 128 ◎EAN-13 ◎EAN-8 ◎Code 39 ◎UPC-A ◎UPC-E ◎Codabar ◎MSI-Plessey ◎Code 93 | |||||
| 2D | ◎PDF417 ◎Data Matrix ◎QR Code ◎AZTEC ◎Micro QR ◎Micro PDF417 | ||||||
| Scanning Depth | Code39 5mil：5cm - 12cm QR 15mil：3cm - 25cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||
| Shock Resistance | Free Fall 1.5m（concrete surface） | ||||||
| Ambient light | 0→100000Lux | ||||||
1. How about the quality?
Professional QC team and testing machine(Engine age testing,wire bending machine,switch life testing,shock resistance testing).All the products pass CE,FCC,ROSH,FDA etc.
2. Why so competitive?
With almost 10 years experience,we owned a large domestic market in China.We are the best seller in China.So large quantity will reduce our raw material cost directly.What's more,we have mature technology to save cost.
3. How to control the performance stable?
We take the flow line production in the whole processing.Every product will test 4 times at least before it delivery.
4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
5. Why customer choose us?
ISO9001&ISO14001 factory with strictly quality control system.Prompt after-sales service.
6. How about the factory?
We have more than 200 workers with advanced dust-free plant.We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields.
