| Performance Parameter | |||||||
| Power Supply | DC 5V ±5% | ||||||
| Current | 170mA（working） ；88mA（ standby） ；200mA（ maximum）【Average】 | ||||||
| Weight | 182g ± 3g（ Including wire） | ||||||

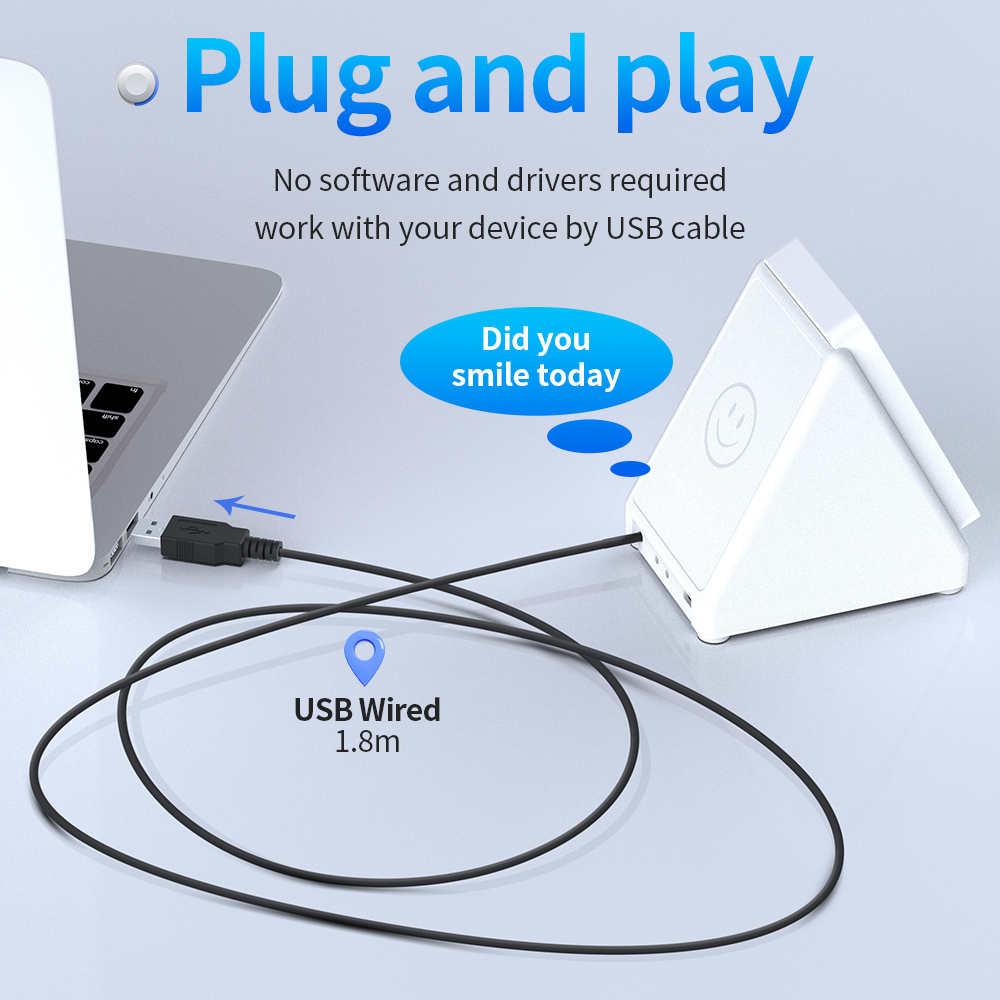

| Interface | USB； USB COM； RS232（ customizable） | Error Rate | 1/5000000 | ||||
| Sensor | Flat CMOS sensor | Reading mode | Image | ||||
| Light source | White LED lighting | Resolution | ≥5mil | ||||
| Processor | 32-bit ARM MCU + DSP | Print contrast | ≥25% | ||||
| Motion Tolerance | Code 128:20cm/sec QR:25cm/sec | ||||||

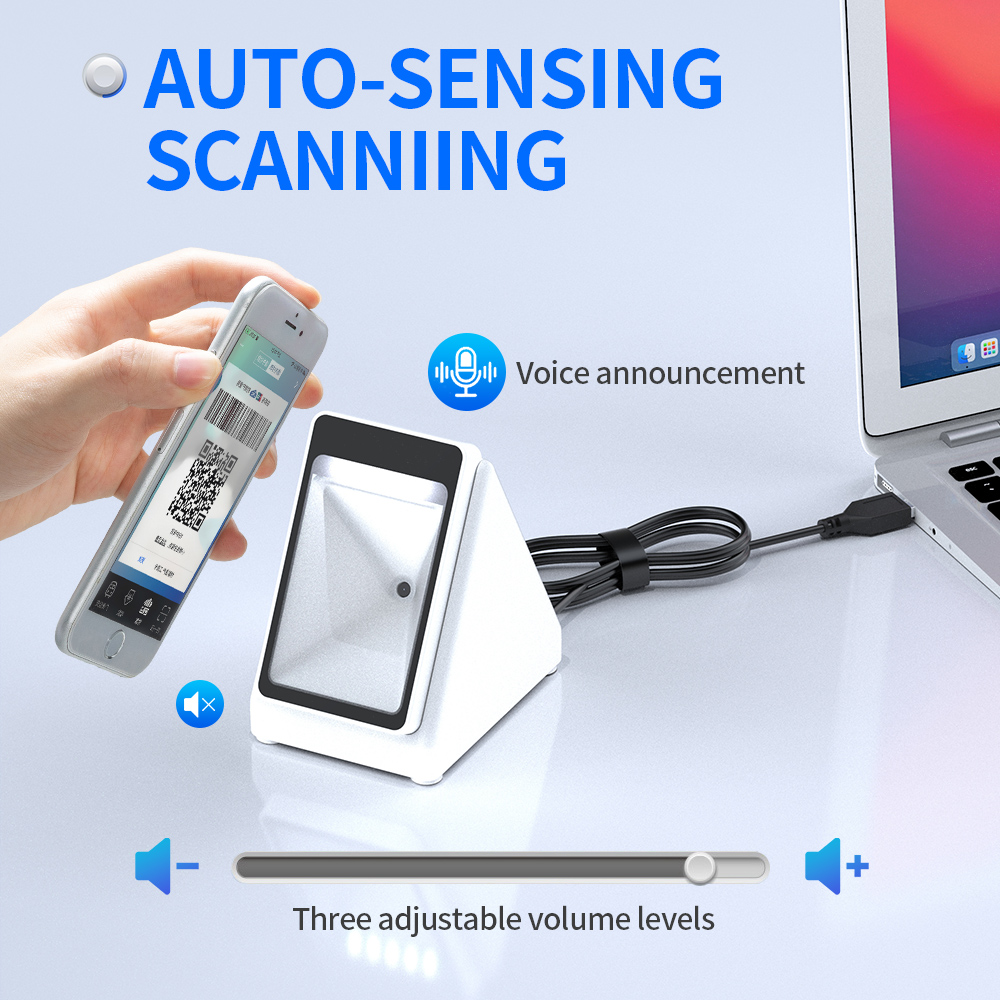

| Triggle Mode | Auto-sensing | ||||||
| Scanning Angle | Rotation 360° , elevation 32° , deflection 24° | ||||||
| Language supported | English; Czech; French; German; Hungarian; Italian; Japanese; Spanish; Turkish Q; Turkish F; Latin American (Mexico)【Virtual Keyboard】 | ||||||
| Decoding Capability | 1D： ● Code25-Interleaved | ● Code25-Standard |  ● Code25-Matri | 2D： ● Data Matrix | |||
| ● Code39-Regular | ● Code93-Regular | ● Code128 | ● QR | ||||
| ● Code11 | ● UPCE0/E1 | ● EAN/JAN-13 | ● PDF417 | ||||
| ● UPC-A | ● JAN/EAN-8 | ● Compact PDF417 | |||||
| Scanning Depth | Paper: QR 15.83mil（ 8 byte） : 1 - 8 cm EAN13 10mil ： 1 - 12cm | ||||||
| Mobile payment code: WeChat payment code： 1 - 30 cm Bus Ride Code： 2 - 23 cm | |||||||
| Physical Parameter | |||||||
| Material | ABS | Feedback method | Voice announcement | ||||

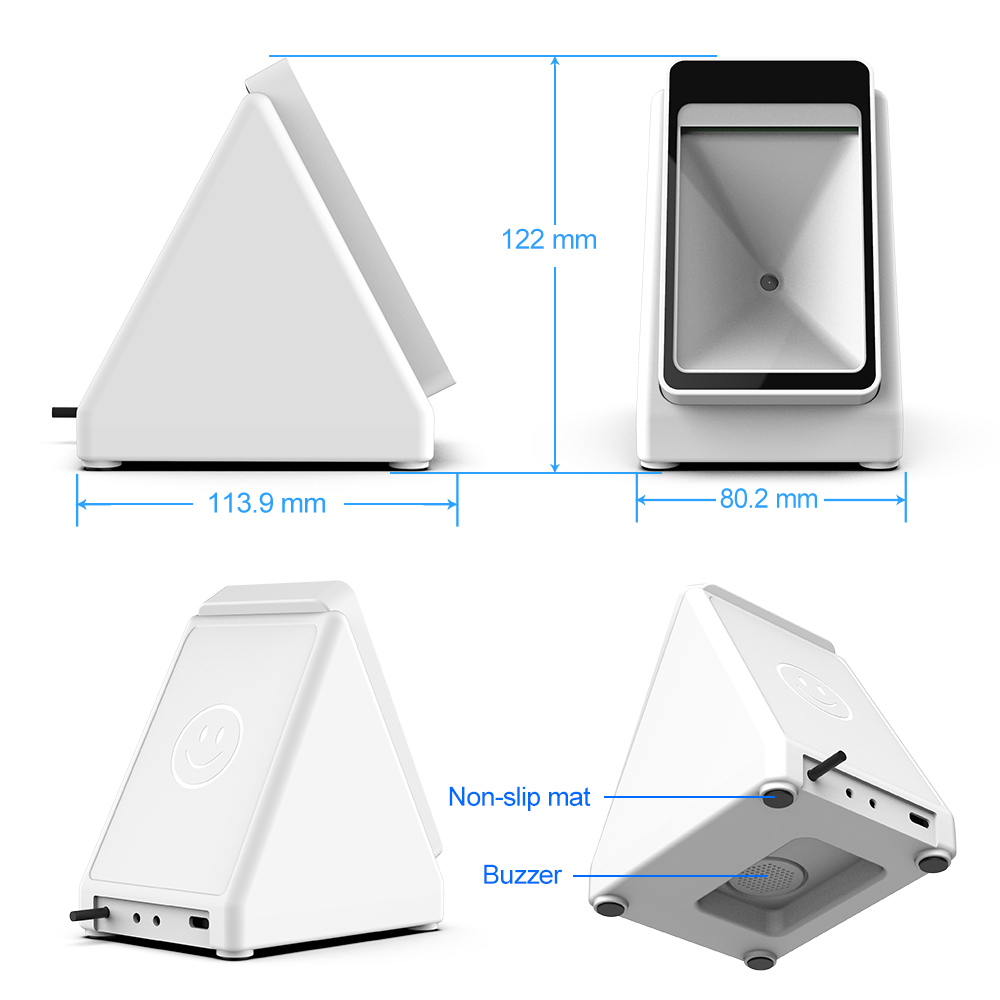

| Size | L*W*H ：80.2 * 113.9 * 122（mm） | Ambient light | 0~ 100000LUX | ||||
| System Supported | Linux ，Android ，MAC ，Windows | IP Grade | IP52 | ||||
| Color | White ，Black | Shock Resistance | Free fall 1.5m (concrete floor) | ||||
| Solutions FAQ | |||||||||
| Q：Can not turn on or turn off immediately after turning on | |||||||||
| A：This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged) | |||||||||
| Q：Barcode data is not uploaded | |||||||||
| A：The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range) | |||||||||
| Q：There is a laser line, but can't read the bar code. | |||||||||
| A：Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual. | |||||||||
| Q：The scanned data is displayed incorrectly on the host | |||||||||
| A：Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center. | |||||||||
| Q：Other cases cannot be decoded | |||||||||
| A：It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again. |
